| Featured Space and Satellite Products |
|
|
| 8.4-12.5 GHz Passive GaAs MMIC Bandpass Filter | |
Space Qualified RF Filter
from Marki Microwave
|
| The MFBA-00004BH from Marki Microwave is a Passive MMIC Bandpass Filter with a passband from 8.4-12.5 GHz. It has a center frequency of 10.19 GHz with an insertion loss of 2.29 dB and provides a rejection of better than -20 dB. This BPF provides a return loss of 23 dB and has a group delay of 578 ps. This MMIC filter is available in a connectorized housing that measures 30.1 x 9.5 mm and has a 2.92 mm (female) connector. |
| |
Download Datasheet
Product Details | |
|
|
|
| 40 Wh CubeSat Battery for LEO Missions | |
Satellite Battery
from AAC Clyde Space
|
| The OPTIMUS-40 from AAC Clyde Space is a Satellite Battery with a capacity of 40 Wh. This battery has a charge/discharge current of 2.6 A and a charge/discharge rate of 1.53 (fraction of capacity), discharge voltage limit. It has a minimum discharge voltage limit of 6.2 V and a maximum charge voltage limit of 8.4 V. The battery has a quiescent power consumption of less than 0.1 W. The battery has a mass of 335 g and measures 95.89 x 90.17 x 27.35 mm. |
| |
Download Datasheet
Product Details | |
|
|
|
| OnBoard Computer for Global Satellite Applications | |
Satellite On-Board Computer (OBC)
from Airbus
|
| The Amethyst from Airbus is a Satellite On-Board Computer (OBC) based on a high-performance ARM processor designed for safety-critical applications. This OBC has a 192 MBytes SDRAM CPU with error detection and 64 MBytes SDRAM IO with ECC. It interfaces with AOCS sensors and actuators, including magnetorquers and solar array step motors. It has a mass of 3.5 Kg and measures 110 x 240 x 170 mm. |
| |
Download Datasheet
Product Details | |
|
|
|
| 10-100 Arcsecond Star Tracker for High-Volume Applications | |
Star Tracker
from Rocket Lab
|
| The ST-16HV from Rocket Lab is a Star Tracker with an absolute accuracy of 10-100 arcsec with a maximum slew rate of 2 deg/sec. This star tracker has an angular rate of 2 Hz with zero initial acquisition time and has a 2592 x 1944 CMOS active-pixel sensor. It requires a DC supply of 9-34 V and has a power consumption of up to 1 W. This star tracker supports two half-duplex RS-485 interfaces with a commercial-grade 16 mm f/1.8 lens. |
| |
Download Datasheet
Product Details | |
|
|
|
| 3.4-4.8 GHz C-Band Satellite Downconverter | |
Block Downconverter
from WORK Microwave
|
| The VHCD-C1 / VSCD-C1 from WORK Microwave is a Block Downconverter that has an input RF frequency range of 3.4-4.8 GHz and an LO frequency of 8.57-9.97 GHz. This C-band downconverter has a frequency resolution of 100 Hz and a phase noise of up to -110 dBc/Hz. It has an IF input impedance of 50 Ohms and an input/output return loss greater than 20 dB. It weighs 8.4 Kg (Indoor housing) and measures 483 x 44 x 505 mm (Indoor housing). |
| |
Download Datasheet
Product Details | |
|
|
|
| Integrated High-Speed Downlink Transmitter for SmallSat LEO missions | |
Software Defined Radio
from Honeywell Aerospace
|
| The CDL-MS02 from Honeywell Aerospace is an Integrated High-Speed Downlink Transmitter that has a Tx frequency of 5100-5300 MHz and provides up to a 40 Mbps downlink to ground infrastructure. It comprises a radio transmitter with a high-efficiency GaN SSPA, a power distribution unit providing accurate regulation and delivery of power across the system, and a digital baseband. This C-band transmitter weighs 1500 g and measures 179 x 232 x 47 mm. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by PCB Directory | | PCB Directory Launches their Inaugural Magazine for the PCB Industry | | PCB Directory recently launched its Inaugural PCB Magazine for the PCB Industry. This magazine is packed with insightful articles, product listings, and an industry directory. The magazine is available in both print and digital versions. This achievement was made possible by the unwavering support of sponsors and contributors. Their trust and dedication have been the driving force behind this journey, and their support is highly appreciated. The team looks forward to continued growth and delivering even greater value to the PCB community. Click here to learn more. | | | |
|
|
| 10.95-12.75 GHz Ku-Band Phase Locked Loop Low Noise Block | |
Low Noise Block
from Orbital Research
|
| The LNB 5300 from Orbital Research is a Low Noise Block with an input RF frequency of 10.95-12.75 GHz and an IF frequency of 950-1700 MHz. This LNB provides a bandwidth of 500-750 MHz and has a maximum noise figure of 0.8 dB. It has a gain of 60 dB and has a gain flatness of ± 1.5 dB. This phase-locked loop LNB has an MTBF of greater than 175,000 hours and requires a DC supply of 12-24 V. This RoHS-compliant LNB weighs 350 g and measures 125 x 60 x 41 mm. |
| |
Download Datasheet
Product Details | |
|
|
|
| Horizon Sensor for Nano Satellites | |
Earth/Horizon Sensor
from Solar MEMS
|
| The HSNS from Solar MEMS is a Quad Thermopile Horizon Sensor that has an accuracy of less than 1 ° (EOL). It has an output data rate of 10 Hz and a field of view of ±2.5 degrees of reach IR eye. This sensor can measure infrared radiation from space and earth with 4 IR eyes with accuracy, and supports UART and I2C electrical interfaces. It requires a supply voltage of up to 5V. The sensor has a mass of 0.12 Kg and measures 90 x 92 x 50 mm. |
| |
Download Datasheet
Product Details | |
|
|
|

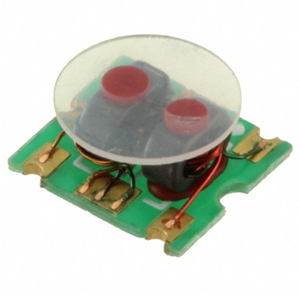

| 5-3000 MHz Transmission Line Balun for Aerospace Applications | |
Space Qualified RF Balun
from MACOM
|
| The MABA-011115 from MACOM Technology Solutions is a 1:1 transmission line balun with a wideband frequency range of 5-3000 MHz. It provides excellent RF performance and temperature stability, exhibiting a typical insertion loss of 0.7-3.5 dB and has an amplitude balance of ±1-1.5 dB. The RF balun has a phase balance of ±10° and delivers input and output return losses of up to 18 dB, ensuring efficient signal transfer and minimal distortion. |
| |
Download Datasheet
Product Details | |
|
|
|
| 100 V GaN Power Transistor for Space Applications | |
GaN Power Transistor
from Renesas
|
| The ISL70023SEH from Renesas is a N-channel enhancement mode Gallium Nitride (GaN) power transistor designed for commercial aerospace, medical, and nuclear power generation. It has a drain to source breakdown voltage of 100 V and a drain to source leakage current of 0.1-1.1 mA. It has a drain to source on resistance of 5-12 mΩ and gate threshold voltage of 0.7-2.5 V. It is available in a hermetically sealed SMD package that measures 9 x 4.7 x 1.82 mm. |
| |
Download Datasheet
Product Details | |
|
|
|

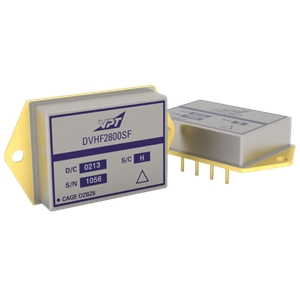

| 3.3-15 V DC-DC converter for Military and Avionics | |
DC to DC Converter
from VPT
|
| The DVHF2800S/D from VPT is a DC to DC Converter that provides an output power of 15 W. It utilises fault-tolerant magnetic feedback circuits and thick-film hybrid technology. This converter converts a nominal input of 28 V into single and dual outputs from 3.3-15 V. It features high efficiency and circuit protection. This hermetically sealed MIL-certified DC-DC converter is ideal for military and avionics. |
| |
Download Datasheet
Product Details | |
|
|
|
| L-Band Patch Antenna for SATCOM Applications | |
Satellite Antenna
from TechApp Consultants Ltd
|
| The L-BAND PATCH ANTENNA from TechApp Consultants Ltd is a Satellite Antenna with a frequency range of 1.525-1.6605 GHz and has a gain value of 8 dBi. It has a RHCP polarization with a beam width of 67 degrees. This L-band patch antenna has an axial ratio of 3 and covers multiple GNSS bands, including GPS, Glonass, Galileo, and Beidou. It has a mass of 85 g and measures 92 x 92 x 15 mm. This patch antenna is ideal for multiple GNSS bands applications. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by PCB Directory | | |
|
|

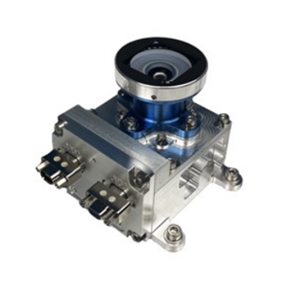

| Satellite Camera for Navigation in Spacecrafts and Landers | |
Satellite Camera
from 3D Plus
|
| The 3DCS04M080943 from 3D Plus is a Satellite Camera for space applications, such as monitoring and navigation for spacecrafts and landers. It embeds 3D PLUS 3DCM734/3DCM739 high-resolution camera head, offering multiple readout features (sub-sampling, Region-Of-Interest, multi-parameters). This camera has a wide-angle objective with over 80° edge-to-edge field of view and a 7.9 mm fixed focal length, allowing large area monitoring. |
| |
Download Datasheet
Product Details | |
|
|
|

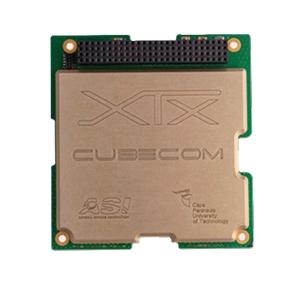

| X-Band Transmitter for Nanosatellites | |
Space Transmitter
from AAC Clyde Space
|
| The PULSAR-XTX from AAC Clyde Space is a Space Transmitter with a transmitter frequency range of 8.025-8.375 GHz and an RF output power of 33 dBm. This X-band transmitter supports OQPSK and QPSK modulation schemes and has a data rate of up to 50 Mbps. It has a channel spacing of 1 MHz and a spurious response of -60 dBc. It requires a supply voltage of 6.2-17 V. The transmitter has a mass of 100 g and measures 96 x 90 x 11.7 mm. |
| |
Download Datasheet
Product Details | |
|
|
|

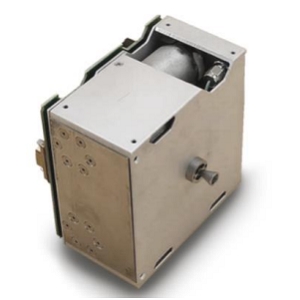

| Warm Gas Thruster for CubeSats | |
Spacecraft Thruster
from Benchmark Space Systems
|
| The Starling from Benchmark Space Systems is a Warm Gas Thruster that has a thrust of 0.01-1 N and can be configured for use in 1-24 U CubeSats. This spacecraft thruster has a specific impulse of 105-140 sec and has a power consumption of 3-100 W. It consists of an innovative system that uses inert nontoxic powdered fuel that is filled before shipping and remains inert until a pressurization command is triggered in orbit. The thruster has a mass of 0.75-2.7 Kg. |
| |
Download Datasheet
Product Details | |
|
|
|

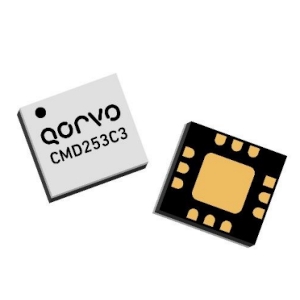

| 6-14 GHz Space-Qualified Double Balanced RF Mixer | |
Space Qualified RF Mixer
from Qorvo
|
| The CMD253C3 from Qorvo is a Space-Qualified RF Mixer designed for up-and-down converting applications. It has an RF frequency of 6-14 GHz and a wide IF frequency of DC to 5 GHz. This fundamental mixer has a low conversion loss of 6 dB and an input IP3 of 24 dBm. It has a LO-RF isolation of 43 dB and an RF-IF isolation of 39 dB. It requires an RF/IF input power of 25 dBm. This Pb-Free RoHs-compliant mixer has a 3 x 3 mm SMT package. |
| |
Download Datasheet
Product Details | |
|
