| Featured Space and Satellite Products |
|
|
| 25 GHz Frequency Doubler for Space Applications | |
Space Qualified Frequency Multiplier
from Teledyne e2v HiRel Electronics
|
| The TDFM001000 from Teledyne e2v HiRel Electronics is a Space Qualified Frequency Multiplier that up-converts an input frequency from 7.5-25 GHz to an output frequency from 15-50 GHz. This single-ended GaAs frequency multiplier can amplify the input signal to an output power level of up to 13 dBm and has a fundamental rejection value of 20 dB. It requires a DC supply voltage of 6 V and has a current consumption of up to 250 mA. |
| |
Download Datasheet
Product Details | |
|
|
|

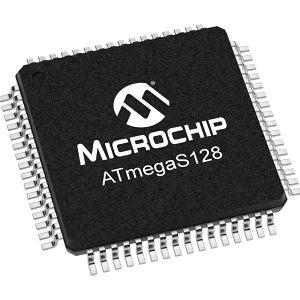

| 8-bit AVR Microcontroller for Space Applications | |
Space Qualified Microcontroller
from Microchip Technology
|
| The ATmegaS128 from Microchip Technology is a radiation-tolerant space-grade 8-bit AVR microcontroller designed for high-reliability aerospace and satellite applications. It operates on a voltage supply of 3.0–3.6 V and delivers up to 8 MIPS throughput at 8 MHz based on an advanced RISC architecture with 133 powerful single-cycle instructions and 32 general-purpose working registers. It has a mass of 4.8 g and is available in a surface-mount package. |
| |
Download Datasheet
Product Details | |
|
|
|

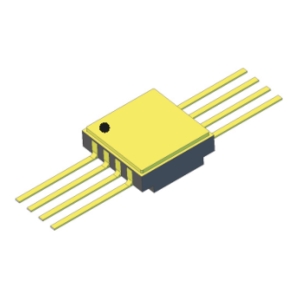

| Radiation Hardened High-Speed Comparator | |
Space Qualified Comparator
from STMicroelectronics
|
| The RHR801 from STMicroelectronics is a Radiation Hardened High Speed Comparator that is designed to allow high rise and fall times while drawing a high noise supply rejection. This comparator has a propagation time of 7 ns and a rise/fall time of 1.1 ns on 10 pF. It has a maximum input frequency range of 50-74 MHz and a low consumption of 1.4 mA. The comparator requires a supply voltage of 3-5 V and an input bias current of -7 to -2.2 µA. |
| |
Download Datasheet
Product Details | |
|
|
|

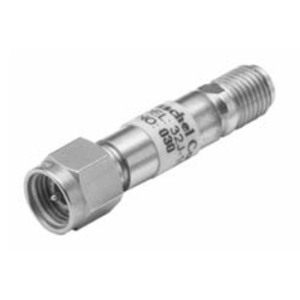

| DC-32 GHz Space-Qualified Fixed Coaxial Attenuator | |
Space Qualified Fixed Attenuator
from Spectrum Control
|
| The 32J-0 from Spectrum Control is a Space Qualified Fixed Attenuator with a frequency range of DC to 32.0 GHz. This coaxial attenuator has a nominal attenuation of 0 dB and a deviation of +/- 0.5 dB. It has a nominal impedance of 50 Ohms and a standing wave ratio of 1.25. The attenuator has a peak power rating of 500 W. It has a mass of 13 g and features a passivated stainless steel body and connectors with gold-plated beryllium copper contacts. |
| |
Download Datasheet
Product Details | |
|
|
|
| 23.1 V Lithium-Ferrite Modular Battery System for Small Satellites | |
Satellite Battery
from Berlin Space Technologies
|
| The BAT-110 from Berlin Space Technologies is a Satellite Battery with a nominal voltage of 23.1 V and a capacity of 172 Wh. This flight-proven battery has a design life of 5 years of LEO and is radiation tested to 30 kRad. It is protected for overcharging (non-destructive), tolerant against deep discharge (non-destructive), and offers cell balancing. The battery has a mass of 3 kg and measures 240 x 119 x 87 mm³. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by Crane Aerospace & Electronics | | Space Qualified Products | | Crane can meet your space program needs with our pre-qualified products that provide proven high-reliability design and reduced costs. Products include power dividers, directional couplers, mixers, modulators, iso-dividers/combiners, and beamformers. Click here to learn more. | | | |
|
|
| Non-Pyrotechnic Space Vehicle Separation System | |
Separation System
from Rocket Lab
|
| The 2003336B from Rocket Lab is a Separation System that is designed to separate space vehicles from launch vehicles. This mechanical separation system has a bolt circle diameter of 8-24 inches and can support payloads of up to 200 Kg. It is TRL 9 qualified and is made with materials and methods consistent with Class-A space flight hardware. The separation system has a total mass of 3000 Kg and has integrated springs, switches, and connectors. |
| |
Download Datasheet
Product Details | |
|
|
|
| 22.5–23.5 GHz Hemispherical Antenna Pointing Mechanism | |
Antenna Positioning Mechanism
from Airbus
|
| The MEO K-Band from Airbus is an Antenna Positioning Mechanism designed for hemispheric coverage in medium earth orbit communications. It offers an accuracy of less than 0.25° and a rotational velocity under 10°/s. It has a frequency range of 22.5–23.5 GHz and has a power of 15 W. This has an independent 2-axis movement with full azimuth rotation and variable elevation. It has a mass of less than 11.5 kg and a moving envelope of 35 x 50 cm. |
| |
Download Datasheet
Product Details | |
|
|
|
| 1-2 GHz Three-Port Double-Ridged Coax Circulators | |
Space Qualified Circulator
from Scientific Microwave Corporation
|
| The 1-2 GHz Circulator from Scientific Microwave Corporation is a 3-Port Circulator that operates from 1 to 2 GHz. It has an insertion loss of 0.6 dB and provides an isolation of 14 dB. This circulator can handle a peak input power of up to 20 kW and has a VSWR of 1.5:1. This double-ridged circulator has high-power handling for average and peak powers, combined with low loss and VSWR, making this circulator a very sought-after addition to any EMC system. |
| |
Download Datasheet
Product Details | |
|
|
|
| 26.5 V DPDT Full Size General Purpose Signal Relay | |
Space Qualified Solid State Relay
from TE Connectivity
|
| The B07D111BC4-0006 from TE Connectivity is a Space Qualified General Purpose Power Relay that operates with a coil voltage rating of 26.5 VDC and has a maximum coil power of 2.341 W. It has a non-polarized monostable coil magnetic system with a coil resistance of 300 ohms and has a contact rating of 10 A. The relay is hermetically sealed and has a configuration feature of a 2 Form C DPDT-CO contact arrangement. |
| |
Download Datasheet
Product Details | |
|
|
|
| 3.4-4.2 GHz C-Band Satellite Downconverter | |
Block Downconverter
from WORK Microwave
|
| The VHBD-VSBD-VHBDR-VSBDR-C from WORK Microwave is a Block Downconverter that has an input RF frequency range of 3.4-4.2 GHz and an output frequency of 950-1750 MHz. This Ku-band downconverter has an LO frequency of 5.15 GHz and a phase noise of up to -133 dBc/Hz. It has an impedance of 50 Ohms and an input/output return loss greater than 18 dB. It weighs 6 Kg and measures 483 x 44 x 270 mm. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by Crane Aerospace & Electronics | | |
|
|
| Accelerometer for Solar Tracking/Pointing Systems | |
Space Qualified Accelerometer
from Solar MEMS
|
| The Sensor MASS-X from Solar MEMS are space-qualified accelerometers that integrate a 3-axis accelerometer and a high-precision sun sensor designed to measure the incidence angle of sun rays, direct normal irradiance (DNI) solar radiation, along with the azimuth and elevation positions of the device. The sensors offer selectable fields of view of 10°, 30°, 50°, or 120° with an angular precision up to 0.06°. |
| |
Download Datasheet
Product Details | |
|
|
|

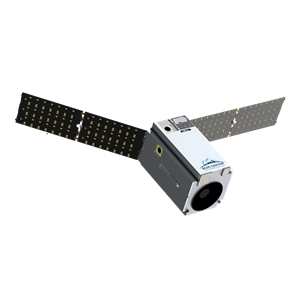

| 16U CubeSat Satellite Bus for LEO Missions | |
Satellite Bus & Platform
from Blue Canyon Technologies
|
| The XB16 from Blue Canyon Technologies is a 16U CubeSat spacecraft bus that provides an available payload volume of 12U and delivers up to 108 W of solar array power. This spacecraft bus integrates energy storage from 6.8-20.4 Ah and features multiple electric and chemical propulsion options to support various orbital maneuvers. The satellite bus has a pointing accuracy of ±0.002° (1-sigma) across three axes using dual star trackers. |
| |
Download Datasheet
Product Details | |
|
|
|
| High Flow Slotted Check Valve for High-Pressure Application | |
Spacecraft Valve
from Denis de Ploeg
|
| The CHFA1566501A from Denis de Ploeg is a High Flow Slotted (HFS) Check Valve designed to deliver both compact size and high flow capability for demanding hydraulic applications. This stainless-steel valve has a diameter of 0.156 inches and is rated for system pressures up to 5000 psid. It features a maximum Lohm rate of 250 with a cracking pressure of 1 ± 0.5 psid. The valve has a mass ranging from 0.7-4 g and has a diameter of 0.156 inches. |
| |
Download Datasheet
Product Details | |
|
|
|
| 4.4-4.95 GHz Wide Band Drop in Circulator | |
Space Qualified Circulator
from RF-Lambda
|
| The RFLC401G04G05N from RF-Lambda is a Space Qualified Circulator that has a frequency range of 4.4-4.95 MHz. It has an insertion loss of 0.5 dB and provides an isolation of 18 dB. This circulator can handle a peak input power of up to 50 W, which has a forward power value of 50 W and a reverse power value of 5 W. It has a case material of aluminum alloy with a nickel plating and an impedance value of 50 ohms. |
| |
Download Datasheet
Product Details | |
|
|
|

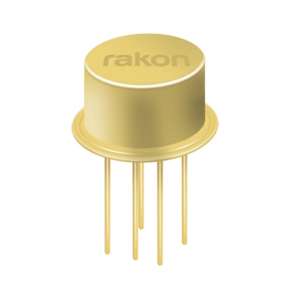

| Space-Qualified Quartz Crystal for Space Applications | |
Quartz Crystal
from Rakon Limited
|
| The CFPX3750 from Rakon Limited is a Space-Qualified Quartz Crystal that is European Space Components Coordination (ESCC approved for use in space applications. It has a frequency range of 14-140 MHz and provides high stability in harsh mechanical environments. This RoHS-compliant crystal is available in a cold-welded T807 package measuring 10.7 x 8.8 mm and is ideal for satellite communication, communications, guidance, and navigation. |
| |
Download Datasheet
Product Details | |
|
|
|
| Satellite Camera for Navigation in Spacecrafts and Landers | |
Satellite Camera
from 3D Plus
|
| The 3DCS04M080943 from 3D Plus is a Satellite Camera for space applications, such as monitoring and navigation for spacecrafts and landers. It embeds 3D PLUS 3DCM734/3DCM739 high-resolution camera head, offering multiple readout features (sub-sampling, Region-Of-Interest, multi-parameters). This camera has a wide-angle objective with over 80° edge-to-edge field of view and a 7.9 mm fixed focal length, allowing large area monitoring. |
| |
Download Datasheet
Product Details | |
|
|
|

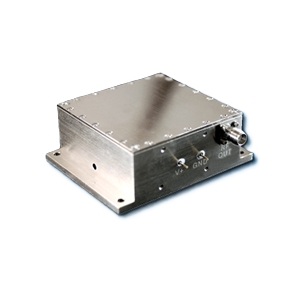

| 100 MHz Space Qualified Crystal Oscillator | |
Space Qualified Oscillator
from Quantic Wenzel
|
| The 500-19933 from Quantic Wenzel is a Space Qualified Crystal Oscillator for space with a frequency of 100 MHz and frequency stability of ±50 ppm. This synthetic quartz oscillator can withstand radiation of up to 300 krads and has an outgassing of TML<1% and CVCM <0.1% per SP-R-002A. It requires a DC supply of about 15 V and an input power of less than 2.5 W. This oscillator has a mass of up to 300 g and measures 2.25 x 2.25 x 1 inches. |
| |
Download Datasheet
Product Details | |
|
|
|
| 2.8 mH Space Grade Current Sense Transformer | |
Space Qualified Power Transformer
from Vanguard Electronics
|
| The SGD101 from Vanguard Electronics is a Space Qualified Power Transformer with an inductance of 2.8 mH. This transformer has a turns ratio of 1:1 and requires a primary voltage of 25 V. It has a direct current resistance of 1.3 ohms and an insulation resistance of 10K Mohms. The transformer features tin-lead terminations and welded internal connections. It has a minimum dielectric withstanding voltage of 500 VAC. |
| |
Download Datasheet
Product Details | |
|
|
|
| Surface Mount Diplexer for GPS Applications | |
Space Qualified RF Diplexer
from Mini Circuits
|
| The LDP-1050-252+ from Mini Circuits is a Space Qualified Diplexer designed to operate over a combined frequency range of 1-2500 MHz with defined passbands from 1–1050 MHz (low pass) and 1650–2500 MHz (high pass). It features a low insertion loss of 0.6-2.9 dB and a return loss of 6-17 dB. It has a stop band isolation of 31 dB for low pass and 18-32 dB for high pass with an RF input power up to 2 W. This RoHS-compliant diplexer measures 3.2 x 1.8 x 0.86 mm. |
| |
Download Datasheet
Product Details | |
|
