| Featured Space and Satellite Products |
|
|

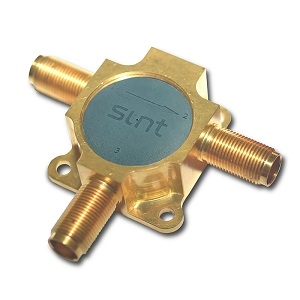

| 225 W Space-Qualified L-Band Circulator | |
Space Qualified Circulator
from Smiths Interconnect
|
| The L Band High Power Circulator from Smiths Interconnect is a Space Qualified Circulator with a frequency range of 1.57-1.62 GHz and has an insertion loss of 0.15 dB. It has a return loss of 23 dB and has a power handling value of 225 W. The circulator has a mass of 138 g and is designed for solid state power amplifiers (SSPA) used aboard space communication, navigation, RadarSats and satellite payloads (GEO/MEO and LEO constellations). |
| |
Download Datasheet
Product Details | |
|
|
|

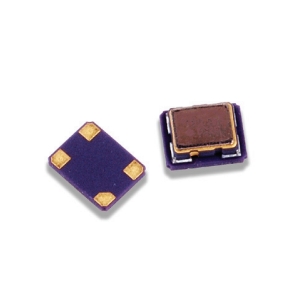

| 10-40 MHz Ultra-Miniature Precision TCXO for GPS Receivers | |
Space Qualified Oscillator
from Connor-Winfield Corporation
|
| The C34 from Connor-Winfield Corporation is a Space Qualified Oscillator with a frequency range of 10-40 MHz and a frequency stability of +/- 2.0 ppm. This temperature-compensated crystal oscillator requires a DC supply voltage of 3.3 V and a supply current of 2 mA. It has a low period jitter of 3-5 ps rms and an integrated phase jitter of 0.3-1.0 ps rms. It comes in an ultra-miniature 2.5 x 3.2 mm hermetically sealed ceramic SMT package. |
| |
Download Datasheet
Product Details | |
|
|
|
| Flight-Proven 12U Satellite Deployer | |
Satellite Deployer
from Astro-und Feinwerktechnik Adlershof GmbH
|
| The PSL12U from Astro-und Feinwerktechnik Adlershof GmbH is a Space-Qualified Satellite Deployer that is designed for 12U CubeSat configurations. This flight-proven deployer features a non-explosive lock and release mechanism and a deficient power consumption mechanism. It has redundancy in the actuation and deployment confirmation signals with patented fixation of the CubeSat in X, Y, and Z during launch. It measures 340.5 x 226.3 x 226.3 mm. |
| |
Download Datasheet
Product Details | |
|
|
|
| 640 x 512 Satellite Camera for Hyperspectral Imaging Applications | |
Satellite Camera
from Raptor Photonics
|
| The Owl 640 T from Raptor Photonics is a Satellite Camera with a resolution of 640 x 512 and a pixel pitch of 10 x 10 µm. This camera has an active area of 6.4 x 5.12 mm and a spectral response of 0.6-1.7 µm. It enables simultaneous capture of bright and dark portions of a scene and is designed for integration into small OEM platforms. The camera has a frame rate of up to 60 Hz. The camera has a mass of 245 g and measures 68 x 50 x 50 mm. |
| |
Download Datasheet
Product Details | |
|
|
|

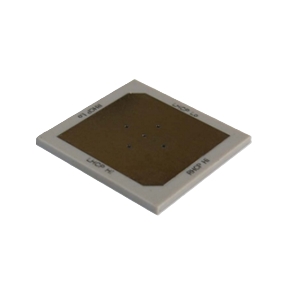

| Compact High Gain S-Band Patch Antenna | |
Satellite Antenna
from Ecuadorian Space Agency
|
| The SSA03 from Ecuadorian Space Agency is a Satellite Antenna with a center frequency range of 2000-2540 MHz and a bandwidth between 80-180 MHz. It has a gain value of 7.34 dB and has an isolation value of 21 dB. The satellite antenna has a field of view of 120 degrees aperture and is constructed using Rogers 4350 space-grade antenna material. It has a mass of 9.75 g and measures 43-45 mm x 43-45 mm, depending on the CF x 2.70 mm. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by PCB Directory | | PCB Directory Launches their Inaugural Magazine for the PCB Industry | | PCB Directory recently launched its Inaugural PCB Magazine for the PCB Industry. This magazine is packed with insightful articles, product listings, and an industry directory. The magazine is available in both print and digital versions. This achievement was made possible by the unwavering support of sponsors and contributors. Their trust and dedication have been the driving force behind this journey, and their support is highly appreciated. The team looks forward to continued growth and delivering even greater value to the PCB community. Click here to learn more. | | | |
|
|
| 13 mN Hall Effect Thruster for Operational Satellites | |
Spacecraft Thruster
from Busek
|
| The BHT-200 from Busek is a Spacecraft Thruster with a nominal thrust of 13 mN and a specific impulse of 1390 seconds. It is compatible with propellants such as Xenon and Iodine and has a discharge power of 200 W. The thruster has a demonstrated impulse of 74.88 kN-s and a predicted total impulse value of 140 kN-s. The thruster has a cathode mass value of 0.12 kg and requires a DC supply voltage of 250 V. It has a thruster mass of 0.98 Kg. |
| |
Download Datasheet
Product Details | |
|
|
|
| Inertial Measurement Units for Small Satellite Attitude Detection | |
Inertial Measurement Unit
from Micro Aerospace Solutions
|
| The MASIMU01 from Micro Aerospace Solutions is a Inertial Measurement Unit for small satellite attitude detection systems with a drift of less than 1 deg/min. It has an input voltage of 5-12 V and has a power rating of 0.6 W. The IMU is combined with sun sensors, horizon sensors and other external references with thruster systems to provide a complete small satellite attitude detection and control system (ADCS). |
| |
Download Datasheet
Product Details | |
|
|
|

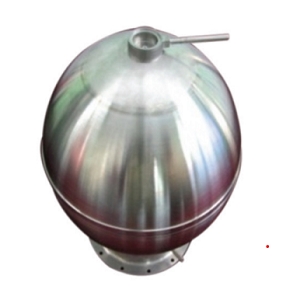

| 7L Propellant Tank for Satellites | |
Spacecraft & Satellite Propellant Tank
from Antrix Corporation Limited
|
| The 7L Propellant Tank from Antrix Corporation Limited is a Spacecraft & Satellite Propellant Tank with a nominal internal volume of 7.5 L and a residual volume of 100 cc. This propellant tank has an operating pressure of 24 bar and a burst pressure of 96 bar. It has a proof pressure of 36 bar with a maximum propellant flow rate of 5 cc/s. The propellant tank is constructed using Ti-6Al-4V commercially pure titanium and SS-304L. It has a dry mass of 2 kg. |
| |
Download Datasheet
Product Details | |
|
|
|

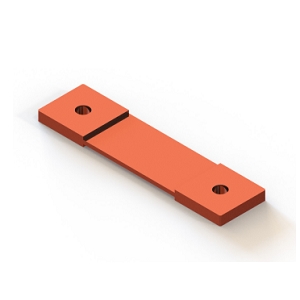

| Space-Qualified Thermal Strap for Cryogenics and Spacecraft | |
Space Qualified Thermal Strap
from Thermal Management Technologies
|
| The TMT010-205 from Thermal Management Technologies is a Space Qualified Thermal Strap that facilitates the transfer of heat while retaining elastic connections between thermal components. It is a braided construction using copper with a braid width of 12.70 mm, length of 50.80-152.40 mm, and an end height of 2.54-4.57 mm. It is ideal for applications such as cryogenic shrouds, cryocoolers, infrared instruments, superconductors, component testing, and spacecraft. |
| |
Download Datasheet
Product Details | |
|
|
|

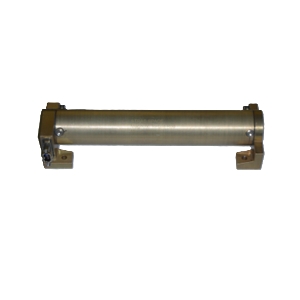

| Low hysteresis Nanosatellite Magnetic Torque Rods | |
Magnetorquer
from Strasspace
|
| The Nanosatellite Magnetic Torque Rod from Stras Space is a Magnetorquer with a dipole magnetic moment strength of 2.0 Am^2. This magnetorquer is compatible with Micro-D connector and operates at a temperature range of -30 °C to +80 °C. It includes a linear steel alloy core with low hysteresis and has a power consumption of 450 mW. It has a mass of 230 g and is available in an aluminium enclosure measuring 135 x 47 x 27 mm. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by PCB Directory | | |
|
|

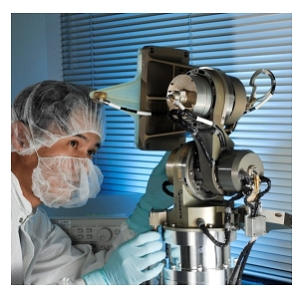

| Bi-Axis Gimbal for Antenna Pointing Mechanism | |
Gimbal
from Sierra Nevada Corporation
|
| The LDC20 from Sierra Nevada Corporation is a bi-axis gimbal designed for precision pointing applications requiring smooth and open-loop performance. It provides a fine step size of 0.007° at 64-microstep resolution and supports a rotational range of ±99° on both the X- and Y-axes. It has a dielectric strength of 500 VDC and an insulation resistance of 100 MΩ. The gimbal system supports a frequency of 8.025-8.4 GHz. |
| |
Download Datasheet
Product Details | |
|
|
|

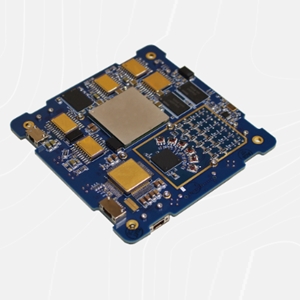

| Software Defined Radio and DSP System for Space Missions | |
Software Defined Radio
from Rincon Research Corporation
|
| The AstroSDR from Rincon Research Corporation is a software-defined radio with dual receiver and transmitter that operates at 70 MHz to 6 GHz. It consists of a receiver, transmitter, FPGA, ARM processor, data storage, and high-speed I/O. The board-support-package includes pre-built functions for interfacing to the radio, ARM processor, and eMMC storage, as well as a Vivado project to assist the user in developing their own unique applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 23 W Cryocooler for Critical Space Missions | |
Space Cryocooler
from Northrop Grumman Corporation
|
| The High-Efficiency Cryocooler (HEC) from Northrop Grumman Corporation is a Cryocooler that has a refrigeration capacity of 2 W (45 K) to 23 W (150 K). This cryocooler requires a compressor input power of up to 180 W and has a reliability of greater than 90 % with up to 10 years of on-orbit operation. The cryocooler features active vibration cancellation included in TRL9 designs and supports standard digital interfaces such as RS422 and MIL-1553. |
| |
Download Datasheet
Product Details | |
|
|
|
| Space Qualified RF Switch for Hi-Rel Applications | |
Space Qualified RF Switch
from Teledyne Relays
|
| The H-32N Series from Teledyne Relays is a Space Qualified RF Switch suitable for high-reliability space flight applications. It covers a wide frequency range with F2 (L-BAND) spanning DC-2 GHz, F4 (S-BAND) covering 2-4 GHz, F8 (C-BAND) operating from 4-8 GHz and F12 (X-BAND) extending from 8-12 GHz. The RF switch has an insertion loss of up to 0.55 dB and an isolation of up to 70 dB. It has a VSWR of 1.6:1 and an operating/release time of 10 ms. |
| |
Download Datasheet
Product Details | |
|
|
|
| 45 V P-Channel Enhancement Mode Power MOSFET | |
Space Qualified MOSFETs
from TT Electronics
|
| The BS250CSM4 from TT Electronics is a space-grade P-channel enhancement mode MOSFET designed for high-reliability applications. It has a drain-source voltage of 45 V and a continuous drain current of 0.15 A. The MOSFET supports a pulsed drain current of 0.69 A and has a gate-source voltage of ± 30 V. It features a drain–source on-state resistance of 14-28 Ω. It is available in a hermetically sealed surface mount package that measures 5.59 x 3.81 x 1.40 mm. |
| |
Download Datasheet
Product Details | |
|
