| Featured Space and Satellite Products |
|
|

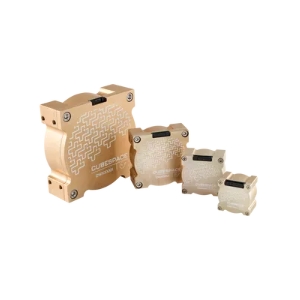

| 7 mNm Reaction Wheel for CubeSat | |
Reaction Wheel
from CubeSpace
|
| The CW0162 from CubeSpace is a High-Performance Reaction Wheel designed for precise attitude control in CubeSat and small satellite missions. Engineered to meet the demanding requirements of space environments, this reaction wheel delivers a maximum rotational speed of 10,000 RPM and provides a momentum storage capacity of 16.2 mNms, enabling accurate pointing and stabilization for nanosatellite platforms. The reaction wheel offers a saturation torque of 7 mNm and features excellent zero-crossing behavior. |
| |
Download Datasheet
Product Details | |
|
|
|

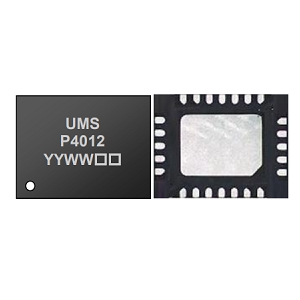

| 6-Bit Digital Phase Shifter from 2.7 to 3.5 GHz | |
Space Qualified Digital Phase Shifter
from United Monolithic Semiconductors
|
| The CHP4012-QEG from United Monolithic Semiconductors is a Space-Qualified Digital Phase Shifter designed for precise phase control in S-band RF and microwave systems. Operating across the 2.7 to 3.5 GHz frequency range, this digital phase shifter delivers reliable broadband performance for high-reliability defense and space applications. The device provides a full 360° phase adjustment range with a fine phase resolution of 5.625°, enabled through its 6-bit digital control architecture. |
| |
Download Datasheet
Product Details | |
|
|
|
| Hi-Rel Quartz Crystal from 16 to 61 MHz | |
Quartz Crystal
from Wi2Wi
|
| The CR61/U-Series from Wi2Wi is a MIL-Qualified Quartz Crystal designed for precise frequency control and stable timing performance in high-reliability electronic systems. Operating across a frequency range of 16 to 61 MHz, this crystal unit is well-suited for applications requiring accurate and consistent clock generation. The crystal features an equivalent series resistance (ESR) of 40 ohms and a shunt capacitance of 7 pF, supporting stable oscillation and efficient circuit integration. |
| |
Download Datasheet
Product Details | |
|
|
|

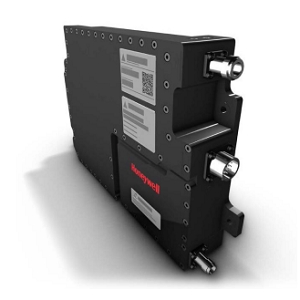

| Type J Diplexer/Low Noise Amplifier (DLNA) for SATCOM | |
Space Qualified RF Diplexer
from Honeywell Aerospace
|
| The 92511500-000 from Honeywell Aerospace is a Type J Diplexer/Low Noise Amplifier (DLNA) engineered to protect Inmarsat L-band satellite communications systems from terrestrial interference. Designed specifically for Class 6 and Class 7 Inmarsat aviation SATCOM installations, this DLNA safeguards aircraft connectivity against harmful interference from air traffic control (ATC), LTE, and emerging 5G networks. The DLNA requires dual power inputs of 115 VAC and 28 VDC and is fully compliant with ARINC 781-8 standards. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by PCB Directory | | PCB Directory Launches their Inaugural Magazine for the PCB Industry | | PCB Directory recently launched its Inaugural PCB Magazine for the PCB Industry. This magazine is packed with insightful articles, product listings, and an industry directory. The magazine is available in both print and digital versions. This achievement was made possible by the unwavering support of sponsors and contributors. Their trust and dedication have been the driving force behind this journey, and their support is highly appreciated. The team looks forward to continued growth and delivering even greater value to the PCB community. Click here to learn more. | | | |
|
|
| 12 W Hybrid Point-of-Load DC-DC Converter | |
DC to DC Converter
from Modular Devices
|
| The 5085-P02.0 from Modular Devices is a 12 W Hybrid Point-of-Load DC-DC Converter designed to step an input of 4.6–5.4 VDC down to a stable +1.9–2.1 V output. Delivering an 82% efficiency rating, this converter ensures optimized power consumption for compact, high-density electronic systems. It maintains tight electrical performance with ≤50 mV line/load regulation, 20 MHz low-ripple output, and a radiation tolerance exceeding 100 kRad (Si), making it suitable for radiation-exposed space electronics. |
| |
Download Datasheet
Product Details | |
|
|
|
| 5-18 GHz Space-Grade Analog Phase Shifter | |
Analog Phase Shifter
from Pasternack
|
| The PE82P2000 from Pasternack is a Space-Qualified Analog Phase Shifter operating from 5–18 GHz, engineered for high-precision phase control in advanced RF and microwave systems. With a 400-degree maximum phase shift, 40 deg/GHz phase adjustment, and 40 degrees/volt phase sensitivity, it offers fine-tuned control for phased arrays and electronic warfare systems. This device provides 12 dB insertion loss, 8 dB return loss, and reliable operation with a 0–10 V control voltage range. |
| |
Download Datasheet
Product Details | |
|
|
|
| 100 V Rad-Hard N-Channel MOSFET | |
Space Qualified MOSFETs
from VPT Components
|
| The RAD7130-Nyx from VPT Components is a Radiation-Hardened N-Channel MOSFET developed for long-duration satellite missions and aerospace applications where reliability is paramount. Featuring a 100 V drain-source voltage, 22 A continuous drain current, and a low 80 mΩ RDS(on), this MOSFET delivers excellent efficiency and switching performance. A 50 nC gate charge further enhances switching efficiency, making it suitable for power conditioning, motor control, and avionics systems. |
| |
Download Datasheet
Product Details | |
|
|
|
| 27-31 GHz GaAs HEMT Amplifier | |
RF Amplifier
from Northrop Grumman Corporation
|
| The APN228 from Northrop Grumman is a Space-Qualified Power Amplifier engineered for next-generation SATCOM terminals and point-to-point digital radio systems. Operating across the 27-31 GHz Ka-band, this GaAs HEMT-based amplifier delivers up to 19 dB linear gain and an impressive 42.8 dBm saturated output power, ensuring robust signal transmission in demanding orbital environments. It exhibits excellent RF performance characteristics with an input return loss of –35.5 to –17 dB and an output return loss of –20 to –15 dB. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by PCB Directory | | |
|
|

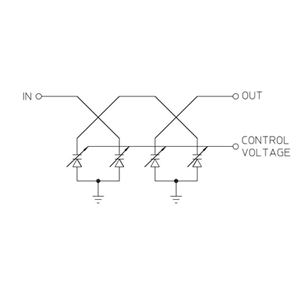

| 10-400 MHz Analog Phase Shifter | |
Analog Phase Shifter
from Crane Aerospace & Electronics
|
| The PEP-4S Series from Crane Aerospace & Electronics is a Voltage-Controlled Analog Phase Shifter designed for precise phase adjustment in low-frequency RF and microwave systems. Operating across the 10 to 400 MHz frequency range, these analog phase shifters support a usable bandwidth of fo ±5% and provide a continuous phase shift from 0° to 360°, enabling accurate phase control in dynamic signal environments. The PEP-4S phase shifters offer an insertion loss of up to 3 dB. |
| |
Download Datasheet
Product Details | |
|
|
|

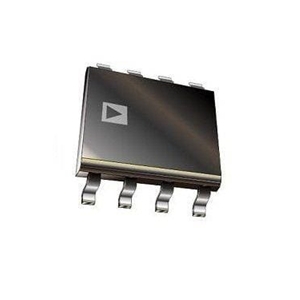

| Radiation-Tolerant Voltage Comparator | |
Space Qualified Comparator
from Analog Devices
|
| The RH1011 from Analog Devices is a Radiation-Tolerant Voltage Comparator designed for high-reliability military and aerospace electronics. Operating from a supply voltage range of 35 to 36 V, this comparator delivers fast response times of 250 ns, enabling precise and timely voltage level reflectivity in demanding signal-conditioning applications. This general-purpose comparator features a low input offset voltage of 1.5 to 3 mV and maintains low input bias current between 50 and 80 nA. |
| |
Download Datasheet
Product Details | |
|
