| Featured Space and Satellite Products |
|
|
| 1-4.2 GHz Space Qualified RF Mixer | |
Space Qualified RF Mixer
from Mini Circuits
|
| The MRA-42LH from Mini-Circuits is a Space-Qualified RF Mixer designed for high-performance frequency conversion in satellite, aerospace, and defense communication systems. This LTCC-based double-balanced mixer operates with a local oscillator (LO) frequency range of 1 to 4.2 GHz and supports an intermediate frequency (IF) range of 10 to 800 MHz, enabling flexible upconversion and downconversion across a wide range of RF architectures. The mixer delivers a conversion gain of 11.5 dB. |
| |
Download Datasheet
Product Details | |
|
|
|

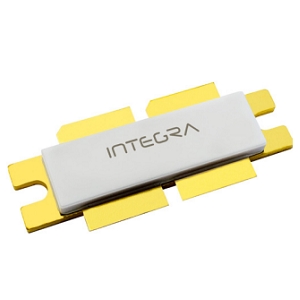

| L-Band GaN Power Transistor | |
GaN Power Transistor
from Integra Technologies, Inc.
|
| The IGN1011S3600 from Integra Technologies is a GaN RF Power Transistor designed for L-band avionics and surveillance radar applications. Operating across the 1030 to 1090 MHz frequency range, this GaN transistor delivers high gain performance of 18 to 22 dB, making it well-suited for demanding transmit applications in aerospace and defense systems. The transistor offers excellent efficiency with a maximum drain efficiency of up to 75% and provides strong impedance matching with an input return loss of up to 25 dB. |
| |
Download Datasheet
Product Details | |
|
|
|
| X-Band Earth Station Antenna | |
Earth Station Antenna
from Ultra
|
| The FA-370/70 from Ultra is a X-Band Earth Station Antenna designed for mission-critical satellite communications. Engineered for fast setup, the antenna can be fully assembled and operational in less than 30 minutes, making it ideal for temporary, transportable, and expeditionary SATCOM deployments. The antenna supports X-band transmit frequencies from 7.9 to 8.4 GHz and receive frequencies from 7.25 to 7.75 GHz. It delivers exceptional RF performance with a transmit gain of 47.7 dBi at a maximum transmit power of 1.5 kW. |
| |
Download Datasheet
Product Details | |
|
|
|
| 0.1-40 GHz RMS Power Detector Die | |
Space Qualified Log Detector
from Analog Devices
|
| The RH5596S from Analog Devices is a Space-Qualified Linear-in-dB RMS Power Detector Die designed for accurate RF and microwave power measurement in space and high-reliability aerospace systems. Engineered for wideband operation, this RMS power detector supports frequencies from 100 MHz up to 40 GHz, enabling precise power sensing across a broad range of RF and millimeter-wave applications. The detector operates from a low supply voltage of 2.7 to 3.3 V and consumes an active supply current of 25 to 35 mA. |
| |
Download Datasheet
Product Details | |
|
|
|
|
|

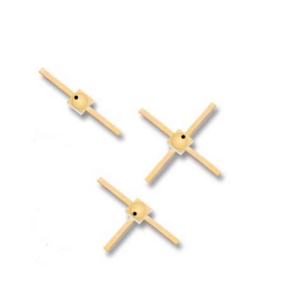

| Silicon Beam-lead Schottky Diode | |
Space Qualified Diode
from Skyworks
|
| The DME2838 from Skyworks is a Silicon Beam-lead Schottky Diode engineered for high-frequency microwave mixer and detector applications. Designed to operate across the 12.4 to 18 GHz frequency band, this Schottky diode delivers low-noise and high-linearity performance, making it well-suited for demanding spaceborne RF and microwave systems. The diode features a forward voltage range of 375 to 550 mV and supports forward current levels of up to 100 mA, enabling efficient signal detection and frequency conversion. |
| |
Download Datasheet
Product Details | |
|
|
|
| DC-6 GHz Fakra to AMC4 Plug Cable Assembly | |
Space Qualified Cable Assembly
from Amphenol RF
|
| The 095-820-124-20Z from Amphenol RF is a FAKRA to AMC4 Cable Assembly designed for reliable RF signal transmission in compact and space-constrained electronic systems. Engineered with a controlled 50-ohm impedance, this cable assembly supports broadband operation from DC to 6 GHz, making it suitable for a wide range of high-frequency automotive and IoT applications. The FAKRA connector is rated for continuous operation at up to 335 V RMS, while the AMC4 connector supports up to 60 V RMS. |
| |
Download Datasheet
Product Details | |
|
|
|

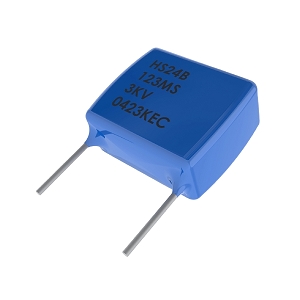

| 1800 pF Space Grade Ceramic Capacitor | |
Space Qualified Capacitor
from KEMET
|
| The 05HS22N182KC from KEMET is a Space-Qualified Ceramic Capacitor designed for high-reliability aerospace, defense, and industrial electronics applications. This radial-lead capacitor offers a capacitance value of 1800 pF with a tolerance of ±10%, making it suitable for precision signal coupling and high-voltage circuit designs. The capacitor is rated for a DC operating voltage of 500 V and supports a surge current of up to 30 mA, ensuring stable performance in demanding electrical environments. |
| |
Download Datasheet
Product Details | |
|
|
|

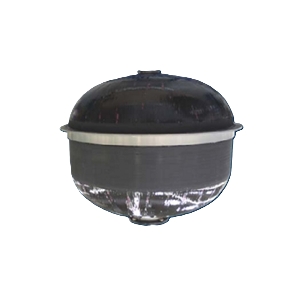

| 296 L Spacecraft Propellant Tank | |
Spacecraft & Satellite Propellant Tank
from MT Aerospace
|
| The WTB-296 from MT Aerospace is a Spacecraft Propellant and Potable Water Tank designed for satellite and human spaceflight applications requiring reliable fluid storage under low-pressure conditions. The tank offers a total volume of 296 liters, with a usable fluid volume of 280 liters, and is engineered for a maximum expected operating pressure (MEOP) of 4 bar. The tank features a dry mass of 28.5 Kg and is qualified with a proof pressure of 6 bar and a burst pressure of 8 bar. |
| |
Download Datasheet
Product Details | |
|
|
|
|
|
| 12 Nms Reaction Wheel | |
Reaction Wheel
from Rocket Lab
|
| The RW5-12.0 from Rocket Lab is a Reaction Wheel designed for precise attitude control in small and medium-class satellites, including constellation deployments. Engineered with a modular assembly architecture, this reaction wheel is optimized for volume manufacturing and scalable production, supporting large-volume deliveries for constellation-class satellite programs. The reaction wheel provides a momentum storage capacity of ±12 N·m·s and delivers a torque output of ±0.2 N·m. |
| |
Download Datasheet
Product Details | |
|
|
|
| 4.2 Meter Gregorian Earth Station Antenna | |
Earth Station Antenna
from Sat-Lite Technologies
|
| The 4281 Full Motion Earth Station Antenna from Sat-Lite Technologies is a 4.2-Meter Gregorian Antenna designed for X-band, Ku-band, and Ka-band satellite communications. Engineered for mission-critical ground infrastructure, this full-motion earth station antenna supports wideband transmit frequencies from 7.9 to 31 GHz and receive frequencies from 7.25 to 21.2 GHz, enabling flexible multi-band SATCOM operations. It maintains a low VSWR of 1.30:1 across all supported frequency bands. |
| |
Download Datasheet
Product Details | |
|
|
|
| 12.1-14.51 GHz Quadrature Hybrid Power Divider | |
Space Qualified Coupler
from Crane Aerospace & Electronics
|
| The QHM-2-13.31G SQ from Crane Aerospace & Electronics is a Quadrature Hybrid Power Divider designed for Ku-band RF and microwave signal distribution. Operating across the 12.1 to 14.51 GHz frequency range, this hybrid coupler enables precise 90° phase splitting with excellent amplitude and phase balance for high-reliability space applications. The power divider delivers a maximum insertion loss of 0.7 dB and maintains an amplitude balance of 0.7 dB, ensuring efficient and uniform power distribution. |
| |
Download Datasheet
Product Details | |
|
|
|
| 1m Ku-Band Manpack Satellite Terminal | |
Satellite Terminal
from Holkirk
|
| The Ku Band Scorpion 1 m from Holkirk is a Manpack Satellite Terminal designed for secure and reliable Ku-band satellite communications in demanding field environments. Featuring a 1-meter reflector, this transportable terminal supports multi-satellite and multi-band operations for military, government, and commercial users. The terminal operates over Ku-band transmit frequencies of 13.75 to 14.50 GHz and receive frequencies of 10.70 to 12.75 GHz. It delivers a high transmit gain of 41.4 dBi and a receive gain of 40.1 dBi. |
| |
Download Datasheet
Product Details | |
|
