| Featured Space and Satellite Products |
|
|

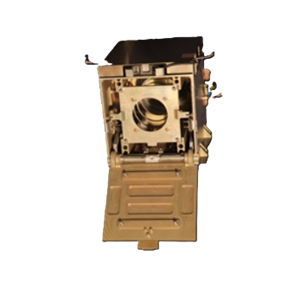

| Non-Pyro Satellite Separation System For Nanosatellites | |
Separation System
from Antrix Corporation Limited
|
| The INLS 2U from Antrix Corporation Limited is a Separation System designed for 2 kg class nanosatellites that is housed inside a rectangular structure and locked by a swinging door. It is initiated through a redundant heating element–based wire fusing mechanism, releasing a helical spring that ejects the satellite at a relative velocity of 1.5-1.9 m/s. The separation system has a separation time of 5 seconds and has a satellite size of 100 x 100 x 227.5 mm. |
| |
Download Datasheet
Product Details | |
|
|
|
| Suborbital Launch Vehicle for Payload Validation | |
Satellite Launch Vehicle Platform
from Aphelion Orbitals
|
| The Trailblazer from Aphelion Orbitals is a suborbital launch vehicle platform designed to provide affordable, flexible, and responsive access to space-like environments for payload testing and technology validation. It is powered by the liquid-fueled AO-H1 bipropellant engine delivering 9.5 kN of lift-off thrust. It supports up to 6 minutes of microgravity, low ascent acceleration, controlled spin rates, and benign thermal and acoustic environments for sensitive payloads. |
| |
Download Datasheet
Product Details | |
|
|
|

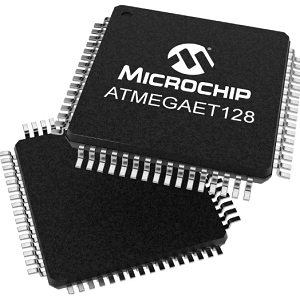

| Radiation-Tolerant Space-grade AVR Microcontroller | |
Space Qualified Microcontroller
from Microchip Technology
|
| The ATmegaS128 from Microchip Technology is a radiation-tolerant space-grade 8-bit AVR microcontroller that operates on a voltage supply of 3–3.6 V. It delivers up to 1 MIPS throughput at 8 MHz based on a CMOS 8-bit microcontroller-based advanced RISC architecture with 133 powerful single-cycle instructions and 32 x 8 general-purpose working registers and peripheral control registers. This microcontroller is available in a 64-lead TQFP64. |
| |
Download Datasheet
Product Details | |
|
|
|
| Space-Grade DualQuad Serial Persistent SRAM Memory | |
Space Qualified Memory
from Avalanche Technology
|
| The AS304G208 from Avalanche Technology is a Space-Grade High Performance Dual-Quad Serial Persistent SRAM Memory that requires an operating voltage of 1-3.6 V and has a density of 8 Gigabit. It supports a serial peripheral DDR interface and a 2 x 4 sub-interface. The memory connects two Quad SPI devices with dual-CS, providing an eight-bit I/O data path. This RoHS-compliant memory is available in a 96-ball FBGA package measuring 20 x 20 mm. |
| |
Download Datasheet
Product Details | |
|
|
|

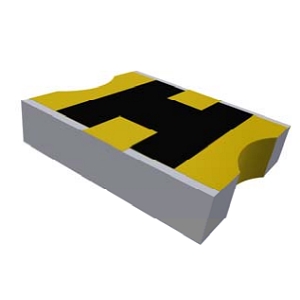

| Space-Qualified Temperature Variable Attenuator | |
Space Qualified Variable Attenuator
from Smiths Interconnect
|
| The WTVA0X00N0XWB2 from Smiths Interconnect is a Space-Qualified Variable Attenuator that has a frequency range of DC-20 GHz. It has an attenuation value of up to 6 dB and an attenuation accuracy of +/- 0.5 dB. This attenuator has a VSWR of up to 1.7:1 and an input power of 0.2 W. It features passive gain compensation, rugged construction, and wideband performance. This attenuator is available in an enclosure measuring 1.78 x 1.52 x 0.38 mm. |
| |
Download Datasheet
Product Details | |
|
|
|

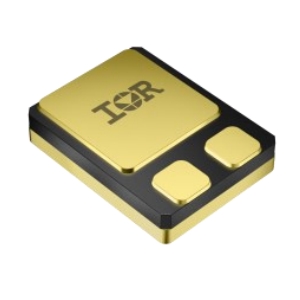

| -100 V Space-Qualified P-Channel Power MOSFET | |
Space Qualified MOSFETs
from Infineon Technologies
|
| The IRHNA9160 from Infineon Technologies is a Space-Qualified P-Channel Power MOSFET that has a drain-source voltage of -100 V and a continuous drain current of -38 A. It has a radiation tolerance TID of up to 100 krad with IR HiRel HEXFET technology and has a pulsed drain current of -152 A. The MOSFET has a diode forward voltage of 1.2 V and a gate-source threshold voltage range of 2-4 V. It has a total gate charge of 290 nC. |
| |
Download Datasheet
Product Details | |
|
|
|
|
|

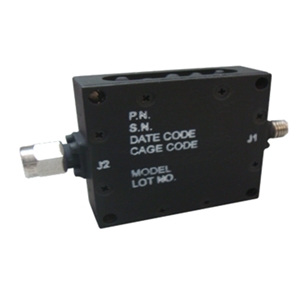

| Space Qualified GPS Bandpass Filter | |
Space Qualified RF Filter
from Mercury Systems
|
| The L1355 from Mercury Systems is a space-qualified RF Filter with a passband frequency of 1575.42 MHz and an insertion loss of 0.25 dB. This RF filter has a passband ripple of 0.1 dB and a 3 dB bandwidth of 1575.42 MHz. It has SMA female connectors and a rejection range of -60 to -30 dBc. The space-qualified filter features a cavity design and measures 0.6 x 1.5 x 1.6 inches. It is ideal for booster and spacecraft applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 10–25 MHz Quartz Crystal Oscillator | |
Space Qualified Oscillator
from Morion US
|
| The QR-MV-432 from Morion US is a high-performance quartz crystal resonator engineered for stable frequency generation in RF, communication, and precision timing systems. It operates across a 10–25 MHz frequency range and offers a frequency tolerance from ±15 to ±50 ppm. It features an exceptionally low motional resistance of less than 25 Ω, which supports efficient oscillation, low power loss, and improved startup performance in oscillator circuits. |
| |
Download Datasheet
Product Details | |
|
|
|
| Sun-Sensor for LEO, GEO & Deep Space | |
Sun Sensor
from Airbus
|
| The Bi-Axis Sun Sensor from Airbus is a Sun Sensor designed for accurate spacecraft attitude determination across a wide range of orbital missions. This sensor provides a field of view of ±15 degrees and supports a pyramid inclination of up to 17 degrees, enabling reliable Sun vector measurement for both nominal operations and safe-mode scenarios. The unit has a compact form factor measuring 70 x 82 x 23 mm and a low mass of approximately 65 g. |
| |
Download Datasheet
Product Details | |
|
|
|
| 45 V Hi-Rel Silicon Schottky Rectifier | |
Space Qualified Diode
from Sensitron Semiconductors
|
| The SHD126122D from Sensitron Semiconductors is a Silicon Schottky Rectifier designed for high-efficiency power conversion in aerospace and high-reliability electronic systems. This rectifier features a peak inverse voltage rating of 45 V and delivers a very low forward voltage drop of 0.66 to 0.73 V, minimizing conduction losses in power-critical applications. The device supports a maximum average forward current of 7.5 A and a non-repetitive surge current rating of 75 A. |
| |
Download Datasheet
Product Details | |
|
|
|

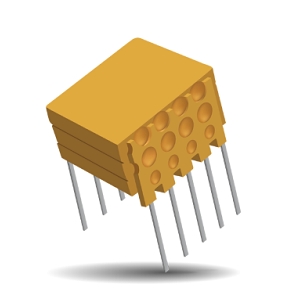

| 10000 pF Ceramic Capacitors | |
Space Qualified Capacitor
from Kyocera AVX
|
| The High Capacitance Leaded Capacitors from Kyocera AVX are Space-Qualified Ceramic Capacitors designed for high-voltage, high-reliability applications in aerospace and satellite systems. These capacitors offer capacitance values of up to 10,000 pF with a maximum tolerance of ±20%, making them suitable for energy storage, filtering, and coupling functions in demanding space environments. The capacitors support high voltage ratings of up to 5,000 V. |
| |
Download Datasheet
Product Details | |
|
|
|

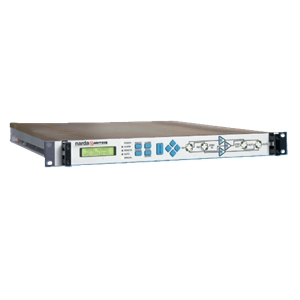

| 1:2 Redundant LNA from 3.6 to 4.8 GHz | |
RF Amplifier
from Narda-MITEQ
|
| The LN2-360480-40 from Narda-MITEQ is a High-Reliability 1:2 Redundant Low-Noise Amplifier (LNA) system designed to ensure uninterrupted RF signal amplification in mission-critical satellite and ground station applications. Operating across the C-band frequency range of 3.6 to 4.8 GHz, this redundant LNA system delivers a standard gain of 52 dB. It provides +10 dBm output power at 1 dB compression. |
| |
Download Datasheet
Product Details | |
|
