| Featured Space and Satellite Products | |
|
| 4-4.8 GHz RF Coaxial Circulator | |
Space Qualified Circulator
from Honeywell Aerospace
|
| The CG10541 from Honeywell Aerospace is a Space-Qualified RF Coaxial Circulator designed for high-reliability commercial, military, and space communication systems. Operating across the 4.0 to 4.8 GHz frequency band, this circulator delivers stable and repeatable RF performance in demanding aerospace and defense environments.The circulator offers low insertion loss ranging from 0.3 to 0.4 dB, ensuring minimal signal degradation, while providing excellent return loss of 20 to 23 dB and high isolation levels of 20 to 23 dB to protect sensitive RF components. |
| |
Download Datasheet
Product Details | |
| | |
| 50 MHz Space Crystal Oscillator | |
Space Qualified Oscillator
from Quantic Wenzel
|
| The 501-28039 from Quantic Wenzel is a Space-Qualified Crystal Oscillator designed to provide stable and precise frequency reference for satellite and deep-space missions. Operating at a fixed frequency of 50 MHz, this synthetic quartz crystal oscillator delivers a frequency stability of ±8 ppm, ensuring reliable timing performance in high-reliability space environments. It is radiation hardened to withstand total ionizing doses of up to 100 krad and meets stringent outgassing requirements with TML <1% and CVCM <0.1% in accordance with SP-R-002A standards. |
| |
Download Datasheet
Product Details | |
| | |
| 5.3-6 GHz Hybrid Coupler Power Divider | |
Space Qualified Power Divider
from Stellant Systems
|
| The C-720-1 from Stellant Systems is a Space-Qualified Hybrid Coupler Power Divider engineered for high-reliability RF signal splitting and combining in missile, aerospace, and space applications. Designed to perform in harsh operational environments, this hybrid coupler operates across the 5.3 to 6.0 GHz frequency range and delivers a low maximum insertion loss of 0.5 dB, ensuring minimal signal degradation. The power divider provides excellent signal balance, featuring an amplitude unbalance of ±0.20 dB and a phase balance of ±5°. |
| |
Download Datasheet
Product Details | |
| | |
| S-Band Circular Antenna for Microsats & Smallsats | |
Satellite Antenna
from AAC Clyde Space
|
| The AC-2000 from AAC Clyde Space is a S-band Satellite Antenna designed for reliable RF communications in nanosatellite and small satellite missions. Operating across the 2000 to 2300 MHz frequency range, this antenna supports a wide bandwidth of 300 MHz, enabling flexible frequency planning for modern satellite payloads.The antenna delivers a gain of 2 dBi and maintains a low VSWR of 1.5:1 across the operating band, ensuring efficient power transfer and stable RF performance. It features a built-in ground plane to enhance radiation characteristics. |
| |
Download Datasheet
Product Details | |
| | |
| |

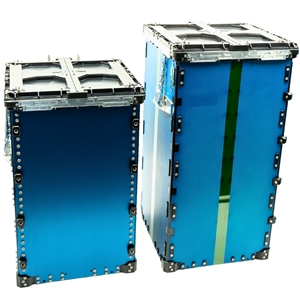

| Flight-Proven CubeSat Deployer | |
Satellite Deployer
from ISISPACE
|
| The QuadPack from ISISPACE is a Flight-Proven CubeSat Deployer designed to support small satellite missions ranging from 1U to 16U form factors. Engineered for reliable and controlled satellite release, the deployer provides a smooth ejection mechanism with a controlled deployment velocity between 0.8 and 1.8 m/s, ensuring safe separation and reduced mechanical stress on spacecraft.Featuring a compact and space-optimized structural design, the QuadPack enables efficient integration with a wide range of launch vehicles. It is available in 12U XL and 16U variants. |
| |
Download Datasheet
Product Details | |
| | |
| 400-8000 Wh Power Conditioning and Distribution Unit | |
Power Conditioning and Distribution Unit (PCDU)
from Ecuadorian Civilian Space Agency
|
| The Colossus PCDU Family from Ecuadorian Civilian Space Agency is a Space-Grade Power Conditioning and Distribution Unit (PCDU) engineered for missions ranging from small satellites to large spacecraft requiring high energy capacity, scalability, and redundancy. Designed to support demanding power architectures, the Colossus PCDU family delivers total energy capacities ranging from 400 Wh to 8,000 Wh. This PCDU system combines power conditioning electronics, TITAN2 battery banks, and UMPPT solar array management into a single compact unit. |
| |
Download Datasheet
Product Details | |
| | |
| UHF SATCOM Transceiver from 395 to 440 MHz | |
SATCOM Transceiver
from Kongsberg NanoAvionics
|
| The CubeSat UHF from Kongsberg NanoAvionics is a SATCOM Transceiver designed to provide reliable UHF communications for CubeSat and SmallSat missions. Operating across the 395 to 440 MHz frequency range, this UHF radio supports telemetry, tracking, and command (TT&C) links for low Earth orbit satellite platforms.The transceiver supports a symbol rate of 2400 baud and a data rate of 2400 bps, delivering an RF output power of 2 W while operating from a single 3.3 V supply. It uses GFSK2 (MSK) modulation to ensure efficient and robust signal transmission. |
| |
Download Datasheet
Product Details | |
| | |

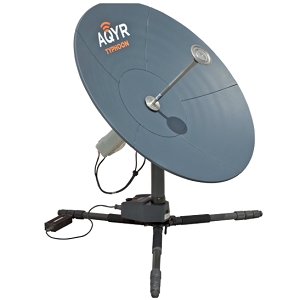

| Ku-band Auto-Acquire Satellite Terminal | |
Satellite Terminal
from ARA
|
| The TYPHOON from ARA is a Ku-band Auto-Acquire Satellite Terminal designed for rapid deployment and dependable broadband connectivity in tactical and expeditionary environments. Engineered for fast setup and precise pointing, this terminal features a 1.0-meter segmented composite reflector integrated with a 3-axis auto-positioning system that supports azimuth, elevation, and skew control. This Ku-band terminal incorporates ARA’s AutoAQYR™ acquisition algorithm, enabling carrier-level automatic satellite acquisition and signal peaking in less than three minutes. |
| |
Download Datasheet
Product Details | |
| | |
| |

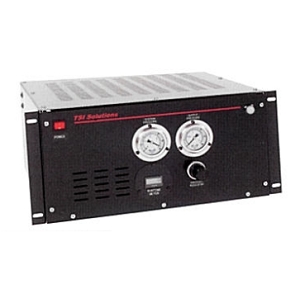

| 5U Rack-Mount Waveguide Dehydrator | |
Dehydrator
from TSI Solutions
|
| The WDH2-5U-15-120 from TSI Solutions is a 5U Rack-Mount Waveguide Dehydrator engineered to deliver reliable, regulated dry air pressurization for RF waveguide and transmission line systems. Designed for high-availability and fail-safe operation, this dehydrator provides an adjustable output pressure range from 0.5 to 15 psig, making it suitable for a wide range of satellite, broadcast, and telecom infrastructure applications. It operates from a 120 VAC power supply, drawing 1.8 A at 60 Hz or 3.1 A at 50 Hz, and features an oil-less rocking piston compressor driven by a ¼ HP motor. |
| |
Download Datasheet
Product Details | |
| | |
| 45 V Hi-Rel Silicon Schottky Rectifier | |
Space Qualified Diode
from Sensitron Semiconductors
|
| The SHD126122D from Sensitron Semiconductors is a Silicon Schottky Rectifier designed for high-efficiency power conversion in aerospace and high-reliability electronic systems. This rectifier features a peak inverse voltage rating of 45 V and delivers a very low forward voltage drop of 0.66 to 0.73 V, minimising conduction losses in power-critical applications. The silicon rectifier supports a maximum average forward current of 7.5 A and a non-repetitive surge current rating of 75 A, providing robust current-handling capability for demanding operating conditions. |
| |
Download Datasheet
Product Details | |
| | |

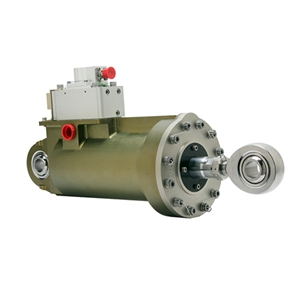

| 3000 psi Launch Vehicle Actuator | |
Launch Vehicle Actuator
from Jansen Aircraft Systems Controls
|
| The 101405-1 from Jansen Aircraft Systems Controls is a Launch Vehicle Actuator engineered for flight surface control in manned spacecraft launch vehicles. Designed to meet the demanding performance and reliability requirements of human-rated launch systems, this actuator is the largest unit in the JASC actuator portfolio.The actuator operates at a maximum hydraulic supply pressure of 3,000 psi and delivers a static output force of 13,500 lbf in extension and 11,000 lbf in retraction. It has a total mass of 12.8 lb and measures 14.1 x 4.5 x 18 inches. |
| |
Download Datasheet
Product Details | |
| | |
| DC-6 GHz Fakra to AMC4 Plug Cable Assembly | |
Space Qualified Cable Assembly
from Amphenol RF
|
| The 095-820-124-10Z from Amphenol RF is a RF Cable Assembly engineered for reliable high-frequency signal transmission in compact and space-constrained electronic systems. Designed with a controlled 50-ohm impedance, this cable assembly supports broadband operation from DC to 6 GHz, making it suitable for high-speed RF connectivity in automotive, aerospace, and IoT applications. It delivers impedance matching with a maximum VSWR of 1.4 from DC to 2 GHz, 1.5 from 2 to 3 GHz, and 1.45 from 3 to 6 GHz, supporting low-loss, stable RF performance. |
| |
Download Datasheet
Product Details | |
|
