| Featured Space and Satellite Products |
|
|

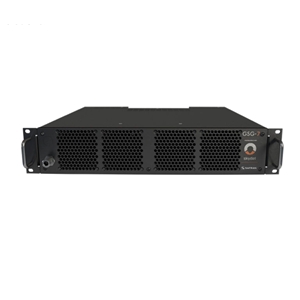

| 1000 Hz Software-defined Advanced GNSS Simulator | |
GNSS Simulator
from Safran Group
|
| The GSG-7 from Safran is a GNSS Simulator with advanced simulation capabilities of real-time synchronization, Hardware-in-the-Loop (HIL) integration, and simulation of all-in-view satellite signals. It has a simulation iteration rate of 1000 Hz and can be programmed to simulate operations with all current/future GNSS signals. The GNSS Simulator is configured with Skydel software and commercial-off-the-shelf (COTS) hardware to conduct system testing and simulation. It requires an AC supply from 100-240 V. |
| |
Download Datasheet
Product Details | |
|
|
|

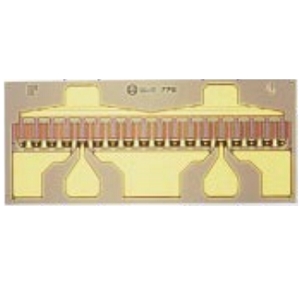

| 16 GHz GaAs FET for Narrow-Band Applications | |
Space Qualified RF Transistor
from MicroWave Technology
|
| The MwT-8 from MicroWave Technology is a Space-Qualified RF Transistor which is ideally suited to narrow-band applications such as cellular telephone, PCN, point-to-point communications links, and other wireless applications as the driver transistor for the output power amplifier. It has a gate-to-source breakdown voltage of -12 V and a gate-to-drain breakdown voltage of typically -8 V. It delivers an output power of 0.6 W at 12 GHz. This GaAs transistor has a third-order intercept performance of typically 12 dB. |
| |
Download Datasheet
Product Details | |
|
|
|

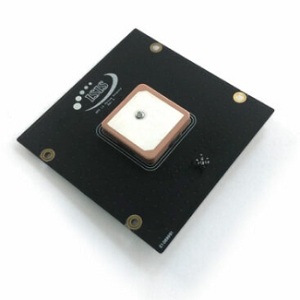

| GNSS Patch Antenna for CubeSats | |
Satellite Antenna
from ISISPACE
|
| The ISIS-GAPA-DSH-0001 from ISISPACE is an active GNSS patch antenna engineered to provide precise positioning for CubeSat and nanosatellite missions. It supports GPS L1 and Galileo E1 reception, making it well-suited for orbit determination, navigation, and timing applications in LEO missions. It operates across the 1572–1578 MHz frequency range and delivers an antenna peak gain of up to 5.5 dBi. It has an active signal gain of 34.5 dB and features Right Hand Circular Polarization (RHCP). It has a return loss of up to 15 dB. |
| |
Download Datasheet
Product Details | |
|
|
|
| X-Band Telemetry Tracking and Command (TT&C) Antenna | |
Earth Station Antenna
from Dhruva Space
|
| The Bespoke Antennas X Band from Dhruva Space are precision-engineered Earth station systems operating across the X-band frequency range of 7.9–8.5 GHz, and the system supports both Right-Hand and Left-Hand Circular Polarization (RHCP & LHCP) for enhanced link flexibility and reliability. It has TX/RX isolation up to 90 dB and an RMS pointing accuracy of 0.1°. This Bespoke Antenna range includes multiple configurations, 3.0 m, 3.8 m, 4.5 m, and 7.5 m parabolic reflectors that are available with X/Y or Az/El mounts. |
| |
Download Datasheet
Product Details | |
|
|
|
|
|

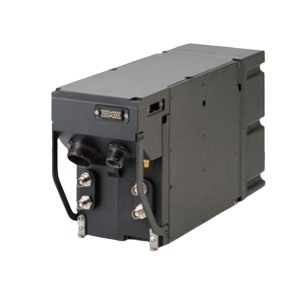

| Software Defined Radio for Airborne Mission Computing Applications | |
Software Defined Radio
from Elbit Systems
|
| The E-LynX™ AR from Elbit Systems is a Software-Defined Radio designed for airborne platforms, including helicopters, transport aircraft, fighter jets, and UAVs. It features a frequency range of 30–512 MHz for the VHF/UHF band and 960–1240 MHz for the L-band. The system supports three independent TX/RX channels simultaneously and offers interfaces including Ethernet, MIL-STD-1553B, RS232, RS422, and USB. This SDR incorporates an internal receiver for location reporting and 1PPS, supporting multiple constellations. |
| |
Download Datasheet
Product Details | |
|
|
|

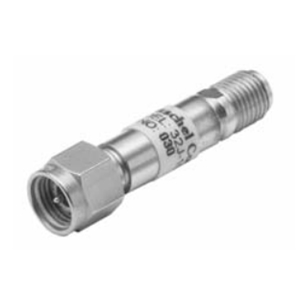

| DC-32 GHz Space-Qualified Fixed Coaxial Attenuator | |
Space Qualified Fixed Attenuator
from Spectrum Control
|
| The 32J-26.5 from Spectrum Control is a Space Qualified Fixed Attenuator with a frequency range of DC to 32.0 GHz. This coaxial attenuator has a nominal attenuation of 6.5 dB and a deviation of +/- 0.5 dB. It has a nominal impedance of 50 Ohms and a standing wave ratio of 1.25. The attenuator has a peak power rating of 500 W and a power coefficient of less than 0.005 dB/W. It supports SMK (2.92 mm) connectors and mates nondestructively with SMA (3.5 mm) and SMK (2.92 mm) connectors. The attenuator has a mass of 13 g. |
| |
Download Datasheet
Product Details | |
|
|
|

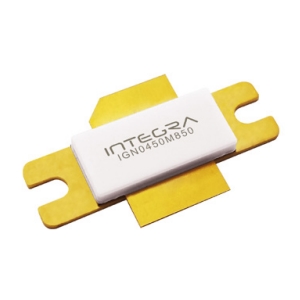

| P-Band GaN-on-SiC RF Power Transistor | |
GaN Power Transistor
from Integra Technologies, Inc.
|
| The IGN0450M850 from Integra Technologies is a high-power GaN-on-SiC RF power transistor designed specifically for P-band radar systems operating in demanding defense and surveillance environments. It has a drain-source breakdown voltage of over 180 V and has a continuous drain current of up to 50 A. It operates at a frequency range of 400-450 MHz and delivers a minimum peak output power of 850 W. It has a 300 µs pulse width and 10% duty cycle conditions with a typical gain of more than 20 dB. |
| |
Download Datasheet
Product Details | |
|
|
|

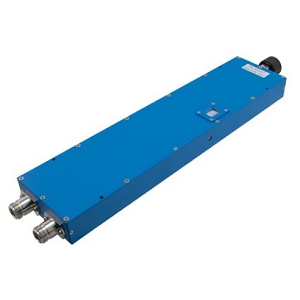

| Adjustable Phase Shifter for SATCOM and Military Systems | |
Analog Phase Shifter
from Pasternack
|
| The PE82P5017 from Pasternack is a Space Qualified Adjustable Phase Shifter that operates from DC to 4 GHz. It has the capability for phase shifting from 0° to 720° and a maximum CW power of 100 W. This analog phase shifter has 2 dB maximum insertion loss and a maximum VSWR of 1.5:1. With N-Type female connectors, this RF phase shifter has a rotary dial design technology for continuous adjustment. This adjustable phase shifter is available in an enclosure measuring 372.11 x 75.95 x 30.48 mm. |
| |
Download Datasheet
Product Details | |
|
|
|
|
|

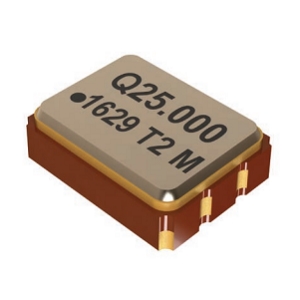

| Hybrid Oscillator for LEO and New Space Applications | |
Space Qualified Oscillator
from Q-Tech Corporation
|
| The QT723R from Q-Tech Corporation is a high shock hybrid oscillator with a broad frequency range of 1.5-250 MHz. This crystal oscillator requires a supply voltage of 1.8-3.3 Vdc and a supply current of 2.5-20 mA. It has a rise/fall time of 5 ns and a startup time of 5 ms. The oscillator has a radiation tolerance of up to 50 kRad (Si), offering a small footprint. It has an output voltage of 0.1-0.9 V and an output current of 4 mA. This oscillator is available in a surface-mount ceramic package that measures 3.20 x 2.50 x 0.90 mm. |
| |
Download Datasheet
Product Details | |
|
|
|
| CubeSat Magnetorquer for Attitude Control | |
Magnetorquer
from NewSpace Systems
|
| The NMTR-X (Custom) from NewSpace Systems is a Magnetorquer with a maximum magnetic moment of up to 400 Am2. This magnetorquer has a linearity of less than +/- 5 % and a residual moment of less than 0.3 % of the maximum moment. It requires a supply voltage of 5-28 VDC. The magnetorquer has a mass of 30 g/cm and measures 12 cm to 80 cm in dimension. It is ideal for applications such as active damping for spin-stabilized, momentum-biased, and gravity-gradient-controlled satellites. |
| |
Download Datasheet
Product Details | |
|
|
|

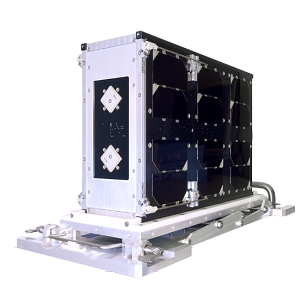

| 6U Satellite Bus & Platform | |
Satellite Bus & Platform
from IMT
|
| The CubeSat 6U Platform from IMT is a Satellite Bus & Platform designed for 6U-sized CubeSats that has a peak power of 10 W with body-mounted solar panels. It has deployable solar panels od power of 115 W when using the IMT uSADA system. This satellite bus & platform has a battery capacity of up to 90 Wh and a pointing accuracy of less than 1° (up to 0.1°). It is compatible with X, C, S, UHF, and VHF frequency bands with a data rate of up to 50 Mbps (considering X-Band communication). |
| |
Download Datasheet
Product Details | |
|
|
|

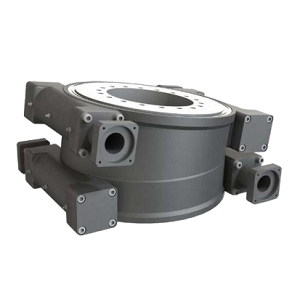

| Aerospace Qualified Antenna Positioning Mechanism | |
Antenna Positioning Mechanism
from Kinematics
|
| The WDE12 from Kinematics is a wedge drive mechanism engineered for high-torque and precision antenna positioning in satellite communication systems. It functions as a dual-drive azimuth axis that enables torque biasing with pre-positioning to eliminate keyhole effects and enhance pointing stability in LEO and MEO missions. The mechanism features a 305 mm raceway diameter and delivers an impressive survivability torque of 49.9 kN-m. It has an overturning moment capacity of 54.2 kN-m. |
| |
Download Datasheet
Product Details | |
|
