| Featured Space and Satellite Products |
|
|
| Multi-Beam Earth Station Antenna for Broadcasting Applications | |
Earth Station Antenna
from ATCi
|
| The Simulsat 5B from ATCi is a high-performance Earth Station Antenna operating in the C-band (3.4–4.2 GHz) and Ku-band (10.7–12.75 GHz). It delivers a gain of 44.5-47.5 dBi with beamwidths of 0.4-1.0°. The antenna achieves a VSWR of 1.3 and a feed cross-polarization isolation of 35 dB. The Simulsat design replicates the performance of 35 individual C/Ku parabolic antennas with a 70° arc coverage. The reflector construction features three composite fiberglass panels with a reflector size of 5.2 × 9.6 m. |
| |
Download Datasheet
Product Details | |
|
|
|
| 0.499 Ohms Space Qualified Wire-Wound Resistor | |
Space Qualified Resistor
from KOA Global
|
| The RWS89 from KOA Global is a Space Qualified Resistor that has a minimum resistance of 0.499 ohms and a maximum resistance of 3.75kohms (0.025 mm) and 950 ohms (0.04 mm). This JAXA-qualified component features lead-solder plating and a fixed wire-wound construction. It has a maximum resistance tolerance value of ±5.0% and has a power rating of 3 W. This resistor has a mass of 4 g and measures 14.2 x 4.8 x 0.8 mm. It is ideal for electrical equipment for satellite, space station, rocket and space transfer vehicles. |
| |
Download Datasheet
Product Details | |
|
|
|

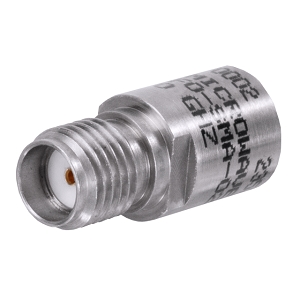

| DC-18 GHz Space Qualified Terminations | |
Space Qualified RF Termination
from Cinch Connectivity Solutions
|
| The SQT-018x-F0-SMA-02 from Cinch Connectivity Solutions is a space-qualified RF termination that operates over a DC to 18 GHz frequency range and delivers excellent signal performance with a VSWR value of 1.23:1. This termination supports an average power rating of 0.5 W. It has a design that benefits from proven space flight heritage having been used in programs including Emirates Mars Mission, Parker Solar Probe, Europa Clipper, OneWeb and GPS satellite missions. |
| |
Download Datasheet
Product Details | |
|
|
|

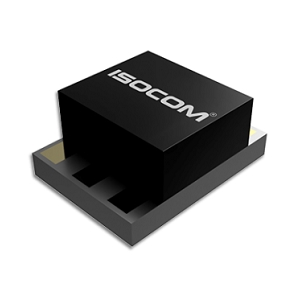

| Ceramic Hermetically Sealed Ceramic Optocoupler | |
Space Qualified Optocoupler
from ISOCOM
|
| The CH350 from ISOCOM is a Ceramic Hermetically Sealed High-Gain Optocoupler that operates with a forward voltage of 1.9 V. It has an input current of 10 mA and supports a continuous forward current of 15 mA. This optocoupler offers a minimum current transfer ratio (CTR) of 100%. It has fast switching with propagation delay times of up to 200 ns (tPHL) when tested with a 5 V supply and 13 mA input current. This optocoupler is available in through hole package that measures 4.5 x 3.5 x 2 mm. |
| |
Download Datasheet
Product Details | |
|
|
|
|
|
| 2-20 GHz Wideband RF Amplifier | |
RF Amplifier
from Teledyne Microwave Solutions
|
| The ACP20215 from Teledyne Microwave Solutions is a Wideband RF Amplifier designed for demanding microwave and aerospace applications. Operating across a broad 2–20 GHz frequency range, this amplifier delivers a typical small-signal gain of 23 dB with a low noise figure of less than 6.0 dB, ensuring high signal fidelity across wideband systems. The amplifier provides a P1dB output power of up to 16–17.5 dBm and offers excellent reverse isolation of 55 dB, supporting stable performance in multi-stage RF architectures. |
| |
Download Datasheet
Product Details | |
|
|
|

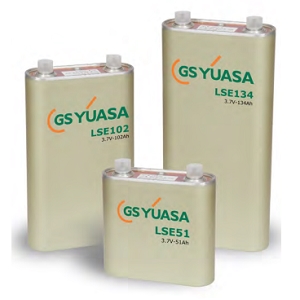

| 134 Ah Lithium-Ion Satellite Battery Cell | |
Satellite Battery
from GS Yuasa Lithium Power
|
| The LSE134 from GS Yuasa Lithium Power is a Space-Qualified Lithium-Ion Satellite Battery Cell engineered for high-energy LEO missions requiring long cycle life and predictable performance. This Li-ion cell delivers a high capacity of 134 Ah with a nominal energy of approximately 496 Wh, enabling efficient energy storage for spacecraft power systems. The cell offers an energy density of 349 Wh/L and a specific energy of 155 Wh/kg, supporting mass- and volume-constrained satellite platforms. |
| |
Download Datasheet
Product Details | |
|
|
|
| Deployable Multifunction Solar Array | |
Satellite Solar Panel
from Ecuadorian Civilian Space Agency
|
| The DMSA (Deployable Multifunction Solar Array) from Ecuadorian Civilian Space Agency is a Space-Grade Deployable Solar Array engineered for 1U to 6U CubeSat missions requiring high functionality in a compact form factor. Built around artificial-muscle release technology, the DMSA features a body-mounted panel that deploys autonomously in orbit within 5 seconds, enabling rapid power generation after launch. With a mass range of 46–92 g and a minimum radiation tolerance of four years in LEO. |
| |
Download Datasheet
Product Details | |
|
|
|

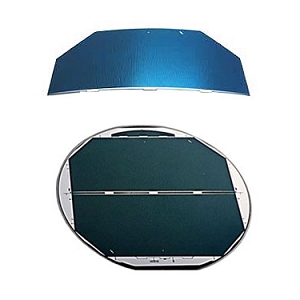

| Space Qualified Triple Junction Solar Cell | |
Satellite Solar Cell
from Spectrolab
|
| The XTE-LILT from Spectrolab is a Space-Qualified Triple-Junction Solar Cell engineered for Low Intensity Low Temperature (LILT) environments and high-volume satellite constellation missions. The XTE-LILT solar cell provides an open-circuit voltage (Voc) of 2.755 V and a maximum power voltage (Vmp) of 2.459 V. It offers a short-circuit current density (Jsc) of 18.1 mA/cm² and a current density at maximum power (Jmp) of 17.4 mA/cm², supporting high power output under low-irradiance and cold-temperature operating conditions. |
| |
Download Datasheet
Product Details | |
|
|
|
|
|

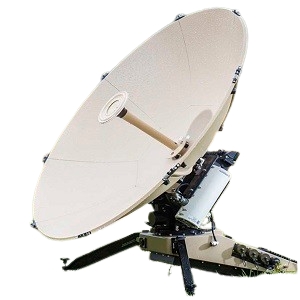

| 10.7-14.5 GHz Rugged Manpack Satellite Terminal | |
Satellite Terminal
from Ultra
|
| The FA-100/140 from Ultra is a Rugged Manpack Satellite Terminal. The terminal features a segmented, centre-fed 1-meter parabolic antenna and supports Ku-band transmit frequencies from 13.75–14.5 GHz and receive frequencies from 10.7–12.75 GHz. The FA-100/140 provides high RF performance with a transmit gain of 41.2 dBi and a receive gain of 39.5 dBi, delivering an EIRP of up to 58 dBW and a G/T ratio of 18.6 dB/K. It operates from an AC power supply of 90–264 V with power consumption ranging from 100–280 W. |
| |
Download Datasheet
Product Details | |
|
|
|
| 13.75-14.8 GHz Test Loop Translator | |
Test Loop Translator
from GeoSync Microwave
|
| The TRR-14-12.3 from GeoSync Microwave is a Test Loop Translator designed for satellite communication test systems requiring precise frequency translation with minimal signal distortion. This unit accepts an input frequency range of 14.5–14.8 GHz and converts it to an output frequency range of 13.75–14.5 GHz using a stable 1.75 GHz local oscillator, supporting accurate Ku-band uplink and downlink testing. The test loop translator features a controlled 50 Ω impedance and provides an adjustable attenuation range of up to 30 dB. |
| |
Download Datasheet
Product Details | |
|
|
|

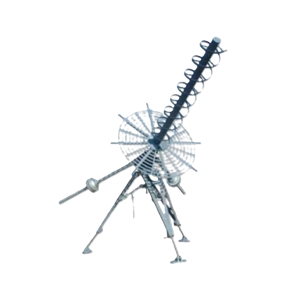

| 300-520 MHz SATCOM Helical Antenna | |
Earth Station Antenna
from TACO Antenna
|
| The H-085 from TACO Antenna is a SATCOM Helical Antenna engineered for reliable operation across the 300–520 MHz frequency range. This fixed right-hand circularly polarized (RHCP) antenna delivers a gain of 13.2 dB with an excellent axial ratio of 0.9 dB, ensuring efficient circular polarization performance for satellite communications. The antenna features a strong front-to-back ratio of 28.7 dB and a low VSWR of 1.5:1, supporting stable impedance matching and high RF efficiency. |
| |
Download Datasheet
Product Details | |
|
|
|

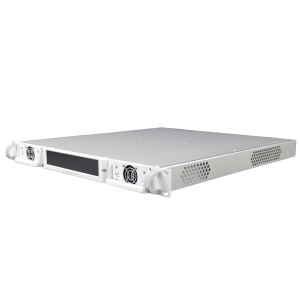

| L to X-Band Frequency Upconverter Satellite Module | |
Block Downconverter
from ETL Systems
|
| The SWF-G1S-KX-109 from ETL Systems is a L-Band to X-Band Frequency Upconverter Module. The module accepts an input frequency range of 950–1450 MHz and converts it to an X-band output range of 7.9–8.4 GHz, supporting a wide range of SATCOM and space ground-segment architectures. This upconverter delivers a mean conversion gain of up to 28.8 dB with fine 0.25 dB gain step resolution, enabling precise signal-level control. It provides stable RF performance with an input return loss of –9 dB to –12 dB. |
| |
Download Datasheet
Product Details | |
|
