| Featured Space and Satellite Products |
|
|

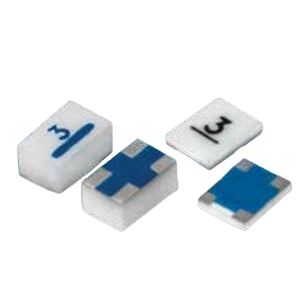

| DC to 6 GHz Chip Attenuator | |
Space Qualified Fixed Attenuator
from Smiths Interconnect
|
| The TS04 from Smiths Interconnect is a Space Qualified Fixed Attenuator that has a frequency range of DC to 6 GHz and has a attenuation value of up to 20 dB. It has an input power value of 1 W and has a maximum VSWR value of 1.25:1. The attenuator features the chip components that are in alumina, aluminum nitride, beryllium oxide and CVD diamond for maximum performance. It is ideal for mobile networks, isolators/circulators, military, instrumentation, high power amplifiers and broadcast applications. |
| |
Download Datasheet
Product Details | |
|
|
|

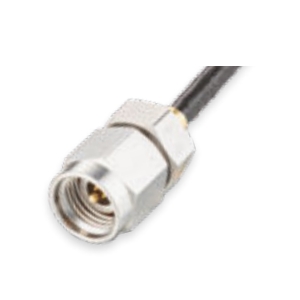

| 40 GHz Space Flight Cable Assemblies | |
Space Qualified Cable Assembly
from Times Microwave Systems
|
| The SPFLT-095 from Times Microwave Systems is a Space Qualified Cable Assembly that has a frequency range of DC to 40 GHz. It has a delay value of 1.25 ns/ft and has a shielding value of 90 dB. The cable assembly has a capacitance value of 25.8 pF/ft and has a maximum AC operating voltage value of 1300 V. It has a velocity of propagation 81 % and has minimum bend radius value of 0.5 mm. The cable assembly features a TF4 dielectric and are low outgassing in accordance with NASA and ECSS standards. |
| |
Download Datasheet
Product Details | |
|
|
|

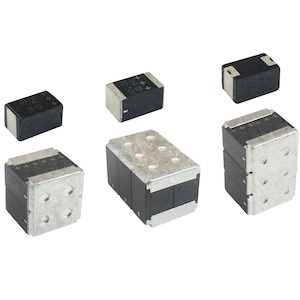

| Hi-Rel Commercial Off-The-Shelf (COTS) Solid Polymer Capacitor | |
Space Qualified Capacitor
from Vishay
|
| The T54 series from Vishay is a Hi-Rel Commercial Off-The-Shelf (COTS) solid polymer capacitor family designed in a leadframeless molded chip format to meet the demanding reliability and performance requirements of advanced electronic systems. This series supports a wide capacitance range from 15 µF to 470 µF for discrete devices and up to 2800 µF for stacked configurations, with a ±20 % tolerance, enabling flexible design implementation across power management applications. Rated for operating voltages from 16 VDC to 75 VDC. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by SATShow Week 2026 | | | |
|
|
| 2–2.4 GHz Directional Coupler | |
Space Qualified Coupler
from XMA Corporation
|
| The OS2020-5005-06 from XMA Corporation is a Directional Coupler designed for reliable RF signal monitoring and power sampling across the 2 to 2.4 GHz frequency range. It provides a nominal coupling value of 6 dB with a minimum directivity of 20 dB, ensuring accurate isolation between forward and reflected signals. This coupler delivers low insertion loss of just 0.3 dB, preserving signal integrity while maintaining a maximum VSWR of 1.5:1 for stable impedance matching. Built with a 50 Ω characteristic impedance. |
| |
Download Datasheet
Product Details | |
|
|
|

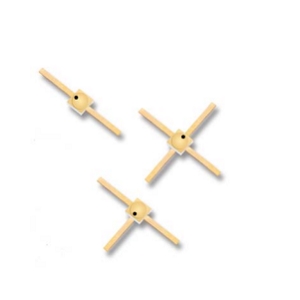

| Space-Qualified Silicon Beam-Lead Schottky Mixer Diode | |
Space Qualified Diode
from Skyworks
|
| The DMJ2833 from Skyworks is a space-qualified silicon beam-lead Schottky mixer diode designed for high-frequency operation across the 18–40 GHz band. Featuring a forward voltage range of 600–700 mV and supporting forward currents of up to 100 mA, it enables efficient signal mixing and detection in millimeter-wave RF systems. This diode offers a maximum power dissipation of 75 mW per junction and a junction resistance of up to 18 ohms, delivering stable electrical performance under demanding operating conditions. |
| |
Download Datasheet
Product Details | |
|
|
|

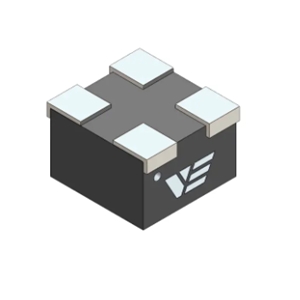

| 3.5 mH Space-Grade Common Mode Inductor | |
Space Qualified Inductor
from Vanguard Electronics
|
| The SCM410 from Vanguard Electronics is a space-qualified common-mode inductor designed to provide effective noise suppression and current filtering in high-reliability spacecraft power and signal conditioning circuits. It features an inductance value of 3.5 mH with a maximum DC resistance of 0.45 ohms, enabling efficient common mode attenuation with minimal conduction losses. This inductor supports a rated current of 1 A and an overload current capability of up to 1.5 times the rated value. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by SATShow Week 2026 | | |
|
|
| High Reliability Redundancy Switch | |
SATCOM Redundancy Switch
from NovelSat
|
| The NSR9100 from NovelSat is a High-Reliability Redundancy Switch designed to provide scalable 1+1 to 8+1 protection for satellite modulators, demodulators, and modems in mission-critical uplink and downlink communication systems. Supporting IF and ASI signals from DC to 500 MHz as well as L-Band signals from 500-2500 MHz, it ensures seamless signal continuity and equipment protection in demanding broadcast and satellite environments. This switch offers a return loss greater than 20 dB. |
| |
Download Datasheet
Product Details | |
|
|
|
| Dual 1:1 Redundant Low-Noise Amplifier | |
RF Amplifier
from Narda-MITEQ
|
| The LN3-117128-70 from Narda-MITEQ is a Dual 1:1 redundant Low-Noise Amplifier (LNA) engineered for high-reliability satellite ground station and communication applications operating across the 11.70–12.75 GHz Ku-band frequency range. Delivering a minimum gain of 50 dB (52 dB typical) and a minimum output power of +10 dBm at 1 dB compression, it ensures stable and low-noise amplification for critical RF receive chains. This LNA system offers excellent RF performance with ≥50 dB isolation and a minimum input return loss of 19 dB. |
| |
Download Datasheet
Product Details | |
|
|
|

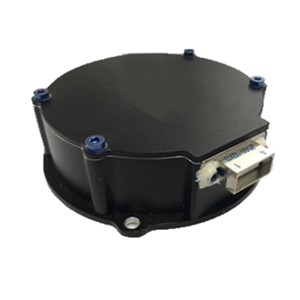

| Satellite Attitude Control Magnetometer | |
Magnetometer
from Chang Guang Satellite Technology
|
| The Magnetometer from Chang Guang Satellite Technology is a space-qualified magnetic control device designed for satellite attitude stabilization and momentum management. Engineered to generate a rated output magnetic moment of 15 A·m² with a low remnant magnetic moment of 0.1 A·m², it provides precise magnetic torque control for spacecraft attitude adjustment and detumbling operations. This magnetometer features a time constant of up to 80 ms, enabling responsive magnetic field interaction for controlled torque generation. |
| |
Download Datasheet
Product Details | |
|
|
|
| 140 nH Space-Qualified Air Coil Inductor | |
Space Qualified Inductor
from PICONICS
|
| The S141K from PICONICS is a space-qualified air coil inductor engineered for high-frequency RF and precision filtering applications. Featuring an inductance value of 140 nH with a tolerance of ±10%, it provides stable inductive performance for spaceborne communication and signal conditioning systems. This inductor delivers a minimum Q factor of 30 at a test frequency of 25 MHz and offers a self-resonant frequency (SRF) of at least 0.5 GHz, ensuring reliable operation in broadband RF architectures. |
| |
Download Datasheet
Product Details | |
|
