| Featured Space and Satellite Products | |
|
| 2800–8000 MHz Space Qualified RF Mixer | |
Space Qualified RF Mixer
from Mini Circuits
|
| The MAC-80H+ from Mini-Circuits is a Space-Qualified, Hermetically Sealed Double-Balanced RF Mixer engineered for high-reliability microwave frequency conversion. Operating over an RF and LO frequency range of 2800 to 8000 MHz and supporting an IF frequency range from DC to 1250 MHz, it enables flexible upconversion and downconversion across broadband satellite communication and radar systems. This mixer delivers a typical conversion loss of 6.0 dB from 2800–5000 MHz and 6.5 dB from 5000–8000 MHz, ensuring low and flat loss performance across the band. |
| |
Download Datasheet
Product Details | |
| | |
| 1200 pF Space-Qualified Capacitor | |
Space Qualified Capacitor
from KEMET
|
| The 05HS21N122KCF from KEMET is a space-qualified ceramic capacitor designed for high-reliability aerospace and space electronics applications. It provides a nominal capacitance of 1200 pF with a tolerance of ±10% and is rated for a maximum DC voltage of 500 V, ensuring stable electrical performance in demanding environments. This capacitor is constructed using a C0G dielectric, offering excellent capacitance stability over temperature and voltage. It supports a maximum operating temperature of 125 °C and is fully screened to MIL-PRF-49467 requirements. |
| |
Download Datasheet
Product Details | |
| | |
| 0.5–26.5 GHz Dual Directional Coupler | |

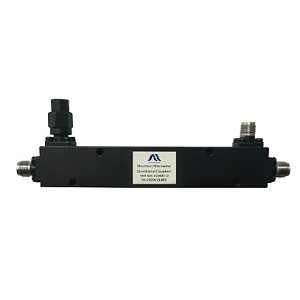

Space Qualified Coupler
from Mountain Microwave Technology
|
| The MM-DDC-005265-20 from Mountain Microwave Technology is a Dual Directional Coupler designed to operate over a wide frequency range of 0.5–26.5 GHz. It provides a nominal coupling value of 20 dB with a typical insertion loss of 1.8 dB, enabling accurate signal sampling while maintaining minimal impact on the main transmission path. With a typical directivity of 12 dB, it ensures reliable forward and reverse power measurement across the operating band. This broadband coupler supports up to 30 W of average input power and maintains a VSWR of up to 1.9:1. |
| |
Download Datasheet
Product Details | |
| | |
| Satellite Beacon Receivers for Satellite Tracking | |
Satellite Beacon Receiver
from Digisat International
|
| The 500 Series from Digisat International is a family of satellite beacon receivers engineered for precision satellite tracking, spectrum monitoring, and uplink power control (UPC) receiver source applications. Supporting multiple frequency bands, including L, S, C, X, Ku, and Ka, the system accommodates input frequency ranges from 0.95–22.3 GHz, depending on band configuration, enabling flexible deployment across diverse ground segment operations. These receivers provide image rejection of 40 dB and achieve VSWR performance as low as 1.5:1. |
| |
Download Datasheet
Product Details | |
| |
| Sponsored by SATShow Week 2026 | | | |
| |
| Satellite Launch Vehicle Platform for LEO | |
Satellite Launch Vehicle Platform
from VayaSpace
|
| The Dauntless Block 1 from VayaSpace is a satellite launch vehicle platform engineered on Florida’s Space Coast to provide safe, efficient, and cost-effective access to orbit. Designed with a reduced number of components compared to conventional rockets, the platform simplifies launch operations while maximizing payload delivery capability, supporting payloads of more than 1,000 kg to Low Earth Orbit (LEO). This two-stage launch vehicle employs a hybrid propulsion architecture utilizing HDPE solid fuel and liquid oxygen as the oxidizer, operating on a supercritical oxygen expander cycle. |
| |
Download Datasheet
Product Details | |
| | |
| Low Noise Optical Amplifier for Space Applications | |

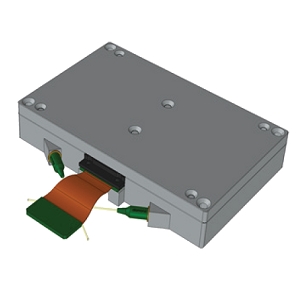

RF Amplifier
from iXblue
|
| The IXS-LNOA-C-X-RAD from Exail is a low noise optical amplifier platform designed for space applications that require high-performance amplification at very low input signal levels. This ready-to-fly unit is based on iXblue ASE source technology for fiber optic gyroscopes already deployed in space, supported by more than 15 years of experience in radiation-resistant optical fiber development. This two-stage optical amplifier operates across the 1550–1560 nm wavelength range, delivering more than 40 dB of small-signal gain at an input power of −40 dBm. |
| |
Download Datasheet
Product Details | |
| | |
| 5.4 m X/Y Remote Sensing Earth Station Antenna | |

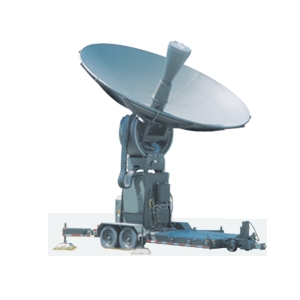

Earth Station Antenna
from Viasat
|
| The 5.4-meter mobile X-band tracking system from Viasat is a high-performance earth station antenna engineered for precision satellite tracking and telemetry operations. Operating across the 8.025–8.5 GHz RF range, the system delivers optimized G/T performance at 8.025 GHz, enabling high-sensitivity signal reception for mission-critical ground segment applications. This reflector antenna features a 5.4 m diameter, 16-panel segmented aluminum reflector designed for structural rigidity and RF accuracy. With a narrow beamwidth of 0.45° and an axial ratio of 0.5 dB. |
| |
Download Datasheet
Product Details | |
| | |
| 46 cm Ka-Band Multi-Purpose VSAT System | |
Satellite Terminal
from Orbit Communication Systems
|
| The MPT 46WGX from Orbit Communication Systems is a Ka-Band Multi-Purpose Airborne VSAT Terminal designed to deliver high-performance broadband connectivity for military, governmental, and business aviation platforms. Fully interoperable with the Wideband Global Satcom (WGS) system, military Ka-band networks, and Viasat’s Global Xpress (GX) constellation, it ensures seamless global coverage across both commercial and defense satellite infrastructures. The KPSU operates on a +28 VDC input with a typical power consumption of 175 W. |
| |
Download Datasheet
Product Details | |
| |
| Sponsored by SATShow Week 2026 | | |
| |
| 11.7–12.5 GHz Test Loop Translator for Satellite Communication | |
Test Loop Translator
from GeoSync Microwave
|
| The TRR-17.7-12.1 from GeoSync Microwave is a high-performance test loop translator engineered for satellite communication systems requiring precise frequency translation with minimal amplitude and group delay distortion. Designed to convert input signals from 17.3–18.1 GHz to an output range of 11.7–12.5 GHz, it supports accurate loop testing and RF system validation across Ku-band architectures. This translator operates with a 5.6 GHz local oscillator and maintains a 50-ohm impedance for stable system integration. It offers an attenuation adjustment range of 30 dB. |
| |
Download Datasheet
Product Details | |
| | |
| 16 Mb Space Grade Serial SRAM Memory | |
Space Qualified Memory
from Avalanche Technology
|
| The AS1016A04 from Avalanche Technology is a Space-Grade High-Performance Serial Persistent SRAM Memory with a density of 16 Mb, designed for mission-critical space and high-reliability applications. It operates from a low supply voltage range of 1.7 V to 2 V and features a high-speed SPI-compatible serial interface supporting standard, dual, and quad I/O modes, enabling fast, flexible, and efficient data communication in constrained space environments. Built for high-reliability operation, the device is RoHS-compliant and available in compact 8-pin SOIC and 8-pad WSON packages. |
| |
Download Datasheet
Product Details | |
| | |
| 10 KHz Ku-Band PLL LNB | |
Low Noise Block
from Actox
|
| The AL1012010 from Actox is a Ku-band low noise block (LNB) designed for stable frequency conversion and low-noise signal reception in satellite communication systems. Operating across an input frequency range of 10.95–12.75 GHz, it downconverts signals to an output frequency range of 950–2750 MHz for efficient intermediate frequency processing. Featuring a 10 GHz local oscillator and 55 dB conversion gain, the LNB ensures strong signal amplification with minimal degradation. It delivers a maximum noise figure of 1 dB, and has an image rejection of 40 dBc. |
| |
Download Datasheet
Product Details | |
| | |
| 4 Tb Solid State Recorder | |
Solid State Recorder
from NewSpace India Limited
|
| The Solid State Recorder (SSR) from NewSpace India Limited is a high-speed onboard data storage system designed for imaging payloads and large-volume data acquisition applications. Offering a storage capacity of 4 Tb, it supports sustained input data rates up to 1 Giga baud, enabling efficient handling of high-resolution sensor outputs. Built on NAND flash memory technology using ONFI-based storage architecture, the SSR provides real-time recording performance for demanding imaging missions. It operates across a wide voltage range of 5–72 V. |
| |
Download Datasheet
Product Details | |
|
