| Featured Space and Satellite Products | |
|

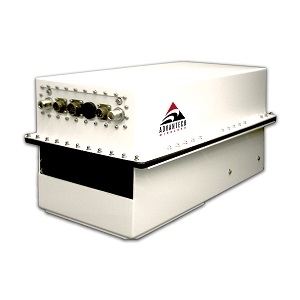

| 40 dBm Ku-Band SATCOM Transceiver | |
SATCOM Transceiver
from Advantech Wireless Technologies
|
| The AWMT-2000LK Series from Advantech Wireless Technologies is a Ku-band Transceiver designed to deliver reliable and high-performance satellite communication links for fixed and mobile ground stations. Supporting transmit operation from 14-14.5 GHz and receiving operation from 10.95-12.75 GHz, it enables robust uplink and downlink connectivity for demanding SATCOM applications. This transceiver system provides up to 61 dB gain on the transmit path and up to 75 dB gain on the receive path, with a P1dB output power of up to 40 dBm to ensure strong and stable signal transmission. |
| |
Download Datasheet
Product Details | |
| | |

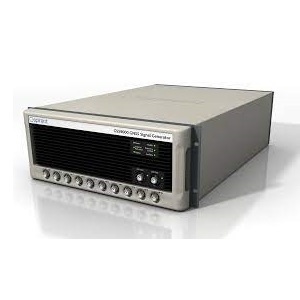

| Multi-Frequency GNSS RF Simulator System | |
GNSS Simulator
from Spirent Communications
|
| The GSS9000 Series from Spirent Communications is a Multi-Frequency, Multi-GNSS RF Constellation Simulator engineered to deliver high-fidelity signal generation for advanced positioning, navigation, and timing (PNT) system validation. Powered by Spirent’s SimGEN scenario definition and simulation control software, it enables precise modelling of complex real-world satellite environments under static and ultra-high dynamic conditions. This high-performance simulator supports all major global and regional constellations, including GPS, Galileo, GLONASS, BeiDou, QZSS, and NavIC. |
| |
Download Datasheet
Product Details | |
| | |
| 86 mN Hall-Effect Electric Thruster | |
Spacecraft Thruster
from Bellatrix Aerospace
|
| The Arka 1500 from Bellatrix Aerospace is a high-efficiency Hall-effect electric thruster designed to provide precise and sustained propulsion for modern satellite missions. Delivering a thrust of 86 mN, it supports orbit raising, station keeping, and deep-space maneuvering requirements for small and medium-class spacecraft. Operating at a discharge power of 1.5 kW, the Arka 1500 achieves a specific impulse of 1600 seconds. Engineered for reliable performance in the vacuum and radiation conditions of space, the thruster architecture supports stable long-duration firing and efficient thermal management. |
| |
Download Datasheet
Product Details | |
| | |

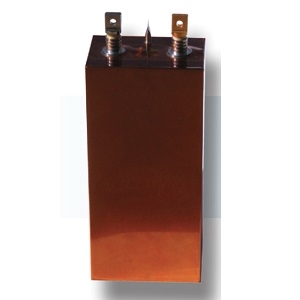

| 52-62.5 Ah Lithium-Ion Secondary Cell | |
Satellite Battery
from EaglePicher Technologies
|
| The SLC-16050 from EaglePicher Technologies is a lithium-ion secondary cell designed for high-reliability satellite and launch vehicle power systems. This space-grade battery provides a life capacity of 62.5 Ah, delivering high energy storage capability for long-duration and mission-critical space applications. This lithium-ion cell features a prismatic form factor with a hermetically sealed construction, enabling stable operation across a wide range of orbital environments. It achieves an energy density of 305.4 Wh/L and a specific energy of 121.3 Wh/kg. |
| |
Download Datasheet
Product Details | |
| |
| Sponsored by SATShow Week 2026 | | | |
| |
| DC-6 GHz FAKRA to AMC4 Cable Assembly | |
Space Qualified Cable Assembly
from Amphenol RF
|
| The 095-820-124-05Z from Amphenol RF is a DC–6 GHz FAKRA to AMC4 Plug Cable Assembly engineered for reliable RF signal transmission in compact system architectures. Designed with a 50-ohm impedance and a 50 mm cable length, it ensures stable electrical performance across a broad frequency range from DC to 6 GHz, making it suitable for high-frequency communication applications. It delivers controlled VSWR performance with a maximum VSWR of 1.4 (DC-2 GHz), 1.5 (2-3 GHz), and 1.45 (3-6 GHz), enabling consistent signal integrity across operating bands. |
| |
Download Datasheet
Product Details | |
| | |
| 10 N Bipropellant Spacecraft Thruster | |
Spacecraft Thruster
from Orbital Propulsion Centre
|
| The Type S10-18 from Orbital Propulsion Centre is a 10N Bipropellant Spacecraft Thruster designed for precision attitude control, trajectory correction, and orbit management in large satellites and deep-space missions. It delivers a thrust range of 6–12.5 N with a nominal specific impulse of 292 seconds, enabling efficient propulsion performance for mission-critical maneuvers. The thruster operates with an inlet pressure range of 10–23 bar. With a compact mass of 0.650 kg, it offers an excellent balance between thrust capability and spacecraft mass constraints. |
| |
Download Datasheet
Product Details | |
| | |
| 3.4–4.2 GHz C-Band Redundant LNB System | |
Low Noise Block
from Communications & Power Industries
|
| The BRC-1200 from Communications & Power Industries is a C-Band Redundant Low Noise Block Converter (LNB) designed for high-reliability SATCOM ground station applications. Operating with an input frequency range of 3.4–4.2 GHz and providing an output frequency range of 950–1750 MHz, it ensures stable and efficient frequency downconversion for C-band satellite communication systems. With a local oscillator (LO) frequency of 5.15 GHz and phase noise performance of up to -95 dBc/Hz, it delivers low-noise signal integrity for mission-critical communication links. |
| |
Download Datasheet
Product Details | |
| | |
| Low Noise Block (LNB) for SATCOM Applications | |
Low Noise Block
from TTI
|
| The Q-LNB-38-40 GHz from TTi is a Low Noise Block (LNB) designed for high-performance Q-band satellite communication and test applications. It converts an input frequency range of 38–40 GHz to an intermediate frequency output of 950–1950 MHz, enabling efficient down-conversion for satellite receivers and measurement systems. This LNB integrates a 37.05/38.05 GHz local oscillator and delivers a high conversion gain of 60 dB, supporting low-signal reception with minimal degradation. It features a noise temperature of less than 262 K and a noise figure below 2.8 dB. |
| |
Download Datasheet
Product Details | |
| |
| Sponsored by SATShow Week 2026 | | |
| |

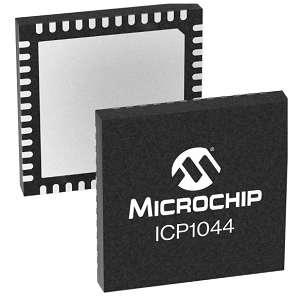

| 7.9-11 GHz GaN MMIC Power Amplifier | |
RF Amplifier
from Microchip Technology
|
| The ICP1044 from Microchip Technology is a Three-Stage MMIC Power Amplifier engineered for broadband aerospace and defense applications operating across the 7.9–11 GHz frequency range. Delivering a pulsed output power of 44 dBm with a small-signal gain of 22 dB, it provides consistent and high-level amplification across its operating bandwidth, supporting high-performance RF transmit chains. Fabricated using advanced GaN-on-SiC process technology, this amplifier combines high power density with strong thermal performance to withstand demanding RF environments. |
| |
Download Datasheet
Product Details | |
| | |

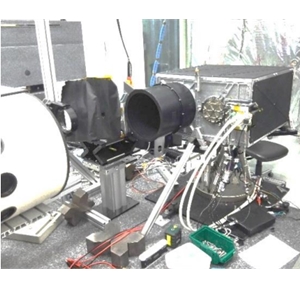

| 1.92 m GSD Resolution Satellite Camera | |
Satellite Camera
from Berlin Space Technologies
|
| The HRVI-2HD from Berlin Space Technologies is a high-resolution satellite camera designed for a mission life of up to five years in Low Earth Orbit (LEO). The system integrates a Three Mirror Anastigmat (TMA) telescope, a Sensor and Focus Assembly (SFA), and a Payload Data Processing Unit (PLSU), delivering advanced optical imaging performance for Earth observation missions. This spaceborne imaging system operates across a spectral band of 450–900 nm and provides high-resolution imagery with a ground sampling distance (GSD) of 1.92 meters over a 15 Km swath width. |
| |
Download Datasheet
Product Details | |
| | |

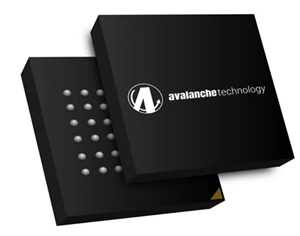

| 4GB Space Grade Parallel Persistent SRAM Memory | |
Space Qualified Memory
from Avalanche Technology
|
| The AS304GB32 from Avalanche Technology is a Space-Grade Parallel Persistent SRAM Memory designed for mission-critical aerospace and defense applications. Built on Spin-Transfer Torque Magneto-Resistive RAM (STT-MRAM) technology, it provides a 4 Gigabit density organized as 134,217,728 x 32, delivering non-volatile, high-speed memory performance with virtually unlimited endurance. This advanced memory device operates within a voltage range of 1.71-3.60 V and supports over 20 years of data retention at 85°C, ensuring long-term reliability in harsh environments. |
| |
Download Datasheet
Product Details | |
| | |
| 1500 W Bipolar TVS Diode | |
Space Qualified Diode
from Semtech
|
| The JANS1N6156A from Semtech is a Space-Qualified 1500 W Bipolar Transient Voltage Suppressor (TVS) Diode designed to protect sensitive electronic circuits from voltage transients in harsh aerospace and defense environments. With a reverse standoff voltage of 29.7 V and a maximum reverse current of 5 µA, it ensures stable operation and effective overvoltage protection in mission-critical systems. This high-reliability TVS diode features a peak pulse power rating of 1500 W, delivering robust transient suppression capability against surge events. It operates over a wide temperature range of -65 °C to +175 °C. |
| |
Download Datasheet
Product Details | |
|
