| Featured Space and Satellite Products |
|
|
| DC to 26.5 GHz Test Cable Assembly | |
Space Qualified Cable Assembly
from Teledyne Storm Microwave
|
| The STORM FLEX 141 from Teledyne Storm Microwave is a high-performance flexible microwave cable engineered for reliable RF signal transmission in demanding high-frequency applications. Designed with a cable diameter of 0.160 inches and supporting an operating frequency of DC to 26.5 GHz, it ensures stable electrical performance across a wide frequency range. Equipped with a solid silver-plated copper-clad steel center conductor and a solid PTFE dielectric, the cable delivers low signal loss and consistent electrical characteristics for precision microwave systems. |
| |
Download Datasheet
Product Details | |
|
|
|

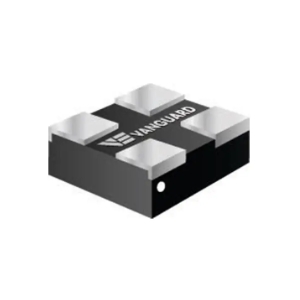

| 6.9 mH Space-Qualified Power Transformer | |
Space Qualified Power Transformer
from Vanguard Electronics
|
| The SIT203 from Vanguard Electronics is a space-qualified power transformer designed for reliable energy transfer and signal conditioning in high-reliability aerospace and satellite power systems. Featuring a primary inductance of 6.9 mH and a current rating of 0.65 A, it supports efficient power conversion and filtering functions within spacecraft electronics. This transformer offers a DC resistance (DCR) range of 0.77–0.92 ohms and provides a dielectric withstand voltage of 300 V, ensuring electrical insulation and operational safety in demanding environments. It features a turns ratio of 1:1.2. |
| |
Download Datasheet
Product Details | |
|
|
|
| SATCOM Dual Redundancy Switch | |
SATCOM Redundancy Switch
from ETL Systems
|
| The 23235 from ETL Systems is a SATCOM redundancy switch designed to ensure reliable signal routing and automatic failover in satellite communication systems. Operating across a frequency range of 50–2150 MHz (IF L-band), the unit integrates two 2:1 switches—one dedicated to the transmit path and the other to the receive path—enabling seamless switching between primary and standby signal feeds. It provides automatic switchover from the main feed to a standby feed when signal failure is detected, ensuring continuous operation of critical satellite communication links. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by SATShow Week 2026 | | | |
|
|
| W-Band GNSS Receiver Module | |
Satellite GNSS Receiver
from ReliaSat
|
| The W-x8RX-9296 from ReliaSat is a high-frequency GNSS receiver module designed for advanced millimeter-wave signal processing applications. Operating across an RF frequency range of 92–96 GHz with an intermediate frequency (IF) range of 2–6 GHz, the receiver enables high-resolution signal acquisition for precision measurement and tracking systems. It incorporates Arralis monolithic millimeter-wave p-HEMT integrated circuits combined with patented integration technology that supports large-scale millimeter-wave system integration. It utilizes a LO frequency range of 10.80–11.40 GHz. |
| |
Download Datasheet
Product Details | |
|
|
|
| High-Resolution Satellite Camera | |
Satellite Camera
from Simera Sense
|
| The MultiScape50 CIS from Simera Sense is a Satellite Camera designed to deliver high-resolution Earth observation and imaging capabilities for space missions. Featuring a 93.9 mm focal length and an 11.75 mm aperture, the camera provides a 13.68° field of view (FOV), enabling detailed imaging performance for situational awareness and environmental monitoring applications. This advanced imaging system utilizes a CMOS global shutter sensor with 4096-pixel resolution, ensuring accurate image capture without motion distortion. It features a 5.5 µm pixel size and 12-bit pixel depth. |
| |
Download Datasheet
Product Details | |
|
|
|

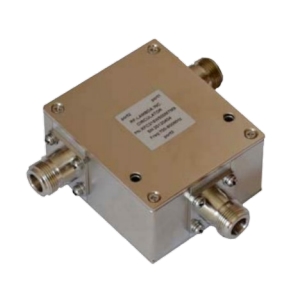

| Space-Qualified Coaxial Circulator | |
Space Qualified Circulator
from RF-Lambda
|
| The RFLC101M60M90 from RF-Lambda is a space-qualified coaxial circulator designed to provide efficient signal routing and isolation in RF systems operating across the 600–900 MHz frequency range. Engineered for reliable microwave performance, it delivers an insertion loss of approximately 1 dB and an isolation level of 16 dB, ensuring stable signal flow within communication and radar subsystems. This circulator maintains a voltage standing wave ratio (VSWR) of 1.38:1 and features a characteristic impedance of 50 ohms, supporting consistent impedance matching within RF transmission paths. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by SATShow Week 2026 | | |
|
|
| 3-Axis Flux-Gate Magnetometer | |
Magnetometer
from Lemi
|
| The LEMI-011 from Lemi is a three-axis flux-gate magnetometer designed for precise measurement of weak magnetic fields in scientific and environmental monitoring applications. It provides a measurement range of up to 50,000 nT along each axis and operates with low power consumption of approximately 5 mW, enabling continuous monitoring in energy-constrained systems. It delivers a high sensitivity of 45 ± 0.5 mV/nT and supports a measurement bandwidth from 0 to 20 Hz. It achieves low noise performance of 0.1–0.2 nT/√Hz at 5 Hz and maintains a zero drift of less than 5 nT/°C. |
| |
Download Datasheet
Product Details | |
|
|
|

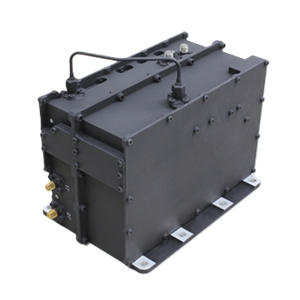

| Space-Qualified Ku-Band Transmitter | |
Space Transmitter
from Mitsubishi Electric Corporation
|
| The Ku-Band Telemetry Transmitter (Single Freq.) from Mitsubishi Electric Corporation is a Space Transmitter designed for high-stability reference signal generation in satellite communications systems. Operating across the Ku-band frequency range of 10.7 to 12.75 GHz, this transmitter is used for satellite identification, tracking, antenna pointing, and link performance monitoring in GEO and other orbital missions. The transmitter delivers an output power of 28 dBm and provides excellent frequency stability in the range of ±0.4 to ±1.7 ppm through the use of a high-precision OCXO. |
| |
Download Datasheet
Product Details | |
|
|
|
| Ku-Band Quadrature Coupler | |
Space Qualified Coupler
from Smiths Interconnect
|
| The UHFWC301 from Smiths Interconnect is a space-qualified Ku-band quadrature coupler engineered to deliver precise amplitude and phase performance across an operating frequency of 375-450 MHz. It provides a maximum insertion loss of 0.35 dB, an inter-channel isolation of 20 dB, and a return loss of 20 dB. The coupler supportsis available in two configurations, with all four ports accessible, or with an internally terminated coupled port to simplify system architecture. SMA connectors are provided as standard, with TNC options available for higher-power variants. |
| |
Download Datasheet
Product Details | |
|
|
|
 |

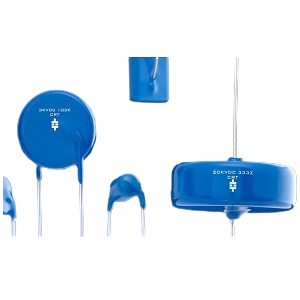

| High Voltage Ceramic Disc Capacitors | |
Space Qualified Capacitor
from CalRamic
|
| The CRT-0020 from CalRamic is a High-Voltage Radial Leaded Ceramic Disc Capacitor designed to support extreme high-voltage operation ranging from 3 kV to 20 kV DC. Engineered for demanding electronic systems, this capacitor provides reliable performance in circuits requiring stable capacitance and high-voltage endurance. It supports capacitance values from 1.6 pF to 0.045 µF and is available with ultra-stable Class I (NPO) as well as stable Class II dielectrics including X7R, X5R, X5U and Y5P, offering flexibility for applications that require either tight capacitance stability or higher capacitance density. This ceramic capacitor features a low dissipation factor of up to 2.5% and operates across a wide temperature range from -55°C to +125°C, ensuring dependable performance in both standard and harsh environmental conditions. The component design supports consistent electrical characteristics and stable operation across varying thermal and electrical stresses. The CRT-0020 capacitor i |
| |
Download Datasheet
Product Details | |
|
