| Featured Space and Satellite Products |
|
|
| Radio Link Emulator for Military Satellite Communications Testing | |
Satellite Link Emulator
from Square Peg Communications Inc
|
| The RLS-2100 from Square Peg Communications is a Satellite Radio Link Emulator that replicates realistic communication scenarios across the 700 to 2150 MHz frequency range. Designed for hardware-in-the-loop physical layer testing and end-to-end network evaluation, it enables accurate simulation of satellite and terrestrial communication systems used in Satellite, 5G NTN, and MIL-SATCOM applications. The system supports real-time multi-satellite orbit calculation and visualization, allowing users to model constellations across LEO, MEO, HEO, GEO, and hybrid multi-orbit architectures. |
| |
Download Datasheet
Product Details | |
|
|
|
| Open Boundary Quad-Ridge Horn Antenna from 18 to 55 GHz | |
Satellite Antenna
from Microwave Vision Group
|
| The QH18000S from Microwave Vision Group is a quad-ridge horn satellite antenna designed to support wideband space connectivity applications across multiple orbital regimes. Operating over a broad frequency range of 18 to 55 GHz, this open-boundary antenna supports dual linear polarization and delivers gain performance from 9–15 dBi, enabling reliable RF operation for satellite communication and measurement use cases. This space-qualified antenna offers stable electrical performance across the operating band, having an impedance value of 50 ohms and a return loss better than 10 dB. |
| |
Download Datasheet
Product Details | |
|
|
|
| N-Chanel Radiation Hardened MOSFET | |
Space Qualified MOSFETs
from VPT Components
|
| The JANSR2N7481U3 from VPT Components is a space-qualified N-channel MOSFET engineered for high-reliability power switching in radiation-intensive environments. Designed for aerospace and defense applications, it provides a drain-source breakdown voltage of 100 V and a gate-threshold voltage range of 2–4 V, enabling efficient control in power management and switching circuits. This MOSFET features a forward voltage of 1.2 V for the intrinsic drain diode and maintains a low zero-gate voltage drain current of 10 µA, ensuring minimal leakage and improved efficiency. |
| |
Download Datasheet
Product Details | |
|
|
|
| Ground Test Release Actuators | |
Space Actuator
from SPACERACE
|
| The ATLAS Non-Explosive Release Nuts from SPACERACE are precision-engineered release actuators designed for ground testing and development of space mechanisms, providing a safe, reusable, and cost-effective alternative to traditional pyrotechnic separation systems. They support a maximum release preload of up to 22 kN, with a design limit load of 33 kN, ensuring reliable and consistent performance under high-load conditions. These actuators feature a fast release time of less than 50 ms at 7 A when operated with an Initiation Control Unit (ICU). |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by SATShow Week 2026 | | | |
|
|
| Space-Qualified Master Crystal Oscillator | |
Space Qualified Oscillator
from Safran Group
|
| The MO from Safran is a space-qualified master crystal oscillator designed with high-reliability technology for advanced space applications. Operating at a nominal output frequency of 10 MHz, this ultra-stable oscillator provides fine frequency adjustment capability greater than ±1.5 Hz, enabling highly precise timing and frequency reference functions in spacecraft systems. This oscillator delivers an output signal level of 4.5 dBm ±1 dBm into a 50 Ω load while maintaining excellent spectral purity. It ensures spurious signals below –120 dBc and harmonic levels under –30 dBc. |
| |
Download Datasheet
Product Details | |
|
|
|

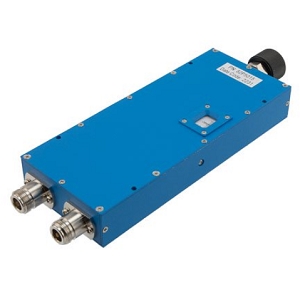

| DC to 4 GHz Adjustable Phase Shifter | |
Analog Phase Shifter
from Pasternack
|
| The PE82P5015 from Pasternack is a space-qualified adjustable phase shifter designed to provide precise phase control across the DC to 4 GHz frequency range. Engineered for flexible RF signal tuning, it enables continuous phase adjustment from 0° to 360°, supporting accurate signal alignment in advanced communication and radar systems. This analog phase shifter delivers a maximum continuous wave (CW) power handling capability of 100 W and maintains a low insertion loss of up to 1.2 dB, ensuring efficient signal transmission. It features an input VSWR of 1.4:1. |
| |
Download Datasheet
Product Details | |
|
|
|

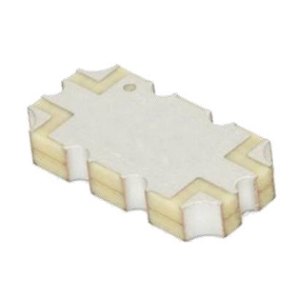

| Cross-Band Combiner for Wireless Infrastructure | |
Space Qualified RF Diplexer
from CTS Corporation
|
| The XCBC0822A from CTS Corporation is a space-qualified RF cross-band combiner designed to integrate multiple frequency bands into a single signal path for wireless infrastructure applications. Operating across frequency ranges of 380–960 MHz and 1710–2690 MHz, it enables efficient signal combining for multi-band communication systems sharing a common antenna. This wideband diplexer provides a low-passband insertion loss of 0.5 dB and a passband return loss of 17 dB, ensuring minimal signal degradation and effective impedance matching. |
| |
Download Datasheet
Product Details | |
|
|
|

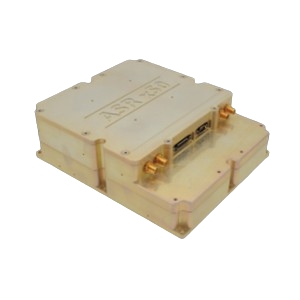

| 156-163 MHz SDR based Space Receiver | |
Software Defined Radio
from Kongsberg
|
| The ASR x50 from Kongsberg is a software-defined radio (SDR) SAT-AIS receiver designed for satellite-based vessel tracking and maritime monitoring applications. Operating in the 156-163 MHz frequency range, it enables simultaneous onboard AIS decoding and digital signal sampling, supporting advanced data acquisition for spaceborne communication payloads. Its reconfigurable SDR architecture allows in-orbit updates, ensuring compatibility with future AIS and VDES standards. The receiver delivers high sensitivity of less than –126 dBm at 20% packet error rate (PER), with a noise figure below 2 dB. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by SATShow Week 2026 | | |
|
|

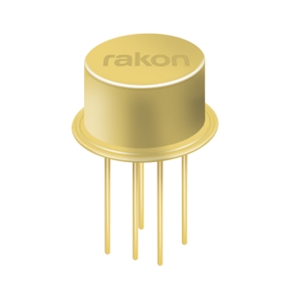

| Space-Qualified Quartz Crystal | |
Quartz Crystal
from Rakon Limited
|
| The CFPX3758 from Rakon Limited is a space-qualified quartz crystal designed for high-reliability frequency control in satellite communication and aerospace systems. Approved by the European Space Components Coordination (ESCC), this crystal ensures dependable performance in demanding space environments. This quartz crystal operates across a frequency range of 3 to 50 MHz, providing stable and precise frequency generation for communication and navigation subsystems. The device is RoHS-compliant and utilizes a cold-welded T807 package. |
| |
Download Datasheet
Product Details | |
|
|
|

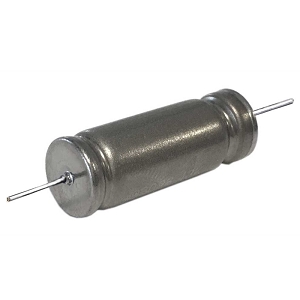

| 470 µF Tantalum Hybrid Capacitor | |
Space Qualified Capacitor
from Quantic Evans
|
| The HC2D100471 from Quantic Evans is a Space-Qualified Hybrid Capacitor designed for high-power energy storage and filtering in demanding aerospace and defense applications. Rated for operating voltages from 65 to 100 V, this capacitor provides a high capacitance value of 470 µF, enabling stable power delivery and transient suppression in spaceborne electronic systems. It features a low ESR of 0.7 milliohms, supporting high ripple current handling and efficient power performance. Housed in a rugged, hermetically sealed enclosure measuring 1.062 x 0.375 inches. |
| |
Download Datasheet
Product Details | |
|
|
|

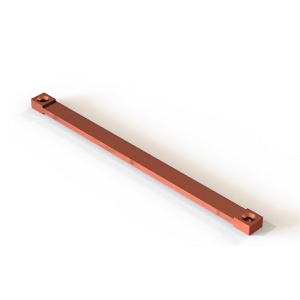

| Space-Qualified Thermal Strap | |
Space Qualified Thermal Strap
from Thermal Management Technologies
|
| The TMT010-202 from Thermal Management Technologies is a Space-Qualified Thermal Strap designed to efficiently transfer heat while maintaining flexible and elastic mechanical connections between thermal components. Built with a braided copper construction, it provides reliable thermal conductivity while accommodating mechanical movement in sensitive space systems. It features a braid width of 6.35 mm, a length of up to 152.4 mm, and an end thickness of up to 4.57 mm, enabling effective integration within compact spacecraft assemblies. It offers a thermal resistance of up to 55.25 K/W at 295 K. |
| |
Download Datasheet
Product Details | |
|
|
|
| 8-Bit Programmable Digital Phase Shifter | |
Space Qualified Digital Phase Shifter
from Fairview Microwave
|
| The SDPS-0618-360-SMA from Fairview Microwave is an 8-bit digitally controlled phase shifter designed for precise phase adjustment across a wide frequency range of 6 to 18 GHz. It provides a full 360-degree phase shift with 256 discrete steps, enabling fine phase resolution for advanced RF and microwave system applications. With a typical insertion loss of 10 dB (maximum 12 dB) and an input VSWR of 2:1, it ensures stable and consistent signal performance across the entire operating band. This phase shifter features fast switching speeds of up to 500 ns. It maintains a phase accuracy of ±15 degrees. |
| |
Download Datasheet
Product Details | |
|
