| Featured Space and Satellite Products |
|
|

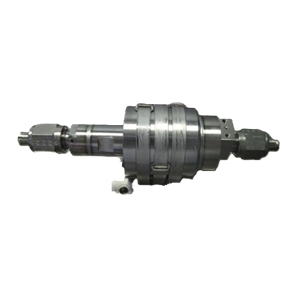

| Solenoid driven Electric Venting Valve | |
Spacecraft Valve
from Omnidea-RTG
|
| The EVV from Omnidea-RTG is a solenoid-driven Electric Venting Valve designed for precise and reliable venting in demanding aerospace, defense, and propulsion systems. Built with a fully welded construction and redundant sealing seats, it ensures leak-tight performance and structural integrity under harsh operating conditions. This high-performance valve supports a wide range of operating media, including inert gases, Hydrazine, UDMH, MMH and NTO, making it suitable for propulsion and pressurization systems. |
| |
Download Datasheet
Product Details | |
|
|
|
| 100 MHz Monolithic Crystal Filters | |
Space Qualified RF Filter
from Raltron Electronics
|
| The RXF-100.000-20-6035-6-4 from Raltron Electronics is a Space-Qualified RF Filter designed for reliable signal conditioning in aerospace and satellite communication systems. Operating at a nominal frequency of 100 MHz in fundamental mode, it features a 4-pole design with a minimum pass bandwidth of 10 kHz and a maximum insertion loss of 4 dB, ensuring efficient signal transmission with minimal degradation. This monolithic crystal filter delivers excellent rejection performance, providing up to 65 dB guaranteed attenuation. |
| |
Download Datasheet
Product Details | |
|
|
|
| DC to 100 GHz RF Cable Assembly | |
Space Qualified Cable Assembly
from Rosenberger
|
| The L70-336-102 from Rosenberger is a high-performance RF cable assembly engineered for ultra-high-frequency applications in satellite, aerospace, and test and measurement systems. Designed to operate across a wide frequency range from DC to 100 GHz, it provides reliable signal transmission with a characteristic impedance of 50 ohms for advanced microwave and millimeter-wave systems. This cable assembly delivers excellent RF performance with a return loss ranging from 7–15 dB, ensuring low signal reflection and high signal integrity. |
| |
Download Datasheet
Product Details | |
|
|
|

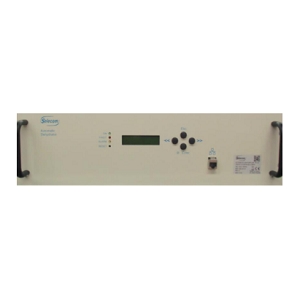

| Pressurizer Waveguide Dehydrator | |
Dehydrator
from Selecom
|
| The SEL000174 from Selecom is a Waveguide Dehydrator designed to provide efficient moisture control and pressurization for RF and waveguide systems, ensuring reliable signal transmission and long-term equipment protection. It delivers an air flow of up to 300 l/h (maximum at specified pressure), making it suitable for a wide range of communication infrastructure applications. This dehydrator utilizes a piezo resistive pressure sensor for precise pressure regulation and incorporates a safety valve that opens at 50 hPa ±25 hPa. |
| |
Download Datasheet
Product Details | |
|
|
|

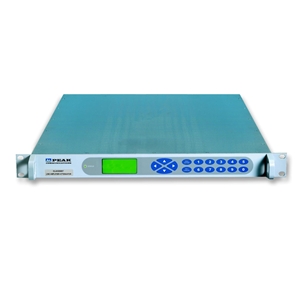

| 950-1450 GHz Test Loop Translator | |
Test Loop Translator
from Peak Communications
|
| The MTLH790 from Peak Communications is a high-performance Test Loop Translator designed for satellite and RF testing applications, enabling accurate frequency conversion and signal analysis. It accepts input signals in the 7.9–8.4 GHz range and downconverts them to a convenient L-band output range of 950–1450 MHz, ensuring compatibility with a wide range of test and monitoring equipment. This test loop translator delivers a typical conversion loss of 20 dB (±2 dB) and features excellent gain stability of ±0.25 dB. |
| |
Download Datasheet
Product Details | |
|
|
|
|
|

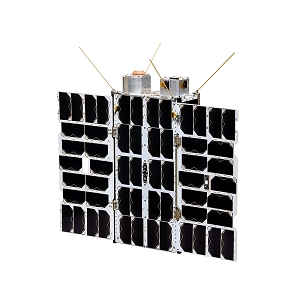

| 161 Wh Nanosatellite Bus & Platform | |
Satellite Bus & Platform
from Kongsberg NanoAvionics
|
| The M8P Max from Kongsberg NanoAvionics is a Satellite Bus & Platform designed for advanced space missions, offering reliable power management and high-performance communication capabilities. It delivers a sun-tracking payload power of 245 W and a bus power of 43 W, enabling efficient operation of onboard subsystems and mission payloads. This platform supports versatile communication across multiple frequency bands, including S-band uplink data rates of up to 1 Mbps within the 2025–2110 MHz range. |
| |
Download Datasheet
Product Details | |
|
|
|

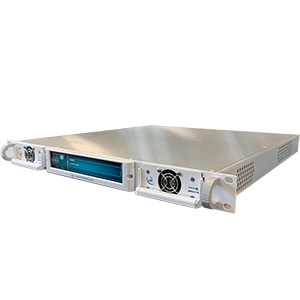

| L-Band to Ku-Band Block Upconverter Module | |
Block Upconverter
from ETL Systems
|
| The FN-U-K1L1-24407AA-XXXX from ETL Systems is a high-performance frequency block upconverter designed for satellite communication and RF signal conversion applications. Operating with an input frequency range of 1150–2150 MHz, it converts signals to an output frequency range of 1275–1450 MHz, enabling efficient frequency translation within L-band and Ku-band communication systems. This upconverter delivers a mean conversion gain of up to 35 dB with fine gain adjustment steps of 0.25 dB, allowing precise signal control. |
| |
Download Datasheet
Product Details | |
|
|
|
| 26 GHz Medium Power pHEMT Transistor | |
Space Qualified RF Transistor
from CML Microcircuits
|
| The MwT-PH33F from CML Microcircuits is a Space-Qualified pHEMT Transistor designed for medium-power and high-efficiency RF applications across commercial, military and Hi-Rel space systems. Built using advanced AlGaAs/InGaAs technology, it operates effectively up to 26 GHz, making it suitable for both wideband (6–18 GHz) and narrow-band RF designs. This transistor delivers an output power of 24 dBm with a small signal gain of 14 dB and a typical power-added efficiency (PAE) of 45% at 18 GHz. |
| |
Download Datasheet
Product Details | |
|
|
|

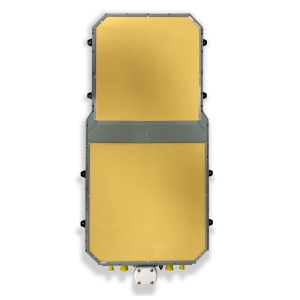

| 10.7-14.5 GHz In-Flight Connectivity Antenna | |
SATCOM Antenna
from Gilat Satellite Networks
|
| The ESR Ku2030 from Gilat Satellite Networks is a high-performance and electronically steerable Ku-band antenna designed to deliver reliable in-flight connectivity (IFC) for aviation platforms. Engineered for seamless operation over LEO satellite networks such as OneWeb, this advanced antenna enables high-speed, full-duplex broadband communication, ensuring uninterrupted connectivity for modern airborne applications. This antenna supports throughput speeds of up to 230 Mbps for download and 30 Mbps for upload. |
| |
Download Datasheet
Product Details | |
|
|
|
| Space-Qualified E-Plane Directional Hybrid Coupler | |
Space Qualified Coupler
from Scientific Microwave Corporation
|
| The WR51 from SMC is a Space-Qualified E-Plane Directional Hybrid Coupler designed for K-band applications, operating across a frequency range of 17.20–22.20 GHz. It provides equal power division with 3 dB coupling while maintaining a 90° phase difference between output ports, ensuring precise signal distribution in RF systems. This high-performance directional hybrid coupler achieves excellent matching characteristics with return loss exceeding 24 dB and a low VSWR of 1.15:1 across the operating band. |
| |
Download Datasheet
Product Details | |
|
