| Featured Space and Satellite Products |
|
|
| 100 V Radiation-Hardened GaN Power Transistor | |
GaN Power Transistor
from EPC Space
|
| The EPC7018DC from EPC Space is a radiation-hardened GaN power transistor engineered for high-efficiency switching and power management in space and high-reliability environments. Designed with a drain-source voltage rating of 100 V, it supports advanced power conversion architectures in aerospace and defense systems. This transistor delivers a continuous drain current of up to 67 A and supports pulsed drain currents up to 268 A, enabling high-power operation in dynamic switching applications. It features a low drain-source resistance ranging from 5.2 to 7.5 mΩ. |
| |
Download Datasheet
Product Details | |
|
|
|
| Space Qualified Microcontroller | |

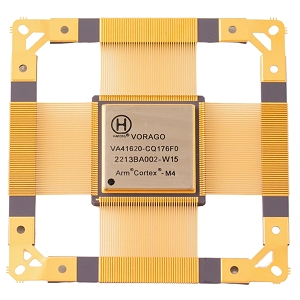

Space Qualified Microcontroller
from VORAGO Technologies
|
| The VA41620 from VORAGO Technologies is a Space Qualified Microcontroller designed using advanced HARDSIL technology, offering high functional density and reliability for aerospace and space applications. It integrates 64 KB of on-chip data SRAM and 256 KB of on-chip program SRAM, along with a fully integrated 256 KB non-volatile memory and an embedded temperature sensor for enhanced system monitoring. This radiation-hardened microcontroller provides exceptional resilience in harsh environments, with a TID tolerance exceeding 300 krad(Si) (with FRAM). |
| |
Download Datasheet
Product Details | |
|
|
|
| Digital CubeSat Camera Module | |
Satellite Camera
from SATLANTIS
|
| The iSIM-170 Dual Channel from SATLANTIS is a high-resolution Optical Satellite Imaging Payload designed for Earth observation missions, offering advanced multispectral imaging capabilities with integrated video functionality. Engineered for microsatellite platforms, it delivers an exceptional mass-to-resolution ratio while supporting simultaneous imaging across visible, near-infrared (VNIR), and short-wave infrared (SWIR) spectral bands. This satellite imaging payload provides a spatial resolution of up to 0.8 meters in RGB+NIR, with a swath width ranging from 7.5 to 15 km for PAN and VNIR imaging. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by PCB Directory | | PCB Directory Launches their Inaugural Magazine for the PCB Industry | | PCB Directory recently launched its Inaugural PCB Magazine for the PCB Industry. This magazine is packed with insightful articles, product listings, and an industry directory. The magazine is available in both print and digital versions. This achievement was made possible by the unwavering support of sponsors and contributors. Their trust and dedication have been the driving force behind this journey, and their support is highly appreciated. The team looks forward to continued growth and delivering even greater value to the PCB community. Click here to learn more. | | | |
|
|
| Radiation Hardened Fault-Tolerant OBC | |
Satellite On-Board Computer (OBC)
from SkyLabs d.o.o.
|
| The NanoOBc-2 from SkyLabs is a Fault-Tolerant On-Board Computer (OBC) designed for mission-critical space operations, delivering high reliability and robust performance for satellite systems. Powered by the PicoSkyFT processor, it achieves processing capabilities of up to 16 MIPS while ensuring enhanced operational stability in radiation-prone environments. This advanced On-Board Computer integrates EDAC-protected memory, including 4 MB MRAM for program code, 2 MB for data storage, and 2 GB NAND Flash for mass storage, enabling secure and efficient data management. |
| |
Download Datasheet
Product Details | |
|
|
|
| 10.95-12.75 GHz Low Noise Amplifier System | |

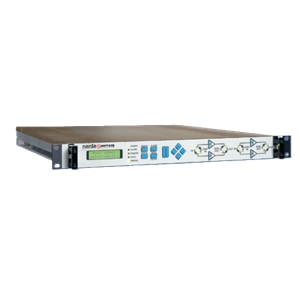

RF Amplifier
from Narda-MITEQ
|
| The LN3-109128-80 from Narda-MITEQ is a Dual 1:1 Redundant Line-Noise Amplifier System designed to ensure continuous, interruption-free signal reception for satellite ground stations and teleport infrastructures. Operating across a frequency range of 10.95 to 12.75 GHz, it delivers a low amplifier noise temperature of 80 °K and provides a gain of 52 dB, with options for higher gain configurations to meet specific system requirements. This fault-tolerant amplifier system incorporates automatic and manual switchover capabilities, allowing seamless transition to a standby unit in the event of a failure. |
| |
Download Datasheet
Product Details | |
|
|
|
| Space-Qualified Ku-Band Transmitter | |

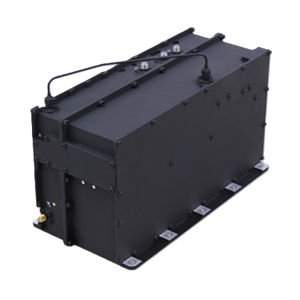

Space Transmitter
from Mitsubishi Electric Corporation
|
| The Ku-Band Telemetry Transmitter (Dual Freq.) from Mitsubishi Electric Corporation is a Space Transmitter designed for high-stability reference signal generation in satellite communications systems. Operating across the Ku-band frequency range of 10.7 to 12.75 GHz, this transmitter is used for satellite identification, tracking, antenna pointing and link performance monitoring in GEO and other orbital missions. The transmitter delivers an output power of 37 dBm and provides excellent frequency stability in the range of ±0.4 to ±1.7 ppm through the use of a high-precision OCXO. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by PCB Directory | | |
|
|
| 9.0 m Ku-Band Earth Station Antenna | |

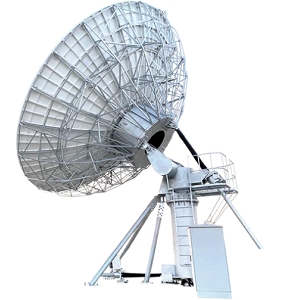

Earth Station Antenna
from Norsat
|
| The ESEC900KU2B from Norsat is a high-performance 9.0-meter Ku-band earth station antenna engineered for reliable satellite uplink and downlink operations in fixed ground segment deployments. Operating across the 10.7–12.75 GHz receive band and 13.75–14.5 GHz transmit band, this system delivers high-gain performance of up to 60.53 dBi, enabling robust, high-capacity communications for broadcast, telecommunications, and mission-critical satellite services. It supports linear polarization with port isolation of up to 85 dB, ensuring flexible transmit and receive operations. |
| |
Download Datasheet
Product Details | |
|
|
|
| 0.95–1.45 GHz Test Loop Translator | |
Test Loop Translator
from GeoSync Microwave
|
| The TLS-6.175-INV from GeoSync Microwave is a portable RF transmit-band to L-band translator designed for C-band uplink monitoring and testing applications. It accepts an input frequency range of 5.925–6.425 GHz and converts it to an L-band output range of 0.95–1.45 GHz using a stable 7.375 GHz local oscillator, enabling accurate signal translation for SATCOM test environments. This test loop translator features a 50 Ω impedance with a minimum input and output return loss of 18 dB. It incorporates a continuously adjustable 30 dB attenuation control. |
| |
Download Datasheet
Product Details | |
|
|
|
| Multi-Band Space-Grade GNSS Receiver | |
Satellite GNSS Receiver
from Rakon Limited
|
| The GNSS SINGLE from Rakon Limited is a space-grade GNSS receiver designed to provide precise positioning, velocity, and timing for small and nanosatellite platforms. Supporting multiple frequency bands and constellations, it enables enhanced navigation performance across diverse orbital environments. This receiver delivers position accuracy of 1.2 meters and velocity accuracy of 3 cm/s RMS, ensuring reliable orbit determination. It provides time accuracy between 5–20 ns and achieves a time to first fix of 45 seconds (cold start) and 20 seconds (hot start), enabling rapid acquisition and synchronization. |
| |
Download Datasheet
Product Details | |
|
|
|
| 120 cm Ku-Band VSAT Antenna | |
SATCOM Antenna
from JONSA TECHNOLOGIES
|
| The VSATE120 – Ku Band from JONSA Technologies is a high-performance SATCOM antenna designed for Ku-band communication in ground-based and fixed satellite systems. Operating with a transmit frequency range of 13.75–14.5 GHz and a receive range of 10.7–12.75 GHz, it enables reliable uplink and downlink communication for broadband satellite services. This antenna provides a gain range of 42–43.7 dBi and features a 3 dB beamwidth between 1.2–1.4 degrees, ensuring focused signal transmission and reception. It offers cross-polarization performance between 25–30 dB and an F/D ratio of 0.75. |
| |
Download Datasheet
Product Details | |
|
|
|
| Ku-Band SATCOM-on-the-Move Terminal | |
Satellite Terminal
from General Dynamics Mission Systems
|
| The M20-24M Ku from General Dynamics Mission Systems is a high-performance SATCOM-on-the-move (SOTM) terminal designed for mobile ground-based communication systems. Operating across a transmit frequency range of 13.75–14.50 GHz and a receive range of 10.95–12.75 GHz, it enables reliable beyond-line-of-sight (BLOS) connectivity for mission-critical operations. This terminal delivers a G/T of 14.1 dB/K and an EIRP of 49.6 dBW at midband and P1dB, ensuring strong signal transmission and reception performance. It features a beamwidth of 2.3–2.8 degrees. |
| |
Download Datasheet
Product Details | |
|
|
|
| Space-Rated X-band Patch Antenna Module | |
Satellite Antenna
from Orbital Research
|
| The Space-Rated X-band Patch Antenna from Orbital Research is a Satellite Antenna engineered for integration with space-rated RF subsystems, including block downconverters, up/down converters, block upconverters, and block down amplifiers. This antenna features a low-profile construction with a thermally stable substrate and vibration-resistant mechanical design, ensuring reliable performance in space environments. The optimized architecture supports consistent RF performance across the X-band. |
| |
Download Datasheet
Product Details | |
|
