| Featured Space and Satellite Products |
|
|

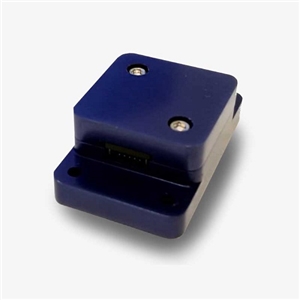

| Magnetometer for Autonomous Satellite Attitude Control | |
Magnetometer
from AAC Clyde Space
|
| The MM200 from AAC Clyde Space is a Magnetometer with a range of 800 µT. This magnetometer has a maximum sampling rate of up to 500 Hz and a total noise spectral density of 1.18 nT/vHz. It supports the I2C interface and has a power consumption of 0.5-10 mA. The magnetometer has a mass of 12 g and measures 33 x 20 x 11.3 mm. It is suited for autonomous satellite attitude control or scientific measurements. |
| |
Download Datasheet
Product Details | |
|
|
|

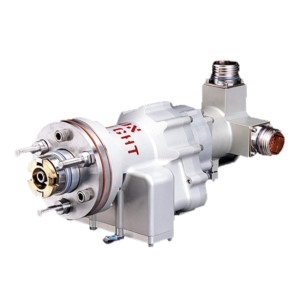

| Launch Vehicle Electromechanical Actuator | |
Launch Vehicle Actuator
from Moog
|
| The Redundant Engine Control Valve (0.002 hp) from Moog is a Launch Vehicle Actuator with a horsepower of 0.002 hp. This electromechanical rotary actuator has a PowerPoint of 220 in/lbf (at 3.5 deg/sec) and requires a supply voltage of 28 VDC. It has a mass of 17.6 lbs and a stroke of +/- 60 degrees. This flight-proven actuator has been used on several launch vehicles such as Antares, Delta IV, Centaur, and Vega. |
| |
Download Datasheet
Product Details | |
|
|
|

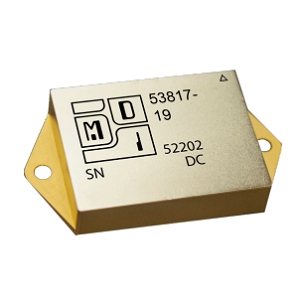

| Radiation-Hardened Hybrid Solid-State Relay | |
Space Qualified Solid State Relay
from Modular Devices
|
| The 53817 from Modular Devices is a Space Qualified Solid-State Relay with a bias voltage of 4.7-5.3 V and a bias current of 30-50 mA. This relay has a command current of 1 mA and a contact current of 5A. It has a contact resistance of 0.15-0.2 Ohms and a power consumption of up to 10 W. This space-qualified relay has a maximum contact voltage rating of 300 V and a leakage current of 60-100 µA. It has a delay time of 12-40 µS. |
| |
Download Datasheet
Product Details | |
|
|
|

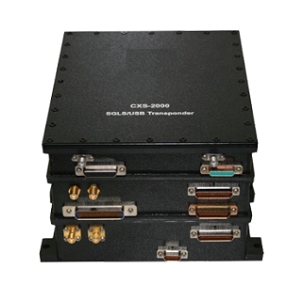

| Dual-Band Multimode Satellite Transponder | |
Satellite Transponder
from L3Harris Technologies
|
| The CXS-2000 from L3Harris Technologies is a Satellite Transponder with a transmitter operating frequency range of 2200-2300 MHz and a receiver operating frequency range of 1760-2120 MHz. It has a noise figure value of 3.5 dB (SGLS) and 5 dB (3RD RX input) with a dynamic range of -110 dBm (SGLS), -113 dBm (USB). It is ideal for providing TT&C between U.S. Air Force satellite control facilities and military satellites. |
| |
Download Datasheet
Product Details | |
|
|
|
| 13.75-14.50 GHz Maritime VSAT Terminal | |
VSAT Terminal
from ASIASat
|
| The V61 from ASIASat is a VSAT Terminal with a transmit frequency range of 13.75-14.50 GHz and a receive frequency range of 10.70-12.75 GHz. This VSAT terminal has a peak transmit gain of 37.6 dBi and a receive gain of 36.4 dBi. It has an antenna pointing accuracy of 0.2 degrees RMS and a receive G/T of 14.2 dB/K. It has an antenna size of 63 cm, measures 330 X 210 X 44.5 mm (ACU) and a static power consumption of 60 W. |
| |
Download Datasheet
Product Details | |
|
|
|

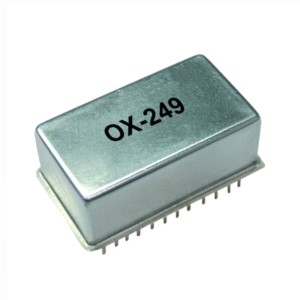

| Space Qualified Oven Controlled Crystal Oscillator | |
Space Qualified Oscillator
from Microchip Technology
|
| The OX-249 from Microchip Technology is a Space-Qualified Oscillator that operates from 10-100 MHz. It requires a supply voltage of 5 V, takes a load of up to 50 ohms and a spurious of -80 dBc. This oven-controlled oscillator has a rise/fall time of 5 ns, a duty cycle of about 40 - 60 %, and a harmonic of -35 dBc. It is suitable for applications such as deep space exploration, commercial, and defense satellites, and ground base ICBM silos. |
| |
Download Datasheet
Product Details | |
|
|
|

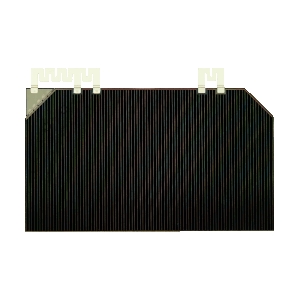

| Triple-Junction Solar Cell for Space Applications | |
Satellite Solar Cell
from Rocket Lab
|
| The ZTJ from Rocket Lab is a Satellite Solar Cell that is designed for a multitude of LEO, GEO, and interplanetary missions. It has an open circuit voltage of 2.726 V and a BOL efficiency of 29.5 % at maximum power point. This space-qualified solar cell has a voltage at a maximum power of 2.41 V and is capable of delivering power of up to 4 MW. It has a cell mass of 84 mg/cm sq (300 to 600 gms) and a cell thickness of 4 - 8 µm. |
| |
Download Datasheet
Product Details | |
|
|
|

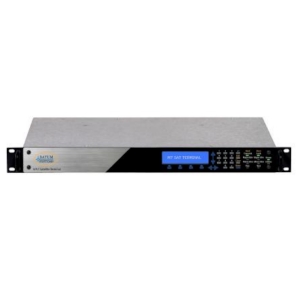

| Modular Satellite Modem | |
Satellite Modem
from Spacepath Communications
|
| The M7LT from Spacepath Communications is a Satellite Modem that operates from 950 MHz-2.15 GHz. It has a data rate of 1.2 kbps-59.04 Mbps and a symbol rate of 2400 sps to 14.76 Msps. This modem uses LDPC FEC coding and supports QPSK, 8 PSK, 8QAM, and 16QAM modulation formats. This satellite modem is suitable for cellular backhaul, enterprise, IP networks, E1 trunking, On-the-Move, and bandwidth-on-demand applications. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by GLOBAL MILSATCOM | | |
|
|

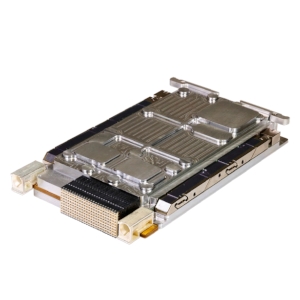

| Radiation Tolerant SSDR for LEO Satellites | |
Solid State Recorder
from Mercury Systems
|
| The RH3480 from Mercury Systems is a Solid State Recorder with a SLC NAND flash memory capacity of up to 450 GB. This recorder is VPX compatible, VITA 48.2 or 78 compliant, has full drive erase capability in less than 30 seconds and a power consumption of up to 25 W.. It is ideally suited for LEO satellites, launch vehicles, scientific missions, missiles, airborne weapons, and mission-critical ground computing subsystems. |
| |
Download Datasheet
Product Details | |
|
|
|
| 7-13 GHz X-Band Driver Amplifier | |
RF Amplifier
from Qorvo
|
| The TGA2700 from Qorvo is an RF Amplifier that operates from 7-13 GHz and has a nominal gain of 25 dB. This driver amplifier has an input return loss of 12 dB. It is designed using a 0.25 um 3MI pHEMT production process and is RF-tested on-wafer to ensure performance compliance. The TGA2700 measures 1.57 x 1.33 x 0.10 mm and is suitable for general communication, point-to-point radios, and electronic warfare applications. |
| |
Download Datasheet
Product Details | |
|
|
|

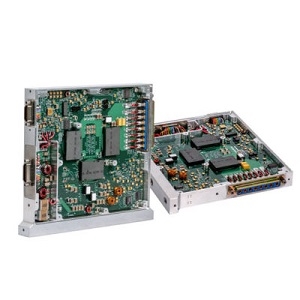

| Space Qualified DC-DC Converter | |
DC to DC Converter
from VPT
|
| The SGRB10020S from VPT is a DC-DC Converter with an input voltage range of 94.5-120 V and an output voltage range of -0.25 to 0.34 V. It weighs 850 g and measures 6.85 x 5.95 x 0.75 inches. The converter is designed for the harsh radiation environments of the most demanding commercial, scientific, and military space applications making it suitable for use in a variety of high-power space payload or bus applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 11.70-12.20 GHz Ku-Band PLL | |
SATCOM Low Noise Block
from Norsat
|
| The HS1000A from Norsat is a SATCOM Low Noise Block with a frequency band of 11.70-12.20 GHz and an IF frequency range of 950–1450 MHz. This LNB has an LO frequency of 10.75 GHz and a maximum gain of 65 dB. It has a noise figure of 0.7-0.9 dB and a phase noise of up to -90 dBc/Hz at 100 kHz. It requires a DC power supply of 15-24 V and a maximum current of 300 mA. It has a mass of 300 g and measures 110 mm x 42 mm x 42 mm. |
| |
Download Datasheet
Product Details | |
|
|
|

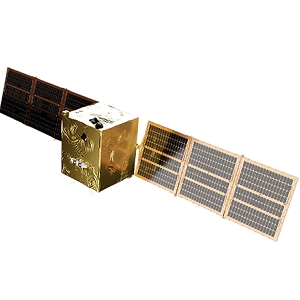

| Satellite Bus for Earth Imaging Applications | |
Satellite Bus & Platform
from Dragonfly Aerospace
|
| The Dragonfly Bus from Dragonfly Aerospace is a Satellite Bus with an energy storage capacity of up to 2400 Wh and a lifetime of 8 years. This satellite bus has a pointing control accuracy of less than 0.02 degrees (3-sigma) and a slew rate of up to 2.5 degrees/sec. It has a solar array peak power of 1500 W. It is designed for precise spatial resolution earth imaging and mapping for a wide range of communicational and scientific applications. |
| |
Download Datasheet
Product Details | |
|
|
|

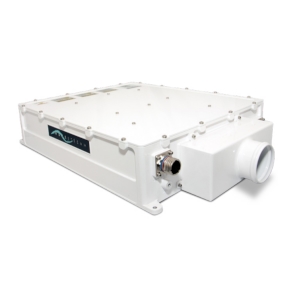

| 50W Ku-Band SATCOM Transceiver | |
SATCOM Transceiver
from Wavestream Corporation
|
| The UET50A09A from Wavestream Corporation is a SATCOM Transceiver with a transmit RF frequency of 13.75-14.5 GHz and an IF frequency of 950-1700 MHz. It has a receive RF frequency of 10.7-11.7 GHz / 11.7-12.75 GHz and an IF frequency of 950-1950 MHz / 1100-2150 MHz. This transceiver has a mass of 7 Kg and measures 18.2 x 12.8 x 3.6 in. It is ideal for military, commercial, and airborne satellite communication system applications. |
| |
Download Datasheet
Product Details | |
|
|
|

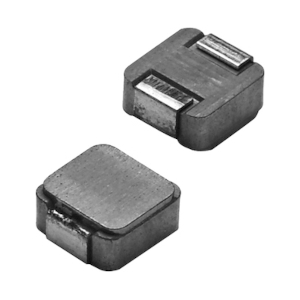

| 0.1 to 4.7 µH Shielded Lead Inductors | |
Space Qualified Inductor
from Vishay
|
| The IHLP-1616BZ-5L from Vishay is a Space-Qualified Inductor with an inductance range of 0.1-4.7 µH and an inductance tolerance of +/- 20 %. It has a high-temperature rating of about 155 degrees C, and a DC/DC energy storage of up to 1 - 2 Mhz. It is ideal for various applications such as high-current power supplies, battery-powered devices, DC/DC converters in distributed power systems, and DC/DC converters for FPGAs. |
| |
Download Datasheet
Product Details | |
|
