| Featured Space and Satellite Products |
|
|
| 112 Ah Space-Qualified Lithium-Ion Rechargeable Battery | |
Satellite Battery
from EaglePicher Technologies
|
| The SAR-10207 from EaglePicher Technologies is a Satellite Battery with a capacity of 112 Ah and an energy of 3315 Wh. The battery incorporates lithium-ion-cells which makes it ideal for military communications and surveillance, commercial communication and broadcasting, NASA research, environmental monitoring, global navigation, and tracking applications. |
| |
Download Datasheet
Product Details | |
|
|
|

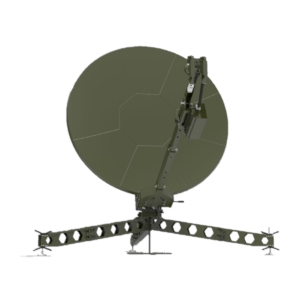

| 2.4 m Integrated Portable Fly-Away Antenna System | |
VSAT Terminal
from ReQuTech AB
|
| The PICO240a from ReQuTech AB is a VSAT Terminal with a transmitter frequency range of 13.75-14.5 GHz (Ku-band), 27.5-31 GHz (Ka-band), and 7.9-8.4 GHz (X-band) and a receiver frequency range of 10.7-12.75 GHz (Ku-band), 17.7-21.2 GHz (Ka-band), and 7.25-7.75 GHz (X-band). This ReQuTech's VSAT terminal has a Tx gain of 45-56.1 dBi and a Rx gain of 44.1-52.4 dBi. |
| |
Download Datasheet
Product Details | |
|
|
|

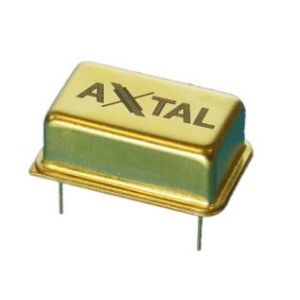

| 10-100 MHz Radiation Hardened VCXO for Space Applications | |
Space Qualified Oscillator
from AXTAL GmbH & Co. KG
|
| The AXIS45S from AXTAL GmbH & Co. KG is a Space Qualified Oscillator with a frequency range of 10-100 MHz and a frequency stability of ±10 ppb. It comes in a hermetically sealed THD package and is manufactured using space-grade class 1 add-on components. This through-hole package oscillator measures 20.7 x 13.1 x 7.5 mm and is ideal for space applications. |
| |
Download Datasheet
Product Details | |
|
|
|

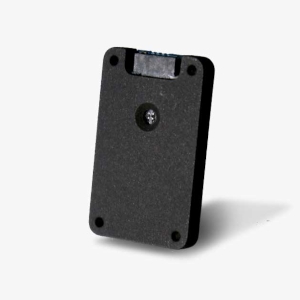

| Digital Sun Sensor for CubeSats | |
Sun Sensor
from AAC Clyde Space
|
| The SS200 from AAC Clyde Space is a Satellite Sun Sensor with an accuracy of less than 0.3 degrees and a sampling rate of up to 10 Hz. This digital sun sensor has a field of view of 110 degrees and an idle power requirement of less than 1.5 mW. It supports I2C interface and has a radiation tolerance TID of greater than 36 kRad (Si). It has a mass of 3 g and measures 24.66 x 15.00 x 3.50 mm. |
| |
Download Datasheet
Product Details | |
|
|
|

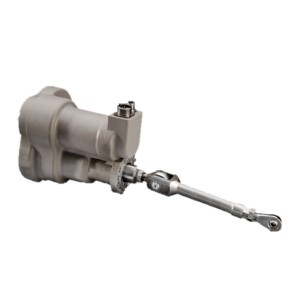

| Launch Vehicle Electromechanical Linear Actuator | |
Launch Vehicle Actuator
from Moog
|
| The TVC Stage 1 (20.5 hp) from Moog is a Launch Vehicle Actuator with a horsepower of 20.5 hp and a stall load of 21,727 lbf. This actuator has a power point of 6.78 inches/sec (at 20,000 lbf) and requires a supply voltage of 280 V. The actuator has a mass of 25.8 Kg and has been used to provide thrust vector control for several launch vehicles such as Antares, Delta IV, Centaur, and Vega. |
| |
Download Datasheet
Product Details | |
|
|
|

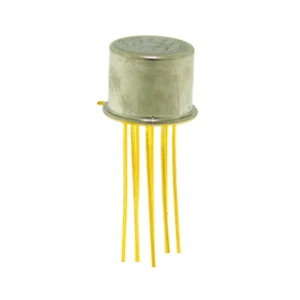

| Non-Latching Space Grade DPDT Relay | |
Space Qualified Solid State Relay
from Teledyne Relays
|
| The HRS412 from Teledyne Relays is a Space Qualified Solid State Relay with a frequency range of DC-1 GHz. It has insulation resistance of up to 10000 MOhm and dielectric strength of 500 Vrms. It has a gold plated or solder coated lead finish and its hermetic seal is tested up to 1 x 10-8 atm-cm3 /s. The relay has a mass of 2.55 g and is suitable for demanding space flight applications. |
| |
Download Datasheet
Product Details | |
|
|
|

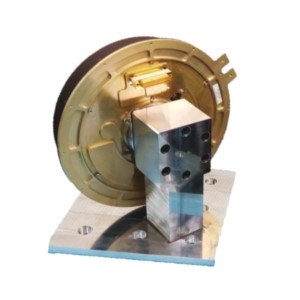

| Geostationary Flight Wheel | |
Reaction Wheel
from Surrey Satellite Technology
|
| The SSW-200-OGS-12000 from Surrey Satellite Technology is a Reaction Wheel with a design life of 15 years in geostationary orbit. This reaction wheel has a torque of 200 mNm and a momentum of 12 Nms. It has a speed range of +/- 5000 rpm and a speed accuracy of 0.4166 rpm. The reaction wheel requires a supply voltage of 23.5-52.5 V and has a maximum power consumption of 180 W. |
| |
Download Datasheet
Product Details | |
|
|
|

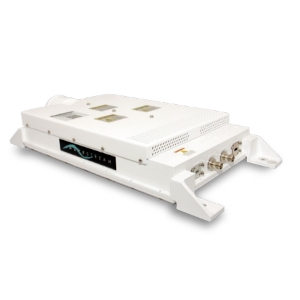

| 25 W Ka-Band SATCOM Transceiver | |
SATCOM Transceiver
from Gilat Satellite Networks
|
| The AJT25A10A from Gilat Satellite Networks is a Satcom Transceiver with a transmit frequency range of 29.25-30.0 GHz and an IF frequency range of 950-1700 MHz. It has a phase noise of up to -95 dBc/Hz and an output spurious of -62 dBc. This transceiver meets the requirements of RTCA/DO-160G, and ARINC specifications for commercial aircraft as well as MIL-STD requirements for military aircraft. |
| |
Download Datasheet
Product Details | |
|
|
|
| 0.1-12.4 KOhm Space Qualified Wirewound Resistor | |
Space Qualified Resistor
from Vishay
|
| The EGS-10-80 from Vishay is a Space Qualified Resistor with a resistance range of 0.1-12.4 KOhms. This resistor has a power rating of 7 W and a temperature coefficient of resistance of up to +/- 650 ppm/Degree C. It has a dielectric withstanding voltage of up to 1000 VAC (3W) and an insulation resistance of 1000 MOhm. The resistor has a mass of 3.6 g and measures 0.875 x 0.312 x 0.040 inches. |
| |
Download Datasheet
Product Details | |
|
|
|
| 100 V Subminiature Hyperfast Recovery Rectifier | |
Space Qualified Diode
from Solid State Devices
|
| The JANS1N8255US from Solid State Devices is a Space-Qualified Diode with a peak repetitive reverse voltage of 100 V and an average rectified forward current of 6 A. It has a reverse leakage current of 100 µA. This MIL-PRF-19500/774-compliant rectifier has low reverse leakage and is based on void-free ceramic frit glass construction suitable for high-efficiency applications. |
| |
Download Datasheet
Product Details | |
|
|
|

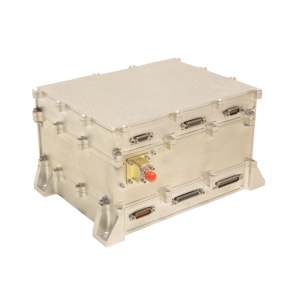

| High Data-Rate Transmitter for Spacecrafts | |
Space Transmitter
from L3Harris Technologies
|
| The T-748 from L3Harris Technologies is a Space Transmitter with a transmitter frequency range of 7.8-8.4 GHz / 25.25-27.5 GHz and an RF output power of -10 to 10 dBm. It has a mass of 2.44 kg and measures 6.325 x 7.1 x 4.0 inches. The T-748 is radiation hardened up to 50 krad TID and 75 MeV/mg/cm2 SEL. It is designed to provide a high-rate connection to Earth from any platform or orbit. |
| |
Download Datasheet
Product Details | |
|
|
|
| 5.85-6.65 GHz Test Loop Translator | |
Test Loop Translator
from Jersey Microwave
|
| The CTLT-585665-340420-N22 from Jersey Microwave is a Test Loop Translator with an input frequency range of 5850-6650 MHz and an output frequency range of 3400-4200 MHz. It has a spurious of -30 dBm.The test loop translator has a mass of 15 lbs and is designed for testing the satellite communication between the up and downlink in the same band or uplink to L-Band. |
| |
Download Datasheet
Product Details | |
|
|
|

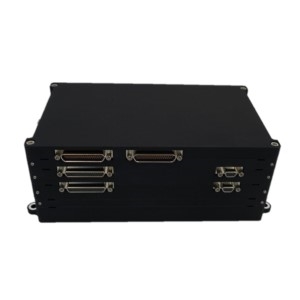

| Payload Power and Data Handling Unit for SmallSats | |
Power Conditioning and Distribution Unit (PCDU)
from Berlin Space Technologies
|
| The PPDH110-2PL from Berlin Space Technologies is a Power Conditioning and Distribution Unit (PCDU) with a design life of 5 years in low-earth orbit. It supports RS-422 TMTC interface and RS-422 and LVDS payload data interface. The PCDU has a mass of 1.1 kg. It acts as the single interface unit between the bus and the payload and is designed for small satellite payloads. |
| |
Download Datasheet
Product Details | |
|
|
|
| Wide Band Multiple Output Block Down Converter | |
SATCOM Low Noise Block
from GeoSync Microwave
|
| The DBE2-11.725 from GeoSync Microwave is a SATCOM Low Noise Block with an input frequency range of 10.7-12.75 GHz and an output frequency range of 950 MHz-2GHz. This LNB has an LO frequency of 9.75 GHz / 10.75 GHz and a gain of 30 dB. It requires a supply voltage of 90-250 VAC and has a power consumption of up to 40 W. It comes with a small-size weather-resistant enclosure. |
| |
Download Datasheet
Product Details | |
|
|
|

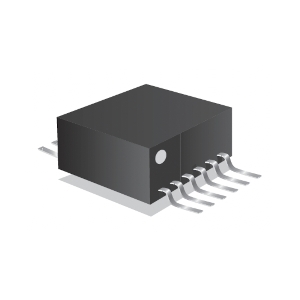

| 21 mH Space Grade Current Sense Transformer | |
Space Qualified Power Transformer
from Vanguard Electronics
|
| The SCS206 from Vanguard Electronics is a Space Qualified Power Transformer with an inductance of 21 mH. This transformer has a peak withstanding current of 20 A and a direct current resistance of 2.9 Ohms. It has a minimum insulation resistance of 10K MOhms and a dielectric withstanding voltage of 500 Vac. The transformer has an SMD mounting type and measures 0.61 × 0.61 × 0.475 inches. |
| |
Download Datasheet
Product Details | |
|
