| Featured Space and Satellite Products |
|
|

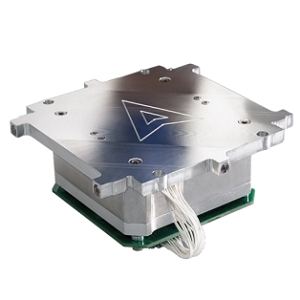

| 0.6-4 mN Resistojet Spacecraft Thruster | |
Spacecraft Thruster
from Aurora Propulsion Technologies
|
| The ARM-A from Aurora Propulsion Technologies is a Spacecraft Thruster that is designed for small satellites with a mission life of 3+ years. It has a form factor of 0.35/5/1 U and a thrust value of 0.6-4 mN. It is a full 3-axis attitude control system with 6 resistojet thrusters. The ARM-A thruster is ideal for use in CubeSats (1-3 U), nano- and microsatellites. |
| |
Download Datasheet
Product Details | |
|
|
|

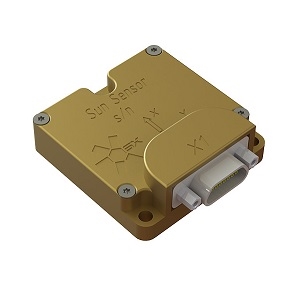

| Sun Sensor for CubeSat Application | |
Sun Sensor
from SPUTNIX
|
| The SX-SSM-01 from SPUTNIX is a Sun Sensor with an accuracy of 0.15 Degrees and a field of view of a half-angled cone of 45 degrees. It requires a DC supply voltage of 6-36 V and has a power consumption of 0.3 W. This sun sensor by SPUTNIX is designed to determine the orientation system circuits to estimate the directional unit vector of the sun in CubeSats. |
| |
Download Datasheet
Product Details | |
|
|
|
| Global Satellite Modem for Asset Tracking & Communication | |
Satellite Modem
from Digi International
|
| The Digi m10 from Digi International is a Satellite Modem with a transmit frequency range of 148-150.05 MHz and a receiver frequency of 137-138 MHz. It requires a DC voltage of 9-18 V. The Digi m10 satellite modem measures 2.95 x 1.81 x 0.52 inches and is ideal for satellite communication, industrial automation, remote device management, and asset-tracking applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| Radiation Tolerant Image Processing Computer | |
Satellite On-Board Computer (OBC)
from Space Micro
|
| The IPC-7000 from Space Micro is a Satellite On-Board Computer (OBC) based on reconfigurable radiation-mitigated Virtex 7 FPGAs. This compact 3-board system has an IPC memory storage capacity of 2 GB and a rad-hard flash memory SBC storage capacity of 1 GB. It uses a Proton400K Dual Core single board computer and a solid-state buffer of 256 GB per slice. |
| |
Download Datasheet
Product Details | |
|
|
|

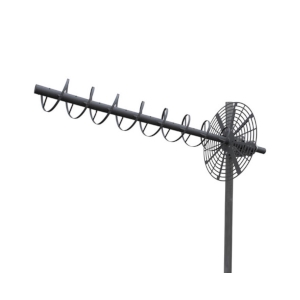

| 225-400 MHz SATCOM Fixed Helical Antenna | |
SATCOM Antenna
from TACO Antenna
|
| The H-084A from TACO Antenna is a SATCOM Antenna that operates from 225-400 MHz frequency range. It has a gain of 12.8 dB and an axial ratio of 1.1 dB. This fixed helical antenna has a wind survival rating of 150 mph and a helical diameter of 30.2 cm. This RoHS-compliant antenna weighs 15.0 kg and is ideal for SATCOM, military, and defense applications. |
| |
Download Datasheet
Product Details | |
|
|
|

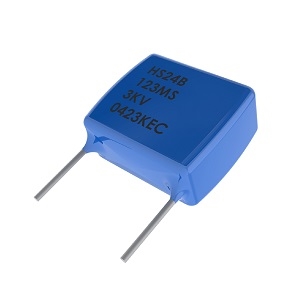

| 3300 pF Space Grade Ceramic Capacitors | |
Space Qualified Capacitor
from KEMET
|
| The 05HS21N332KCF from KEMET is a Space Qualified Capacitor with a capacitance value of 3300 pF and a capacitance tolerance of 5 %. It is screened to MIL-PRF-49467 and is ideal for applications such as aerospace engine compartments, switch mode power supplies, DC/DC converters, measuring equipment, inverters, and high-voltage coupling. |
| |
Download Datasheet
Product Details | |
|
|
|

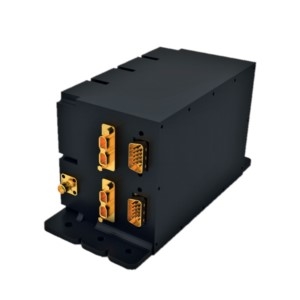

| X-Band Data Downlink Transmitter | |
Space Transmitter
from Tesat-Spacecom GmbH & Co. KG
|
| The INTEGRATED DATA DOWNLINK TRANSMITTER from Tesat-Spacecom GmbH & Co. KG is a Space Transmitter with a frequency range of 8025-8400 MHz and a bandwidth of 325 MHz. It requires a DC supply voltage of 21-38 V. It has a mass of 2.5 kg and measures 170 x 80 x 100 mm. It has a lifetime of 7 years in LEO orbit and is ideal for Earth observation satellites. |
| |
Download Datasheet
Product Details | |
|
|
|
| 13.75-14.5 GHz Test Loop Translator | |
Test Loop Translator
from GeoSync Microwave
|
| The TRR-14-11 from GeoSync Microwave is a Test Loop Translator with an input frequency range of 13.75-14.5 GHz and an output frequency range of 10.7-11.45 GHz. This test loop translator has an LO frequency of 3.05 GHz and an impedance of 50 Ohms. The TRR-14-11 is ideal for applications where frequency translation is needed with a minimum amplitude and group delay distortion. |
| |
Download Datasheet
Product Details | |
|
|
|
| 100 V Radiation Hardened Dual Solid State Relay | |
Space Qualified Solid State Relay
from Infineon Technologies
|
| The RDHA701CD10A2NP from Infineon Technologies is a Space Qualified Solid-State Relay with a contact resistance of 0.24-0.75 ohms and an output withstand voltage of 100 V. This optically coupled relay has a mass of 0.8 g and is ideal for applications such as solar array management, heater controls, bus switching, ground power isolation, and generic load switching. |
| |
Download Datasheet
Product Details | |
|
|
|

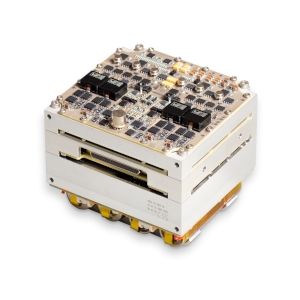

| Electrical Power System for CubeSats | |
Satellite Electrical Power System
from C3S Electronics Development
|
| The C3S EPS-1000 from C3S Electronics Development is a Satellite Electrical Power System with a total input power of 46.9 W and an input current of 0.75 A. It has an output voltage of up to 12.6 V and an output surge voltage of 13.5 V. This radiation-tested EPS has a switching frequency of 400 - 480 kHz and an efficiency ranging from 65 - 89 %. It has up to 7 series triple junction solar cells. |
| |
Download Datasheet
Product Details | |
|
|
|
| 4.45 to 5.00 GHz SATCOM Block Up Converter | |
SATCOM Block Up Converter
from RF-Lambda
|
| The RFBUC4G5GAB from RF-Lambda is a SATCOM block up converter with an RF frequency range of 4.45-5.0 GHz. This BUC has a small signal gain of 50 dB with an output saturated power of 33 dBm. It is designed with a USB USART control interface with OFDM, QPSK, and DSSS signal modulations and is ideal for point-to-point radio station applications. |
| |
Download Datasheet
Product Details | |
|
|
|

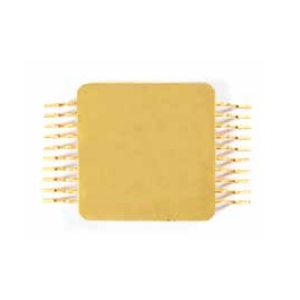

| 750KHz to 800MHz Space Level Clock Oscillator | |
Space Qualified Oscillator
from Wi2Wi
|
| The FP2 Series from Wi2Wi is a Space Qualified Oscillator with a frequency range of 750 KHz to 800 MHz. It has an output duty cycle of 45-55 %, a period jitter of 2-5 psec and a phase noise of up to -110 dBc/Hz and a phase jitter of 0.1-1.0 psec. The FP2 Series utilizes a premium swept quartz crystal resonator in a 4-point mount and is designed for low-to-mid orbit applications. |
| |
Download Datasheet
Product Details | |
|
|
|

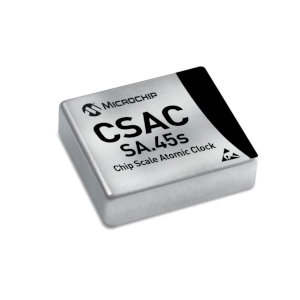

| Atomic Clock for Satellite Timing and Frequency Control | |
Space Qualified Atomic Clock
from Microchip Technology
|
| The 090-02984-007 from Microchip Technology is a Space Qualified Atomic Clock with an RF output frequency of 10 MHz. It has a pulse width of 100 µs. The atomic clock is ideal for applications such as satellite timing and frequency control, satellite clock reference, assured Position, Navigation and Timing (PNT), atomic clock accuracy, and satellite cross-linking. |
| |
Download Datasheet
Product Details | |
|
|
|
| Ku-Band 20 W Satcom Transceiver | |
SATCOM Transceiver
from AnaCom, Inc
|
| The Anasat Ku-band 20 W from AnaCom is a SATCOM Transceiver with a Tx output frequency range of 13.75-14.5 GHz and an Rx input frequency range of 10.95-12.75 GHz. The transceiver requires an input power supply of 100-250 V AC, an impedance of 50 ohms and has a power consumption of up to 294 VA. It has a mass of 20 kg and measures 549 x 229 x 274 mm. |
| |
Download Datasheet
Product Details | |
|
|
|

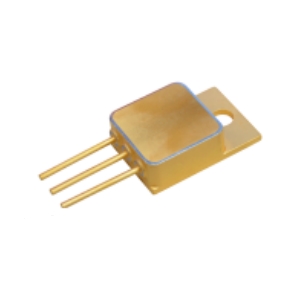

| 150 V Radiation Hardened Schottky Rectifier | |
Space Qualified Diode
from STMicroelectronics
|
| The STPS40A150CHR from STMicroelectronics is a Space Qualified Diode with a forward current of 2 x 20 A and a forward voltage of 0.560-2370 V. It has a repetitive peak reverse voltage of 150 V and a reverse current range of 1.3-14 uA. It has a low forward voltage drop of 0.79 V. The diode has a package mass of 9.4 g and is ideal for aerospace applications. |
| |
Download Datasheet
Product Details | |
|
|
|

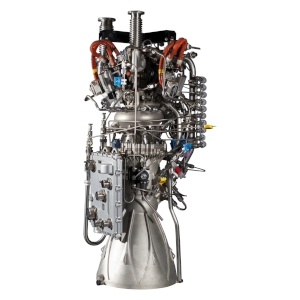

| Satellite Launch Vehicle Engine for Hypersonics | |
Satellite Launch Vehicle Engine
from Ursa Major
|
| The Hadley from Ursa Major is a Satellite Launch Vehicle Engine with a vacuum variant thrust of 6500 lbf. It has a thrust of 5000 ldf at sea level. This satellite launch vehicle engine uses Lox/Kerosene propellants and has an oxygen-rich staged combustion. It is ideal for small launches and hypersonics. |
| |
Product Details | |
|
