| Featured Space and Satellite Products |
|
|

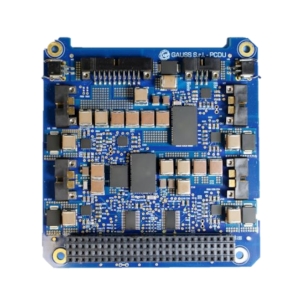

| Power Conditioning and Distribution Unit for CubeSats | |
Power Conditioning and Distribution Unit (PCDU)
from GAUSS Srl
|
| The PCDU Power Board from GAUSS Srl is a Power Conditioning and Distribution Unit (PCDU) that features four regulated, independent power channels, and one unregulated channel. This unit hosts three power modules with two power outputs that are rated for high currents, up to 6 A. The PCDU is ideal for CubeSats and Microsats and is used for interfacing the EPS bus with hosted payloads. |
| |
Download Datasheet
Product Details | |
|
|
|
| Multiband Man-Portable VSAT Terminal | |
VSAT Terminal
from L3Harris Technologies
|
| The PANTHER II from L3Harris Technologies is a VSAT Terminal with a transmit frequency range of 7.90-31.0 GHz and a receive frequency range of 7.25-21.2 GHz. This terminal is circular/linear polarized. It requires an input DC supply of 10-48 V and has a power consumption of 240-676 VA. It is MIL-STD-810G certified and offers high data rates over commercial and military satellites. |
| |
Download Datasheet
Product Details | |
|
|
|
| 15 V DC-DC Converter for Aerospace Systems | |
DC to DC Converter
from Crane Aerospace & Electronics
|
| The MFK2815S from Crane Aerospace & Electronics is a Space Qualified DC-DC Converter with a fixed frequency of 500 kHz and an output voltage of 14.70 - 15.30 V. It has an input voltage of 16-50 V. It is available in a hermetically sealed steel case and is designed to meet the stringent demands of satellite applications and offers optimal power conversion for a wide range of aerospace systems. |
| |
Download Datasheet
Product Details | |
|
|
|
| Deployable Antenna System for CubeSat Missions | |
Satellite Antenna System
from ISISPACE
|
| The AntS from ISISPACE is a Satellite Antenna System with a frequency range greater than 10 MHz and a maximum RF power of 2 W. It has a mass of 89 g and measures 98 x 98 x 7 mm. This antenna system uses linear or circular polarized antennas and has a return loss of greater than 10 dB at resonance frequency. It is suitable for applications such as CubeSat TT&C and CubeSat RF payloads. |
| |
Download Datasheet
Product Details | |
|
|
|

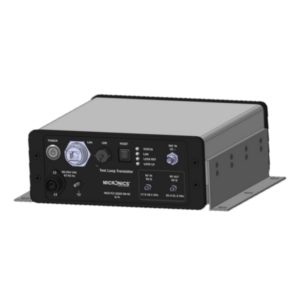

| 20.4-21.2 GHz Single Band Test Loop Translator | |
Test Loop Translator
from MICRONICS
|
| The MCS-TLT-1820-08AC from MICRONICS is a Test Loop Translator with an input frequency range of 17.3-18.1 GHz and an output frequency range of 20.4-21.2 GHz. This translator requires a supply voltage of 90-264 V AC and a supply power of 20-30 W. It has a mass of 5.4 Kg and measures 265 x 103 x 280 mm. The test loop translator is suitable for satellite communication applications. |
| |
Download Datasheet
Product Details | |
|
|
|

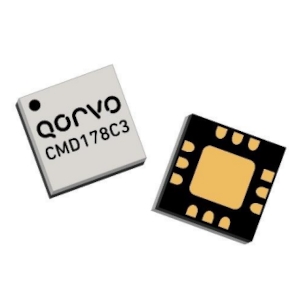

| 11-21 GHz Fundamental Mixer MMIC for Space Applications | |
Space Qualified RF Mixer
from Qorvo
|
| The CMD178C3 from Qorvo is a Space Qualified RF Mixer with a frequency range of 11-21 GHz and an IF frequency range of DC-6 GHz. It features a passive double-balanced topology and comes in a Pb-free RoHs-compliant 3x3 mm SMT package. The CMD178C3 RF mixeris ideal for applications such as electronic warfare (EW), Ku-band radar, space, satcom, and testing and measurement. |
| |
Download Datasheet
Product Details | |
|
|
|

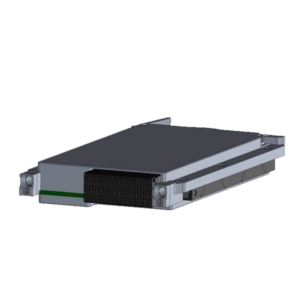

| 4.5 TB Radiation Tolerant SSDR | |
Solid State Recorder
from Mercury Systems
|
| The RH304T from Mercury Systems is a Solid State Recorder with a SLC NAND flash memory of 4.5 TB. This SSDR supports an SRIO interface running at 3.125 Gbps and a dual port that reads/writes at 16 Gbps. The RH304T solid state recorder is ideal for applications such as LEO satellites, launch vehicles, scientific missions, high-altitude aircraft, and mission-critical ground computing subsystems. |
| |
Download Datasheet
Product Details | |
|
|
|
| 750 W DBS Band TWT Amplifier System | |
SATCOM Amplifier System
from Spacepath Communications
|
| The STR2475 from Spacepath Communications is a SATCOM Amplifier System with a frequency range of 17.3-18.4 GHz. It has a gain stability of 0.5 - 2.0 dB, a peak TWT power of 750 W and a minimum gain of 70 dB. The amplifier system has a compact 4RU enclosure and features a touchscreen control and remote diagnostics. It has a mass of 48 kg and measures 100 x 63 x 38 cm. |
| |
Download Datasheet
Product Details | |
|
|
|
| Non-Latching Space Grade DPDT Relay | |
Space Qualified Solid State Relay
from Teledyne Relays
|
| The HRS412K from Teledyne Relays is a Space Qualified Solid-State Relay that operates at a frequency range of DC-1 GHz. The relay has a maximum operation time of 3 ms and a release time of 2-4 ms. It has a breakdown voltage of 100 V, a drain power voltage of 28 V, and an inductive load current value of 200 mA. This relay has a mass of 2.55 g and is suitable for demanding space flight applications. |
| |
Download Datasheet
Product Details | |
|
|
|

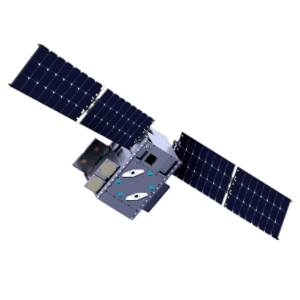

| 12U CubeSat for LEO Missions | |
Satellite Bus & Platform
from Blue Canyon Technologies
|
| The XB12 from Blue Canyon Technologies is a Satellite Bus and Platform with an energy storage capability of 6.8-20.4 Ah and a solar array power range of 92-108 W. The platform has an uplink signal rate of 100 Kbps and a downlink signal rate of 2 Mbps (S-band) and up to 10 Mbps (X-band). It has an available payload volume of 8U with a design life of 5 years for LEO missions and 2 years for GEO missions. |
| |
Download Datasheet
Product Details | |
|
|
|

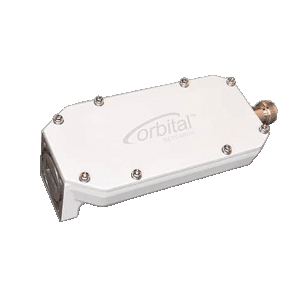

| Ku-Band SATCOM Low Noise Block | |
SATCOM Low Noise Block
from Orbital Research
|
| The 5400X Series from Orbital Research is a SATCOM Low Noise Block with an RF frequency range of 10.95-12.75 GHz and an IF frequency range of 950-1700 MHz. It requires an input supply voltage of 12-24 V DC and draws a current of 220 mA. It has an input VSWR of 2.2:1 and an output VSWR of 1.5:1. It has a mass of 350 g and measures 126 x 60 x 41 mm. It is ideal for SATCOM applications. |
| |
Download Datasheet
Product Details | |
|
|
|

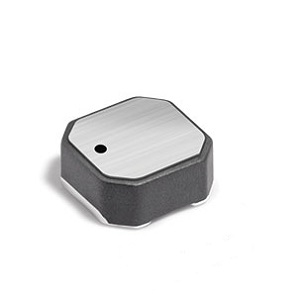

| Outgassing Compliant Power Inductors | |
Space Qualified Inductor
from Coilcraft
|
| The AE425PJB from Coilcraft are Space-Qualified Inductors with an inductance range of 0.35-3300 µH and an inductance tolerance of +/-20 %. These inductors have a DC resistance of 0.040-48 ohms. Its high-temperature material allows for operation in ambient temperatures of up to 155 degrees C. The inductor has a mass of 95-120 mg and measures 0.1535 x 0.1535 x 0.0709 inches (L x H x W). |
| |
Download Datasheet
Product Details | |
|
|
|

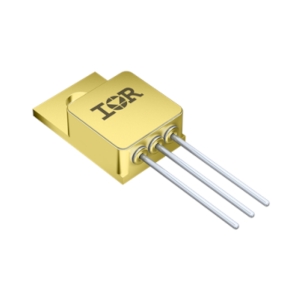

| -60V Radiation Hardened Power MOSFET | |
Space Qualified MOSFETs
from Infineon Technologies
|
| The IRHYS9A97034CM from Infineon Technologies is a Space-Qualified MOSFET with a drain-to-source breakdown voltage of -60 V and a continuous drain current of up to -30 A. This p-channel MOSFET has a gate-to-source voltage of +/- 20 V and is suitable for applications such as power distribution, linear regulator, latching current limiter, and load and protection switch. |
| |
Download Datasheet
Product Details | |
|
|
|

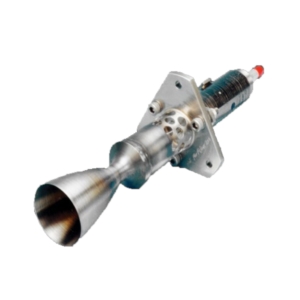

| 22N Spacecraft Monopropellant Thruster | |
Spacecraft Thruster
from Moog
|
| The MONARC-22-12 from Moog is a Spacecraft Thruster with a steady state thrust of 22 N (190 psia). This monopropellant thruster has a specific impulse of 228.1 secs and a total impulse of 263,720 lbf-sec. The MONARC-22-12 thruster has a long and successful heritage and its range of applications include earth observation and communication, space exploration, and missile defense. |
| |
Download Datasheet
Product Details | |
|
|
|

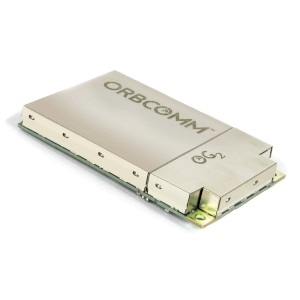

| Satellite Modem for OEM Systems Integrators | |
Satellite Modem
from ORBCOMM
|
| The OGi from ORBCOMM is a Satellite Modem that delivers connectivity over the Inmarsat L-band network. This modem requires an input voltage of 5-15 VDC and an input current of 70 µA (GPS) or 750 mA (transmit mode). The modem can be integrated into hardware solutions that enable asset tracking and monitoring applications within the marine, heavy equipment, and transportation markets. |
| |
Download Datasheet
Product Details | |
|
