| Featured Space and Satellite Products |
|
|

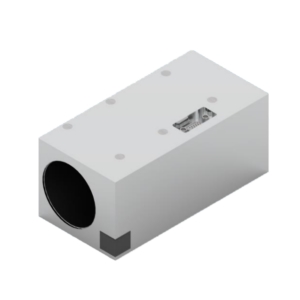

| Star Tracker for CubeSats | |
Star Tracker
from CubeSat Pointing
|
| The KU Leuven from CubeSat Pointing is a Star Tracker with a cross-boresight of 2 inches (1s) and an around boresight of 10 inches (1s). This star tracker can track up to 16 stars and has an update rate of 10 Hz. It features an on-board calibration algorithm and has a built-in baffle to reduce the effects of stray light. It requires an interface supply voltage of 3.3 V and has a nominal power consumption of less than 1 W. The star tracker measures 95 x 50 x 45 mm. |
| |
Download Datasheet
Product Details | |
|
|
|

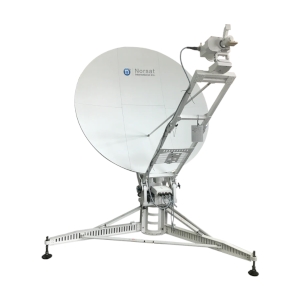

| 1.8m Ku-Band Flyaway Antenna | |
SATCOM Antenna
from Norsat
|
| The WFA180KU-EU from Norsat is a SATCOM Antenna with a Rx frequency range of 10.70-12.75 GHz and a Tx frequency range of 13.75-14.50 GHz. It has a reflector size of 1.8 m for signal reception and offers an azimuth range of +/- 180 deg and an elevation range of 0-90 deg. It has a reflector mass of 50 Kg and measures 121 x 44 x 68 cm (L x W x H). The antenna is ideal for remote enterprise, energy, emergency, and media applications. |
| |
Download Datasheet
Product Details | |
|
|
|

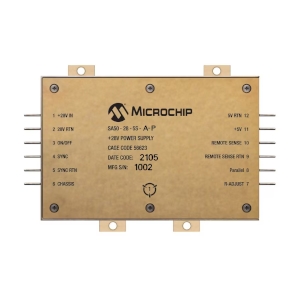

| 28 V Radiation Hardened Isolated Power Converter | |
DC to DC Converter
from Microchip Technology
|
| The SA50-28-15S from Microchip Technology is a DC-to-DC Converter that converts a DC input voltage of 20-40 V to a DC output voltage of 15 V. It has a ripple voltage range of 75-150 mVpp and an output current of 3.4 A. This radiation-hardened converter delivers an output power of up to 51 W and has an efficiency of up to 82% (full load). The converter has flight-proven technology with a high MTBF and is ideal for space and military applications. |
| |
Download Datasheet
Product Details | |
|
|
|

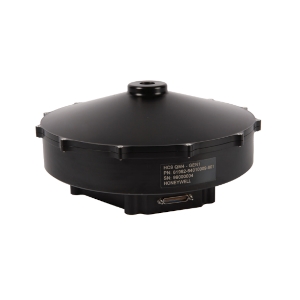

| Small Satellite Class Reaction Wheel Assembly | |
Reaction Wheel
from Honeywell Aerospace
|
| The HC9 from Honeywell Aerospace is a Satellite Reaction Wheel that is designed for small satellites with a mission life of about 7 years and a storage life of about 2 years. It has a torque of 0.2 Nm and an angular momentum of 11.5 Nms. This radiation-hardened reaction wheel features a proven spin-bearing design and optimized momentum density packaging. It has a mass of less than 5.5 kg and measures 115 x 250 mm in dimension. |
| |
Download Datasheet
Product Details | |
|
|
|
| S-Band Satellite Test Loop Translator | |
Test Loop Translator
from Advantech Wireless Technologies
|
| The AWLT- S100 from Advantech Wireless Technologies is a Test Loop Translator with an RF input frequency range of 2025-2120 MHz and an RF output frequency range of 2200-2295 MHz. This S-band test loop translator emulates 221/240 ratio from a coherent transponder and has a high stability internal reference of 10 MHz. It has an input/output impedance of 50 Ohm. The AWLT- S100 measures 114 x 127 x 533 mm and is ideal for satcom applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| DC to 18 GHz Space Qualified Fixed Attenuator | |
Space Qualified Fixed Attenuator
from Cinch Connectivity Solutions
|
| The SQA-0180-02-SMA-02 from Cinch Connectivity Solutions is a Space Qualified Fixed Attenuator with a frequency range of DC-18 GHz and an attenuation value of 2 dB. This RoHS-compliant attenuator has an average power consumption of 2 W and an attenuation accuracy of +/- 0.7 dB. The body of the attenuator is constructed using stainless steel and has a passivated finish. This fixed attenuator is ideal for all orbits and deep space missions. |
| |
Download Datasheet
Product Details | |
|
|
|

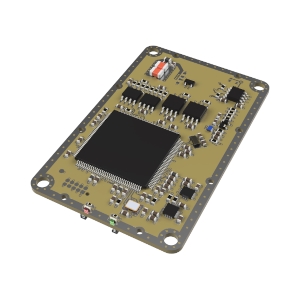

| Cubesat Onboard Computer Module | |
Satellite On-Board Computer (OBC)
from SPACEMANIC
|
| The OBC-SM-DT-SAMV71 from SPACEMANIC is a Satellite On-Board Computer (OBC) that uses a 32-bit Cortex-M7 microcontroller and Spacemanic motherboard. This OBC has a flash storage capacity of 128 MB and a 384Kbytes multi-port SRAM. It features an onboard temperature sensor, gyro sensor, magnetometer, and accelerometer sensor. The OBC is suitable for nanosatellite C&DH, TT&C, mass storage, and ADCS. |
| |
Download Datasheet
Product Details | |
|
|
|

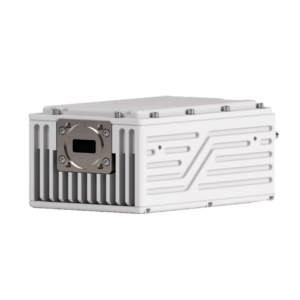

| 20W Ku-Band SATCOM Block Up Converter | |
SATCOM Block Up Converter
from Amkom Design Group Inc
|
| The AMKU20 from Amkom Design Group is a Ku-band SATCOM Block Up Converter with an operating RF frequency range of 13.75-14.5 GHz and an operating IF frequency of 950-1700 MHz. It has a local oscillator with a frequency option of 12.80 GHz or 13.05 GHz and has a rated power of up to 20W. It supports RS-232, RS-485 plus Ethernet interface, and N-type or F-type IF connectors . The BUC has a mass of 1.4 Kg and measures 152 x 94 x 74 mm. |
| |
Download Datasheet
Product Details | |
|
|
|

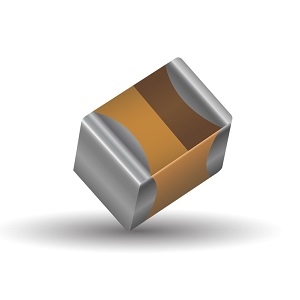

| 0.47-68 µF Space Level Tantalum Chip Capacitors | |
Space Qualified Capacitor
from Kyocera AVX
|
| The TBC SERIES from Kyocera AVX is a Space Qualified Capacitor with a capacitance range of 0.47-68 µF and a capacitance tolerance of +/-5%, +/-10%, or +/-20%. This capacitor has a rated voltage of 4-20 V and a category voltage range of 2.7-13.3 V. It has a surge voltage range of 3.5-26.7 V and is available in 0603, 0805, and 1206 case sizes. It is ideal for applications such as space exploration vehicles and satellites. |
| |
Download Datasheet
Product Details | |
|
|
|

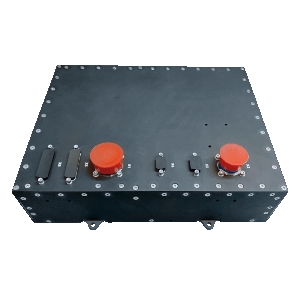

| Power Processing Unit for Hall Thruster | |
Power Processing Unit for Thruster
from Space Electric Thruster Systems (SETS)
|
| The PPU-500 from Space Electric Thruster Systems (SETS) is a Power Processing Unit for Thruster that transforms onboard voltage from 200-500 W to power hall thruster. This PPU requires a power supply of 50-90 W for one or two cathodes and has an efficiency of up to 90%. The PPU-500 has a mass of 4.3 kg and measures 321 x 255 x 94 mm. It is suitable for missions from government-class spacecraft to commercial satellite constellations. |
| |
Download Datasheet
Product Details | |
|
|
|

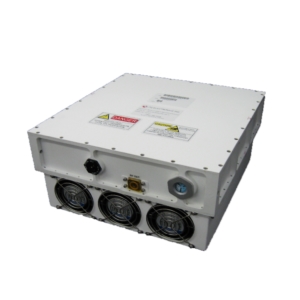

| 25W Ka-Band Solid State Power Amplifier | |
SATCOM Amplifier System
from ITS Electronics
|
| The PA-30A031A0-4455 from ITS Electronics is a SATCOM Amplifier System with an operating frequency range of 30-31 GHz. It has a return loss of 18 dB and a 1dB compression point of 25 W. This solid-state amplifier has a gain range of 55 dB and a spurious of -60 dBc. It requires a power supply of 100-127 V AC and has a power consumption of 450 VA. This power amplifier supports Ethernet and RJ45 interfaces and WR-28 RF I/O connectors. |
| |
Download Datasheet
Product Details | |
|
|
|

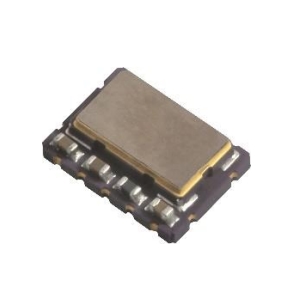

| 10-50 MHz TCXO for Space Applications | |
Space Qualified Oscillator
from AXTAL GmbH & Co. KG
|
| The AXLE7050S from AXTAL GmbH & Co. KG is a Space Qualified Oscillator with a frequency range of 10-50 MHz and a frequency stability range of +/- 1-3 ppm. The oscillator has a frequency adjustment range of up to +/-10 ppm. It requires a supply voltage of 3.15-3.45 V and has a current consumption of 2-6 mA. It has a mass of 1 g and measures 7 x 5 x 1.8 mm. The oscillator is suitable for low-earth orbit and medium-earth orbit space applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 10 W X-Band GaN Transceiver | |
SATCOM Transceiver
from Communications & Power Industries
|
| The TR61 from Communications & Power Industries is a SATCOM Transceiver with an input frequency range of 950-1450 MHz and an output frequency range of 7.9-8.4 GHz. The transceiver has a transmit/receive phase noise (SSB) of up to -112 dBc/Hz. The transceiver is designed to meet MIL-STD-810G environmental requirements and can directly be mounted on the antenna to maximize operational efficiency. It is ideal for SATCOM applications. |
| |
Download Datasheet
Product Details | |
|
|
|

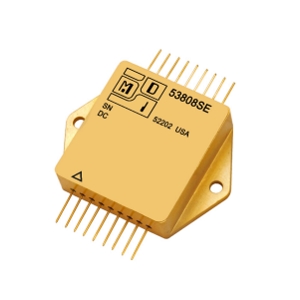

| Radiation Hardened Hybrid Solid State Relay | |
Space Qualified Solid State Relay
from Modular Devices
|
| The 53808 from Modular Devices is a Space Qualified Solid State Relay with a bias voltage of 4.7-5.3 V and a command current of 0.1-2.0 mA. It has a contact rating current of 10 A and a contact rating voltage of 50 V. This relay has a contact resistance of 0.075-0.2 ohm and a power dissipation of 4 W. It has a mass of 30 g and is available in an 18-pin seam weld chassis mount with a flange. The 53808 relay is ideal for military and aerospace applications. |
| |
Download Datasheet
Product Details | |
|
|
|

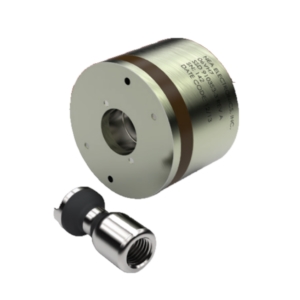

| Hold Down and Release Mechanism for Satellites | |
Attach and Release Mechanism
from Ensign-Bickford Aerospace & Defense Company (EBAD)
|
| The 9103 from Ensign-Bickford Aerospace & Defense Company (EBAD) is an Attach and Release Mechanism with a proof load rating of 41000 N and a release load rating of 35000 N. The mechanism is ideal for applications such as antennas, reflectors, solar arrays, deployable radiators, booms, masts, scientific instruments, satellite and spacecraft deployments, missile payload separation, launch vehicles, and missile stage and fairing separation. |
| |
Download Datasheet
Product Details | |
|
