| Featured Space and Satellite Products |
|
|

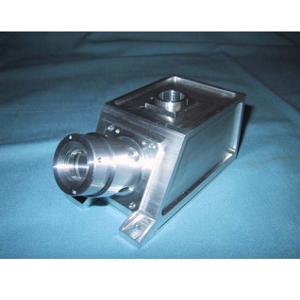

| Dual Array Single-Headed Earth Sensor | |
Earth/Horizon Sensor
from Servo Corporation of America
|
| The DASH from Servo Corporation of America is an Earth/Horizon sensor with an operational field of view of +/- 5°. It has an accuracy of less than 0.2° and a mass of 0.35 g. It produces DC voltages from redundant IR detector arrays that view the Earth, the horizon, and Space. It measures 3.75 X 2.4 X 2.4 inches and is suitable for LEO constellations with a design life of 7 years. |
| |
Download Datasheet
Product Details | |
|
|
|

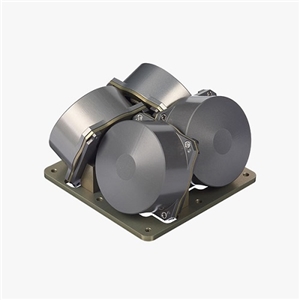

| Reaction Wheel System for CubeSat | |
Reaction Wheel
from NanoAvionics
|
| The 4RW0 from NanoAvionics is a Reaction Wheel system with a torque of 2.5-5.9 mNm and an angular momentum of 0.0156 Nms-0.037 Nms. This integral 4-reaction wheel has a rotation speed of 6500 rpm with DC brushless motors assembled in a sealed housing. The reaction wheel system measures 92.5 x 92.5 x 51.3 mm. It is suitable for the reaction wheel control system in CubeSat. |
| |
Product Details | |
|
|
|

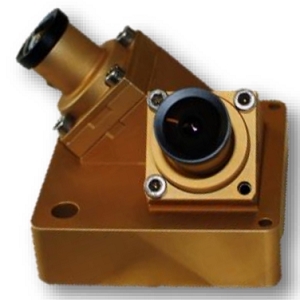

| Sun Sensor for LEO & GEO Orbits | |
Sun Sensor
from SITAEL
|
| The SITAEL Sun from SITAEL is a Sun Sensor with an accuracy of 0.5 deg. It has a field of view (FoV) of up to 140 deg. This compact sun sensor can estimate the Satellite-to-Sun vector with 1° (up to 0.1° when sunlight is perpendicular to the sensor’s surface) accuracy. It has a scalable refresh rate of up to 10 Hz and is suitable both for LEO and GEO orbits. |
| |
Download Datasheet
Product Details | |
|
|
|

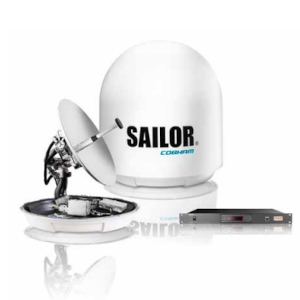

| 60 cm Class Maritime Ku-band Antenna System | |
VSAT Terminal
from Cobham Satcom
|
| The Sailor 600 VSAT KU from Cobham Satcom is a VSAT Terminal with a Tx frequency range of 13.75-14.50 GHz and an Rx frequency range 10.70-12.75 GHz. This VSAT terminal has a transmit gain of 37.7 dBi and an Rx gain of 36.0 dBi. It has a system G/T of 15.9 dB/K and a BUC output power of 6 W. It has an elevation range of -28 to +120 degrees and an unlimited azimuth range. |
| |
Download Datasheet
Product Details | |
|
|
|

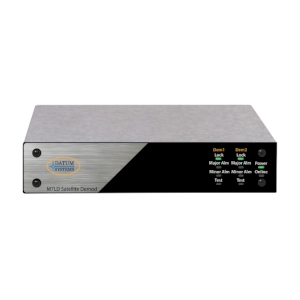

| Compact Satellite Modem for Cellular Backhaul | |
Satellite Modem
from Spacepath Communications
|
| The M7D from Spacepath Communications is a Satellite Modem that has an operating frequency range from 50-180 MHz. It supports serial, advanced IP, and express ethernet interfaces. This RoHS-compliant space grade satellite modem is suitable for cellular backhaul, enterprise, IP networks, E1 trunking, On-the-Move, and bandwidth-on-demand applications. |
| |
Download Datasheet
Product Details | |
|
|
|

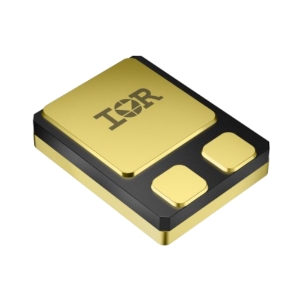

| 60 V Radiation Hardened N-Channel Power MOSFET | |
Space Qualified MOSFETs
from Infineon Technologies
|
| The IRHLNA77064 from Infineon Technologies is a Space Qualified MOSFET with a gate-to-source voltage of +/- 10 V and a continuous drain current of 56 A. It has a drain-source resistance value of 12 mohms. It has a mass of 3.3 g and comes in a hermetically sealed ceramic package. It is designed using IR HiRel R7 technology which makes it ideal for space and satellite applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 3000 ohms GSFC Space Qualified Thermistor | |
Space Qualified Temperature Sensor
from TE Connectivity
|
| The 44903 from TE Connectivity is a Space-Qualified Temperature Sensor with a resistance of 3000 ohms and a tolerance of +/- 0.2 Degrees C (0°C to 70°C). This GSFC S311-P18-01S7R6 qualified thermistor is ideal for extended space, low and mid-range temperature, tight tolerance instrumentation and applications requiring sensing small changes in temperature. |
| |
Download Datasheet
Product Details | |
|
|
|

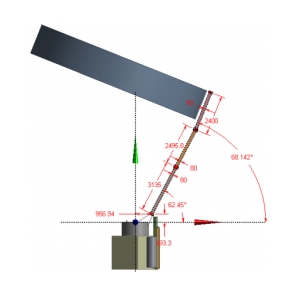

| Space Reflector for ESA's Copernicus Program | |
Space Reflector
from High Performance Space Structure Systems
|
| The Deployable Reflector EO (LEOB) from High Performance Space Structure Systems is a Space Reflector with a total deployable mass of 114 Kg (LEA-K8r) and a total subsystem on-board mass of 235 kg (LEA-L12). It has an arm length of 8.3 - 12.8 m and operates at 1.3 GHz (L-Band) to 37 GHz (Ka-Band). This reflector's objectives involve designing and analyzing LDRS for CIMR and ROSE-L. |
| |
Product Details | |
|
|
|
| 1.3 m Triaxial Magnetic Field Simulator | |
Magnetic Field Simulator
from SPUTNIX
|
| The SXL-MAGSIM-02 from SPUTNIX is a Magnetic Field Simulator with a magnetic field reproduction range of ±150 µT and relative error of 3.5 %. It has a magnetic field uniformity zone of Ø250 mm and an angular orientation of 0 - 4p steradian. This complex triaxial magnetic system is equipped with a magnetic field sensor – magnetometer and has a rate of change of magnetic field of up to 100 µT/min. |
| |
Download Datasheet
Product Details | |
|
|
|

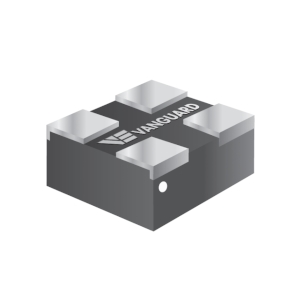

| 86 mH Space Grade Current Sense Transformer | |
Space Qualified Power Transformer
from Vanguard Electronics
|
| The SCS109 from Vanguard Electronics is a Space Qualified Power Transformer with an inductance of 86 mH. This transformer has a peak withstanding current of 20 A and a direct current resistance of 6 Ohms. It has a turns ratio of 1:200 and requires a primary voltage of 288 V. It is built to meet MIL-STD-981 specifications and features tin-lead terminations and welded internal connections. |
| |
Download Datasheet
Product Details | |
|
|
|

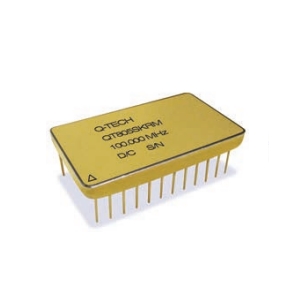

| Space Qualified Temperature Compensated Crystal Oscillator | |
Space Qualified Oscillator
from Q-Tech Corporation
|
| The QT805 from Q-Tech Corporation is a Space Qualified Oscillator with a frequency range of 10-150 MHz. The oscillator comes in a 24-pin double dual in-line hermetically sealed package. It requires a supply voltage of 5-15 Vdc. It measures 32.51 x 20.07 x 7.62 mm and is designed to meet requirements for space-grade applications, control and measurement, and signal processing. |
| |
Download Datasheet
Product Details | |
|
|
|
| C-Band PLL SATCOM Low Noise Block | |
SATCOM Low Noise Block
from Swedish Microwave AB
|
| The C-PLL 5.15 S from Swedish Microwave AB is a SATCOM Low Noise Block with an input frequency range of 3.625–4.200 GHz and an output frequency range of 950-1525 MHz. It has an output power of 15 dBm and an IP3 value of 25 dBm. It requires an input supply voltage of 12-18 V DC and draws a current of 430 mA. The LNB has a mass of 380 g and measures 142 x 99 x 70 mm. |
| |
Download Datasheet
Product Details | |
|
|
|

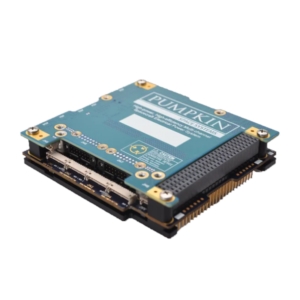

| Multi-Channel Spacecraft Electrical Power System | |
Satellite Electrical Power System
from Pumpkin Space Systems
|
| The EPSM 1 from Pumpkin Space Systems is a Satellite Electrical Power System that features a 32V power ring topology with 6 solar array inputs (8-28V, 2A/4A), 2 battery (16.8V, 8A) blocks, 3 regulated outputs (3.3/5.0/12V, 5-8A). The power system is ideal for CubeSats and nanosatellites, Pumpkin MISC 3 CubeSats, Pumpkin SUPERNOVA NanoSats, and difficult loads. |
| |
Download Datasheet
Product Details | |
|
|
|
| 40 W SATCOM Power Amplifier | |
SATCOM Amplifier System
from AnaCom, Inc
|
| The AnaSat SSPA C-band 40 W from AnaCom is a SATCOM Power Amplifier System that operates from 14-14.5 GHz. It has a small signal gain of 46 dB (Tx), P1dB of 46 dBm, and a power consumption of 390 VA. This amplifier system has an intermodulation of -25 dBc with 2 carriers, each with 6 dB backoff from the P1db rating and a maximum spurious of -55 dBc out of band. |
| |
Download Datasheet
Product Details | |
|
|
|

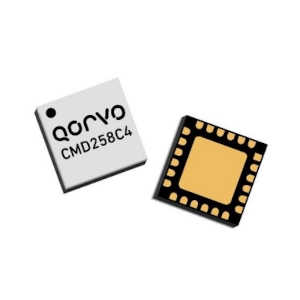

| 7.5 -13 GHz I/Q Mixer for Space Applications | |
Space Qualified RF Mixer
from Qorvo
|
| The CMD258C4 from Qorvo is a Space Qualified RF Mixer with an RF and LO frequency range of 7.5-13 GHz and an IF frequency range of DC to 3.5 GHz. This mixer has a conversion loss of 5.5-10 dB and an image rejection of 23-30 dB. The mixer is suitable for applications such as electronic warfare (EW), C-band radar, X-band radar, space, Satcom, and test and measurement. |
| |
Download Datasheet
Product Details | |
|
