| Featured Space and Satellite Products |
|
|

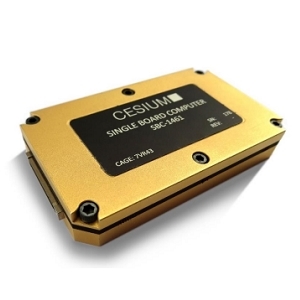

| Single Board Computer Low Earth Orbit Satellites | |
Satellite On-Board Computer (OBC)
from CesiumAstro
|
| The SBC-1461 from CesiumAstro is a Satellite On-Board Computer (OBC) that features a 1.4 GHz ARM 64-bit quad-core Cortex processor with an integrated security engine and a 2GB SDRAM with ECC. This OBC has a non-volatile eMMC storage capacity of 30GB and a 256KB high-endurance FRAM memory. It uses a Ubuntu-based OS with a GNU toolchain and a NASA core Flight System support. |
| |
Download Datasheet
Product Details | |
|
|
|
| 1.8 Meter Motorized Carbon Fiber Flyaway Antenna | |
SATCOM Antenna
from Sat-Lite Technologies
|
| The 1831 Agilis from Sat-Lite Technologies is a SATCOM Antenna with a Tx frequency range of 5.85-31.0 GHz and an Rx frequency range of 3.40-20.2 GHz. This multi-band antenna has a mid-band Tx gain of up to 52.7 dBi and a mid-band Rx gain of up to 49.3 dBi. It has a maximum Rx VSWR of 1.40:1 and a maximum Tx VSWR of 1.30:1. The antenna has an azimuth range of +/- 180 degrees continuous. |
| |
Download Datasheet
Product Details | |
|
|
|

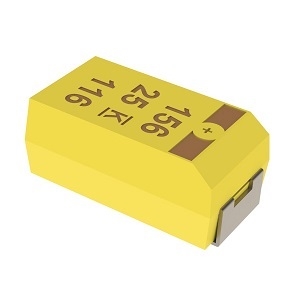

| 1 uF Space Grade Tantalum Surface Mount Capacitor | |
Space Qualified Capacitor
from KEMET
|
| The T493A105M016CB612A by KEMET is a Space-Qualified Capacitor with a capacitance value of 1 uF. This tantalum capacitor is designed to meet rigorous space standards such as MIL–PRF–55365 and MIL–STD–1580. It requires a DC supply of 16 V and has a power rating of 75 mW. It has an equivalent series resistance (ESR) of 10 Ohms. This halogen-free capacitor has a low leakage current of 500 nA. |
| |
Download Datasheet
Product Details | |
|
|
|
| 12 TB Space-Qualified Solid State Recorder | |
Solid State Recorder
from Airbus
|
| The 2080 from Airbus is a Solid State Recorder with a total memory capacity of 12 TB and a user memory capacity of 8 TB. This recorder has up to 3 memory slices and an aggregated record plus replay data rate of up to 10Gbits/s per slice. It has a minimum NAND flash endurance of 60K program/ erase cycles and a residual bit error rate of less than 5.3 x 10-17 error/bit/day for the mission. |
| |
Download Datasheet
Product Details | |
|
|
|
| Space Qualified DC-DC Converter | |
DC to DC Converter
from VPT
|
| The SGRB10028S from VPT is a DC to DC Converter with an input voltage range of 94.5-105 V and an output voltage range of -0.35 to 0.35 V. This converter has an output power of 400 W and an efficiency of up to 96%. It has a capacitance of 100 µF and a switching frequency of 400-500 kHz. The converter has a load regulation voltage range of 45-80 mV and a line regulation voltage range of 5-20 mV (Line). |
| |
Download Datasheet
Product Details | |
|
|
|
| 14.00-14.50 GHz Test Loop Translator | |
Test Loop Translator
from Jersey Microwave
|
| The KTLT-140145-122127-N22 from Jersey Microwave is a Test Loop Translator with an input frequency range of 14.00-14.50 GHz and an output frequency range of 12.25-12.75 GHz. This test loop translator has an LO frequency of 1750 MHz and a minimum return loss of 18 dB. It has a spurious of -30 dBm and an SSB phase noise of up to -120 dBc/Hz (1MHz). It requires a supply voltage of 90-260 V AC. |
| |
Download Datasheet
Product Details | |
|
|
|

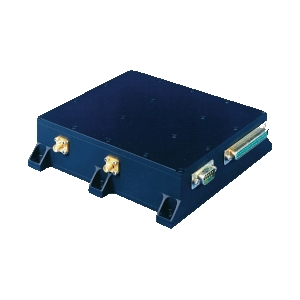

| Spaceborne Receiver for LEO Applications | |
GNSS Receiver
from General Dynamics Mission Systems
|
| The Viceroy-4 GPS Spaceborne Receiver from General Dynamics Mission Systems is a GNSS Receiver that has up to 12 receive tracking channels with an enhanced fast acquisition processor. This receiver has a dual antenna setup and carrier-aided code tracking. It has an autonomous position solution accuracy of less than 15m, 1 sigma (LEO) and 100m, 1 sigma (GEO). The receiver supports RS-422 serial I/O interface. |
| |
Download Datasheet
Product Details | |
|
|
|

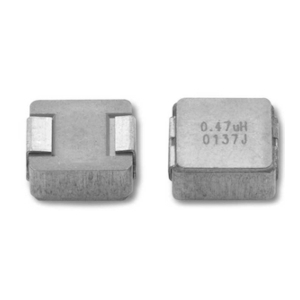

| 0.1-10 µH Shielded Lead Inductors | |
Space Qualified Inductor
from Vishay
|
| The IHLP-2020BZ-L1 from Vishay is a Space-Qualified Inductor with an inductance range of 0.1-10 µH and an inductance tolerance of ±20 %. It has a DC/DC energy storage of up to 5 MHz and a DCR range of 3.6-199 milli-ohm. This inductor has a DC saturation current of 4-45 A and an SRF value of 20-239 MHz. This IHLP design shielded inductor measures 0.204 x 0.204 x 0.078 inches with a surface mount package. |
| |
Download Datasheet
Product Details | |
|
|
|

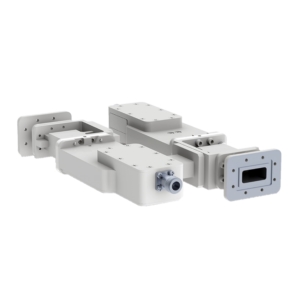

| X-Band LNB Down Converter | |
SATCOM Low Noise Block
from EM Solutions
|
| The 01-284A from EM Solutions is a SATCOM Low Noise Block with an RF input frequency range of 7.25 - 7.75 GHz and an IF output frequency range of 950 - 1450 MHz. This LNB down-converter has a conversion gain of 70 dB, an in-band spurious of -70 dBm and a noise figure of 0.8 dB (with isolator). It has an input return loss of 19 dB, an output return loss of 12 dB, and a phase noise of up to -110 dBc/Hz. |
| |
Download Datasheet
Product Details | |
|
|
|

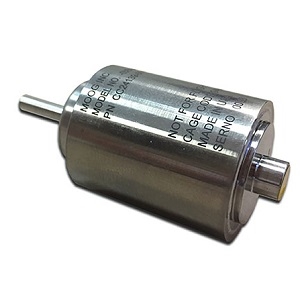

| 0.9-1.3 N Cold Gas Thruster for GEO Applications | |
Spacecraft Thruster
from Moog
|
| The 058E163A from Moog is a Spacecraft Thruster with a thrust capacity of 0.9-1.3 N. It has a nominal thrust of 1.3 N and a specific impulse of 21-70 s. This cold gas thruster has a proof pressure of 279 bar and a burst pressure of 465 bar. It has an opening response and a closing response time of 10 msec and a coil resistance of 74.5 Ohms nominal (21 Degree C). This thruster requires a supply voltage of 10-28 V. |
| |
Download Datasheet
Product Details | |
|
|
|
| Ku-Band 3W Block Up-Converter | |
SATCOM Block Up Converter
from RevGo
|
| The Ku-Band 3W IFL from RevGo is a SATCOM Block Up Converter with an RF frequency range of 13.75-14.50 MHz and an IF frequency range of 950-1700 MHz. This BUC has a small signal gain of 51 dB and a saturated output power of 34.5 dBm. It has a phase noise of up to -95 dBc / Hz (100 KHz) and an output spurious of -50 dBc. The BUC requires an input power supply of 18-36 VDC and has a power consumption of up to 21 W. |
| |
Download Datasheet
Product Details | |
|
|
|
| Magnetic Latching Space Grade DPDT Relay | |
Space Qualified Solid State Relay
from Teledyne Relays
|
| The HR422 from Teledyne Relays is a Space-Qualified Solid-State Relay operating from DC to 1 GHz. This magnetic DPDT relay has a DC breakdown voltage of 100 V and an insulation resistance of 1000- 10000 mohms. It has an operating time of 2 ms, a minimum operating pulse of 4.5 ms, and a maximum block integrity leakage current of 1 µA. It comes with a gold-plated or solder-coated lead finish and has a mass of 2.84 gm. |
| |
Download Datasheet
Product Details | |
|
|
|

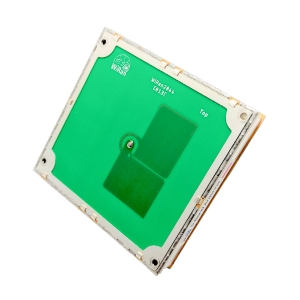

| S-Band for Nanosatellites Applications | |
Satellite Antenna
from WiRan
|
| The S-Band Antenna from WiRan is a Satellite Antenna designed to operate in the frequency range of 2025-2290 MHz. This antenna is right-hand circularly polarized and has a gain of 7.5 dBi. It has a return loss of greater than 17 dB and a half power beamwidth of 81 degrees. The antenna has a mass of 87 g and measures 95 x 26.2 x 17.7 mm. It is designed for omnidirectional coverage of nano or microsatellites. |
| |
Download Datasheet
Product Details | |
|
|
|
| 3 W Ku-Band VSAT Transceiver | |
SATCOM Transceiver
from SpaceBridge Inc
|
| The SBTR6030 from SpaceBridge is a SATCOM Transceiver with an LNB RF input frequency range of 10.70-12.75 GHz and an IF output frequency range of 950-2150 MHz. This transceiver has an LO frequency of 9.75 or 10.60 GHz and a noise figure of of up to 1 dB. It has an IF input frequency range of 950-1700 MHz and an RF output frequency range of 13.75-14.50 GHz. The transceiver has a conversion gain of 52-58 dB. |
| |
Download Datasheet
Product Details | |
|
|
|
| 100V Radiation Hardened N-channel Power MOSFET | |
Space Qualified MOSFETs
from Infineon Technologies
|
| The IRHMK57160 from Infineon Technologies is a Space Qualified MOSFET with a gate-to-source voltage of +/- 20 V and a drain-to-source breakdown voltage of 100 V. This power MOSFET has a continuous drain current of 45 A and a pulsed drain current of 180 A. It has a gate threshold voltage of 2-4 V and a maximum power dissipation of 208 W. The MOSFET is Single Event Effect (SEE) hardened up to 100 kRads(Si). |
| |
Download Datasheet
Product Details | |
|
