| Featured Space and Satellite Products |
|
|
| 2 mm Backplane Connector System for Space Applications | |
Space Qualified RF Connector
from Smiths Interconnect
|
| The K2A110FMD from Smiths Interconnect is a Space Qualified RF Connector that has a male pin contact and a contact spacing of 0.079. This connector has 110 signal contacts and 22 ground contacts. It has an average resistance of 4.85 milliohms at rated current. The connector is designed to address the requirements of mission-critical applications within commercial aerospace, space, and defense market segments. |
| |
Download Datasheet
Product Details | |
|
|
|

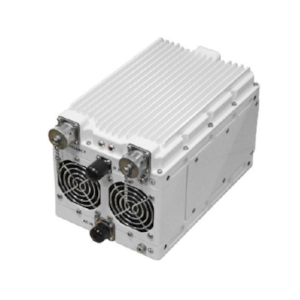

| 60/80 W Ku-Band SATCOM Block Up-Converter | |
SATCOM Block Up Converter
from RevGo
|
| The Ku-Band 60 / 80W from RevGo is a SATCOM Block Up Converter with an RF frequency range of 13.75-14.50 MHz and an IF frequency range of 950-1700 MHz. This BUC has a small signal gain of 70 dB and a rated output power of up to 48.5 dBm (80 W). It features a rugged design for extreme environments and is suitable for applications such as maritime, 5G backhaul, SNG vehicles, and terminals (fixed, portable, and transportable). |
| |
Download Datasheet
Product Details | |
|
|
|

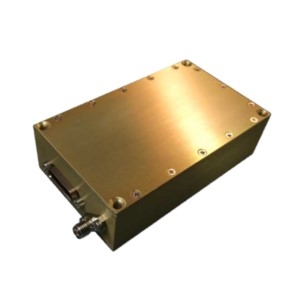

| Satellite GNSS Receiver | |
GNSS Receiver
from AAC Clyde Space
|
| The GNSS-701 Single Frequency from AAC Clyde Space is a GNSS Receiver with operating frequency bands of L1, E1, and B1. This receiver has a position accuracy of 1.5 m and a velocity accuracy of less than 0.03 m/s RMS. It has a time accuracy of 20 nsec and a time to first fix of 40 sec cold start and 19 sec hot start. It is ideal for accurate determination of the orbital position of the satellite and accurate knowledge of time. |
| |
Download Datasheet
Product Details | |
|
|
|
| 100 µH Space Grade Fixed Chip Inductor | |
Space Qualified Inductor
from Vanguard Electronics
|
| The S27048 NT from Vanguard Electronics is a Space Qualified Inductor with an inductance value of 100 µH and an inductance tolerance of +/- 10 %. This inductor has a DC resistance of 18 ohms and a minimum quality factor of 49. It has a test frequency of 2.5 MHz and a minimum self-resonant frequency of 7 MHz. The inductor features tin-lead internal welded terminations and has a resistance of 260 degrees C for 10 seconds to solder heat. |
| |
Download Datasheet
Product Details | |
|
|
|
| 5.825-6.425 GHz RF Amplifier Line Driver System | |
SATCOM Amplifier System
from GeoSync Microwave
|
| The ALD-582642 from GeoSync Microwave is a SATCOM Amplifier System that operates from a frequency range of 5.825-6.425 GHz. It has a small signal gain of 33 dB and a gain adjustment range of 20 dB. This amplifier system has a maximum noise figure of 10 dB and a minimum isolation of 50 dB. It has an input and output return loss of 18 dB. The amplifier system is designed to compensate for long cable run loss and to provide system redundancy. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by Rohde & Schwarz | | |
|
|

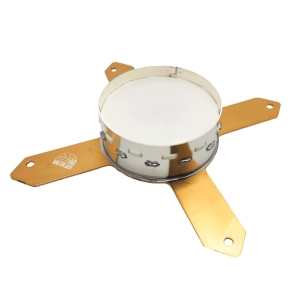

| X-Band NanoSat Antenna for Earth Observation Missions | |
Satellite Antenna
from WiRan
|
| The X-Band Antenna from WiRan is a Satellite Antenna with a frequency range of 8.0-8.5 GHz. This antenna has a gain of 9.5 dBi and a return loss of greater than 17 dB. It has a half-power beam width of 45 degrees and a maximum power consumption of 15 W. The antenna is compliant with the CubeSat nanosatellite standard. It is ideal for data transmission and swarm-dedicated radiocommunication in the X-band. |
| |
Download Datasheet
Product Details | |
|
|
|

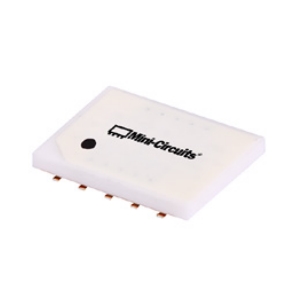

| 1600-3300 MHz Bi-Directional Coupler | |
Space Qualified Coupler
from Mini Circuits
|
| The BDCA1-7-33+ from Mini-Circuits is a Space Qualified Coupler with an operating frequency range of 1.6-3.3 GHz. This wideband coupler has a coupling range of 6.5-7.1 dB and a VSWR of 1.10-1.15. It has a directivity of 17-27 dB and a mainline loss of 1.6-1.9 dB. The coupler requires a current supply of 0.25 A. It is ideal for defense communication, wireless communication, ISM, and mobile satellite applications. |
| |
Download Datasheet
Product Details | |
|
|
|

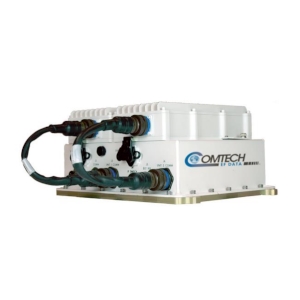

| Multi-Band RF Transceiver for Earth Stations | |
SATCOM Transceiver
from Comtech EF Data
|
| The MBT-4000 from Comtech Satellite Network Technologies is a SATCOM Transceiver with a Tx input frequency range of 950-2000 MHz and a Tx output frequency range of 5.85-30.25 GHz. It is ideally suited for applications such as earth stations where L-Band IF products are being integrated into a 70/140 MHz IF infrastructure and reconfigurable multi-band requirements that are typically found in transportable/flyaway type installations. |
| |
Download Datasheet
Product Details | |
|
|
|

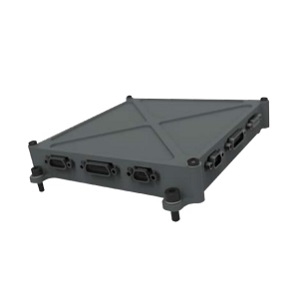

| Space Qualified Processor Unit for Microsatellites | |
Satellite On-Board Computer (OBC)
from STM Defense International
|
| The MICROSATPRO from STM Defense International is a Satellite On-Board Computer (OBC) with an expected life of 5 years targeted for low-earth orbit operations. This OBC has a 32-bit Leon 3 Fault-Tolerant processor with a 48 MHz 32 MB SDRAM. It has an instruction cache of 8 kB and a data cache of 4 kB. The OBC has a ROM (SPI) of 128 MB (Post-EDAC). It is compatible with microsatellite platforms for advanced space missions. |
| |
Download Datasheet
Product Details | |
|
|
|

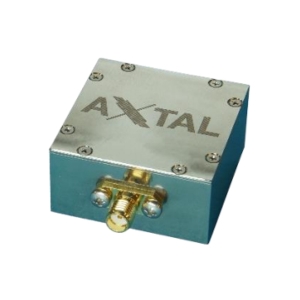

| 10 MHz OCXO for Space Application | |
Space Qualified Oscillator
from AXTAL GmbH & Co. KG
|
| The AXIOM3838S from AXTAL GmbH & Co. KG is a Space Qualified Oscillator with a nominal frequency of 10 MHz. This oscillator has a frequency stability of +/- 10 ppb vs. operating temperature and a long-term aging of +/- 0.1-0.5 ppb per day. It provides a sine wave output and has an output level of 8-12 dBm. It has a harmonics of -30 dBc. The oscillator is suited for low-earth orbit and medium-earth orbit applications. |
| |
Download Datasheet
Product Details | |
|
|
|

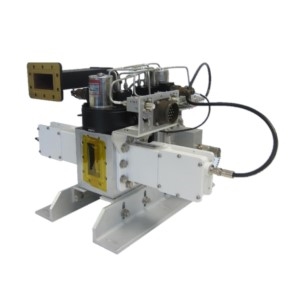

| 1:2 C-Band Redundant LNB System | |
SATCOM Low Noise Block
from Communications & Power Industries
|
| The BRC-1200 from Communications & Power Industries is a SATCOM Low Noise Block with an input frequency range of 3.40-4.20 GHz and an output frequency range of 950-1750 MHz. This LNB has a LO frequency of 5.15 GHz and a gain of 61 dB. It has an input VSWR of 2.20:1 and an output VSWR of 1.50:1. The LNB has a phase noise of up to -95 dBc/Hz (100 kHz) and an output power of +5 dBm at 1dB compression. |
| |
Download Datasheet
Product Details | |
|
|
|

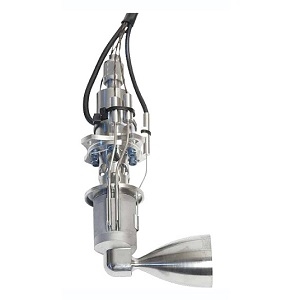

| 20 N Monopropellant Hydrazine Thruster | |
Spacecraft Thruster
from Orbital Propulsion Centre
|
| The 20N Monopropellant Thruster from the Orbital Propulsion Centre is a Monopropellant Spacecraft thruster that has a thrust range of 7.9-24.6 N. It has a nominal specific impulse range of 222-230 sec and a supply pressure range of 5.5-24 bar. This thruster works with monopropellant grade Hydrazine (N2H4) propellant. The thruster is ideal for attitude, trajectory, and orbit control of small satellites and midsize satellites. |
| |
Download Datasheet
Product Details | |
|
|
|

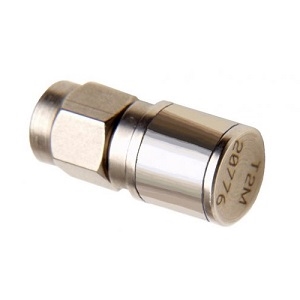

| DC to 26.5 GHz Space Qualified Coaxial Termination | |
Space Qualified RF Termination
from KRYTAR
|
| The T2M-SQ from KRYTAR is a Space Qualified RF Termination with a frequency range of DC-26.5 GHz and an impedance of 50 Ohm. This termination has a maximum power rating of 0.5 W and a VSWR of 1.09 (20- 26.5 GHz). It features a passivated stainless steel body with a gold-plated heat-treated BeCu center contact. The termination has a rugged mechanical design and is ideal for space and thermal vacuum applications. |
| |
Download Datasheet
Product Details | |
|
|
|

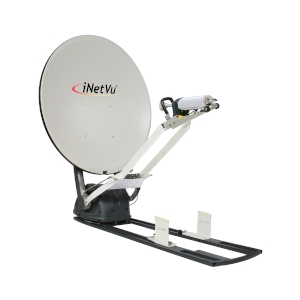

| Ka-Band Driveaway Antenna System | |
SATCOM Antenna
from C-COM
|
| The Ka-1202G from C-COM is a SATCOM Antenna with a transmit frequency range of 29.50-30.00 GHz and a receive frequency range of 19.20-20.20 GHz. It has a G/T of 23.6 dB/K and a midband gain of 49.9 dB (transmit) and 46.5 dB (receive). This antenna uses a 1.2 m glass fiber-reinforced polyester SMC reflector. It can be mounted on the roof of a vehicle and is suitable for the most demanding applications. |
| |
Download Datasheet
Product Details | |
|
|
|

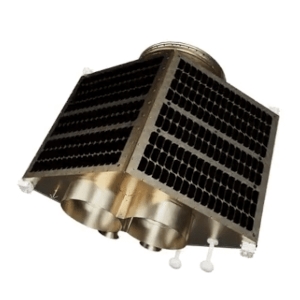

| 100 Kg Satellite Bus for Imaging Applications | |
Satellite Bus & Platform
from Dragonfly Aerospace
|
| The uDragonfly Bus from Dragonfly Aerospace is a Satellite Bus with a pointing control accuracy of less than 0.01degrees/sec (3-sigma) and a slew rate of up to 4 degrees/sec. This bus features a fully automated AOCS and xenon electric propulsion system that generates up to 11 mN of thrust. It requires a bus voltage of 24.3-32.4 V. The bus can accommodate payloads of up to 100 Kg and has an available volume of greater than 500 mm x 1000 mm. |
| |
Download Datasheet
Product Details | |
|
