| Featured Space and Satellite Products this Week |
|
|

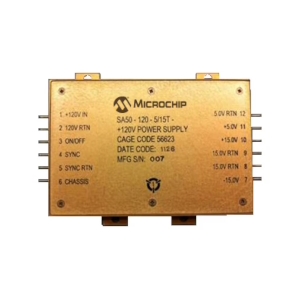

| 50 W Radiation Hardened Isolated Power Converter | |
DC to DC Converter
from Microchip Technology
|
| The SA50-120-5-15T-A-P from Microchip Technology is a Radiation-Hardened DC-to-DC Converter that converts a DC input voltage of 120 V to a DC output voltage of 15 V. This radiation-hardened converter delivers an output power of up to 50 W and has an efficiency of up to 80% at full load conditions. It has a ripple voltage range of 25-75 mVpp and an output current of 4 A. |
| |
Download Datasheet
Product Details | |
|
|
|
| Quad-Band Satellite Test Loop Translator | |
Test Loop Translator
from Advantech Wireless Technologies
|
| The ATLT-400 from Advantech Wireless Technologies is a Test Loop Translator that has a transmit band frequency ranges of 5.85-6.425 GHz (C-band), 7.9-8.4 GHz (X-band), 14.0-14.5 GHz (Ku-band), 30.00-31.00 GHz (Ka-band) and receive band frequency ranges of 3.625-4.200 GHz (C-band), 7.250-7.75 GHz (X-band), 11.70-12.20 GHz (Ku-band), and 20.20-21.20 GHz (Ka-band). |
| |
Download Datasheet
Product Details | |
|
|
|
|
|
|
|
|

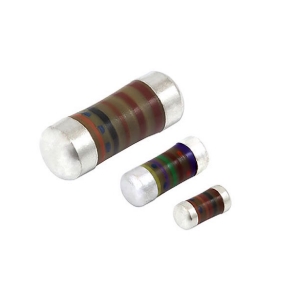

| 1 Ohm to 5.11 MOhm Thin Film MELF Resistor | |
Space Qualified Resistor
from Vishay
|
| The MMA 0204 VG03 from Vishay is a Space Qualified Resistor with a resistance range of 1 Ohm to 5.11 MOhm and a resistance tolerance of +/- 0.1 % or +/- 1%. This resistor has a temperature coefficient of resistance of +/15-50 ppm/K and a maximum resistance change of 1 Ohm to 332 kOhm at P70. |
| |
Download Datasheet
Product Details | |
|
|
|

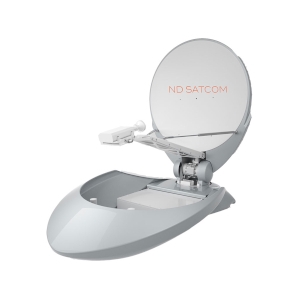

| Ka-band Vehicle-Mounted Antenna System | |
VSAT Terminal
from ND SatCom GmbH
|
| The Ka2Go Terminal from ND SatCom GmbH is a VSAT Terminal with a transmit frequency range of 29.5-30 GHz and a receiver frequency range of 19.7-20.2 GHz. This VSAT terminal has a transmit antenna gain of 45.8 dBi and a receiver antenna gain of 42.4 dBi. It has a maximum allowed EIRP of 29.3 dBW/40 kHz and a G/T of 19.9 dB/K. |
| |
Download Datasheet
Product Details | |
|
|
|
| NTC Thermistor for Aerospace and Defense Applications | |
Space Qualified Temperature Sensor
from QTI Sensing Solutions
|
| The RTH06 MIL-PRF-23648/1 from QTI Sensing Solutions is a Space Qualified Temperature Sensor with an operating temperature range of -55 to 125 degrees C. This high-rel, military-grade sensor has a standard resistance range of 68-75 kohms (25 degrees C) and a power rating of 0.500 W (25 degrees C). It has a maximum thermal time constant of 80 seconds in still air and a minimum dissipation constant of 5 mW/degree C. |
| |
Download Datasheet
Product Details | |
|
|
|
| 2 mm Backplane Connector System for Space Applications | |
Space Qualified RF Connector
from Smiths Interconnect
|
| The K2A110FMD from Smiths Interconnect is a Space Qualified RF Connector that has a male pin contact and a contact spacing of 0.079. This connector has 110 signal contacts and 22 ground contacts. It has an insulation resistance greater than 5000 megohms and an average resistance of 4.85 milliohms at rated current. |
| |
Download Datasheet
Product Details | |
|
|
|
| 60/80 W Ku-Band SATCOM Block Up-Converter | |
SATCOM Block Up Converter
from RevGo
|
| The Ku-Band 60 / 80W from RevGo is a SATCOM Block Up Converter with an RF frequency range of 13.75-14.50 MHz and an IF frequency range of 950-1700 MHz. This BUC has a small signal gain of 70 dB and a rated output power of up to 48.5 dBm (80 W). It has an output spurious of -55 dBc and a phase noise of up to -93 dBc / Hz (100 KHz). |
| |
Download Datasheet
Product Details | |
|
|
|
| Satellite GNSS Receiver | |
GNSS Receiver
from AAC Clyde Space
|
| The GNSS-701 Single Frequency from AAC Clyde Space is a GNSS Receiver with operating frequency bands of L1, E1, and B1. This receiver has a position accuracy of 1.5 m and a velocity accuracy of less than 0.03 m/s RMS. It has a time accuracy of 20 nsec and a time to first fix of 40 sec cold start and 19 sec hot start. |
| |
Download Datasheet
Product Details | |
|
|
|
| 100 µH Space Grade Fixed Chip Inductor | |
Space Qualified Inductor
from Vanguard Electronics
|
| The S27048 NT from Vanguard Electronics is a Space Qualified Inductor with an inductance value of 100 µH and an inductance tolerance of +/- 10 %. This inductor has a DC resistance of 18 ohms and a minimum quality factor of 49. It has a test frequency of 2.5 MHz and a minimum self-resonant frequency of 7 MHz. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by Rohde & Schwarz | | | |
|
|
| 5.825-6.425 GHz RF Amplifier Line Driver System | |
SATCOM Amplifier System
from GeoSync Microwave
|
| The ALD-582642 from GeoSync Microwave is a SATCOM Amplifier System that operates from a frequency range of 5.825-6.425 GHz. It has a small signal gain of 33 dB and a gain adjustment range of 20 dB. This amplifier system has a maximum noise figure of 10 dB and a minimum isolation of 50 dB. It has an input and output return loss of 18 dB and a power output of 30 dBm. |
| |
Download Datasheet
Product Details | |
|
|
|
| X-Band NanoSat Antenna for Earth Observation Missions | |
Satellite Antenna
from WiRan
|
| The X-Band Antenna from WiRan is a Satellite Antenna with a frequency range of 8.0-8.5 GHz. This antenna has a gain of 9.5 dBi and a return loss of greater than 17 dB. It has a half-power beam width of 45 degrees and a maximum power consumption of 15 W. The antenna is right hand circular polarized and is compliant with the CubeSat nanosatellite standard. |
| |
Download Datasheet
Product Details | |
|
|
|
| 1600-3300 MHz Bi-Directional Coupler | |
Space Qualified Coupler
from Mini Circuits
|
| The BDCA1-7-33+ from Mini-Circuits is a Space Qualified Coupler with an operating frequency range of 1.6-3.3 GHz. This wideband coupler has a coupling range of 6.5-7.1 dB and a VSWR of 1.10-1.15. It has a directivity of 17-27 dB and a mainline loss of 1.6-1.9 dB. |
| |
Download Datasheet
Product Details | |
|
|
|
| Multi-Band RF Transceiver for Earth Stations | |
SATCOM Transceiver
from Comtech EF Data
|
| The MBT-4000 from Comtech Satellite Network Technologies is a SATCOM Transceiver with a Tx input frequency range of 950-2000 MHz and a Tx output frequency range of 5.85-30.25 GHz. This transceiver has an Rx output frequency range of 950-2000 MHz and an Rx input frequency range of 3.4-20.45 GHz. It has a Tx gain of 15-25 dB and an Rx gain of 15 dB. |
| |
Download Datasheet
Product Details | |
|
|
|
| Space Qualified Processor Unit for Microsatellites | |
Satellite On-Board Computer (OBC)
from STM Defense International
|
| The MICROSATPRO from STM Defense International is a Satellite On-Board Computer (OBC) with an expected life of 5 years targeted for low-earth orbit operations. This OBC has a 32-bit Leon 3 Fault-Tolerant processor with a 48 MHz 32 MB SDRAM. It has an instruction cache of 8 kB and a data cache of 4 kB. |
| |
Download Datasheet
Product Details | |
|
|
|
| 10 MHz OCXO for Space Application | |
Space Qualified Oscillator
from AXTAL GmbH & Co. KG
|
| The AXIOM3838S from AXTAL GmbH & Co. KG is a Space Qualified Oscillator with a nominal frequency of 10 MHz. This oscillator has a frequency stability of +/- 10 ppb vs. operating temperature and a long-term aging of +/- 0.1-0.5 ppb per day. It provides a sine wave output and has an output level of 8-12 dBm. |
| |
Download Datasheet
Product Details | |
|
|
|
| 1:2 C-Band Redundant LNB System | |
SATCOM Low Noise Block
from Communications & Power Industries
|
| The BRC-1200 from Communications & Power Industries is a SATCOM Low Noise Block with an input frequency range of 3.40-4.20 GHz and an output frequency range of 950-1750 MHz. This LNB has a LO frequency of 5.15 GHz and a gain of 61 dB. It has an input VSWR of 2.20:1 and an output VSWR of 1.50:1. The LNB has a phase noise of up to -95 dBc/Hz (100 kHz) and an output power of +5 dBm at 1dB compression. |
| |
Download Datasheet
Product Details | |
|
|
|
| 20 N Monopropellant Hydrazine Thruster | |
Spacecraft Thruster
from Orbital Propulsion Centre
|
| The 20N Monopropellant Thruster from the Orbital Propulsion Centre is a Monopropellant Spacecraft thruster that has a thrust range of 7.9-24.6 N. It has a nominal specific impulse range of 222-230 sec and a supply pressure range of 5.5-24 bar. This thruster works with monopropellant grade Hydrazine (N2H4) propellant and has a mass flow range of 3.2-10.4 g/s. |
| |
Download Datasheet
Product Details | |
|
|
|
| DC to 26.5 GHz Space Qualified Coaxial Termination | |
Space Qualified RF Termination
from KRYTAR
|
| The T2M-SQ from KRYTAR is a Space Qualified RF Termination with a frequency range of DC-26.5 GHz and an impedance of 50 Ohm. This termination has a maximum power rating of 0.5 W and a VSWR of 1.09 (20- 26.5 GHz). It features a passivated stainless steel body with a gold-plated heat-treated BeCu center contact. |
| |
Download Datasheet
Product Details | |
|
|
|
| Ka-Band Driveaway Antenna System | |
SATCOM Antenna
from C-COM
|
| The Ka-1202G from C-COM is a SATCOM Antenna with a transmit frequency range of 29.50-30.00 GHz and a receive frequency range of 19.20-20.20 GHz. It has a G/T of 23.6 dB/K and a midband gain of 49.9 dB (transmit) and 46.5 dB (receive). This antenna uses a 1.2 m glass fiber-reinforced polyester SMC reflector with an azimuth travel of +/- 200 degrees. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by Rohde & Schwarz | | |
|
|
| 100 Kg Satellite Bus for Imaging Applications | |
Satellite Bus & Platform
from Dragonfly Aerospace
|
| The uDragonfly Bus from Dragonfly Aerospace is a Satellite Bus with a pointing control accuracy of less than 0.01degrees/sec (3-sigma) and a slew rate of up to 4 degrees/sec. This bus features a fully automated AOCS and xenon electric propulsion system that generates up to 11 mN of thrust. It has an energy storage capacity of up to 600 Wh and has a solar array peak power of 220 W. |
| |
Download Datasheet
Product Details | |
|
|
|
| 250 V Radiation Hardened Power MOSFET | |
Space Qualified MOSFETs
from Infineon Technologies
|
| The IRHLQ7S7214 from Infineon Technologies is a Space Qualified MOSFET with a drain-to-source breakdown voltage of 250 V and a gate-to-source voltage of +/- 10 V. This radiation-hardened MOSFET has a continuous drain current range of 1.6-2.6 A and a pulsed drain current of 10.4 A. It has a rise time of 57 ns and a fall time of 55 ns. |
| |
Download Datasheet
Product Details | |
|
|
|

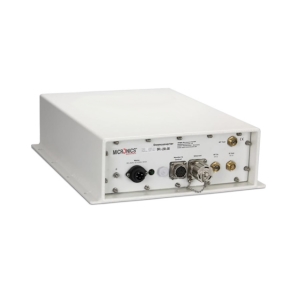

| 43.9-44.5 GHz RF Test Loop Translator | |
Test Loop Translator
from MICRONICS
|
| The MCS-TLT-4419-08AC from MICRONICS is a Test Loop Translator with an input frequency range of 43.9-44.5 GHz and an output frequency range of 19.1-19.7 GHz. This test loop translator has an LO frequency of 24.8 GHz and a gain of -10 to 0 dB. It has a noise figure of 18 dB and a phase noise of -80 dBc (at 100 kHz). |
| |
Download Datasheet
Product Details | |
|
|
|

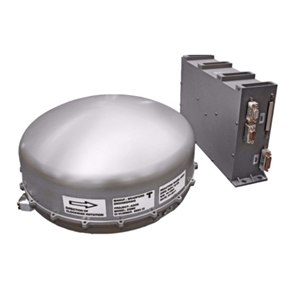

| Reaction Wheel Unit for Satellites | |
Reaction Wheel
from Bradford Space
|
| The W18 from Bradford Space is a Reaction Wheel that consists of a Wheel Drive Electronics Box and a Reaction Wheel Assembly. This reaction wheel unit has a momentum storage of 18 Nms and a maximum operational speed of 4000 RPM. It has a maximum gross torque of 0.265 Nm and a static imbalance of 0.5 g.cm. |
| |
Download Datasheet
Product Details | |
|
