| Featured Space and Satellite Products this Week |
|
|

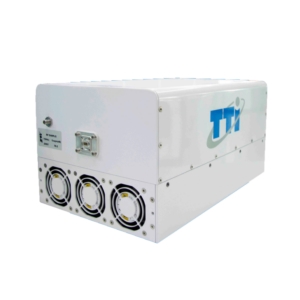

| Ka-Band GaN SATCOM Block Up Converter | |
SATCOM Block Up Converter
from TTI
|
| The Dual GaN Ka BUC from TTI is a SATCOM Block Up Converter with an operating RF frequency range of 29-31 GHz and an operating IF frequency range of 1-2 GHz. This BUC has a gain of up to 70 dB and an input VSWR of 1.5:1 and an output VSWR of 1.3:1. It has a phase noise of up to -93 dBc / Hz (100 KHz) and an output spurious of -60 dBc. The BUC has a saturated output power of 46 dBm. It is ideal for satellite communication applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| DC-64 GHz Wire Bondable Chip Termination | |
Space Qualified RF Termination
from Smiths Interconnect
|
| The CT0404ALN2WB1 from Smiths Interconnect is an RF Termination that has a high frequency range of DC- 64 GHz and a power rating of up to 1 W. This termination has a nominal impedance of 50 Ohms. It uses aluminum nitride for the substrate material. It is suitable for applications such as amplifier circuits, isolators, transmit/receive modules, up/down converters, instrumentation, satellite communications, radar, and broadcast. |
| |
Download Datasheet
Product Details | |
|
|
|

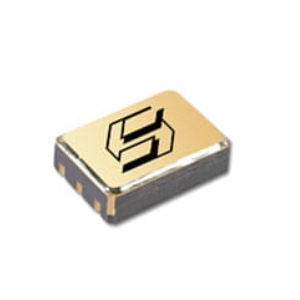

| Radiation-Tolerant Phototransistor Surface-Mount Optocoupler | |
Space Qualified Optocoupler
from Skyworks
|
| The OLS449 from Skyworks is a Space Qualified Optocoupler with a forward voltage range of 1.1-1.9 V. It has an average input current of 40 mA and a peak forward current of 1 A. This surface-mount optocoupler has a reverse voltage of 2 V and a power dissipation of 70 mW. It is designed for high reliability and space applications that require optical isolation in radiation environments such as gamma, neutron, and proton radiation. |
| |
Download Datasheet
Product Details | |
|
|
|
| 1.8m Ku-Band Fly-Away Commercial Antenna | |
SATCOM Antenna
from Norsat
|
| The WFA180KU-UK from Norsat is a SATCOM Antenna with a Tx frequency range of 13.75-14.5 GHz and an Rx frequency range of 10.70-12.75 GHz. This flyaway antenna has a Tx gain of 45.98-46.45 dB and an Rx gain of 43.94-45.47 dB. It is linear polarized and has a cross polarization of greater than 35 dB. The antenna offers rugged and reliable satellite links for remote enterprise, energy, emergency, and media applications. |
| |
Download Datasheet
Product Details | |
|
|
|

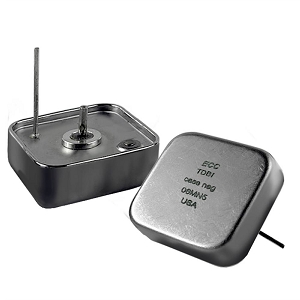

| 30 mF Space Grade Hybrid Capacitor | |
Space Qualified Capacitor
from Quantic Evans
|
| The TDB1010303 from Quantic Evans is a Space Qualified Capacitor with a capacitance rating of 30000 uF. This capacitor has a direct current leakage of 0.75 mA to 75 µA and an equivalent series resistance of 55 mOhm. It has a voltage rating of 6-10 V. The capacitor is suitable for space applications such as RADAR/LIDAR, thrusters/electric propulsion, transmit/receive modules, power holdup/bridge power, and defense/electronic warfare. |
| |
Download Datasheet
Product Details | |
|
|
|

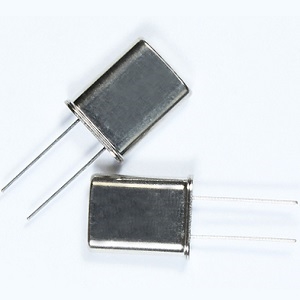

| 30-61 MHz Quartz Crystals for Space Applications | |
Space Qualified Crystal
from Wi2Wi
|
| The CR117/U-Series from Wi2Wi is a Space Qualified Crystal with a frequency range of 30-61 MHz. This MIL-PRF-3098 crystal has a frequency tolerance of up to +/- 0.0015 % (operating temperature range) and a maximum series resistance of 40 Ohms. It has a maximum drive level of 1 mW and a shunt capacitance of 7 pF. It measures 0.435 x 0.183 x 0.530 inches and is ideal for various applications in the military, avionics, and space. |
| |
Download Datasheet
Product Details | |
|
|
|
| 20 W Ku-Band SSPA for Communication Networks | |
SATCOM Amplifier System
from AnaCom, Inc
|
| The AnaSat SSPA Ku-band 20 W from AnaCom is a SATCOM Power Amplifier System that operates from 14-14.5 GHz. It has a small signal gain of 43 dB (Tx), P1dB of 43 dBm, and a power consumption of 294 VA. The amplifier system includes a solid-state power amplifier (PA), M&C, and a universal power supply all in a simple outdoor package, which provides reliability in a wide range of environments and functions. |
| |
Download Datasheet
Product Details | |
|
|
|
| 500 V Radiation Hardened N-Channel Power MOSFET | |
Space Qualified MOSFETs
from Infineon Technologies
|
| The IRHM7460SE from Infineon Technologies is a Space Qualified MOSFET with a drain-to-source breakdown voltage of 500 V and a gate-to-source voltage of +/- 20 V. The MOSFET has a radiation tolerance TID of up to 100 krad (Si). The MOSFET has a hermetically sealed ceramic package and is qualified according to MIL-PRF-19500 for space applications. It is ideal for applications such as DC-DC converters and motor control. |
| |
Download Datasheet
Product Details | |
|
|
|

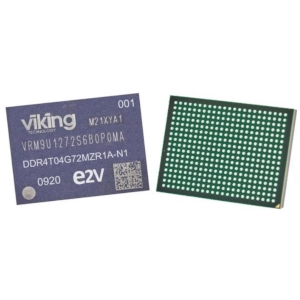

| 4/8GB Radiation Tolerant DDR4 Memory for Space Embedded Systems | |
Space Qualified Memory
from Teledyne e2v
|
| The DDR4 from Teledyne e2v is a Space Qualified Memory with 4GB and 8GB densities. This ultra high-density space-grade memory has a bus width of 72 bits and a transfer speed of 2100-2400 MT/s. It has a radiation tolerance TID of 100 krad (Si) and an SEL LET threshold of greater than 60.88 MeV.cm²/mg. It is ideal for devices such as processors, FPGAs SiP solutions, space-embedded systems, and edge computing processing devices. |
| |
Download Datasheet
Product Details | |
|
|
|
| DC to 1 GHz Magnetic Latching Space Grade DPDT Relay | |
Space Qualified Solid State Relay
from Teledyne Relays
|
| The HRS422 from Teledyne Relays is a Space-Qualified Solid-State Relay with an operating frequency range of DC to 3 GHz. This magnetic DPDT relay has a DC breakdown voltage of 100 V and an insulation resistance of 1000-10000 Mohms. It has an operating time of 2 ms and a minimum operating pulse of 4.5 ms. The relay has a coil transient suppression of 1 Vdc. It has a mass of 2.84 g and is suitable for demanding space flight applications. |
| |
Download Datasheet
Product Details | |
|
|
|

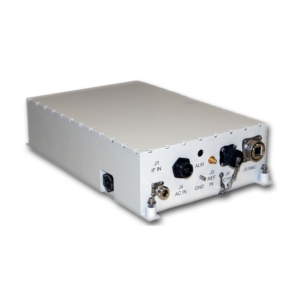

| Ku-Band Outdoor Block Down Converter | |
SATCOM Low Noise Block
from Jersey Microwave
|
| The KBDC-109115-3018-ODU from Jersey Microwave is a SATCOM Low Noise Block that down converts an input frequency of 10.95-11.55 GHz to an output frequency of 950-1550 MHz. It has an LO frequency of 10 GHz and a frequency stability of ±2 x 10-8 per day (constant temperature). This down converter has a gain of up to 30 dB. It is ideal for use in transmitting and receiving direct broadcast satellite applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 3U CubeSat Platform for Space Weather Monitoring | |
Satellite Bus & Platform
from C3S Electronics Development
|
| The 3U CubeSat from C3S Electronics Development is a Satellite Platform that has a design lifetime of 5 years in low-earth orbit. This platform has a mass of 3.3 Kg and measures 100 x 100 x 340.5 mm. It has a peak power consumption of 20 W and a maximum incoming solar power of 50 W. The platform has a battery capacity of 58 Wh / 65 Wh. It is suitable for applications such as earth observation, IoT, IOD, and space weather monitoring. |
| |
Download Datasheet
Product Details | |
|
|
|
| 1575 MHz GPS L1 Bulk Acoustic Wave Filter | |
Space Qualified RF Filter
from Qorvo
|
| The 880273 from Qorvo is an RF Filter with a 10 dB center frequency of 1575 MHz and a bandwidth of 30 MHz that allows reception of both M-code and Y-code signals. This bandpass filter has an insertion loss of 2.35-3.75 dB and an amplitude variation of 1.2-2.0 dB. It has an input/output VSWR of 1.8:1. The filter is suitable for applications such as communication systems, electronic warfare, L-band, and civil and defense GPS receivers. |
| |
Download Datasheet
Product Details | |
|
|
|

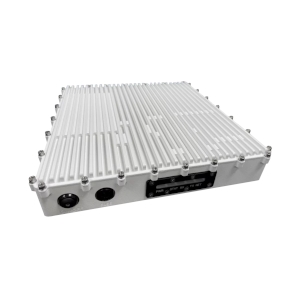

| Outdoor Satellite Modem for Maritime Applications | |
Satellite Modem
from VT iDirect
|
| The ASM1200 Series from VT iDirect is a Satellite Modem that has a Tx frequency range of 950-2400 MHz and an Rx frequency range of 950-2150 MHz. This outdoor modem has a TX output power level of -35 dBm to 0 dBm. It features DVB-S2/DVB-S2X with adaptive TDMA returns. The modem is designed to meet commercial and defense application requirements and is ideal for enterprise, cellular backhaul, land mobile, and maritime applications. |
| |
Download Datasheet
Product Details | |
|
|
|

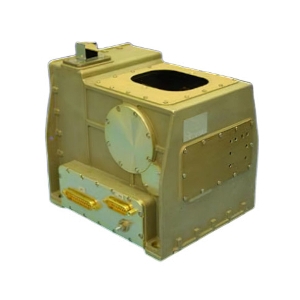

| Two-Axis Infrared Earth Horizon Sensor for GEO & MEO Spacecraft | |
Earth/Horizon Sensor
from Leonardo
|
| The IRES from Leonardo is a Two-Axis Infrared Earth Horizon Sensor that has an accuracy of 0.02 (Degree Bias Error) and 0.05 (Degree random error (3s)). It has an output data rate of 10 Hz. This sensor has been used in several successful missions such as the Artemis, EUTELSAT24, and OLYMPUS. It is ideal for use in three-axes stabilized spacecraft operating in GEO (Geostationary Earth Orbit) and MEO (Medium Earth Orbit). |
| |
Download Datasheet
Product Details | |
|
