| Featured Space and Satellite Products this Week |
|
|
| Ka-Band Waveguide Low Noise SATCOM Amplifier | |
SATCOM Amplifier System
from AmpliTech
|
| The APTW4-17702020-105K14-WR42GW from AmpliTech is a SATCOM Amplifier with a frequency range of 17.7-20.2 GHz. This low noise amplifier has a gain window of 40-43 dB and an input/output VSWR of 1.2:1. It has an output P1dB of 14 dBm and requires a DC voltage supply of 14-16 V. The amplifier is primarily used in military and commercial SATCOM applications such as satellite communication, tracking radar, and SATCOM earth station antennas. |
| |
Download Datasheet
Product Details | |
|
|
|
| Laser Communication Terminal for Inter-Satellite Links | |
Satellite Laser Communication Terminal
from Tesat-Spacecom GmbH & Co. KG
|
| The SmartLCT 70 from Tesat-Spacecom GmbH & Co. KG is a Satellite Laser Communication Terminal with a range of up to 45,000 km and a dual operational wavelength of 1064-1550 nm. This terminal has a unidirectional LEO to GEO data transmission rate of 1.8 Gbps and a power consumption of up to 150 W. It features space-proven 1064 nm technology. The terminal is ideal for earth observation LEO satellites connected to GEO satellites in a data relay scheme. |
| |
Download Datasheet
Product Details | |
|
|
|
| DC to 65 GHz SMP Coaxial Connector | |
Space Qualified RF Connector
from Rosenberger
|
| The 18-000-000_TD from Rosenberger is a Space Qualified RF Connector with a frequency range of DC to 65 GHz and has an impedance value of 50 ohms. This connector has a return loss of 14-26 dB and an insertion loss of up to 0.8 dB. It has an insulation resistance of greater than 5 GOhms. It is ideally suited for high-speed interconnect applications and for use in telecommunication, test & measurement, industrial, defense, or aerospace applications. |
| |
Download Datasheet
Product Details | |
|
|
|

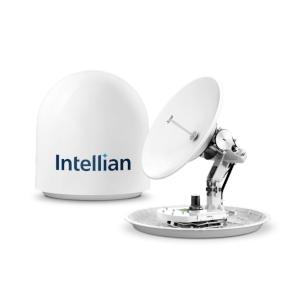

| Ka- to Ku-band Convertible Maritime VSAT Antenna System | |
VSAT Terminal
from Intellian
|
| The v85NX Ka from Intellian is a VSAT Terminal with a Tx frequency range of 29.0-30.0 GHz (Ka-band) and an Rx frequency range of 19.2 - 20.2 GHz (Ka-band). This VSAT terminal has a Tx gain of 45.8 dBi and an Rx gain of 42.8 dBi. It has an unlimited azimuth range and an elevation range of -20 to 115 degrees. The terminal has an antenna G/T of 18.5 dB/K and is designed to track NGSO satellites. It comes with BUC power options of 5W and 10W. |
| |
Download Datasheet
Product Details | |
|
|
|

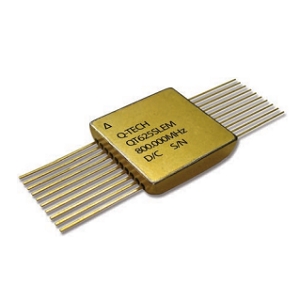

| 400 MHz-1.3 GHz Space Qualified Hybrid SAW Oscillators | |
Space Qualified Oscillator
from Q-Tech Corporation
|
| The QT625S from Q-Tech Corporation is a Space Qualified Oscillator with an output frequency range of 400 MHz - 1.3 GHz. This SAW oscillator requires a supply voltage of 3.13-12.6 V and a supply current of 50-110 mA. It has a frequency stability of -200 to 50 ppm and an output power of 7-12 dBm. The oscillator has sub-harmonics of -30 to -20 dBc. It is ideal for satellites, aerospace, low-jitter, and low-noise high-frequency reference applications. |
| |
Download Datasheet
Product Details | |
|
|
|

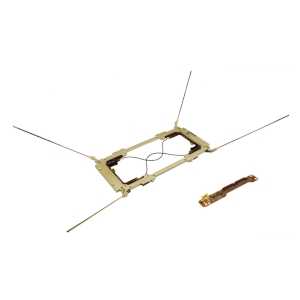

| 6U CubeSat Antenna System | |
Satellite Antenna System
from GomSpace
|
| The ANT-6F VHF from GomSpace is a Satellite Antenna System with a VHF band frequency range of 130-210 MHz. This omnidirectional and canted turnstile antenna system has a maximum gain of 0.8 dB and an impedance of 50 Ohms. It has an insertion loss of 1.0-2.2 dB and an isolation of 14 dB. The antenna system uses a dual-pole design to provide redundancy in RF communication and its radiation pattern is close to omnidirectional. |
| |
Download Datasheet
Product Details | |
|
|
|
| 28 V EMI Filtered DC-DC Converter | |
DC to DC Converter
from Crane Aerospace & Electronics
|
| The FMTR2805D from Crane Aerospace & Electronics is a DC to DC Converter with an input voltage range of 17-40 VDC and an output voltage of 5 V. This converter offers up to 30 W of total output power from single or dual output configurations and has an efficiency of up to 82%. The converter is packaged in a hermetically sealed metal case, making it ideal for use in military, aerospace, and other high-reliability applications. |
| |
Download Datasheet
Product Details | |
|
|
|

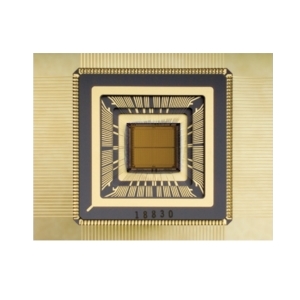

| 150 Krad Radiation-Hardened FPGA | |
FPGA
from BAE Systems
|
| The RH1020B from BAE Systems is an FPGA with a radiation tolerance of 150 Krad. It has a capacity of 3000 system gates, 2000 gate-array equivalent gates, 6000 PLD-equivalent gates, 50 TTL-equivalent packages, and 20 20-pin PAL-equivalent packages. This FPGA fabricated using a 0.8 µ epitaxial bulk complementary metal-oxide semiconductor process, is QML-certified and is ideal for military and defense applications. |
| |
Download Datasheet
Product Details | |
|
|
|

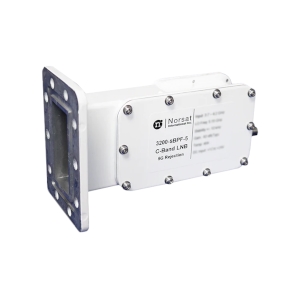

| C-Band 5G Interference Low Noise Block | |
SATCOM Low Noise Block
from Norsat
|
| The 3200F-sBPF-5 from Norsat is a C-band SATCOM Low Noise Block that operates from 3.40-4.20 GHz. It has a LO frequency of 5.15 GHz and an IF frequency of 950-1750 MHz. This LNB has an LO frequency stability of up to 25 KHz and a maximum interference rejection signal of -25 dBm with no degradation. It is used to provide signal reception for satellite communications while rejecting terrestrial interference in C-Band. |
| |
Download Datasheet
Product Details | |
|
|
|

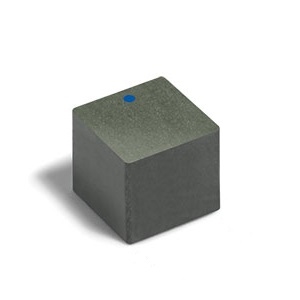

| 0.52-15 µH Outgassing Compliant Power Inductors | |
Space Qualified Inductor
from Coilcraft
|
| The AE465PYA from Coilcraft are Space-Qualified Inductors with an inductance range of 0.52-15 µH and an inductance tolerance of +/-20 %. These inductors have a DC resistance of 4.83-120 Ohms and a saturation current of 2.8-13.1 A. They have a self-resonant frequency range of 16-130 MHz. The inductors feature tin-lead (Sn-Pb) termination for the best possible board adhesion and have passed NASA low outgassing specifications. |
| |
Download Datasheet
Product Details | |
|
|
|

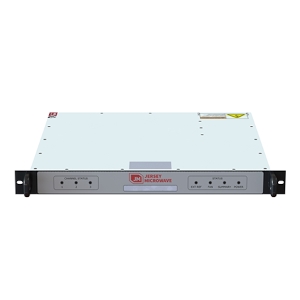

| 29-30 MHz Test Loop Translator for Testing Satellite Communications | |
Test Loop Translator
from Jersey Microwave
|
| The KATLT-290300-192202-0005 from Jersey Microwave is a Test Loop Translator with an input frequency range of 29-30 MHz and an output frequency range of 19.20-20.20 GHz. This test loop translator has an LO frequency of 9.80 GHz and a minimum return loss of 18 dB. The test loop translator has a mass of 15 lbs and is designed for testing the satellite communication between the up and downlink in the same band or uplink to L-Band. |
| |
Download Datasheet
Product Details | |
|
|
|
| 3-Axis Inertial Measurement Unit for Satellites | |
Inertial Measurement Unit
from Safran Group
|
| The STIM318 from Safran Group is an Inertial Measurement Unit that consists of 3 high-accuracy MEMS-based gyros, 3 high-stability accelerometers, and 3 inclinometers in a miniature package. This IMU has a range of 400 degrees/sec and gyro bias instability of 0.3 degrees/h. The STIM318 is ideal for satellites, launch vehicles, missile systems, remote weapon systems, DIRCM, and target acquisition systems. |
| |
Download Datasheet
Product Details | |
|
|
|
| Radiation-Hardened 2 x 40 A - 150 V Schottky Rectifier | |
Space Qualified Diode
from STMicroelectronics
|
| The STPS80A150CHR from STMicroelectronics is a Space Qualified Diode with a repetitive peak reverse voltage of 150 V and a forward current of 40-80 A. This Schottky rectifier diode has a forward surge current of 190 A and a low forward voltage drop of 0.88 V. It has a reverse leakage current of up to 14 µA and a junction capacitance of 310 pF. It has a maximum reverse voltage rise rate of 10 kV/µs. The diode is ideal for aerospace applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| Satellite Link Emulator for Geostationary Satellites | |
Satellite Link Emulator
from Polaris
|
| The PSLE-140-36D from Polaris is a Satellite Link Emulator that is designed for geostationary satellites. This emulator has a center frequency range of 140 MHz and an operating bandwidth of up to 36 MHz. It has an attenuation range of 0 to -40 dB. It is ideal for applications such as satellite modem testing, VSAT testing, satellite payload testing, UAV tests, earth terminal tests, satellite system integration test beds, and mobile transceiver tests. |
| |
Download Datasheet
Product Details | |
|
|
|
| 40 Wh CubeSat Battery for LEO Missions | |
Satellite Battery
from AAC Clyde Space
|
| The OPTIMUS-40 from AAC Clyde Space is a Satellite Battery with a capacity of 40 Wh. This battery has a charge/discharge current of 2.6 A and a charge/discharge rate of 1.53 (fraction of capacity) discharge voltage limit. It has a minimum discharge voltage limit of 6.2 V. It is compatible with International Space Station deployment safety requirements and is optimized for low-earth orbit missions with a maximum altitude of 850 km. |
| |
Download Datasheet
Product Details | |
|
