| Featured Space and Satellite Products this Week |
|
|
| Ka-Band Waveguide Low Noise SATCOM Amplifier | |
SATCOM Amplifier System
from AmpliTech
|
| The APTW4-17702020-105K14-WR42GW from AmpliTech is a SATCOM Amplifier with a frequency range of 17.7-20.2 GHz. This low noise amplifier has a gain window of 40-43 dB and an input/output VSWR of 1.2:1. It has an output P1dB of 14 dBm and requires a DC voltage supply of 14-16 V. The amplifier is primarily used in military and commercial SATCOM applications such as satellite communication, tracking radar, and SATCOM earth station antennas. |
| |
Download Datasheet
Product Details | |
|
|
|

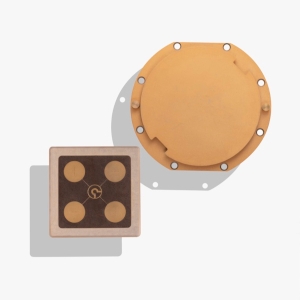

| S-Band Patch Antenna for CubeSat Missions | |
Satellite Antenna
from AAC Clyde Space
|
| The PULSAR-SANTC from AAC Clyde Space is a Satellite Antenna with a design life of more than 2 years in low-earth orbit. This antenna has a frequency range of 2.2-2.3 GHz and a gain of 7 dBi. It is left and right circularly polarised and has a wide beamwidth of 60 degrees ensuring satellite communication through a wide range of elevation angles. The antenna is designed to be mounted on the nadir-facing side of a 3U CubeSat. |
| |
Download Datasheet
Product Details | |
|
|
|

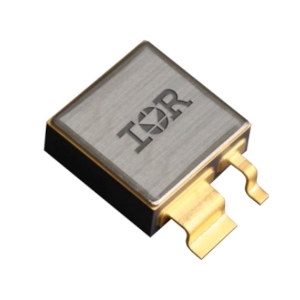

| 60 V Radiation Hardened N-channel Power MOSFET | |
Space Qualified MOSFETs
from Infineon Technologies
|
| The IRHNS57064 from Infineon Technologies is a Space Qualified MOSFET with a drain-to-source breakdown voltage of 60 V and a continuous drain current of 75 A. This MOSFET has a gate threshold voltage of 2-4 V and a maximum power power dissipation of 250 W. It has a rise time of 125 ns and a turn-off delay time of 69 ns. The MOSFET has a radiation tolerance TID of up to 100 kRads(Si). Its high performance makes it ideal for space applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 50 W Ku-Band SATCOM Transceiver | |
SATCOM Transceiver
from AnaCom, Inc
|
| The Anasat Ku-band 50W from AnaCom is a SATCOM Transceiver with a Tx output frequency range of 13.75-14.5 GHz and an Rx input frequency range of 10.95-12.75 GHz. This transceiver has a Tx gain of 78 dB and an Rx gain of 75-100 dB. It has a 1-dB compression point of 47 dBm and a noise figure of 1-2 dB. The transceiver features built-in test facilities for improved maintainability and frequency agile radio equipment for independent Tx and Rx frequency selection. |
| |
Download Datasheet
Product Details | |
|
|
|

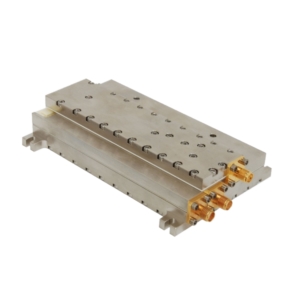

| 7.25-7.75 GHz to L-Band Block Downconverter | |
SATCOM Low Noise Block
from GeoSync Microwave
|
| The DBMF-7500-1200 from GeoSync Microwave is a SATCOM Low Noise Block with an input frequency range of 7.25-7.75 GHz and an output frequency range of 950-1450 MHz. This LNB has a LO frequency of 6300 MHz and a conversion gain of 35 dB. It has a noise figure of 12-14 dB and a minimum output 1 dB compression of 10 dBm. It has a mass of 312 g and provides down conversion from the satellite transponder frequency band to L-band. |
| |
Download Datasheet
Product Details | |
|
|
|

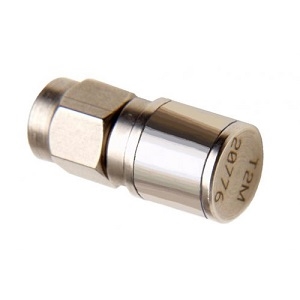

| DC to 40 GHz Space Qualified Terminations | |
Space Qualified RF Termination
from KRYTAR
|
| The T3M-SQ from KRYTAR is a Space Qualified RF Termination with a frequency range of DC-40 GHz and an impedance of 50 Ohm. This termination has a maximum power of 0.5 W and a VSWR of 1.06-1.20. It features a passivated stainless steel body with a gold-plated heat-treated BeCu center contact. It comes with a 2.92 mm male connector. The termination has a rugged mechanical design and is ideal for space and thermal vacuum applications. |
| |
Download Datasheet
Product Details | |
|
|
|

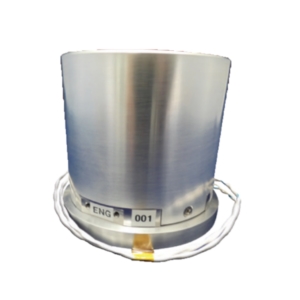

| Non-Pyro Hold Down and Release Mechanism for Satellites | |
Attach and Release Mechanism
from Ensign-Bickford Aerospace & Defense Company (EBAD)
|
| The 9108 from Ensign-Bickford Aerospace & Defense Company (EBAD) is an Attach and Release Mechanism with a proof load rating of 384 kN and a release load rating of 320 kN. This mechanism has a fuse wire resistance of 0.75-2 Ohms and requires an actuation current of 4 A. The mechanism is ideal for applications such as antennas, reflectors, solar arrays, deployable radiators, booms, masts, and scientific instruments. |
| |
Download Datasheet
Product Details | |
|
|
|

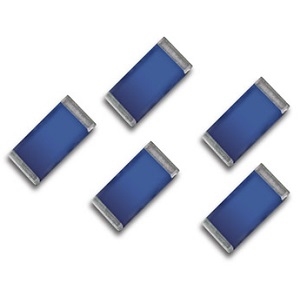

| 120-125 kOhms Space Qualified Chip Resistor | |
Space Qualified Resistor
from TT Electronics
|
| The RM0705 from TT Electronics is a Space Qualified Resistor with a resistance range of 120-125 kOhms and a resistance tolerance of +/- 0.1-10%. This resistor has a temperature coefficient of resistance of 100 ppm/degrees C and is qualified to MIL-PRF-55342 Space Level T. It has a rated voltage of 50 V and a rated power of 150 mW. The chip resistor is designed using TaN film technology. It is ideal for all high-reliability military and space applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| Ku-Band Test Loop Translator for Satellite Link Simulation | |
Test Loop Translator
from ETL Systems
|
| The ALT-2050-Ku from ETL Systems is a Test Loop Translator with an input frequency range of 12750-13250 MHz and an output frequency range of 10700-11200 MHz. This test loop translator has an LO frequency of 2050 MHz and an impedance of 50 Ohms. It has an input/output VSWR of 1.8:1. The test loop translator is designed to replace the satellite link for test and alignment of earth station systems operating in the Ku frequency band. |
| |
Download Datasheet
Product Details | |
|
|
|
| Electric Propulsion Engine for Deep Space Missions | |
Spacecraft Thruster
from Aurora Propulsion Technologies
|
| The MEPE from Aurora Propulsion Technologies is a Spacecraft Thruster with a thrust range of 1-3 mN. This thruster consists of four ARM thrusters and an Aliena MUSIC engine for orbital changes. It has a specific impulse range of 40-1000 sec and a total impulse of 10 kN. It has a propellant capacity of 1 Kg. The thruster is suitable for 12 CubeSats to 250 Kg satellites and is ideal for attitude and orbit control for satellite constellations and deep space missions. |
| |
Download Datasheet
Product Details | |
|
|
|

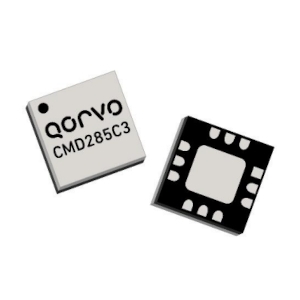

| DC-20 GHz Voltage-Variable Attenuator for Communications Systems | |
Space Qualified Variable Attenuator
from Qorvo
|
| The CMD285C3 from Qorvo is a Space Qualified Variable Attenuator with a frequency range of DC-20 GHz. This attenuator has a low insertion loss of 3.2 dB and a return loss of 11 dB. It uses two analog control voltages varied between -5 V and 0 V to control RF signal levels over an attenuation range of 33 dB. It is ideally suited for military, space, radar, electronic warfare, phased arrays, test and measurement, and communications systems. |
| |
Download Datasheet
Product Details | |
|
|
|

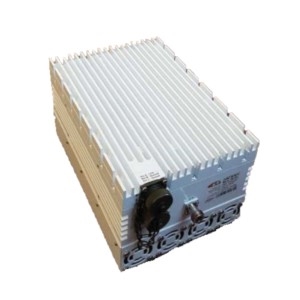

| 5.85-6.725 GHz C-Band Block Up Converter | |
SATCOM Block Up Converter
from Actox
|
| The ABD180DCF from Actox is a SATCOM Block Up Converter with an RF frequency range of 5.850-6.725 GHz and an IF frequency range of 950-1825 MHz. This BUC has an LO frequency of 4.90 GHz and an output saturated power of 180 W. It has a gain of 77 dB and a maximum spurious of -55 dBc. The BUC has a phase noise of up to -115 dBc/Hz max (1 MHz) and a noise figure of 15 dB. It is designed for mobile applications. |
| |
Download Datasheet
Product Details | |
|
|
|

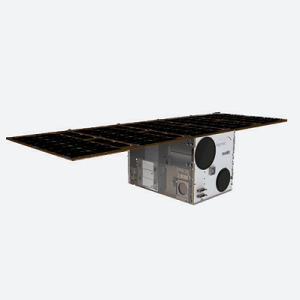

| 12U CubeSat Platform for Deep Space Missions | |
Satellite Bus & Platform
from Argotec
|
| The Hawk Platform 12U from Argotec is a Satellite Platform with a payload capacity of 12 kg and a payload volume of up to 8 U. This CubeSat platform has a peak payload power of up to 40 W and a peak solar array power of 40W, 80W, or 120W. It has a telemetry radio transmitter data rate of 1 kbps to 100 Mbps (LEO). The platform can reach celestial bodies that are very far from earth and is suitable for missions in earth orbit. |
| |
Download Datasheet
Product Details | |
|
|
|

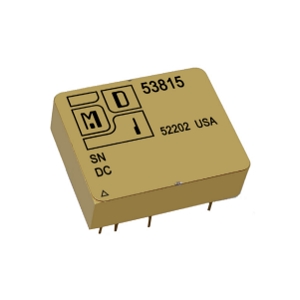

| Radiation Hardened Hybrid Solid State Relay | |
Space Qualified Solid State Relay
from Modular Devices
|
| The 53815 from Modular Devices is a Space Qualified Solid-State Relay with a bias voltage of 4.7-5.3 V and a bias current of 30-50 mA. This relay has a command current of up to 2 mA and a maximum operate pin current of 5 mA. It has a contact resistance of 0.2-0.25 Ohms and a power consumption of up to 2 W. This space-qualified relay has a maximum contact voltage rating of 300 V and a leakage current of 60-100 µA. |
| |
Download Datasheet
Product Details | |
|
|
|
| 1.0 Meter Motorized Carbon Fiber Flyaway Antenna | |
SATCOM Antenna
from Sat-Lite Technologies
|
| The 1031 Agilis from Sat-Lite Technologies is a SATCOM Antenna with a Tx frequency range of 7.9-8.4 GHz (X-band), 13.75-14.5 GHz (Ku-band), and 30.0-31.0 GHz (Ka-band). It has an Rx frequency range of 7.25-7.75 GHz (X-band), 10.70-12.75 GHz (Ku-band), and 20.2-21.2 GHz (Ka-band). This antenna has a midband Tx gain of up to 47.7 dBi (Ka-band). It is designed to meet international performance specifications for commercial or military applications. |
| |
Download Datasheet
Product Details | |
|
|
|

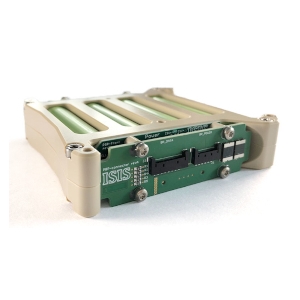

| Compact Electrical Power System for CubeSat Missions | |
Satellite Electrical Power System
from ISISPACE
|
| The ICEPS2 from ISISPACE is a Satellite Electrical Power System that is available in three standard configurations with an energy storage capacity of 22.5-45.0 Wh. This off-the-shelf power system provides 3.3 V and 5V regulated buses, as well as an unregulated bus. It is equipped with hardware-based Maximum Power Point Tracking (MPPT) and an integrated heater. It is tailored for powering 1-3U sized platforms and LEO missions. |
| |
Download Datasheet
Product Details | |
|
