New Satellite & Space Products this Week

March 21, 2024 Newsletter - SatNow

New products this week. View it in your browser


Weekly Edition
Date: March 21, 2024

Sponsored by Mini-Circuits


Featured Space and Satellite Products this Week
SATCOM Amplifier System
Ka-Band Waveguide Low Noise SATCOM Amplifier

SATCOM Amplifier System  from AmpliTech

The APTW4-17702020-105K14-WR42GW from AmpliTech is a SATCOM Amplifier with a frequency range of 17.7-20.2 GHz. This low noise amplifier has a gain window of 40-43 dB and an input/output VSWR of 1.2:1. It has an output P1dB of 14 dBm and requires a DC voltage supply of 14-16 V. The amplifier is primarily used in military and commercial SATCOM applications such as satellite communication, tracking radar, and SATCOM earth station antennas.
Download Datasheet Product Details

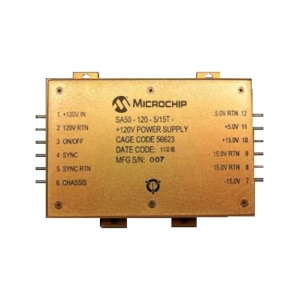

DC to DC Converter
120 Vin, 15 V Output Radiation Hardened Isolated Power Converter

DC to DC Converter  from Microchip Technology

The SA50-120-5-15T-A-H from Microchip Technology is a Radiation-Hardened DC-to-DC Converter that converts a DC input voltage of 120 V to a DC output voltage of 15 V. This radiation-hardened converter delivers an output power of up to 50 W and has an efficiency of up to 85% at full load conditions. It has a ripple voltage range of 25-75 mVpp and an output current of 4 A. The converter is ideal for space and military applications.
Download Datasheet Product Details
SATCOM Low Noise Block
4.5-4.8 GHz C-Band PLL Block Down Converter

SATCOM Low Noise Block  from Swedish Microwave AB

The C-BDC 5.95 U from Swedish Microwave AB is a SATCOM Low Noise Block with an input frequency range of 4.5-4.8 GHz and an output frequency range of 1150-1450 MHz. This LNB has an LO frequency of 5.95 GHz and a gain range of 0-50 dB in 5 dB steps. It has a noise figure of 3.0 dB / 289 K and a phase noise of up to -112 dBc/Hz (at >1MHz). The LNB features internal interference mitigating filters and has a wide operating temperature range.
Download Datasheet Product Details

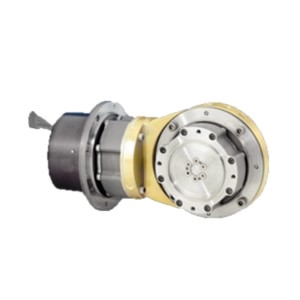

Antenna Pointing Mechanism
Space-Qualified Biaxial Gimbal for Satellites

Antenna Pointing Mechanism  from Moog

The Type 11 Biaxial Gimbal from Moog is an Antenna Pointing Mechanism that consists of two Type 1 actuators in an orthogonal combination. This two-axis gimbal has an output torque and a holding torque of 8 Nm. It can be used for two-axis antenna or solar array drives. Different application-specific options can be implemented which include slip rings, RF rotary joints, cable management Type 11 Biaxial Gimbal systems, hard stops, and launch locks.
Download Datasheet Product Details

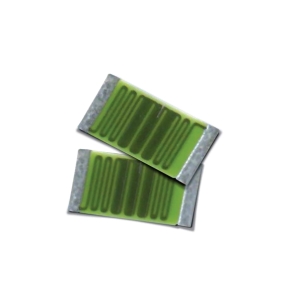

Space Qualified Resistor
10 kOhms to 50 GOhms Thick-Film Surface Mount Resistor

Space Qualified Resistor  from Ohmcraft

The MCH (1206) from Ohmcraft is a Space Qualified Resistor with a resistance range of 10 KOhm to 50 GOhms. This thick-film high-voltage chip resistor has an extended TCR range of up to 200 ppm/ degrees C. It has a power rating of 330 mW and a voltage rating of 1500 V. The resistor is constructed using a thick film resistive element and a 96% alumina substrate. It is ideal for military, electronic warfare, and space applications.
Download Datasheet Product Details
Test Loop Translator
Rack Mounted Test Loop Translator for Satellite Communication

Test Loop Translator  from GeoSync Microwave

The TRR-6.1-3.9 from GeoSync Microwave is a Test Loop Translator with an input frequency range of 5.85-6.425 GHz and an output frequency range of 3.625-4.2 GHz. This test loop translator has an LO frequency of 2.225 GHz. It has an input/output return loss of 18 dB and a maximum conversion loss of 25 dB. The TRR-6.1-3.9 is ideal for applications requiring frequency translation with a minimum amplitude and group delay distortion.
Download Datasheet Product Details
Sponsored by Mini-Circuits
30+ Years of In-House Launch Prep
30+ Years of In-House Launch Prep
Mini-Circuits has a long history of space-level screening and testing servicing some of the earliest government space missions all the way through to the modern independent enterprises. Our catalog and custom components can be upscreened in-house for Mil Spec or Equivalent Qualification with EEE-INST-002 Compliant Workflows in as little as 90 days.

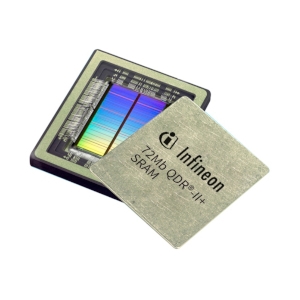

Space Qualified Memory
72 Mb Radiation-Hardened Synchronous Pipelined SRAM

Space Qualified Memory  from Infineon Technologies

The CYRS1542AV18 from Infineon Technologies is a Space Qualified Memory with a 72 Mb density, 4M x 18 with two-word burst mode. This SRAM has a maximum operating frequency of 250 MHz and a maximum operating current of 1700 mA. It is equipped with 1.8-V QDR II+ architecture with Cypress’s state-of-the-art RadStop technology. It is suitable for applications such as radar (SAR, LiDAR) and on-orbit image processing.
Download Datasheet Product Details

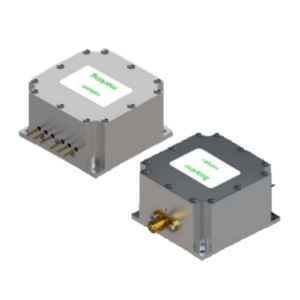

Space Qualified Oscillator
10 MHz Oven-Controlled Crystal Oscillator for NewSpace Market

Space Qualified Oscillator  from Rakon Limited

The RK409NS from Rakon Limited is a Space Qualified Oscillator with a nominal frequency of 10 MHz. This oscillator has a frequency adjustment range of +/- 300-500 ppb and frequency stability of +/- 0.5 ppm over 12 years. It has a harmonic of -40 dBc and a spurious of -80 to -110 dBc. The oscillator requires a supply voltage of 11.4-12.6 V. It is designed for the NewSpace market and is ideal for use in mini-satellites and constellations.
Download Datasheet Product Details

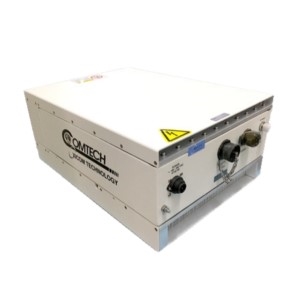

SATCOM Amplifier System
200 W X-band GaN Block Upconverter

SATCOM Amplifier System  from Comtech Xicom Technology

The Puma 200X from Comtech Xicom Technology is a SATCOM Amplifier System with an RF output frequency range of 7.9-8.4 GHz and an IF input frequency range of 950-1450 MHz. This amplifier system has a small signal gain of 70 dB and a gain attenuation range of 25 dB. The amplifier system provides linear power of up to 100 W for satcom uplinks and its high-efficiency GaN solid-state design enables big power with high efficiency.
Download Datasheet Product Details
Satellite Battery
4.5 Ah Spacecraft Battery for LEO Applications

Satellite Battery  from Saft

The 4S1P VES16 from Saft is a Satellite Battery with a capacity of 4.5 Ah and a voltage range of 13.2-16.4 V. This battery uses flight-proven VES16 cells and has a nominal energy range of 64 Wh. It requires a charging voltage of 16.1 V and has a life duration of more than 5 years. The battery features a stainless steel casting. It is designed to meet low-power requirements, suitable for microsats and nanosats. The battery is ideal for low-earth orbit applications.
Download Datasheet Product Details

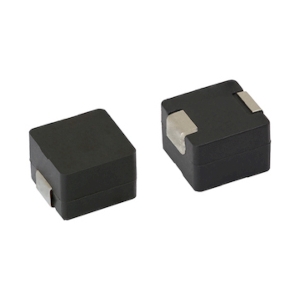

Space Qualified Inductor
0.22-15 µH Space Grade Shielded Inductor

Space Qualified Inductor  from Vishay

The SGIHLP-24DC-8 from Vishay is a Space Qualified Inductor with an inductance of 0.22-15 µH and an inductance tolerance of +/ 20 %. It has a DC resistance of 4.12-208 mOhms and a self-resonant frequency of 190 MHz. The inductor is ideal for applications such as low profile, high current power supplies, high current POL converters, DC/DC converters in distributed power systems, power converters for solar panels, and noise suppression.
Download Datasheet Product Details
SATCOM Block Up Converter
395-605 MHz Block Up Converter for Point-to-Point Radio Stations

SATCOM Block Up Converter  from RF-Lambda

The RFBUC4M6MAB from RF-Lambda is a SATCOM Block Up Converter with an IF frequency range of 25-100 MHz and an RF frequency range of 395-605 MHz. This BUC has a P1dB of 33 dBm and an input/output VSWR of 1.5:1. It has a minimum in-band spurious of 35 dBc and a LO phase noise of -110 dBc/Hz. The LNB requires an input power supply of 110V/220V AC and a maximum input power of -10 dBm. It is ideal for point to point radio stations.
Download Datasheet Product Details
Sponsored by Mini-Circuits


Reaction Wheel
Spacecraft Reaction Wheel for LEO Missions

Reaction Wheel  from Surrey Satellite Technology

The SSW-110-NLX-1500 from Surrey Satellite Technology is a Reaction Wheel with a design life of 7.5 years in low-earth orbit. This reaction wheel has a torque of 11 mNm and angular momentum of 1.5 Nms. It has a maximum speed of 5000 rpm. The reaction wheel supports CAN BUS or RS-422 full-duplex data interface for communications. It has a radiation tolerance TID of less than 5 krad at wheel electronics and is suitable for LEO missions.
Download Datasheet Product Details

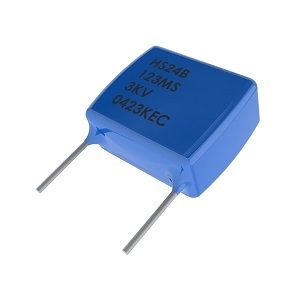

Space Qualified Capacitor
68 pF Space Grade Multilayer Ceramic Capacitor

Space Qualified Capacitor  from KEMET

The 05HS21N680KCF from KEMET is a Space Qualified Capacitor with a capacitance of 68 pF. This ceramic capacitor has a capacitance tolerance of 10% and a voltage rating of 500 VDC. It is screened to MIL-PRF-49467. The capacitor has high thermal stability and is suitable for applications such as aerospace engine compartments, switch mode power supplies, DC/DC converters, measuring equipment, inverters, and high voltage coupling.
Download Datasheet Product Details

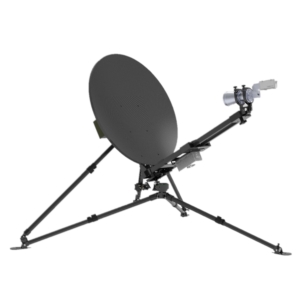

VSAT Terminal
75 cm Manpack SATCOM Terminal

VSAT Terminal  from ReQuTech AB

The PICO75 from ReQuTech AB is a VSAT Terminal with a transmitter frequency range of 13.75-14.5 GHz (Ku-band), 27.5-31 GHz (Ka-band), and 7.9-8.4 GHz (X-band) and a receiver frequency range of 10.7-12.75 GHz (Ku-band), 17.7-21.2 GHz (Ka-band), and 7.25-7.75 GHz (X-band). This VSAT terminal has a Tx gain of 34.3-42.5 dBi and an Rx gain of 42.2-33.6 dBi. It has a return loss of 20 dB and an isolation of 70 dB.
Download Datasheet Product Details

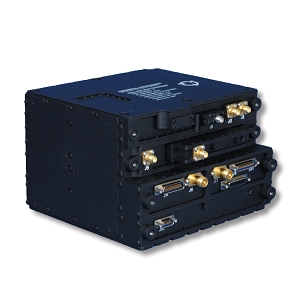

Satellite Transponder
Spacecraft Terminal for X-Band and Ka-Band Deep Space Transmission

Satellite Transponder  from General Dynamics Mission Systems

The SDST from General Dynamics Mission Systems is a Satellite Transponder with an X-Band UL frequency range of 7.145-7.235 GHz and a DL frequency range of 8.400-8.500 GHz. This transponder has a Ka-Band DL frequency range of 31.800-32.300 GHz and a noise figure of 2.1 dB. It has a sensitivity of -158 dBm. The transponder is ideal for X-Band and Ka-Band telecommunications with the NASA Deep Space Network and deep space missions.
Download Datasheet Product Details
