| Featured Space and Satellite Products this Week |
|
|

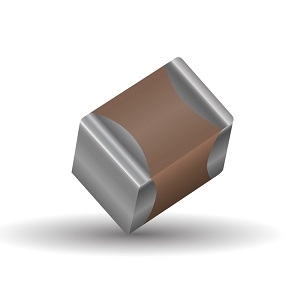

| 2.2 nF - 22 uF Ceramic Capacitors for Non-Flight Prototype | |
Space Qualified Capacitor
from Kyocera AVX
|
| The X7R BME Multi-Layer Ceramic Capacitors from Kyocera AVX are Space Qualified capacitors with a capacitance range of 2.2-2200 uF. These capacitors require a supply voltage of 16-100 V and have a tolerance of 5-10 %. They feature Sn/Pb and Flexiterm termination for protection against board flexure. The design of these capacitors covers ESCC 3009041, NASA S311-P838, and Mil 32535 ranges. They are suitable for non-flight prototype applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 50-90 MHz 1/3 Rack-Mount Amplifier System | |
SATCOM Amplifier System
from L3Harris Narda-MITEQ
|
| The TRA-005009 from Narda-MITEQ is a SATCOM Amplifier System that operates from 50-90 GHz. It has a gain of 30 dB and a minimum power output of 10 dBm. This CE-certified amplifier system has a noise figure range of 3-8 dB and an input/output return loss of 20 dB. It supports remote interfaces such as RJ-45 female for Ethernet, RS-422, and RS-485. The amplifier system is designed to compensate for long cable run loss in the classic SATCOM bands. |
| |
Download Datasheet
Product Details | |
|
|
|

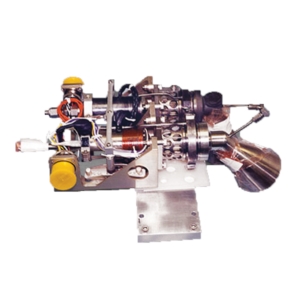

| 90 N Monopropellant Hydrazine Thruster for Space Exploration | |
Spacecraft Thruster
from Moog
|
| The MONARC-90LT from Moog is a Spacecraft Thruster with a steady state thrust of 90 N and a specific impulse of 232.1 secs. It has a feed pressure range of 5.5-27.6 bar and a nozzle expansion ratio of 40:1. This hydrazine thruster has a minimum impulse bit of 1.8 N-sec. It is suited for spacecraft and flight vehicle attitude control applications and is ideal for earth observation and communication, missile defense, and space exploration missions. |
| |
Download Datasheet
Product Details | |
|
|
|

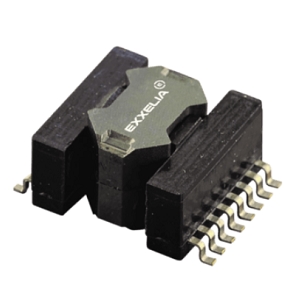

| 6.78 µH SMD Power Inductor for Space Applications | |
Space Qualified Inductor
from Exxelia Technologies
|
| The CCM 5 6K8 1W from Exxelia Technologies is a Space Qualified Inductor with an inductance of 6.78 µH and an inductance tolerance of +/- 5/10 %. It has a DC resistance of 10 mOhm and a maximum saturation current of 5.5 A. This power inductor has a frequency range of up to 1 MHz. It is designed to withstand severe environments such as space, avionics, and New Space applications and is ideal for energy storage, filtering, and smoothing applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| Thermal Vacuum Chamber for Testing Laboratories and Research Centers | |
Thermal Vacuum Chamber
from Angelantoni Test Technologies Srl
|
| The HVT1000 from Angelantoni Test Technologies Srl is a Thermal Vacuum Chamber with a useful capacity of 940 L. It has a primary vacuum limit of 5x10-2 mbar in 30 minutes and a high vacuum limit of 5x10-7 mbar in 3 hours from the ambient pressure. This chamber has a temperature range of -180 to 125 degrees C on the specimen and -150 to 125 degrees C on the thermal plate and shroud. It is ideal for testing satellites, subsystems, and components. |
| |
Download Datasheet
Product Details | |
|
|
|

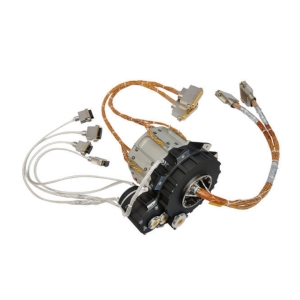

| Solar Array Drive Mechanism for LEO and GEO Applications | |
Solar Array Drive Mechanism
from Kongsberg
|
| The KARMA-4 TG from Kongsberg is a Solar Array Drive Mechanism with a redundant two-phase bipolar stepper motor. It has a rotational speed capability of 1 degree/sec and a full step resolution of 0.005 degrees. This mechanism is qualified for an axial load of up to 1800 N and a radial load of up to 2000 N. It is qualified for 125000 revolutions of output shaft. The mechanism has an operational life of 15 years and is aimed at both LEO and GEO applications. |
| |
Download Datasheet
Product Details | |
|
|
|

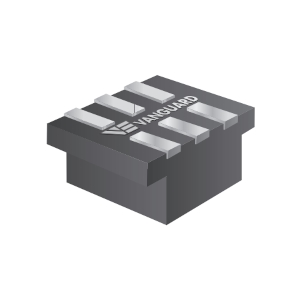

| 70 µH Space Grade Pulse Transformer | |
Space Qualified Power Transformer
from Vanguard Electronics
|
| The SPT103 from Vanguard Electronics is a Space Qualified Power Transformer with an inductance of 70 µH. This transformer has a turns ratio of 1CT:1CT and requires a primary voltage of 2.5 V. It has a primary/secondary direct current resistance of 0.25 ohms and an insulation resistance of 10K Mohms. The transformer features tin-lead terminations and welded internal connections. It has a minimum dielectric withstanding voltage of 500 VAC. |
| |
Download Datasheet
Product Details | |
|
|
|
| 40 W Ku-Band SATCOM Block Up Converter | |
SATCOM Block Up Converter
from Microwave Town
|
| The MTA1315-40 from Microwave Town is a SATCOM Block Up Converter with an RF frequency range of 13.75-14.5 GHz. It has an IF frequency range of 0.95-3.0 GHz and an LO frequency range of 11.50-13.05 GHz. This BUC has a small signal gain of 70 dB and a saturated output power of 46 dBm. It has a phase noise of up to -95 dBc/Hz (100 kHz) and an output spurious of -60 dBc. The BUC supports RS-232, RS-485, and Ethernet interfaces. |
| |
Download Datasheet
Product Details | |
|
|
|

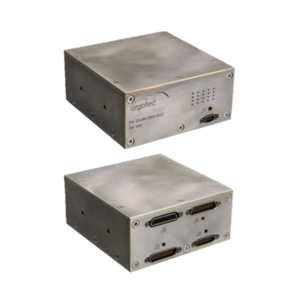

| On-Board Computer for Deep Space Missions | |
Satellite On-Board Computer (OBC)
from Argotec
|
| The FERMI from Argotec is a Satellite On-Board Computer (OBC) that features a dual-Core LEON3FT SPARC V8 processor with a fault-tolerant memory controller. It has a 20 Mbit EEPROM + 5 Mbit EEPROM and a 256 Mbyte SDRAM. This OBC has a 16 GB ECC-corrected mass memory and supports SpaceWire, RS422, LVDS, SPI, I2C, and GPIO interfaces. The OBC is ideal for deep space and mission-critical applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 98 cm Satellite Antenna System for Military Communications | |
SATCOM Antenna
from C-COM
|
| The FLY-98H from C-COM is a SATCOM Antenna with a transmit frequency range of 29.50-30.0 GHz and a receive frequency range of 19.20-20.20 GHz. It has a transmit midband gain of 46.60 dBi and a receive midband gain of 43.50 dBi. The antenna has an elevation range of 0-90 degrees. It is ideally suited for industries such as oil & gas exploration, military communications, disaster management, SNG, emergency communications backup, and cellular backhaul. |
| |
Download Datasheet
Product Details | |
|
|
|

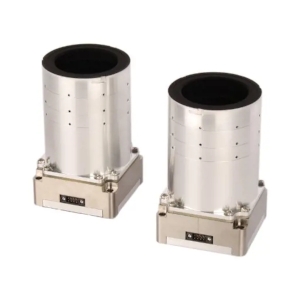

| Compact Star Tracker for NanoSats & MicroSats | |
Star Tracker
from TERMA
|
| The T3 Star Tracker from TERMA is a Star Tracker whose optical head is based on a Faintstar-2 CMOS active pixel sensor. It has an accuracy of 10 arcsec and a maximum update rate of 5 Hz. This star tracker has a slew rate of less than 1.5 degrees/sec and an acquisition time of 10 s. It has a circular field of view of 20 degrees and an APS resolution of 1024 x 1024 pixels. It has a lifetime of over 5 years and is ideally suited for nano- and microsatellite missions. |
| |
Download Datasheet
Product Details | |
|
|
|
| 750 KHz to 800 MHz Space Level Clock Oscillator | |
Space Qualified Oscillator
from Wi2Wi
|
| The FP6 Series from Wi2Wi is a Space Qualified Oscillator with a frequency range of 750 KHz to 850 MHz. This oscillator has an output duty cycle of 45-55 % and a period jitter of 2-5 psec. It has a phase jitter of 0.1-1.0 psec and a phase noise of up to -110 dBc/Hz. The oscillator requires a supply current of 15-100 mA and has an operating voltage of 2.97-3.63 V. It has a radiation tolerance TID of 100 Krad. The oscillator is designed for low-to-mid orbit applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 250 V Radiation Hardened N-Channel Power MOSFET | |
Space Qualified MOSFETs
from Infineon Technologies
|
| The IRHF57234SE from Infineon Technologies is a Space Qualified MOSFET with a drain-to-source breakdown voltage of 250 V and a continuous drain current of 3.3-5.2 A. This MOSFET has a gate threshold voltage of 2.5-4.5 V and a maximum power dissipation of 25 W. It has a rise time of 100 ns and a turn-off delay time of 40 ns. The MOSFET is ideal for applications such as isolated DC-DC converters, motor drives, electric propulsion, and thermal management. |
| |
Download Datasheet
Product Details | |
|
|
|
| C-Band Redundant LNB System | |
SATCOM Low Noise Block
from Communications & Power Industries
|
| The BRC-1100 from Communications & Power Industries is a SATCOM Low Noise Block with an input frequency range of 3.40-4.20 GHz and an output frequency range of 950-1750 MHz. This LNB has a LO frequency of 5.15 GHz and a gain of 61 dB. It has an input VSWR of 2.20:1 and an output VSWR of 1.50:1. The LNB has a phase noise of up to -95 dBc/Hz (100 kHz) and an output power of +5 dBm at 1dB compression. It has a power consumption of 100 W. |
| |
Download Datasheet
Product Details | |
|
|
|

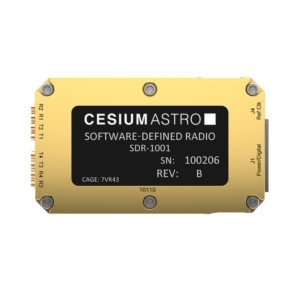

| 300 MHz to 6 GHz Software-Defined Radio for LEO Applications | |
Software Defined Radio
from CesiumAstro
|
| The SDR-1001 from CesiumAstro is a Software-Defined Radio that operates from 300 MHz to 6 GHz. It has four 100 MHz transmit channels, four 100 MHz receive channels, and two independent tunable LOs. The SDR is designed to operate in LEO and airborne environments and is suitable for demanding RF, digital signal processing, and communications applications supporting custom waveform development or DVB-S2/DVB-S2X and CCSDS modems. |
| |
Download Datasheet
Product Details | |
|
