| Featured Space and Satellite Products this Week |
|
|
| 6U CubeSat Platform for LEO and Lunar Missions | |
Satellite Bus & Platform
from Blue Canyon Technologies
|
| The XB6 from Blue Canyon Technologies is a Satellite Platform with an available payload volume of 4U. It has an energy storage capacity of 6.8-20.4 Ah and a solar array power range of 92-108 W. This 6U platform has a pointing accuracy of +/- 0.002 degrees (1-sigma), 3 axes and a pointing stability of 1 arc-sec over 1 sec. It has a LEO uplink data rate of 100 Kbps (CCSDS formatting) and a LEO downlink data rate of 2 Mbps (S-Band standard) and up to 10 Mbps (X-Band). |
| |
Download Datasheet
Product Details | |
|
|
|

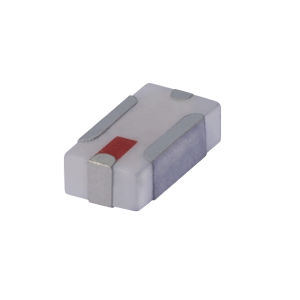

| 7.5-7.9 GHz Band Pass Filter for Transmitters and Receivers | |
Space Qualified RF Filter
from Mini Circuits
|
| The BFCN-7700 from Mini Circuits is a Space Qualified RF Filter with a passband frequency range of 7.5-7.9 GHz. It has a pass band insertion loss of 1.8-3.5 dB. This bandpass filter features LTCC construction that is suitable for tough environments including high humidity and high temperature extremes and wrap around termination that provides excellent solderability. It is ideal for applications such as harmonic rejection, transmitters, and receivers. |
| |
Download Datasheet
Product Details | |
|
|
|
| Coarse Earth Sun Sensor for Space Missions | |
Sun Sensor
from SpaceTech GmbH
|
| The CESS from SpaceTech GmbH is a Sun Sensor that is equipped with two thermo-optical sensor areas which react differently to solar and infrared heat sources. This passive sensor has a sun vector error rate of 4.4-13 degrees (LVHL) and 9.8-19.9 degrees (ROT). It uses 6x Heraeus M222 PT1000 thermistors and has a readout of 12-bit ADC or higher. It requires a measurement current of less than 5 mA (switched) and supports a 26 Pin HD D-Sub connector interface. |
| |
Download Datasheet
Product Details | |
|
|
|
| Ku-Band Rack Mount Test Loop Translator | |
Test Loop Translator
from Peak Communications
|
| The TLT1004 from Peak Communications is a Test Loop Translator with an input frequency range of 5.85-14.5 GHz and an output frequency range of 3.4-12.75 GHz. This test loop translator has an LO frequency of 10 MHz and an impedance of 50 Ohms. It has an input return loss of 18 dB and an output return loss of 15 dB. It designed for applications requiring frequency translation and alignment of earth station systems operating in the Ku frequency band. |
| |
Download Datasheet
Product Details | |
|
|
|

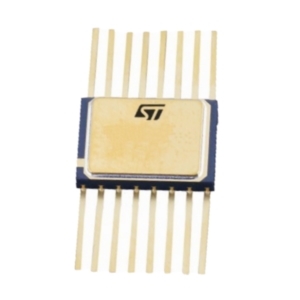

| 3 A Radiation Hardened Adjustable Positive Voltage Regulator | |
Space Qualified LDO Voltage Regulator
from STMicroelectronics
|
| The RHFL4913A from STMicroelectronics is a Space Qualified LDO Voltage Regulator with an operating input voltage range of 3-12 V and an output voltage range of 1.19-9.3 V. It has a maximum guaranteed output current of 3 A and a low dropout voltage of 350 mV (400 mA). It has a quiescent current of 1.5 mA. The regulator comes in a FLAT-16 and the SMD5C hermetic ceramic package with the QML-V die suitable for harsh environments applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| High Pressure In-line Flow Control Valve for Space Applications | |
Spacecraft Valve
from Nammo AS
|
| The SVS01 from Nammo AS is a Spacecraft Valve with a maximum operating pressure of 120 bar. It is compatible with xenon, GN2, GHe, CF4, butane, and propane operating media. This flow control valve has a proof pressure of 180 bar and a burst pressure of 300 bar. It has an internal leakage of less than 1 x 10-3 scc/s GHe at 120 bar and an external leakage of less than 1 x 10-6 scc/s GHe at 120 bar. It is TRL9 qualified and has flown on ESA’s Proba 2 mission. |
| |
Download Datasheet
Product Details | |
|
|
|
| L-band Yacht Antenna Redundancy Switch | |
SATCOM Redundancy Switch
from ETL Systems
|
| The 23192 from ETL Systems is SATCOM Redundancy Switch with frequency range of 850 MHz to 2.15 GHz (L-band). It contains two 2:1 switches (one for TX and one for RX) and both are simultaneously switched, by a dry (voltage free) contact signal from the antenna controllers (ACU). It has an insertion loss of 0.75 dB and an isolation of 60 dB. The switch is designed to switch TX and RX feeds between two antennas and is designed for use on yachts or ships. |
| |
Download Datasheet
Product Details | |
|
|
|

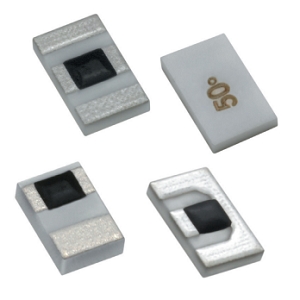

| DC to 27 GHz Surface Mount Resistor for Space and Defence Markets | |
Space Qualified RF Termination
from Smiths Interconnect
|
| The SpaceNXT HC Series from Smiths Interconnect is a Space Qualified RF Termination with a frequency range of DC-27 GHz. This termination has a resistance range of 10-500 ohms and a resistance tolerance of +/- 2 to 5%. It is specifically designed and tested to meet the space orbit environmental criteria and is suitable for applications such as amplifier circuits, transmit/receive modules, up/down converters, instrumentation, radar, and broadcast. |
| |
Download Datasheet
Product Details | |
|
|
|
| Space Qualified Rubidium Atomic Clock for Satellite Navigation System | |
Space Qualified Atomic Clock
from Quartzlock
|
| The E10-SPC-H from Quartzlock is a Space Qualified Atomic Clock that has an output frequency range of 10 MHz and a low frequency drift of 5.0E-14/Day. It has a phase noise of less than 90 dBc/Hz (1Hz) and a short term frequency stability of less than 1.0E-12/1s. The atomic clock is ideal for applications such as satellite navigation systems, intelligence reconnaissance satellites, military communication satellites, deep-space surveys, and space stations. |
| |
Download Datasheet
Product Details | |
|
|
|
| Ka-Band SATCOM Block Down Converter | |
SATCOM Low Noise Block
from Jersey Microwave
|
| The KABDC-183188-3015-ODU from Jersey Microwave is a SATCOM Low Noise Block with an input frequency range of 18.30-18.80 GHz and an output frequency range of 1000-1500 MHz. It has an LO frequency of 17.3 GHz and a gain of 30 dB. This downconverter has a minimum output power Po of 15 dBm and a maximum intermodulation distortion of -50 dBc. The downconverter has a mass of 5.44 Kg and is designed for harsh outdoor environment applications. |
| |
Download Datasheet
Product Details | |
|
|
|

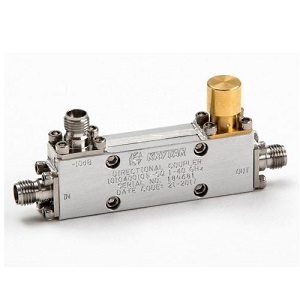

| 1-40 GHz Space Qualified Directional Coupler | |
Space Qualified Coupler
from KRYTAR
|
| The 101040010K-SQ from KRYTAR is a Space Qualified Coupler with an operating frequency range of 1-40 GHz. This coupler has a frequency sensitivity of +/- 1.2 dB and a nominal coupling of 10 dB. It has a directivity of 10-14 dB and a maximum VSWR of 1.7. It is suitable for applications including space, electronic warfare (EW), commercial wireless, SATCOM, radar, signal monitoring and measurement, antenna beam forming, and EMC testing environments. |
| |
Download Datasheet
Product Details | |
|
|
|
| Rugged Recorder/Server for Space Applications | |
Solid State Recorder
from Ampex Data Systems
|
| The TuffServ 540 from Ampex Data Systems is a Solid State Recorder that has detachable memory module offering a total capacity of up to 16TB using a pair of NVMe SSDs. It has an internal data rate of 900 MBytes/sec and a payload data rate of up to 800 MByte/sec. It requires a supply voltage of 28 VDC and comes with under/over voltage protection. It measures 74 x 108 x 215 mm. The recorder is built for rugged, MIL-STD-810 environments. |
| |
Download Datasheet
Product Details | |
|
|
|
| 10 MHz Radiation Hardened OCXO for Space Applications | |
Space Qualified Oscillator
from AXTAL GmbH & Co. KG
|
| The AXIOM75SL from AXTAL GmbH & Co. KG is a Space Qualified Oscillator with a nominal frequency of 10 MHz. This crystal oscillator has a frequency stability of +/- 10 ppb (vs. operating temperature range) and a frequency adjustment range of +/- 0.4-0.7 ppm (electronic frequency control). It comes in a hermetical sealed THD package that measures 25.8 x 25.8 x 12.7 mm. It is ideal for low-earth orbit and medium earth orbit applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| L-Band Beacon Tracking Receiver | |
Satellite Beacon Receiver
from Reserved Radeus Labs
|
| The 3400-L from Reserved Radeus Labs is a Satellite Beacon Receiver with an L-band input frequency range of 930-2300 MHz. This beacon receiver has a frequency selection of 1 kHz steps and an input level of -100 to -40 dBm. It has a level adjust of 0.5 dB steps (digital). The receiver requires an AC supply voltage of 90-260 V and has a power consumption of 45 W. It measures 19 x 16 x 1.75 inches and is ideal for step track and uplink power control applications. |
| |
Download Datasheet
Product Details | |
|
|
|

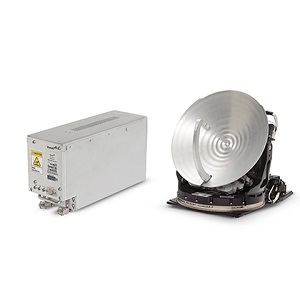

| Ka-band Airborne Terminal for In-Flight Applications | |
Satellite Terminal
from Viasat
|
| The GAT-5510 (G-12) from Viasat is a Satellite Terminal made up of a 2-axis steerable 2-way Ka-band antenna with an integrated ACU, an antenna power supply unit and a modem. It supports 1000 BASE-T Ethernet baseband interface for data and control and ARINC 429 and RS-422 interface for navigation data. The terminal requires a power supply of 115 VAC (antenna and modem) and has a power consumption of 175 W(modem) and 420 W (antenna). |
| |
Download Datasheet
Product Details | |
|
