| Featured Space and Satellite Products this Week |
|
|

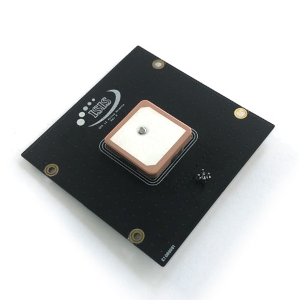

| GNSS Patch Antenna for CubeSats and NanoSats | |
Satellite Antenna
from ISISPACE
|
| The GNSS Active Patch Antenna from ISISPACE is a Satellite Antenna with a frequency range of 1572-1578 MHz (GPS-L1 / GALILEO-E1). It has a peak antenna gain of 5.5 dBi and a signal gain of up to 34.5 dB. This patch antenna has an axial ratio of less than 3 dB and a return loss of greater than 15 dB. It is right-hand circularly polarized. It is compatible with ISIS CubeSat structures and is suitable for providing CubeSat platforms with precise positioning. |
| |
Download Datasheet
Product Details | |
|
|
|

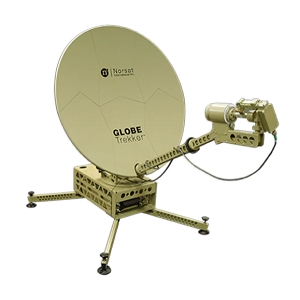

| Multi-Band Auto Acquire Flyaway Antenna | |
Satellite Terminal
from Norsat
|
| The GT100KAM004 from Norsat is a Satellite Terminal that has a transmit frequency range of 7.9-8.4 GHz (X-band) and a receive frequency range of 7.25-7.75 GHz (X-band). This flyaway terminal has an X-band transmit gain of 36.5-38.3 dBi and a receive gain of 36-37.6 dBi. It is circularly polarized and has an axial ratio of less than 1.2 dB in the Tx band. It is designed to meet MIL-STD 810G standards and is ideal for short-notice military and commercial deployments. |
| |
Download Datasheet
Product Details | |
|
|
|
| 7 V, 2.1 A Space Qualified DC to DC Converter | |
DC to DC Converter
from Crane Aerospace & Electronics
|
| The MFK2807D from Crane Aerospace & Electronics is a DC-to-DC Converter that converts an input voltage range of 16-50 V to an output voltage of 2-7 V. It has a ripple voltage range of 70-80 mVpp. It has an undervoltage lockout, fully isolated magnetic feedback with in-built short circuit protection and is designed to meet the stringent demands of satellite applications, and offers optimal power conversion for a wide range of aerospace systems. |
| |
Download Datasheet
Product Details | |
|
|
|
| 4 MP Optical Imager for Nano Satellites | |
Satellite Camera
from AAC Clyde Space
|
| The IM200 from AAC Clyde Space is a Satellite Camera that comes with a 4-megapixel resolution. It has a pixel scan rate above 30 MP/s and has a very low power consumption of less than 700 mW. This optical imager requires a maximum voltage supply of 5 V and has a maximum current consumption of 200 mA. It has a full frame size of 2048 x 1944 pixels and a standard lens focal length of 16, 25, 35, or 50 mm. It is suitable for applications on larger satellite platforms. |
| |
Download Datasheet
Product Details | |
|
|
|

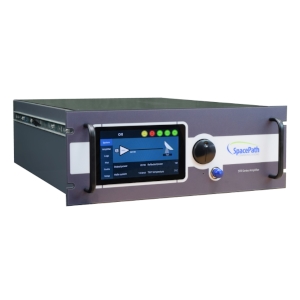

| 750 W Ku-Band Rack Mount TWTA | |
SATCOM Amplifier System
from Spacepath Communications
|
| The STR2375 from Spacepath Communications is a SATCOM Amplifier System that has a frequency range of 12.75-14.50 GHz. It has an output power of 750 W and a minimum gain of 70 dB. The amplifier system features forward and reverse power monitoring and remote diagnostics. Remote control operation is supported via RS-485, Ethernet, or a web page interface. It requires a voltage supply of 180-265 V. It has a power requirement of 2600 VA and a mass of 34 Kg. |
| |
Download Datasheet
Product Details | |
|
|
|

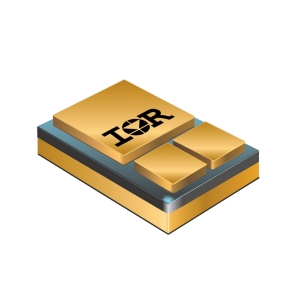

| 8.5 A 45 V Hi-Rel Schottky Common Cathode Diode | |
Space Qualified Diode
from Infineon Technologies
|
| The 8CLJQ045 from Infineon Technologies is a Space Qualified Diode with a maximum average forward current of 8.0 A and a maximum DC reverse voltage of 45 V. The rectifier is designed to meet the rigorous requirements of HiRel environments and its forward voltage drop and reverse leakage current are optimized for the lowest power loss and the highest circuit efficiency for typical high-frequency switching power supplies and resonant power converters. |
| |
Download Datasheet
Product Details | |
|
|
|
| Optical Communication Terminal for LEO Constellation | |
Satellite Laser Communication Terminal
from Tesat-Spacecom GmbH & Co. KG
|
| The SCOT80 from Tesat-Spacecom GmbH & Co. KG is a Satellite Laser Communication Terminal with a range of up to 8,000 Km. It has a bidirectional channel data rate of 2.5 Gbps/10 Gbps. It has a mass of 11.9 kg per optical channel. The terminal features reliable pointing, acquisition, tracking, and communication with over 75,000 links performed. It is compliant with SDA OCT standards and is ideal for low-earth orbit broadband constellations. |
| |
Download Datasheet
Product Details | |
|
|
|

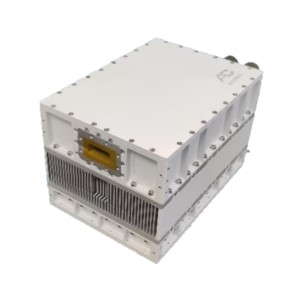

| 100 W X-Band BUC for Military SATCOM Systems | |
SATCOM Block Up Converter
from ACORDE
|
| The ACTX-X100W-E1-V2 from ACORDE is a SATCOM Block Up Converter with an input frequency range of 950-1450 MHz and an output frequency range of 7.9-8.4 GHz. This BUC has a minimum gain of 75 dB and a saturated power of 50 dBm. It is designed according to MIL-STD-188-164C for harsh environmental conditions and is ideal for professional and military satellite communication systems such as ground, SOTP, SOTM, and maritime. |
| |
Download Datasheet
Product Details | |
|
|
|

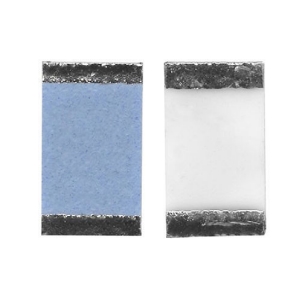

| 10 Ohm to 1 MOhm Space Qualified Thin Film Chip Resistor | |
Space Qualified Resistor
from Vishay
|
| The P0402 from Vishay is a Space Qualified Resistor with a resistance range of 10 Ohm to 1 MOhm. This chip resistor has a tolerance of +/- 0.01 to 5 % and a rated power of up to 0.063 W. It has a limiting element voltage of 50 V and a temperature coefficient of +/- 5 to 100 ppm/degree C. The resistor features thin film technology for the termination and uses Alumina for the substrate. It has a low noise of less than -35 dB and a voltage coefficient of less than 0.01 ppm/V. |
| |
Download Datasheet
Product Details | |
|
|
|

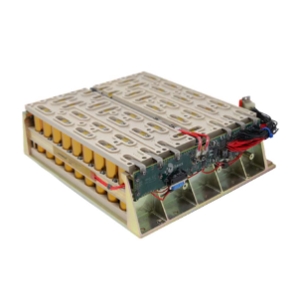

| 1 kWhr 50 V Lithium-Ion Spacecraft Battery | |
Satellite Battery
from Ibeos
|
| The B50-1000 from Ibeos is a Satellite Battery with a BOL capacity of 1000 Whr. It has a maximum sustained discharge rate of 50 A and a maximum charge rate of 24 A. This lithium-ion battery module requires an operating voltage of 36-50.4 V and has a heater power consumption of 29 W. It has a radiation tolerance TID of up to 30 kRad (Si) and a Single Event Effect rating LET of greater than 55 (survive). It has a mass of 7.5 Kg and measures 84 x 252 x 280 mm. |
| |
Download Datasheet
Product Details | |
|
|
|
| 10.95-12.45 GHz RF Test Loop Translator | |
Test Loop Translator
from MICRONICS
|
| The MCS-TLT-1412-08AC from MICRONICS is a Test Loop Translator with an input frequency range of 13-14.5 GHz and an output frequency range of 10.95-12.45 GHz. This test loop translator has a LO frequency of 2.05 GHz and a gain of up to -30 dB. It has a noise figure of 25 dB and a low phase noise of -120 dBc. It is ideal for satellite communication applications where it can be used to convert signals from one RF band to another for test and system evaluation purposes. |
| |
Download Datasheet
Product Details | |
|
|
|
| 600 V Radiation Hardened Solid State Relay | |
Space Qualified Solid State Relay
from Modular Devices
|
| The 53805 from Modular Devices is a Space Qualified Solid-State Relay with a contact voltage rating of 600-1000 V and a contact current rating of 10-15 A. This relay requires a bias voltage of 4.75-5.25 V and a bias current of 30-50 mA. It has a contact resistance of up to 0.4 Ohms and has a power dissipation of 30 W. The relay has an energize time of 10-30 µS and a dynamic de-energize time of 5-20 µS. It has a radiation tolerance TID of 100 kRads (S and SE Grades). |
| |
Download Datasheet
Product Details | |
|
|
|
| Proton Radiation Tolerant Quad Channel Optocoupler | |
Space Qualified Optocoupler
from Micropac Industries
|
| The 66296-301 from Micropac Industries is a Space Qualified Optocoupler with a forward voltage range of 0.8-1.8 V and a static reverse current of 8 µA. It has a collector-to-emitter breakdown voltage of 40 V and an emitter-to-base breakdown voltage of 7 V. It has an input diode continuous forward current of 50 mA. It is designed for applications such as the elimination of ground loops, level shifting, line receivers, switching power supplies, and motor control. |
| |
Download Datasheet
Product Details | |
|
|
|

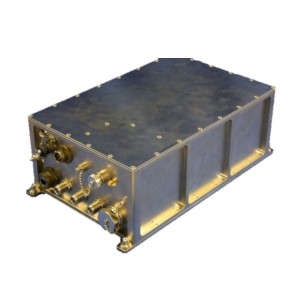

| Tri-Band Block Downconverters for Satellite Earth Stations | |
SATCOM Low Noise Block
from ITS Electronics
|
| The DC-28A1030A00TR-1825 from ITS Electronics is a SATCOM Low Noise Block that has an input frequency range of 28.1-30.0 GHz and an output frequency range of 950-1450 MHz. It has a maximum spurious of -80 dBm and an output SSB phase noise of -143 dBc/Hz (100 MHz). It has an IF output return loss of 19 dB and a P1dB of 18 dBm. It requires a supply voltage of 90-260 VAC and has a power consumption of 100 W. It is ideal for satellite earth station applications. |
| |
Download Datasheet
Product Details | |
|
|
|

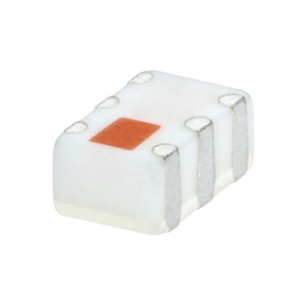

| 3.3-4.2 GHz RF Transformer for Satellite Transmitters | |
Space Qualified RF Balun
from Mini Circuits
|
| The NCS4-422+ from Mini-Circuits is a Space-Qualified RF Balun with a frequency range of 3300-4200 MHz. It has an impedance ratio of 4 (secondary/primary) and an insertion loss of 1.0 dB. This ceramic balun has a low amplitude unbalance of 0.4 dB and a phase unbalance of 5 degrees. It has a maximum RF power rating of up to 3 W. This RoHS-compliant ceramic balun is suitable for applications such as satellite transmitters, WiMAX, and line-of-sight links. |
| |
Download Datasheet
Product Details | |
|
