| Featured Space and Satellite Products this Week |
|
|
| Hermetic Half-Inch Thermostat for Satellite Battery Heater Control | |
Space Qualified Temperature Sensor
from Sensata Technologies
|
| The 11041 / M1 Series from Sensata Technologies is a Space Qualified Temperature Sensor that has an operating temperature range of -53.9 to 287.8 degrees C. It has a resistive contact rating of 1-5 A (100000 cycles). The thermostat is ideal for applications such as anti-ice and air data sensors, aircraft heated drain masts, bleed air over temperature control, aircraft duct/galley/lavatory heaters, satellite battery heater control, and satellite propulsion line temperature control. |
| |
Download Datasheet
Product Details | |
|
|
|

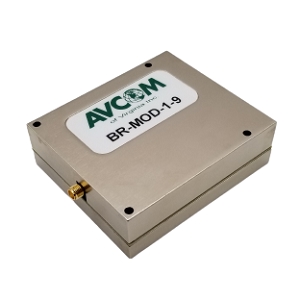

| Embedded L-Band Single Input Beacon Receiver Module | |
Satellite Beacon Receiver
from AVCOM
|
| The BR-MOD-1-9-A-1S from AVCOM is a Satellite Beacon Receiver with an L-band input frequency range of 930-2175 MHz. This beacon receiver has a tuning step size value of 1 kHz steps and an input level of -100 to -10 dBm. It requires a DC supply voltage of 15-24 V and has a power consumption of 3 W. It has a detection bandwidth of 10-750 kHz and a tracking bandwidth of 10-150 kHz. It is ideal for on-the-move, fixed-site, and embedded applications. |
| |
Download Datasheet
Product Details | |
|
|
|

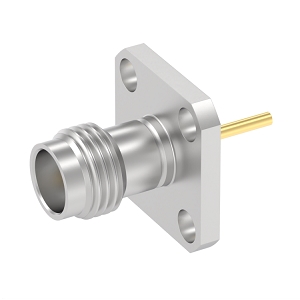

| 2.4 mm S-Female Straight Square Flange Pin Connector | |
Space Qualified RF Connector
from Radiall
|
| The R327414611 from Radiall is a Space Qualified RF Connector with a frequency range of DC-50 GHz and an impedance of 50 Ohms. It has a voltage rating of 250 Vrms and a dielectric withstanding voltage of 500 Vrms. This connector has a VSWR of 1.05:1 and an insertion loss of 0.02 dB. It has an insulation resistance of 5000 MOhm and an RF leakage of 100 dB. It has a 4-hole flange panel mounting. The connector has a mating life of 500 cycles and weighs 3.5 g. |
| |
Download Datasheet
Product Details | |
|
|
|
| Ejector Release Mechanism for Space Applications | |
Attach and Release Mechanism
from Ensign-Bickford Aerospace & Defense Company (EBAD)
|
| The E250 from Ensign-Bickford Aerospace & Defense Company (EBAD) is an Attach and Release Mechanism with a maximum release load of 1112 N. It has a proof load rating of 1557 N. It has a mass of 75 g and measures 2.195 x 1.85 inches (height x diameter). It is utilized in satellite or space applications such as solar array and instrument deployment, satellite dispensing, hinged cover release, and other applications where an off-angle deployment is desired. |
| |
Download Datasheet
Product Details | |
|
|
|
| 1.2m Ku-Band Manual Fly-Away Antenna | |
SATCOM Antenna
from Norsat
|
| The WFM120KU from Norsat is a SATCOM Antenna with a transmit frequency range of 13.75-14.5 GHz and a receive frequency range of 10.7-12.75 GHz. The antenna features a 1.2 m lightweight and durable carbon fiber reflector. The reflector/feed weighs 24 Kg and measures 84.5 x 62 x 49 cm. It is ideally suited for commercial applications in various industries and provides reliable satellite links for remote enterprise, energy, emergency, and media applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 250 V N-Channel Radiation Hardened Power MOSFET | |
Space Qualified MOSFETs
from Infineon Technologies
|
| The IRHMS6S7264 from Infineon Technologies is a Space Qualified MOSFETs with a drain-to-source breakdown voltage of 250 V, a fall time of 30 ns and a gate-to-source voltage of +/- 20 V. It has a radiation tolerance TID of up to 100 krad (Si) and is single event effect (SEE) hardened. It has a total gate charge of 220 nC and a maximum power dissipation of 208 W. The MOSFET is ideal for applications such as DC-DC converters and motor controllers. |
| |
Download Datasheet
Product Details | |
|
|
|

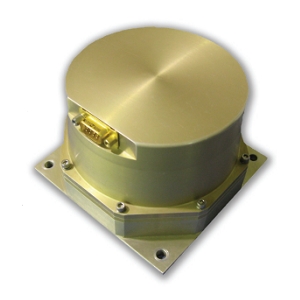

| Miniature Reaction Wheel Torque Actuator for Microsatellites | |
Reaction Wheel
from Microsat Systems Canada Inc
|
| The MicroWheel 1000 from Microsat Systems Canada is a Reaction Wheel with an angular momentum capacity of 1.1 Nms and a torque capability of 30 mNm. It has a speed range of +/-10000 RPM and a static imbalance of less than 0.5 mg/m. The reaction wheel has a mass of 1.44 kg and measures 130 x 130 x 90 mm. The reaction wheel requires a voltage supply of 28 V. It has a design life of more than 7 years and is ideal for mini-satellites and microsatellites. |
| |
Download Datasheet
Product Details | |
|
|
|
| 13.75-14.5 GHz RF Amplifier Line Driver System | |
SATCOM Amplifier System
from GeoSync Microwave
|
| The TDB2010603 from Quantic Evans is a Space Qualified Capacitor with a capacitance rating of 60000 uF. This capacitor has a direct current leakage of 150 µA to 1.50 mA and an equivalent series resistance of 35 mOhm. It has a voltage rating of 6-10 V and a surge voltage of 11 V. It is suitable for space applications such as RADAR/LIDAR, thrusters/electric propulsion, transmit/receive modules, power holdup/bridge power, and defense/electronic warfare. |
| |
Download Datasheet
Product Details | |
|
|
|
| 60 mF Space Grade Hybrid Capacitor | |
Space Qualified Capacitor
from Quantic Evans
|
| The TDB2010603 from Quantic Evans is a Space Qualified Capacitor with a capacitance rating of 60000 uF. This capacitor has a direct current leakage of 150 µA to 1.50 mA and an equivalent series resistance of 35 mOhm. It has a mass of 47 g and measures 1.0 x 1.0 (L x W) inches. It is suitable for space applications such as RADAR/LIDAR, thrusters/electric propulsion, transmit/receive modules, power holdup/bridge power, and defense/electronic warfare. |
| |
Download Datasheet
Product Details | |
|
|
|

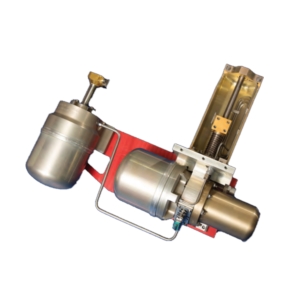

| 23 W Cryocooler for Critical Space Missions | |
Space Cryocooler
from Northrop Grumman Corporation
|
| The High-Efficiency Cryocooler (HEC) from Northrop Grumman Corporation is a Cryocooler that has a refrigeration capacity of 2 W (45 K) to 23 W (150 K). It has a low mass of 4.5 Kg (single stage). It includes flight electronics and pulse tube cryocooler which are TRL 9 qualified and supports standard digital interfaces such as RS422 and 1553. It is ideal for critical space missions, including climate science, astronomy, and weather tracking and prediction. |
| |
Download Datasheet
Product Details | |
|
|
|

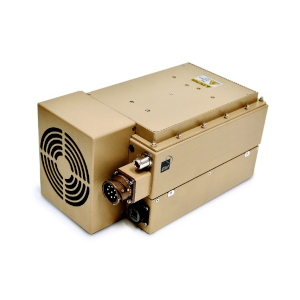

| 50 W MIL Ka-WideBand Block Up Converter | |
SATCOM Block Up Converter
from Wavestream Corporation
|
| The WBAK-050G01-0004 from Wavestream Corporation is a SATCOM Block Up Converter with a transmit frequency range of 28-31 GHz and an IF frequency range of 950-2000 MHz. The BUC has an IF input VSWR of 1.67:1, an RF output VSWR of 1.25:1 and draws a maximum power of 360 W.. It weighs 6 Kg and measures 12 x 7 x 6.5 inches. This BUC is designed to operate in harsh environments and to support the most demanding satellite communication applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 5 V Radiation Hardened Comparator | |
Comparator
from Honeywell Aerospace
|
| The HMXCMP01 from Honeywell is a Space-Qualified Comparator that is fabricated on radiation-hardened SOI-IV Silicon-On-Insulator (SOI) CMOS process. It requires an analog supply of 4.75-5.25 V and a digital supply of 5.0 V or 3.3 V IO voltage. This comparator has a common voltage range of 0-5 V and an input offset voltage of +/- 24 mV. It is designed for low input current, low offset voltage, and fast response time while operating over the full military temperature range. |
| |
Download Datasheet
Product Details | |
|
|
|

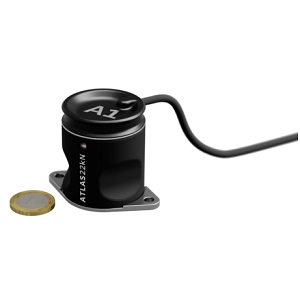

| Ground Test Release Actuator | |
Space Actuator
from SPACERACE
|
| The ATLAS from SPACERACE is an Actuator with a release preload of 22 kN and a design limit load of 33 kN. This actuator has a release time of less than 50 ms and a reset of under 1 min. It has a PC-controlled actuation and a life of 100 guaranteed releases according to ECSS-E-ST-33-01C. It requires an actuation current of 4 A. This reusable non-explosive release actuator has a mass of 240 g and is ideal for ground testing of space mechanisms. |
| |
Download Datasheet
Product Details | |
|
|
|
| C-Band Satellite Test Loop Translator | |
Test Loop Translator
from Advantech Wireless Technologies
|
| The ATLT-C100 from Advantech Wireless Technologies is a Test Loop Translator with an RF input frequency range of 5850-6425 MHz and an RF output frequency range of 3625-4200 MHz. It has a maximum conversion gain of -35 dB. The test loop translator has a spurious of 45 dBc (In-band) and a phase noise of up to -115 dBc (1 MHz). The ATLT-C100 measures 482.6 x 44.5 x 508 mm and is designed to meet the requirements of the satellite communications industry. |
| |
Download Datasheet
Product Details | |
|
|
|
| 15 mH Space Grade Shielded Inductor | |
Space Qualified Inductor
from Vanguard Electronics
|
| The S42656 from Vanguard Electronics is a Space Qualified Inductor with a series inductance value of 15 mH and a parallel inductance value of 3.75 mH. It has a series DC resistance of 7.7 Ohms and a parallel DC resistance of 1.925 Ohms. This space-grade inductor is ideal for applications in filter inductors, ripple suppressors, common mode chokes, isolation transformers, power supplies, DC/DC converters, and SEPIC converters. |
| |
Download Datasheet
Product Details | |
|
