| Featured Space and Satellite Products this Week |
|
|

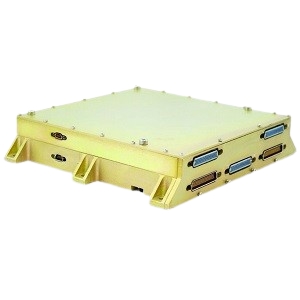

| Satellite On-Board Command & Data Handling Subsystem with Redundancy | |
Satellite On-Board Computer (OBC)
from CAVU Aerospace UK
|
| The CDH1 from CAVU Aerospace UK is a Satellite On-Board Computer (OBC) that uses an ARM Cortex-M3 processor on FPGA and an advanced Microchip/Microsemi SmartFusion2 & ProASIC3 Flash-based FPGA design. It supports CAN2.0 (Up to 1Mbps), full-duplex RS-422, half-duplex RS-485, RS-232, I2C, and SPI serial interfaces. It is designed to withstand a variety of space environments and is suitable for deep space missions. |
| |
Download Datasheet
Product Details | |
|
|
|

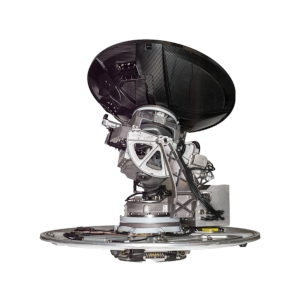

| 150 cm X-band Military Maritime Stabilized VSAT System | |
Satellite Terminal
from Kebni
|
| The X150MIL from Kebni is a Satellite Terminal with a transmit frequency range of 7.9-8.4 GHz and a receive frequency range of 7.25-7.75 GHz. This maritime terminal has an X-band transmit gain of 40.5 dBi and a receive gain of 39.5 dBi. The signal is right-hand/left-hand circular polarized and the terminal has a G/T of 17.5 dB/K. The terminal has an antenna elevation coverage of -10 to 90 degrees and a continuous, unlimited azimuth range. |
| |
Download Datasheet
Product Details | |
|
|
|

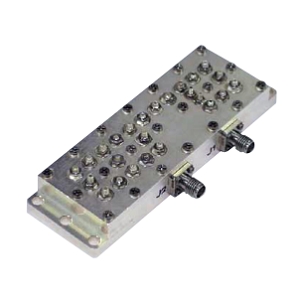

| 6468-6588 MHz Space Qualified Bandpass Filter | |
Space Qualified RF Filter
from Mercury Systems
|
| The C1970 from Mercury Systems is a Space Qualified RF Filter with a frequency range of 6468-6588 MHz and an insertion loss of less than 3 dB. It has a passband ripple of 0.3 dB and a group delay variation of less than 3 ns. It has a VSWR of 1.5:1 and a rejection of 10-61 dBc. The filter is space-qualified and features a cavity design. It comes with SMA female connectors as per MIL-C-39012. The filter is ideal for applications such as satellites, test equipment, and data links. |
| |
Download Datasheet
Product Details | |
|
|
|

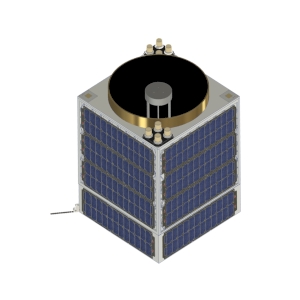

| Small Satellite Platform for Earth Observation Missions | |
Satellite Bus & Platform
from Berlin Space Technologies
|
| The LEOS-100HR from Berlin Space Technologies is a Satellite Platform with a payload capacity of 30-50 Kg and a payload volume of 600 x 600 x 600 mm³. This platform has an average payload power availability of 60 W. It features a 3-axis stabilized ADCS with a fast target pointing of 5 degrees/s. It has an S-band TTC system and an X-band downlink data rate of 320 Mbit/s. The platform uses an electrical propulsion system and has a design life of 5 years in LEO. |
| |
Download Datasheet
Product Details | |
|
|
|
| L-Band Beacon Receiver for Antenna Tracking | |
Satellite Beacon Receiver
from SatService
|
| The sat-nms LBRX-81 from SatService is a Satellite Beacon Receiver that measures the RF input level and provides the information as an output signal for control systems. This receiver has a full L-band tuning range of  950-2150MHz and a 1 KHz step size. It has an input level measurement range of -30 to -80 dBm and measurement bandwidths of 6, 12, 30, and 100 kHz. The beacon receiver has a minimum C/No of 45 dBHz and a damage level of +10 dBm. |
| |
Download Datasheet
Product Details | |
|
|
|
| 1.6-4.0 GHz Bi-Directional Coupler for Wireless Communication | |
Space Qualified Coupler
from Mini Circuits
|
| The BDCA1-10-40+ from Mini Circuits is a Space Qualified Coupler with an operating frequency range of 1600-4000 MHz. This bi-directional coupler has a coupling range of 9.05-11.80 dB and a mainline insertion loss of 0.8-1.4 dB. It has a directivity of 11-22 dB. It requires a DC current supply of 0.25 A. The coupler comes in a hermetically sealed package weighing 0.25 g. It is suitable for wireless communication, ISM, PCS, and mobile satellite applications. |
| |
Download Datasheet
Product Details | |
|
|
|

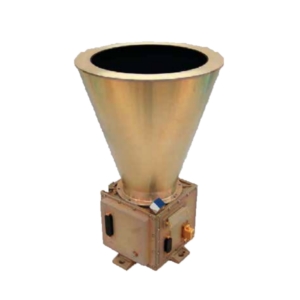

| Autonomous Star Tracker for Geostationary Satellites | |
Star Tracker
from Leonardo
|
| The AA-STR from Leonardo is a Star Tracker that has a field of view of 20 x 20 degrees and a dynamic range of 1.5-5.5 Mi. It can track up to 15 stars and has a tracing rate of up to 2 degrees/sec. It has an acquisition time of less than 9 sec and an update rate of 4, 5, 8, or 10 Hz. The medium Field of View (FOV) star trackers are integrated into a single assembly with a radiation-hardened design that has an SEU tolerance of up to 170000 protons/cm2 /sec. |
| |
Download Datasheet
Product Details | |
|
|
|
| Ku-Band PLL SATCOM Low Noise Block | |
SATCOM Low Noise Block
from Norsat
|
| The HS1000C from Norsat is a SATCOM Low Noise Block with a frequency range of 10.95-11.70 GHz and an IF frequency range of 950-1700 MHz. This LNB has a gain of 60 dB and a minimum output P1 dB of 4 dBm. It has an input VSWR of 2.5:1 and an output VSWR of 2.2:1. It has an LO frequency of 10 GHz. The LNB has a phase noise of -90 to -70 dBc/Hz and a gain flatness of less than 5 dB p-p. It requires an input power supply of 15-24 V DC. |
| |
Download Datasheet
Product Details | |
|
|
|
| 50 W Radiation Hardened Isolated Power Converter | |
DC to DC Converter
from Microchip Technology
|
| The SA50-120-5S-A-H from Microchip Technology is a Radiation-Hardened DC-to-DC Converter that converts a DC input voltage of 86-158 V to a DC output voltage of 27.73-28.27 V. This radiation-hardened converter delivers an output power of up to 50 W and has an efficiency of up to 85%. It has a ripple voltage range of 25-37.5 mVpp. This isolated DC-DC converter is based on forward converter topology and features patented magnetic feedback. |
| |
Download Datasheet
Product Details | |
|
|
|

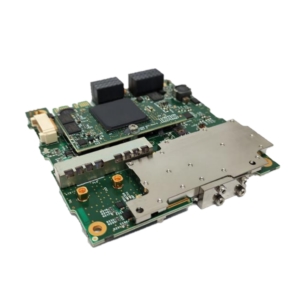

| S-band Transmitter for CubeSats | |
Space Transmitter
from ISISPACE
|
| The S-band Transmitter from ISISPACE is a Space Transmitter with a transmitter frequency range of 2200-2290 MHz and an RF output power of 27-31 dBm. This S-band transmitter supports BPSK and OQPSK modulation schemes and has a transmitter data rate of up to 10 Mbit/s. It has a frequency stability of +/- 0.28 ppm and a frequency step size of 1 kHz. It is suitable for applications such as CubeSat TT&C and CubeSat RF payloads. |
| |
Download Datasheet
Product Details | |
|
|
|

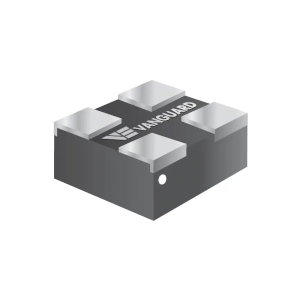

| 35 mH Space Grade Current Sense Transformer | |
Space Qualified Power Transformer
from Vanguard Electronics
|
| The SCS108 from Vanguard Electronics is a Space Qualified Power Transformer with an inductance of 35 mH. This transformer has a turns ratio of 1:200 and requires a primary voltage of 80 V. It has a direct current resistance of 7.9 ohms and an insulation resistance of 10K Mohms. The transformer features tin-lead terminations and welded internal connections. It has a minimum dielectric withstanding voltage of 500 VAC and a peak primary current of 13 A. |
| |
Download Datasheet
Product Details | |
|
|
|
| 18-25 mN Hall-Effect Thruster Propulsion System | |
Spacecraft Thruster
from Astra
|
| The ASE (XENON.KRYPTON) from Astra is a Spacecraft Thruster that it compatible with Krypton and Xenon propellants. It uses a single board PPU that has an efficiency of over 95% and is radiation hardened up to 25 kRad TID. The propulsion system supports RS-485 and CAN bus communication interface. It is suitable for a wide range of missions, from the smallest earth observation satellites up to large communications satellites with multiple kilowatts of solar power. |
| |
Download Datasheet
Product Details | |
|
|
|

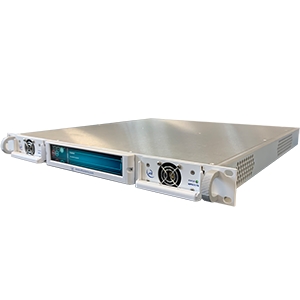

| Ku-Band to L-Band Downconverter for Satellite Operations | |
Block Downconverter
from ETL Systems
|
| The FN-D-K1L1-24400AA from ETL Systems is a Block Downconverter with an input frequency range of 10.7-12.75 GHz and an output frequency range of 1100-2150 MHz. It has an input/output return loss of 18 dB, a maximum input range of -30 dBm and a noise figure of 10 dB. It is suitable for applications such as teleports and Earth stations, satellite operators, government and defense, telemetry, tracking and command (TT&C), and high-resilience applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 9-14 GHz High Power Amplifier for Telecom and Space Applications | |
RF Amplifier
from ERZIA
|
| The ERZ-HPA-0900-1400-34 from ERZIA is an RF Amplifier that operates in a frequency range of 9-14 GHz. This high power amplifier has a small signal gain of 32 dB and a gain flatness of +/- 2.0 dB. It has a saturated output power of 33-36 dBm and an input/output VSWR of 1.8:1. The amplifier requires a DC supply voltage of 9-15 V. The amplifier is ideal for industrial/laboratory, satcom/telecom, space, aerospace, and military applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 25 W Ku-Band SATCOM Power Amplifier | |
SATCOM Amplifier System
from AnaCom, Inc
|
| The AnaSat SSPA Ku Band 25W from AnaCom is a SATCOM Power Amplifier System that operates from a frequency range of 14-14.5 GHz. This amplifier system has an intermodulation of -25 dBc and a maximum spurious of -55 dBc (out of band). It supports SNMP, HTTP, Telnet, Ethernet, RS-232, and RS-485 interfaces for monitoring and control. It is designed to be interfaced with a 0 dBm driver and is ideally suited for SCPC, MCPC, DAMA, TDMA, and VoIP applications. |
| |
Download Datasheet
Product Details | |
|
