| Featured Space and Satellite Products this Week |
|
|

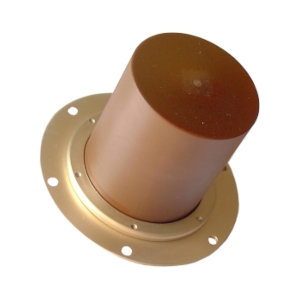

| S-Band Antenna Designed for Small Satellites | |
Satellite Antenna
from STT-SystemTechnik GmbH
|
| The S2023R from STT-SystemTechnik GmbH is a Satellite Antenna with an uplink frequency range of 2025-2110 MHz and a downlink frequency range of 2200-2290 MHz. This right circularly polarized antenna provides hemispherical coverage and has a gain of 3 dBic (boresight). It has an HP bandwidth of 140 degrees and a VSWR of 1.5:1. The antenna's pattern shape has been optimized particularly for low earth orbit (LEO) missions with NADIR orientation. |
| |
Download Datasheet
Product Details | |
|
|
|

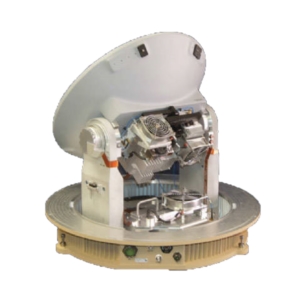

| Ku-Band SATCOM-on-the-Move Terminal | |
Satellite Terminal
from General Dynamics Mission Systems
|
| The M20-24M Ku from General Dynamics Mission Systems is a Satellite Terminal with a transmit frequency range of 10.95-12.75 GHz and a receive frequency range of 13.75-14.50 GHz. It has a beamwidth of 2.3-2.8 degrees and a transmit cross-polarization of 30 dB within track/point. It was specifically designed for ground vehicle command, control, and communications (C3) missions where beyond the line of sight (BLOS) SATCOM capabilities are mission critical. |
| |
Download Datasheet
Product Details | |
|
|
|
| 12.5-17 GHz Low Noise Amplifier for Space and Military Applications | |
RF Amplifier
from ERZIA
|
| The ERZ-LNA-1250-1700-33-3 from ERZIA is an RF Amplifier that operates in a frequency range of 12.5-17 GHz. This low noise amplifier has a small signal gain of 30-35 dB and an output power (P1dB) of 11-16 dBm. It has a gain flatness of +/- 1 dB and a noise figure of 2-3.5 dB. It features gold-plated compact aluminum housing and solder-filtered pins for DC connection. It is ideal for industrial, laboratory, satcom, telecom, space, aerospace, and military applications. |
| |
Download Datasheet
Product Details | |
|
|
|

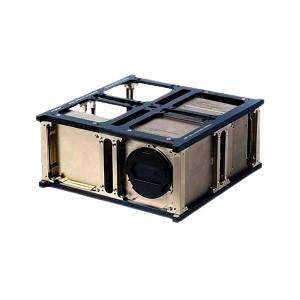

| Satellite Camera for Earth Observation Missions | |
Satellite Camera
from CAVU Aerospace UK
|
| The s.LDU.345 from CAVU Aerospace UK is a Satellite Camera with an aperture size of 60 mm and a field of view of +/- 2.1 degrees. It requires an input voltage range of 12-18 V and has a power consumption of up to 10 W. This 100 Krad radiation tolerant satellite camera has a lifetime of up to 2 years and is suitable for capturing high-resolution images from the ground surface, atmospheric phenomena, and low-cost Earth observation. |
| |
Download Datasheet
Product Details | |
|
|
|
| Ku-Band Test Loop Translator for Military SATCOM Systems | |
Test Loop Translator
from ACORDE
|
| The ACTLT-Ku-E1-V2 from ACORDE is a Test Loop Translator with an input frequency range of 13.75-14.5 GHz and an output frequency range of 10.7-12.75 GHz. This test loop translator has an LO frequency range of 10.70-12.75 GHz. It has an input level of 0 to -30 dBm and an output level of -20 to -50 dBm. The test loop translator is designed for harsh environmental conditions and professional and military satellite communication systems. |
| |
Download Datasheet
Product Details | |
|
|
|
| Radiation Hardened 45 V Schottky Rectifier | |
Space Qualified Diode
from STMicroelectronics
|
| The STPS40A45CHR from STMicroelectronics is a Space Qualified Diode with a forward current of 2 x 20 A and a low forward voltage drop of 0.61 V. It has a repetitive peak reverse voltage of 45 V and a forward surge current of 200 A. This rad-tolerant diode has a dV/dt off-state robustness of up to 10 kV/µs and junction-to-case thermal resistance of 2.0 degrees C/W. The diode has a package mass of 9.4 g and is ideal for aerospace applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| X-Band Transmitter Payload for Micro-Satellites | |
Space Transmitter
from ELEP Electronics
|
| The TXC-200 from ELEP Electronics is a Space Transmitter designed for Nano- and Micro-satellites. It requires a DC supply voltage of 9-36 V and has an output power of 2-4 W. The transmitter is ideal for launch vehicle HD/4k video transmission, launcher and ground segment integration, command control and video datalinks, launch vehicle separation/in-orbit maneuver, real-time terminal guidance command, tactical operations and target acquisition, and tracking applications. |
| |
Download Datasheet
Product Details | |
|
|
|

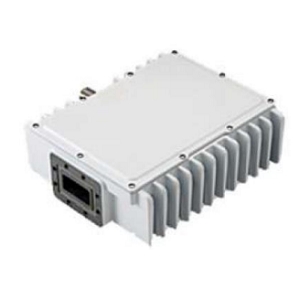

| 5 W C-Band Block Upconverter for VSAT | |
Block Upconverter
from Genmix Technology
|
| The GMU058066B01 from Genmix Technology is a Block Upconverter with an input frequency of 950-1750 MHz and an output frequency of 5.85-6.65 GHz. It has an LO frequency of 4.9 GHz and a gain of 53-57 dB. This non-inverter type block upconverter has an input/output VSWR of 2:1. It weighs 1.94 Kg and measures 184 x 160 x 59 mm (L x W x H). This high-power block upconverter is ideal for VSAT and SatCom applications. |
| |
Download Datasheet
Product Details | |
|
|
|

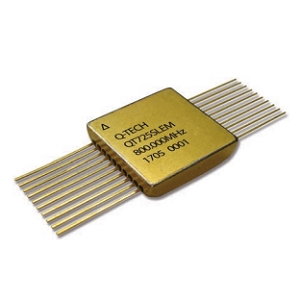

| 400-1300 MHz Space Qualified Voltage Controlled SAW Oscillator | |
Space Qualified Oscillator
from Q-Tech Corporation
|
| The QT725S from Q-Tech Corporation is a Space Qualified Oscillator with an operating frequency range of 400 MHz to 1.3GHz. This SAW oscillator requires a supply voltage of 3.135-12.6 V and a supply current of 50-110 mA. The oscillator is screened to MIL-PRF-55310, Level S or Modified MIL-PRF-38534, Class K and is suitable for phase lock loops (PLL), satellites, aerospace, space clock recovery, and low-phase noise, high-frequency applications. |
| |
Download Datasheet
Product Details | |
|
|
|

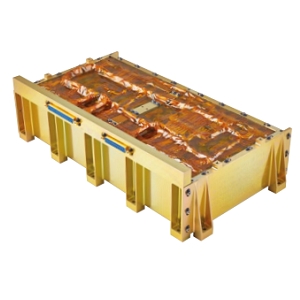

| Space-Qualified 24 Ah Li-Ion Rechargeable Battery | |
Satellite Battery
from EnerSys
|
| The ABSL 8s16p 28V 24Ah from EnerSys is a Satellite Battery with a configuration of 8s16p. This lithium-ion battery has a nameplate capacity of 24 Ah. It has a voltage range of 20-33.6 V. It is qualified for the NASA Goddard Space Flight Center with the design being utilized for a variety of applications including civilian, military, and other commercial applications. It does not utilize cell-balancing electronics and is suitable for LEO and GEO orbits. |
| |
Download Datasheet
Product Details | |
|
|
|
| Radiation-Hardened 2N-2P Channel 100 V Power MOSFET | |
Space Qualified MOSFETs
from Infineon Technologies
|
| The IRHG6110 from Infineon Technologies is a Space Qualified MOSFET with a drain-to-source breakdown voltage of +/- 100 V and a gate-to-source voltage of +/- 20 V. It has a pulsed drain current range of -3 to 4 A and a drain-to-source resistance of 0.6-1.2 Ohms. The MOSFET has a radiation tolerance TID of up to 100 krad (Si) and is single event effect (SEE) hardened. The MOSFET is ideal for applications such as DC-DC converters and motor controllers. |
| |
Download Datasheet
Product Details | |
|
|
|
| L-Band Digital Beacon Receiver | |
Satellite Beacon Receiver
from Reserved Radeus Labs
|
| The RL3500 from Reserved Radeus Labs is a Satellite Beacon Receiver with an L-band input frequency range of 930-2300 MHz. This beacon receiver has a frequency selection of 1 kHz steps and an input level of -100 to -40 dBm. It has a level adjustment of 0.5 dB steps (digital), a power consumption of 45 W and a minimum input level of -115 dBm for lock. It measures 19 x 16 x 1.75 inches and is ideal for step track and uplink power control applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 100 V Bus Power Conditioning and Distribution Unit | |
Power Conditioning and Distribution Unit (PCDU)
from TERMA
|
| The BEPICOLOMBO MTM PCDU from TERMA is a Power Conditioning and Distribution Unit (PCDU) with a primary sun regulated bus power of 100 V. It has a power consumption of less than 50 W and the power bus supports MIL-STD-1553 for command and monitoring. It weighs 28.1 kg and has a volume of 556 x 317 x 158 mm. It was designed for ESA’s BepiColombo mission and has up to 3 years of flight heritage. |
| |
Download Datasheet
Product Details | |
|
|
|
| 1:1 Redundancy Switch for Upconverters and Modulators | |
SATCOM Redundancy Switch
from WORK Microwave
|
| The RSCC-T from WORK Microwave is a SATCOM Redundancy Switch with a frequency range of DC to 40 GHz. This redundancy switch has an insertion loss of 0.2-0.8 dB. It has a maximum VSWR of 1.9 and a power handling of 1 W (switching). It weighs 3 Kg and measures 483 x 44 x 470 mm (W x H x D). It is ideal for upconverters, downconverters, modulator-upconverters, transport stream modulators, demodulators, and modems. |
| |
Download Datasheet
Product Details | |
|
|
|

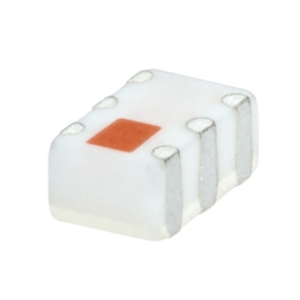

| 1650-2850 MHz Ceramic Balun for Radar | |
Space Qualified RF Balun
from Mini Circuits
|
| The NCS1-292+ from Mini-Circuits is an RF Balun with a frequency range of 1650-2850 MHz. It has an impedance ratio of 1 and an insertion loss of 1.0 dB. It has a maximum RF power rating of up to 3 W. It features LTCC construction and is aqueous washable. It has a mass of 0.008 g and measures 0.079 x 0.049 x 0.033 inches. This RoHS-compliant ceramic balun is suitable for applications such as WCDMA, WLAN, WIMAX/WIBRO, MMDS, and Radar. |
| |
Download Datasheet
Product Details | |
|
