| Featured Space and Satellite Products this Week |
|
|
| Thin Triple-Junction Solar Cell for Space Applications | |
Satellite Solar Cell
from CESI SpA
|
| The CTJ30-Thin from CESI SpA is a Satellite Solar Cell with an efficiency of 29 %. This triple-junction solar cell has an output current of 454 mA and an open circuit voltage of 2.61 V. It has a short circuit current of 473 mA and a maximum power consumption of 1.05 W. It has a low mass of 50 mg/cm2 and an area of 26.5 cm2. It has been fully qualified according to standard ECSS E ST20-08C for low-earth orbit and geostationary orbit applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 225-400 MHz SATCOM Fixed Helical Antenna | |
SATCOM Antenna
from TACO Antenna
|
| The H-064A from TACO Antenna is a SATCOM Antenna that operates from a frequency range of 225-400 MHz. This fixed helical antenna features a stainless steel helix supported by dielectric rods along the mast and can be controlled remotely with an electrical pan and tilt positioners. This RoHS and REACH-compliant antenna is designed to withstand harsh environmental conditions and is currently used by the US military and various defense contractors worldwide. |
| |
Download Datasheet
Product Details | |
|
|
|

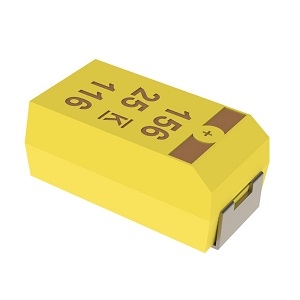

| 330 uF Space Grade Tantalum Surface Mount Capacitor | |
Space Qualified Capacitor
from KEMET
|
| The T493X337K010CH622A from KEMET is a Space Qualified Capacitor with a capacitance of 330 uF. This tantalum capacitor has a capacitance tolerance of +/- 10 % and a rated voltage of 10 V. It has an ESR of 100 mOhm and a leakage current of 33 uA. It meets the requirements of MIL–PRF–55365 as well as MIL–STD–1580 and is suitable for use by defense/aerospace customers in high-reliability space applications such as decoupling and filtering. |
| |
Download Datasheet
Product Details | |
|
|
|

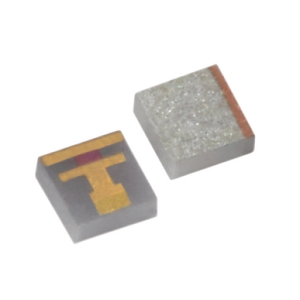

| DC-42.5 GHz Wire Bondable Chip Terminations | |
Space Qualified RF Termination
from Smiths Interconnect
|
| The HR-CT0404ALN1WB1 from Smiths Interconnect is a Space Qualified RF Termination with a frequency range of DC-42.5 GHz. It has a power rating of up to 5 W and a peak power of up to 50 W. The termination is space-qualified based on MIL-PRF-55342 and is suitable for applications such as amplifier circuits, isolators, transmit/receive modules, up/down converters, instrumentation, satellite communications, radar, and broadcast. |
| |
Download Datasheet
Product Details | |
|
|
|

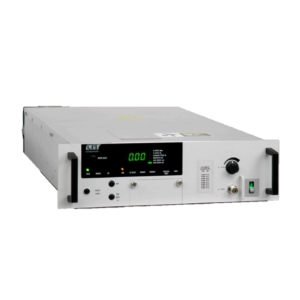

| 200 W Ku-Band Rack-Mount TWTA | |
SATCOM Amplifier System
from Communications & Power Industries
|
| The VZU6992EB from Communications & Power Industries is a SATCOM Amplifier System with a frequency range of 12.75-14.50 GHz. The amplifier system has a harmonic output of -60 dBc and an output power of 200 W. It requires a primary input voltage of 100-240 VAC and has a maximum power consumption of 1.0 kVA. It weighs 27.3 Kg and measures 483 x 133 x 610 mm. The amplifier system is built for satellite communications uplink applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| NASA GEVS Compliant 3U CubeSat Structure | |
Satellite Bus & Platform
from AAC Clyde Space
|
| The ZAPHOD 3U CubeSat Structure from AAC Clyde Space is a Satellite Platform that is compatible with all rail deployers. This lightweight and robust CubeSat structure complies with NASA’s General Environmental Verification Standard (GEVS) requirements and is fitted with anodized rails and deployment switches, all proven in orbit. This ISS-compatible qualified design comes with mounting holes provided for a variety of stack and payload configurations. |
| |
Download Datasheet
Product Details | |
|
|
|

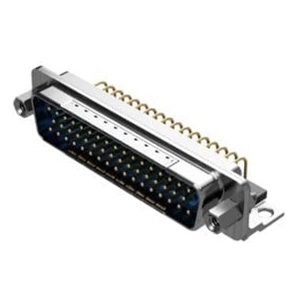

| 4 mOhms D-Sub Connectors for Spaceflight Applications | |
Space Qualified RF Connector
from Positronic
|
| The MCD Series from Positronic is a Space Qualified RF Connector with an insulation resistance of 5 Gohm. It has a working voltage of 300 V and a proof voltage of 1000 V. It is constructed using PBT material for the insulator, copper alloy for the contact, and a 50 µin gold over nickel or copper underplate for signal contact plating. The connector has a mechanical durability of 500 cycles and is ideal for military, aerospace, and spaceflight applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 6.425-6.725 GHz Single Band Test Loop Translator | |
Test Loop Translator
from Peak Communications
|
| The TLT642 from Peak Communications is a Test Loop Translator with an input frequency range of 6.425-6.725 GHz and an output frequency range of 3.4-3.7 GHz. It has an input return loss of 18 dB and an output return loss of 15 dB. It requires an input supply voltage of 90-264 VAC. It is designed for translating a C-band transmit signal to the C-band receive signal which can then applied to the receive equipment in a test mode. |
| |
Download Datasheet
Product Details | |
|
|
|
| Rechargeable Electrical Power System for CubeSat Kit Bus | |
Satellite Electrical Power System
from Pumpkin Space Systems
|
| The 711-00338 from Pumpkin Space Systems is a Satellite Electrical Power System that is designed to power a CubeSat stack of modules during development. It features an LED bar graph that indicates charging progress and battery status and an on-board reset supervisor for maximum reliability. The electrical power system is ideal for applications of CubeSat Kit demonstrations, terrestrial testing, and balloon missions. |
| |
Download Datasheet
Product Details | |
|
|
|
| 23 W Ku-Band VSAT Transceiver | |
SATCOM Transceiver
from AnaCom, Inc
|
| The Anasat Ku-band 23W from AnaCom is a SATCOM Transceiver with a Tx output frequency range of 13.75-14.5 GHz, a noise figure of 1-2 dB and an Rx input frequency range of 10.95-12.75 GHz. It supports Ethernet, RS-232, and RS-485 interfaces for monitoring and control. It has a mass of 20 Kg and measures 549 x 229 x 274 mm. The transceiver is ruggedly built for continuous outdoor duty in all types of environments and is suitable for |
| |
Download Datasheet
Product Details | |
|
|
|

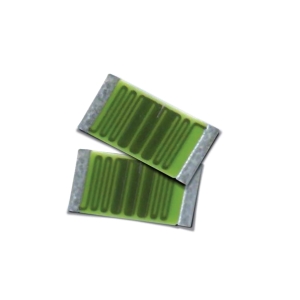

| 10 kOhms to 50 GOhms Military Grade Chip Resistor | |
Space Qualified Resistor
from Ohmcraft
|
| The MCH (2010) from Ohmcraft is a Space Qualified Resistor with a resistance range of 10 KOhm to 50 GOhms. This thick-film high-voltage chip resistor has an extended TCR range of up to 200 ppm/ degrees C. It is screened and qualified to MIL-PRF-55342, MIL-PRF-49462, and NASA EEE-INST-002 (level 1 & 2). This surface mount resistor measures 5.08 x 2.54 x 0.76 mm and is ideal for military, electronic warfare, and space applications. |
| |
Download Datasheet
Product Details | |
|
|
|

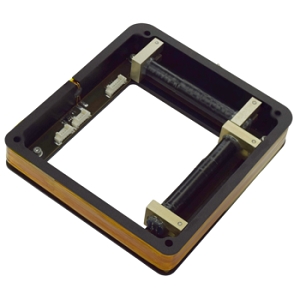

| Three-Axis Magnetorquer for Attitude Control of Large Satellites | |
Magnetorquer
from GomSpace
|
| The NanoTorque GST-600 from GomSpace Group is a Magnetorquer that consists of a single air-torquer and two magnetorquer-rods. This 3-axis magnetorquer has a dipole moment 0.340 Am2 (Z-axis) and 0.310 Am2 ( X - axis and Y-axis). It features a TMP100 built-in temperature sensor and a high torque and low residual dipole. It has a mass of 156 g and measures 90.5 x 96.9 x 17.2 mm. It is designed for 6U-sized satellites or larger nanosatellites. |
| |
Download Datasheet
Product Details | |
|
|
|

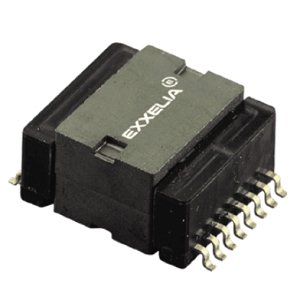

| 32.9 µH Space Qualified SMD Power Inductor | |
Space Qualified Inductor
from Exxelia Technologies
|
| The CCM 20 33K 1W from Exxelia Technologies is a Space Qualified Inductor with an inductance of 32.9 µH and an inductance tolerance of +/- 5/10 %. The inductor features Epoxy Transfer molding technology and a ferrite core external assembly. The inductor is designed to withstand severe environments such as space, avionics, and New Space applications and is ideal for energy storage, filtering, and smoothing applications. |
| |
Download Datasheet
Product Details | |
|
|
|

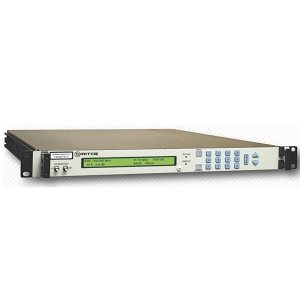

| 950-2150 MHz Extended L-Band Frequency Converter | |
Block Downconverter
from Narda-MITEQ
|
| The D-99-9502150-1K from Narda-MITEQ is a Block Downconverter with an input frequency range of 950-2150 MHz and an output frequency of 70 MHz. It supports RS485, RS422, RS232, and 10/100Base-T Ethernet interfaces for monitoring and control. The downconverter weighs 5.4 kg and measures 19 x 1.75 x 20 inches. It is designed for advanced satellite communication systems and frequency conversion. |
| |
Download Datasheet
Product Details | |
|
|
|
| 3/8 Inch High Pressure Micro Fill and Drain Valve | |
Spacecraft Valve
from VACCO Industries
|
| The V1D10855-01 from VACCO Industries is a Spacecraft Valve with an operating pressure of 6700 psia. This micro fill and drain valve has proof pressure of 10050 psia and a burst pressure of 13400 psia. It is compatible with H2O, GHe, GH2, GO2, NTO, and MMH media. The valve has an all seal leakage of less than 1.0 x 10-6 SCCS GHe at the closed position. It is designed exclusively to satisfy the needs of the space industry. |
| |
Download Datasheet
Product Details | |
|
