| Featured Space and Satellite Products this Week |
|
|

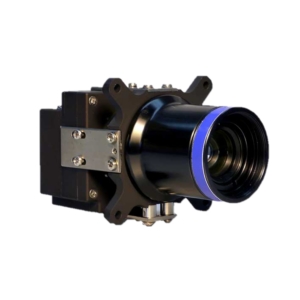

| Small Satellite Star Tracker | |
Star Tracker
from AAC Clyde Space
|
| The ST400-T from AAC Clyde Space is a Star Tracker that is developed for microsatellite systems. This star tracker has an attitude determination accuracy of 10 arcseconds (pitch, yaw) and 120 arcseconds (roll). It has an update rate of 5 Hz and a maximum slew rate of 0.5 degrees/sec (tip/tilt) and 1 degree/sec (roll). It is ideal for attitude determination in small satellites and is aimed at applications in pico- and nano-satellite platforms. |
| |
Download Datasheet
Product Details | |
|
|
|
| 1.2 m Auto-Acquire Satellite Antenna System | |
SATCOM Antenna
from C-COM
|
| The 1200 from C-COM is a SATCOM Antenna with a transmit frequency range of 7.90-14.80 GHz and a receive frequency range of 7.25-12.75 GHz. It has a midband Tx gain of 38.10-43.00 dB and an Rx midband gain of 37.40-41.50 dB. It has a maximum cross-polarization of -30 dB and a VSWR of 1.3:1 (Ku-band). It is designed to work with the iNetVu 7000C controller and is suitable for applications in industries such as oil & gas exploration. |
| |
Download Datasheet
Product Details | |
|
|
|
| DC to 18 GHz, 3 dB Space Qualified Fixed Attenuator | |
Space Qualified Fixed Attenuator
from Cinch Connectivity Solutions
|
| The SQA-0182-03-SMA-02 from Cinch Connectivity Solutions is a Space Qualified Fixed Attenuator with a frequency range of DC to 18 GHz. This attenuator has an attenuation value of 3 dB with an attenuation accuracy of up to 0.3 dB. The attenuator has a maximum mass of 14.2 g and measures 24.13 mm It is recommended for non-flight applications, thermo-vacuum chamber testing, pre-flight testing, and pre-flight system evaluation. |
| |
Download Datasheet
Product Details | |
|
|
|
| Radiation Hardened Hybrid Solid State Relay | |
Space Qualified Solid State Relay
from Modular Devices
|
| The 53814 from Modular Devices is a Space Qualified Solid-State Relay with a bias voltage range of 4.7-5.3 V and a bias current of 30-50 mA. It is a single pole single throw relay, normally open when de-energized. It has a contact voltage rating of 300 V and a contact current rating of 3 A. It has a dynamic energize time of 12-30 µS and a dynamic de-energize time of 5-20 µS. The solid-state relay has a radiation tolerance TID of 100 kRads. |
| |
Download Datasheet
Product Details | |
|
|
|

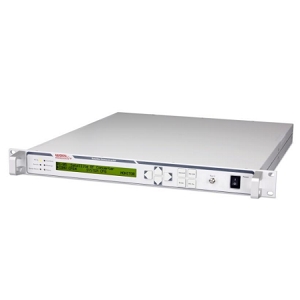

| Ka-Band Downconverter for Fixed Satellite Ground Stations | |
Block Downconverter
from WORK Microwave
|
| The VHCD-Ka7 / VSCD-Ka7 from WORK Microwave is a Block Downconverter that has an input RF frequency range of 25.5-27.5 GHz and an intermediate frequency of 2440/2450 MHz. It has a frequency resolution of 100 Hz and a phase noise of up to -104 dBc/Hz (1 MHz). It supports remote control through RS232, RS422/485 (2-wire or 4-wire) interfaces, Ethernet supporting a TCP/IP command interface, a Web browser interface, and SNMP. |
| |
Download Datasheet
Product Details | |
|
|
|

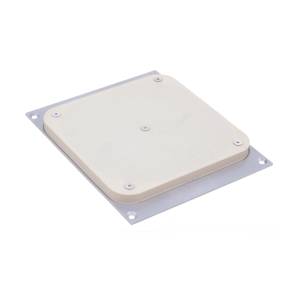

| Patch Antenna for Nano Satellites | |
Satellite Antenna
from GomSpace
|
| The ANT1090-P from GomSpace is a Satellite Antenna with a frequency range of 1.085-1.095 GHz. This patch antenna is right-hand circularly polarized and has a return loss of less than -8 dB. It has a 3 dB beam width of greater than 80 degrees and an axial ratio of less than 3 dB. It requires a DC supply voltage of 4.0-5.25 V. It has a mass of 135 g and measures 100.0 x 100.0 x 12.0 mm. It is designed especially for ADS-B signal reception. |
| |
Download Datasheet
Product Details | |
|
|
|
| L-Band Beacon Receiver for Antenna Tracking | |
Satellite Beacon Receiver
from SatService
|
| The sat-nms LBRX-81 from SatService is a Satellite Beacon Receiver that measures the RF input level and provides the information as an output signal for control systems. It has an input level measurement range of -30 to -80 dBm and measurement bandwidths of 6, 12, 30, and 100 kHz. The beacon receiver has a minimum C/No of 45 dBHz and a damage level of +10 dBm. It requires a power supply of 22-28 V (beacon receiver) and 24 VDC. |
| |
Download Datasheet
Product Details | |
|
|
|

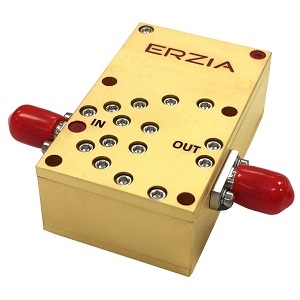

| 1-40 GHz Wideband Low Noise Amplifier for Space Applications | |
RF Amplifier
from ERZIA
|
| The ERZ-LNA-0100-4000-45-5 from ERZIA is an RF Amplifier that operates in a frequency range of 1-40 GHz. This low noise amplifier has a small signal gain of 41-50 dB and a gain flatness of ±4 dB. It has an output power (P1dB) of 10-22 dBm and a noise figure of 3-9 dB. The amplifier has an input VSWR of 1.7:1 and an output VSWR of 2.0:1. It is ideal for industrial, laboratory, Satcom, telecom, space, aerospace, and military applications. |
| |
Download Datasheet
Product Details | |
|
|
|

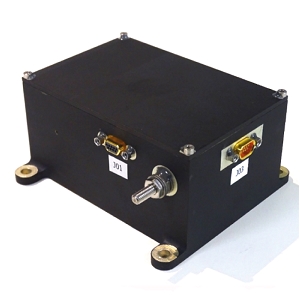

| Three-Axis Digital Magnetometer for LEO Missions | |
Magnetometer
from LusoSpace
|
| The DMAG from LusoSpace is a Magnetometer that provides 3 axis digital readings of the surrounding magnetic field. The magnetometer has a bandwidth of 5 Hz and supports RS-485 or RS-422 data interface. It has a mass of 300 g and measures 112 x 72 x 37 mm. It is being developed/qualified for space applications (TRL 8) according to ECSS (ESA) and is ideal for providing attitude reference in LEO missions. |
| |
Download Datasheet
Product Details | |
|
|
|
| 1.5 A, 2 kV Ultrafast Recovery High Voltage Rectifier | |
Space Qualified Diode
from Solid State Devices
|
| The JANS1N6513 from Solid State Devices is a Space Qualified Diode with a maximum reverse working voltage of 2000 V. This ultrafast recovery rectifier has a maximum forward voltage of 3.5 V. It has a maximum non-repetitive peak forward surge current of 100 A and an average output current of 1-1.5 A. This diode is qualified to JANS, JANTXV, JANTX, JAN8, and MIL-PRF-19500/575 levels and is suitable for use in high voltage systems. |
| |
Download Datasheet
Product Details | |
|
|
|
| 500 W CW Ka-Band Antenna Mount HPA | |
SATCOM Amplifier System
from Spacepath Communications
|
| The STA5550 from Spacepath Communications is a SATCOM Amplifier System with a frequency range of 27.5-31.0 GHz and a bandwidth of 2500 MHz. It has a transmit band noise power of -70 dBW/4 kHz and a receive noise power of -150 dBW/4 kHz. It features an advanced cooling design that enables operation at +60 degrees C and in direct sunlight and supports RS485, RS232, Ethernet, SMP, or Webpage GUI interfaces. |
| |
Download Datasheet
Product Details | |
|
|
|
| Radiation-Hardened Space-Grade FPGA | |
FPGA
from Advanced Micro Devices
|
| The Virtex-5QV from Advanced Micro Devices is an FPGA that provides exceptional hardness to single-event upsets, total immunity to single-event latch-ups, total ionizing doses of over 1 Mrad (Si), and datapath protection from single-event transients. It is the only reprogrammable and highest-density radiation-hardened FPGA. It is designed to meet the requirements of space applications that demand high performance as well as high reliability. |
| |
Download Datasheet
Product Details | |
|
|
|
| 60 V Radiation Hardened Logic Level Power MOSFET | |
Space Qualified MOSFETs
from Infineon Technologies
|
| The IRHLUC7670Z4 from Infineon Technologies is a Space Qualified MOSFET with a continuous drain current range of -0.41 to 0.89 A. It has a drain-to-source breakdown voltage of 60 V. It has a pulsed drain current of -2.6 to 3.56 A and a low static drain-to-source on-state resistance of 0.75 Ohms. The MOSFET is qualified according to MIL-PRF-19500 for space applications and is suitable for DC-DC converters and motor drives. |
| |
Download Datasheet
Product Details | |
|
|
|

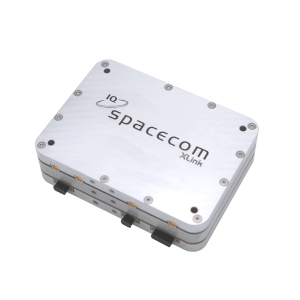

| X Band Transceiver with SDR for Small Satellites | |
Software Defined Radio
from IQ spacecom
|
| The XLink - X from IQ spacecom is a Software Defined Radio with an X-band Tx frequency range of 8.025-8.400 GHz and an Rx frequency range of 7.145-7.250 GHz. This advanced transceiver system has a Sat2Ground data rate of 2 kbps to 200 Mbps and a Ground2Sat data rate of greater than 56 kbps. It’s dimensions fit a 1U CubeSat as well as larger satellites and is ideal for X-band communication links of small satellites in LEO environment. |
| |
Download Datasheet
Product Details | |
|
|
|
| 12.15-12.75 GHz Test Loop Translator | |
Test Loop Translator
from Jersey Microwave
|
| The KTLT-137145-122127-N22 from Jersey Microwave is a Test Loop Translator with an input frequency range of 13.75-14.35 GHz and an output frequency range of 12.25-12.75 GHz. It requires a supply voltage of 90-260 V AC and has a power consumption of up to 25 W. The test loop translator weighs 15 lbs and is designed for testing the satellite communication between the up and downlink in the same band or uplink to L-Band. |
| |
Download Datasheet
Product Details | |
|
