| Featured Space and Satellite Products this Week |
|
|
| 3.0-3.9 GHz Ceramic RF Balun for Fixed Satellite Service Applications | |
Space Qualified RF Balun
from Mini Circuits
|
| The NCS2-392+ from Mini Circuits is a Space Qualified RF Balun with a wideband frequency range of 3000-3900 MHz. This ceramic balun has an amplitude unbalance of +/- 0.06-0.78 dB and a phase balance of 0.02-4.81 degrees. It has an impedance ratio of 1:2 and a maximum insertion loss of 0.20 dB. It has a mass of 0.008 g and measures 0.079 x 0.049 x 0.033 inches. It is suitable for applications such as fixed satellite services, WiMAX, and radar. |
| |
Download Datasheet
Product Details | |
|
|
|

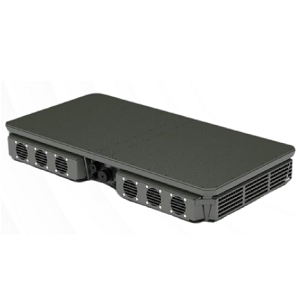

| Electronically Scanned Array Antenna Terminal | |
Satellite Terminal
from ReQuTech AB
|
| The RESA M Ka from ReQuTech AB is a Satellite Terminal with a transmit frequency range of 27.50-31.0 GHz and a receive frequency range of 17.70-21.20 GHz. It is linear or circularly polarized and has a TX/Rx cross-polarization discrimination of 25 dB. It weighs 23-25 Kg and measures 90 x 50 x 13 cm. This fully integrated SATCOM terminal covers GEO, LEO, and MEO constellations for on-the-move and on-the-pause applications. |
| |
Download Datasheet
Product Details | |
|
|
|

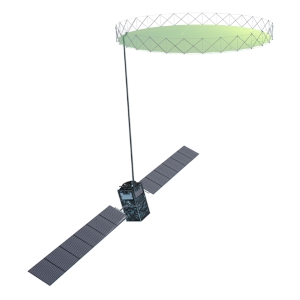

| Ka-Band Perimeter Truss Reflector for Science and SAR Missions | |
Space Reflector
from L3Harris Technologies
|
| The Perimeter Truss Reflector from L3Harris Technologies is a Space Reflector that is scalable from 3-22 meters. It is compatible with the universal cradle adapter for spacecraft mounting or with traditional direct mounting. The reflector meets the challenging requirements of modern satellite antennas and is ideally suited for the most technically challenging communication, science, and synthetic aperture radar missions. |
| |
Download Datasheet
Product Details | |
|
|
|

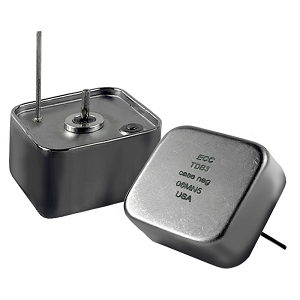

| 90 mF Space Grade Hybrid Capacitor | |
Space Qualified Capacitor
from Quantic Evans
|
| The TDB3010903 from Quantic Evans is a Space Qualified Capacitor with a capacitance rating of 90,000 uF. It has a mass of 61 g and measures 1.0 x 1.0 x 0.620'. It comes in a hermetically sealed welded tantalum case and is qualified to ANSI J-STD-002. It is suitable for space applications such as RADAR/LIDAR, thrusters/electric propulsion, transmit/receive modules, power holdup/bridge power, and defense/electronic warfare. |
| |
Download Datasheet
Product Details | |
|
|
|

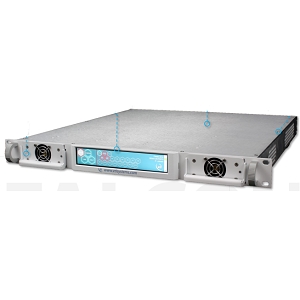

| X-Band Block Downconverter for Satellite Operations | |
Block Downconverter
from ETL Systems
|
| The FN-D-X3L1-24127 from ETL Systems is a Block Downconverter that converts an input frequency of 7250-8400 MHz to an output frequency of 950-2100 MHz. It requires an AC input supply of 85-264 V and has a power consumption of 150 W. Its typical applications include teleports and Earth stations, satellite operations, government and defence applications, telemetry, tracking and command, and high resilience applications. |
| |
Download Datasheet
Product Details | |
|
|
|

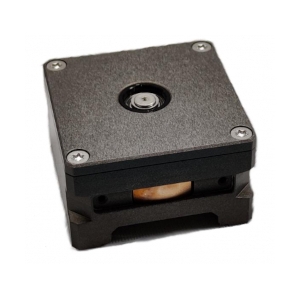

| 12U CubeSat Reaction Wheel | |
Reaction Wheel
from ARCSEC
|
| The Zyra from ARCSEC is a Reaction Wheel that has a torque of 1.5 mNm and a momentum capacity of 27.5 mNms. It is equipped with internal speed control and custom drive electronics that offer high rotational speed accuracy and stability. It requires a DC supply of 5-12 V. It features radiation-tested embedded electronics and controls. It is offered with its mounting on 3 different planes for flexible integration and is suitable for CubeSats up to 12U. |
| |
Download Datasheet
Product Details | |
|
|
|

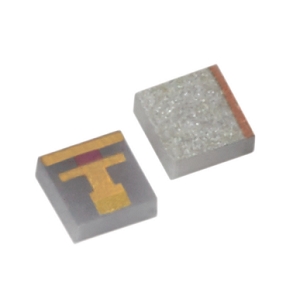

| DC-64 GHz Wire Bondable Chip Termination for Satellite Communications | |
Space Qualified RF Termination
from Smiths Interconnect
|
| The HR-CT0404ALN2WB1 from Smiths Interconnect is a Space Qualified RF Termination with a frequency range of DC-64 GHz. It has a nominal impedance of 50 Ohms and a VSWR of 1.25:1. It is space-qualified based on MIL-PRF-55342 and is suitable for applications such as amplifier circuits, isolators, transmit/receive modules, up/down converters, instrumentation, satellite communications, radar, and broadcast. |
| |
Download Datasheet
Product Details | |
|
|
|

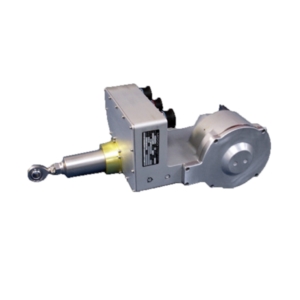

| High Force Linear Actuator for Space Applications | |
Space Actuator
from Moog
|
| The Model-S from Moog is a Space Actuator with a resolution of 0.00047 inches and a stroke of 5.50 inches. It has a force of 3,500 lbf at 1.10 in/sec and a maximum force of 4,670 lbf. It requires a maximum current of 20 A and has a high axial stiffness of 295,000 lb/in. It incorporates 3-phase BLDC motors and high precision ball screw drive that provides extra fine resolution linear movement. The actuator is ideal for space applications. |
| |
Download Datasheet
Product Details | |
|
|
|

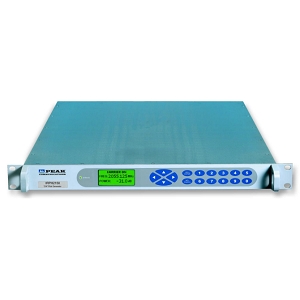

| Pilot Generator Module for Beacon Tracking Applications | |
Satellite Beacon Receiver
from Peak Communications
|
| The IRPH2150 from Peak Communications is a Satellite Beacon Receiver with an L-band input frequency range of 850-2150 MHz. The beacon receiver features a graphics display module, membrane keyboard with a clear and intuitive control and configuration menu, fully utilizing the unique graphics display. It is designed specifically for AUPC or beacon tracking applications when a stable CW beacon is not available from the satellite. |
| |
Download Datasheet
Product Details | |
|
|
|

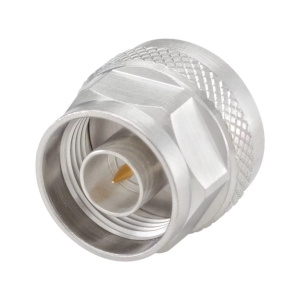

| DC to 11 GHz N-Type Connector for Spaceflight Applications | |
Space Qualified RF Connector
from Rosenberger
|
| The 53-000-000_TD from Rosenberger is a Space Qualified RF Connector with a frequency range of DC to 11 GHz and an impedance of 50 ohms. It features a screw-on /threaded locking mechanism for fast and easy disconnection and has mating cycles of greater than 500. It is suitable for applications such as corrugated, semi-rigid, and flexible cables, variants for mobile communication and site solutions, antennas, and base stations. |
| |
Download Datasheet
Product Details | |
|
|
|

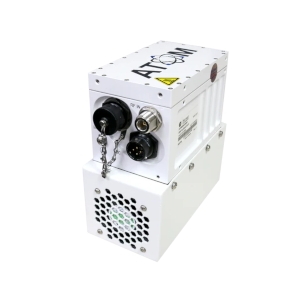

| 40 W Ku-Band Solid State Power Amplifier | |
SATCOM Amplifier System
from Norsat
|
| The ATOMSKU040S1 from Norsat is a SATCOM Amplifier System that has a transmit frequency range of 13.75-14.5 GHz. It has an IF frequency range of 950-1700 MHz and an LO frequency of 12.80/13.05 GHz. It has an output saturated power of 47 dBm. It has a maximum phase noise of up to -102 dBc/Hz at 1MHz and an output spurious of -60 dBc. It has an input/output VSWR of 2.0:1 and a noise power density of -65 dBm/Hz in Tx and Rx. |
| |
Download Datasheet
Product Details | |
|
|
|

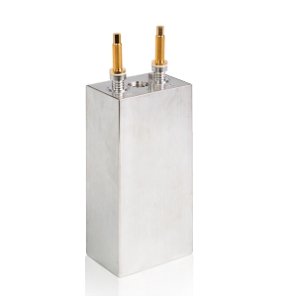

| 70 Ah, 256 Wh Space-Qualified Rechargeable Lithium-Ion Cell | |
Satellite Battery
from EaglePicher Technologies
|
| The SLC-21060-003 from EaglePicher Technologies is a Satellite Battery with a nameplate capacity of 70 Ah, 256 Wh. It has a low-cyclic capacity fade and a 175 ±20 psi rupture disk vent. The battery weighs 1.974 Kg and measures 3.2 x 6.8 x 2.3 Inches. It is qualified for space flight and suitable for LEO satellite missions, MEO satellite missions, GEO satellite missions, scientific and exploratory satellite missions, and launch vehicles. |
| |
Download Datasheet
Product Details | |
|
|
|

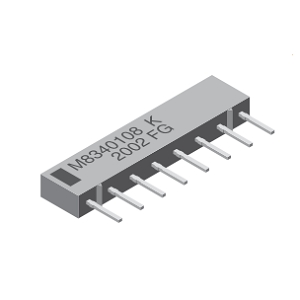

| 10-1 MOhm Thick Film Resistor | |
Space Qualified Resistor
from Vishay
|
| The MSM10C from Vishay is a Space Qualified Resistor with a resistance range of 10 Ohms to 1 MOhms. It has a power rating of 0.11-1.8 W and uses thick film resistive elements. This single-in-line resistor has an isolated bussed, and dual terminator schematics. It is compatible with automatic insertion equipment and comes in a molded epoxy body with copper alloy, hot solder dipped terminations. It weighs 1.1 g and measures 4.95 x 8.89 mm. |
| |
Download Datasheet
Product Details | |
|
|
|
| 27.5-30 GHz Test Loop Translator for Satellite Communications | |
Test Loop Translator
from GeoSync Microwave
|
| The TRR-2B-2 from GeoSync Microwave is a Test Loop Translator with an input frequency range of 27.5-30.0 GHz and an output frequency range of 17.7-19.6 GHz. This test loop translator has an LO frequency of 9.8/10.4 GHz, an impedance of 50 Ohms and weighs 4.5-6.4 Kg. It is designed for satellite communication applications where frequency translation is needed with a minimum amplitude and group delay distortion. |
| |
Download Datasheet
Product Details | |
|
|
|
| SmallSat Payload Power and Data Handling Unit | |
Power Conditioning and Distribution Unit (PCDU)
from Berlin Space Technologies
|
| The PPDH110-1PL from Berlin Space Technologies is a Power Conditioning and Distribution Unit (PCDU) that is used for power switching of payload power lines and to forward telecommands to payload units. The PCDU has a mass of 780 g and measures 186 x 98 x 46 mm. It has a design life of 5 years in low-earth orbit and acts as the single interface unit between the bus and the payload. The PCDU is designed for small satellite payloads. |
| |
Download Datasheet
Product Details | |
|
