| Featured Space and Satellite Products this Week |
|
|
| 27.0-29.7 mH Space Grade Fixed Chip Inductor | |
Space Qualified Inductor
from Vanguard Electronics
|
| The S26242 from Vanguard Electronics is a Space Qualified Inductor with an inductance range of 27.0-29.7 mH. It has a tolerance of +/- 10 % and a DC resistance of 0.114 Ohms. It has a dielectric withstanding voltage of 200 V and a maximum DC current rating of 925 mA. The inductor has a self-resonant frequency of 1625 MHz and a test frequency of 50 MHz. It features a Transfer Molded package and internal welded terminations. |
| |
Download Datasheet
Product Details | |
|
|
|

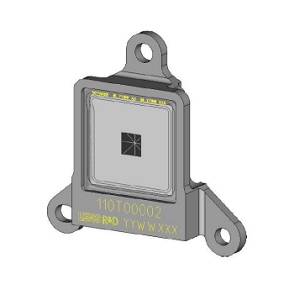

| Fine Sun Sensor for High Reliable Satellite Applications | |
Sun Sensor
from Lens R&D
|
| The BiSon64-ET from Lens R&D is a Sun Sensor with a field of view of 59.2 degrees on the axis and 67.1 degrees on the diagonal. It has a first frequency of greater than 2000 Hz and a radiation tolerance of 8E14 1MeV electrons on bare diodes. The sun sensor has a mass of less than 24 g and has achieved a TRL 9 level of operation. It is qualified within ESA development activities and can be used in LEO, MEO, and GEO missions. |
| |
Download Datasheet
Product Details | |
|
|
|
| 1.2m Ka-Band Auto Flyaway Antenna | |
SATCOM Antenna
from Norsat
|
| The WFA120KA-NA from Norsat is a SATCOM Antenna with a transmit frequency range of 29-31 GHz and a receive frequency range of 18.7-21.2 GHz. The antenna uses a 1.2 m, 8-segment carbon fiber reflector and has an azimuth range of +/- 200 degrees. It weighs 32 Kg (reflector/feed) and measures 84.5 x 62 x 49 cm (L x W x H). It offers rugged and reliable satellite links for remote enterprise, energy, emergency, and media applications. |
| |
Download Datasheet
Product Details | |
|
|
|

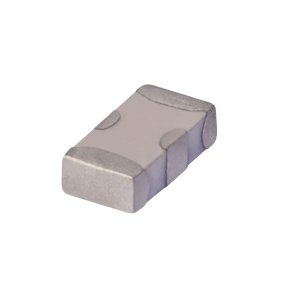

| DC-120 MHz Low Pass Filter for VHF/UHF Transmitters | |
Space Qualified RF Filter
from Mini Circuits
|
| The LFCN-120 from Mini Circuits is a Space Qualified RF Filter with a passband frequency range of DC to 120 MHz and a cut-off frequency of 195 MHz. It has a pass band insertion loss of 1.0 dB and a stop band rejection loss of 20-40 dB. The filter has a mass of 0.02 g and comes in a hermetically sealed package measuring 3.20 x 1.6 mm. It is ideal for applications such as harmonic rejection, VHF/UHF transmitters, and receivers. |
| |
Download Datasheet
Product Details | |
|
|
|

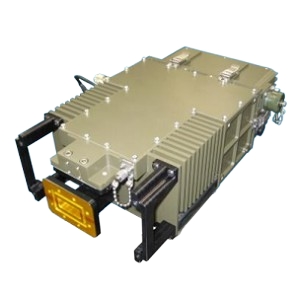

| 40 W X-Band Block Upconverter for Military SATCOM Systems | |
Block Upconverter
from ACORDE
|
| The ACMB-X40W-E1-V1 from ACORDE is a Block Upconverter with an input frequency range of 950-1450 MHz and an output frequency range of 7.9-8.4 GHz. This block upconverter has an L-band input VSWR of 1.5:1 and an X-band output VSWR of 1.3:1. The converter is designed for harsh environmental conditions and is ideal for professional & military satellite communication systems such as ground, SOTP, SOTM, and maritime. |
| |
Download Datasheet
Product Details | |
|
|
|

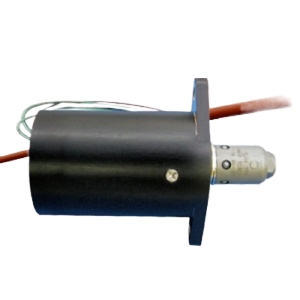

| Ejector Release Mechanism for Satellite Dispensing | |
Attach and Release Mechanism
from Ensign-Bickford Aerospace & Defense Company (EBAD)
|
| The E500 from Ensign-Bickford Aerospace & Defense Company (EBAD) is an Attach and Release Mechanism with a maximum release load of 2224 N. The mechanism requires an operating current of 1.25-4 A and has a resistance of 2.2 Ohms. It is suitable for applications such as solar array and instrument deployment, satellite dispensing, hinged cover release, and other space applications where an off angle deployment is desired. |
| |
Download Datasheet
Product Details | |
|
|
|

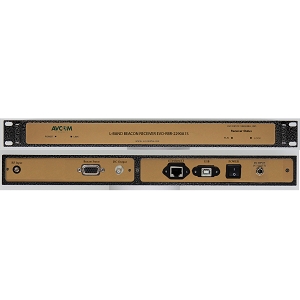

| Rackmount L-Band Beacon Receiver | |
Satellite Beacon Receiver
from AVCOM
|
| The EVO-RBR-2290A1S from AVCOM is a Satellite Beacon Receiver with an input frequency range of 900-2200 MHz. This L-band beacon receiver has a tuning step size of 1 kHz and a an input level range of -10 to -100 dBm. It has a detection bandwidth of 10-750 kHz and a tracking bandwidth of 10-150 kHz. The beacon receiver is based on Avcom’s software-defined-radio technology platform that employs high-performance DSP, and FPGAs. |
| |
Download Datasheet
Product Details | |
|
|
|
| ESA/SCC Screened Surface Temperature Sensor | |
Space Qualified Temperature Sensor
from Collins Aerospace
|
| The Model 0118MM from Collins Aerospace is a Space Qualified Temperature Sensor that is designed to measure temperatures in the range of -260 to 400 Degrees C. It is suitable for use in any non-conductive fluid or environment that is compatible with platinum and a metal oxide ceramic. The sensor is ideal for satellites and scientific exploration vehicles and was used on launch vehicles such as Atlas V, Delta IV/RS-68, Ariane 5/Vulcain, and K-1/NK-33. |
| |
Download Datasheet
Product Details | |
|
|
|
| 4.1 mH Space Grade Gate Drive Transformer | |
Space Qualified Power Transformer
from Vanguard Electronics
|
| The SGD203 from Vanguard Electronics is a Space Qualified Power Transformer with an inductance of 4.1 mH. It has a minimum insulation resistance of 10 K MOhms. The transformer is built to meet MIL-STD-981 specifications and its compact, low profile makes it ideal for automatic placement. It measures 0.405 × 0.405 × 0.3 inches and is suitable for applications such as power supplies, DC/DC converters, and SEPIC converters. |
| |
Download Datasheet
Product Details | |
|
|
|

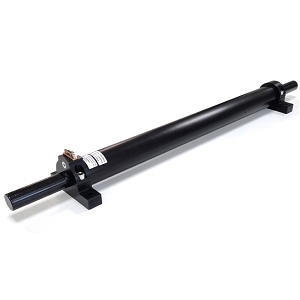

| ECSS Qualified Magnetorquer for Small Satellites | |
Magnetorquer
from LusoSpace
|
| The MTQ140 by Lusospace is a Magnetorquer with a magnetic dipole moment of 140 AM^2 and a linearity error of about 1 %. It generates a magnetic moment that can be used for S/C attitude control or reaction wheels offloading. It has a residual magnetic moment of less than 0.5 % and a time constant of 175 ms. It has a mass of 3.6 Kg and measures 620 x 90 x 60 mm. It is ideally suited for small/middle-sized spacecraft. |
| |
Download Datasheet
Product Details | |
|
|
|
| 16 W Ku-Band SATCOM Power Amplifier | |
SATCOM Amplifier System
from AnaCom, Inc
|
| The AnaSat SSPA Ku Band 16W from AnaCom is a SATCOM Amplifier System that operates from a frequency range of 14-14.5 GHz. It has a small signal gain of 42 dB and a 1 dB compression point of 42 dBm. This amplifier system has an intermodulation of -25 dBc (2 carriers, each with 6 dB backoff from the P1db rating). It is designed to be interfaced with a 0 dBm driver and is ideally suited for SCPC, MCPC, DAMA, TDMA, and VoIP applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 28 V, 2.32 A Space-Qualified DC to DC Converter | |
DC to DC Converter
from Crane Aerospace & Electronics
|
| The MFL2828S from Crane Aerospace & Electronics is a Space Qualified DC-DC Converter with an input voltage range of 16-40 V. It has an output voltage of 28 V and an output current of 2.32 A. The MFL2828S features fully isolated magnetic feedback, fixed high switching frequency, and transient protection up to 80 volts for 50 ms. It measures 3.005 x 1.505 x 0.400 inches and is ideal for use in programs requiring high reliability, |
| |
Download Datasheet
Product Details | |
|
|
|
| Ka-Band Test Loop Translator | |
Test Loop Translator
from Peak Communications
|
| The TLT2750 from Peak Communications is a Test Loop Translator with an input frequency range of 27.5-28.5 GHz and an output frequency range of 950-1950 MHz. This 19-inch rack mount test loop translator weighs 4.5 Kg, measures 1.75 x 19 x 15.7 inches and an impedance of 50 Ohms. It is designed for translating a Ka-band transmit signal to the L-band receive signal which can be applied to the receive equipment in a test mode. |
| |
Download Datasheet
Product Details | |
|
|
|
| 10-10.23 MHz Space OCXO for Transponders and GNSS Receivers | |
Space Qualified Oscillator
from Rakon Limited
|
| The ROX5050S from Rakon Limited is a Space Qualified Oscillator with a nominal frequency of 10-10.23 MHz. It has a harmonic value of -30 dBc and a spurious value of -60 dBc. This oscillator measures 50 x 50 x 34 mm and is an ideal solution for telecommunications payload applications such as atomic clocks, signal generation, transponders, GNSS receivers, digital cards, down and up converters, and synthesizers. |
| |
Download Datasheet
Product Details | |
|
|
|

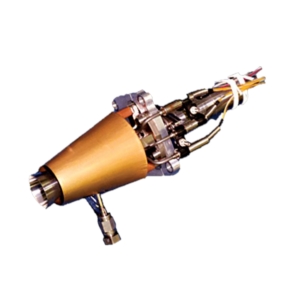

| 5 N Monopropellant Thruster for Space Exploration Missions | |
Spacecraft Thruster
from Moog
|
| The MONARC-5 from Moog is a Spacecraft Thruster with a steady state thrust of 5 N. It has successfully flown on missions such as Jason CS, MMS, EarthCare, LCROSS, and Worldview. It has a nozzle expansion ratio of 135:1 and requires a valve power of 18 W. It is suited for spacecraft and flight vehicle attitude control applications and is ideal for applications such as earth observation and communication, space exploration, and missile defense. |
| |
Download Datasheet
Product Details | |
|
