| Featured Space and Satellite Products this Week |
|
|

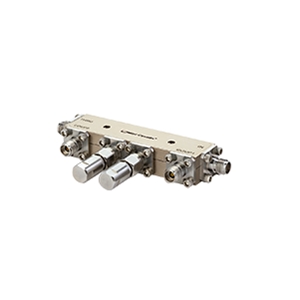

| 18-40 GHz Dual Directional Coupler for Fixed Satellite Applications | |
Space Qualified Coupler
from Mini Circuits
|
| The ZDDC10-K1844+ from Mini-Circuits is a Space Qualified Coupler with an operating frequency range of 18-40 GHz. This wideband coupler has a coupling of 10 dB. It has a directivity of 8-40 dB and a mainline loss of 1.7-2.8 dB. The coupler has a mass of 80 g and is ideal for lab testing applications as well as for power monitoring over wide bands. It is suitable for other applications such as 5G, mobile, and fixed satellite. |
| |
Download Datasheet
Product Details | |
|
|
|

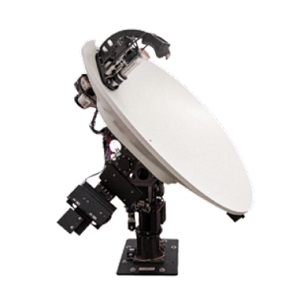

| Ka-band 2.2 m Ruggedized Maritime VSAT System | |
Satellite Terminal
from Orbit Communication Systems
|
| The OceanTRx 7MIL Ka from Orbit Communication Systems is a Satellite Terminal with a Ka-band transmit frequency range of 27.5-30.0 GHz and a receive frequency range of 17.70-20.2 GHz. The terminal is designed and tested for the strictest MIL-STD-810G environmental conditions and provides reliable, high-capacity, long-range multiband communication to navy vessels under extreme conditions. |
| |
Download Datasheet
Product Details | |
|
|
|
| Hi-Reliability Radiation Capable Optoisolator | |
Space Qualified Optocoupler
from TT Electronics
|
| The HCC1001 from TT Electronics is a Space Qualified Optocoupler that has a forward voltage range of 0.7-1.9 V. It has an on-state collector current of 1-2.8 mA and a collector-emitter saturation voltage of 0.3 V. The optocoupler has a capacitance of 5 pF and a rise and fall times of 20 µs. The HCC1001 is ideal for circuit electrical isolation in space applications such as satellites, launchers, space vehicles, and planetary rovers. |
| |
Download Datasheet
Product Details | |
|
|
|
| 2.0 Meter Carbon Fiber Flyaway Antenna | |
SATCOM Antenna
from Sat-Lite Technologies
|
| The 2021 Agilis from Sat-Lite Technologies is a SATCOM Antenna that supports multi-band C, X, Ku, and Ka-band frequencies. It features a 2 meters carbon fiber reflector which is configured as 7-piece segmented parabolic single offset reflector designed to provide high gain and low cross-polarization characteristics. The antenna has a continuous azimuth of 360 degrees and an elevation of 5-90 degrees of reflector boresight. |
| |
Download Datasheet
Product Details | |
|
|
|
| 1 dB Space-Qualified RF Fixed Attenuator | |
Space Qualified Fixed Attenuator
from Cinch Connectivity Solutions
|
| The SQA-0181-01-SMA-02 from Cinch Connectivity Solutions is a Space Qualified Fixed Attenuator with a frequency range of DC to 18 GHz. This attenuator has an attenuation value of 1 dB and an average power consumption of 2W. This RoHS-compliant attenuator has been used on several successful missions such as the Emirates Mars mission, Parker solar probe, Europa Clipper, OneWeb, and GPS satellites. |
| |
Download Datasheet
Product Details | |
|
|
|

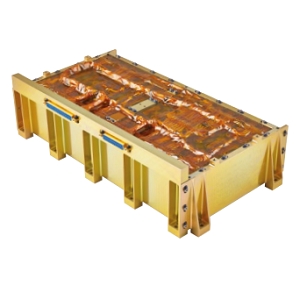

| Space-Qualified 56 Ah Li-Ion Rechargeable Battery | |
Satellite Battery
from EnerSys
|
| The ABSL 8s16p 28V 56Ah from EnerSys is a Satellite Battery with a configuration of 8s16p. It has a mass of 1.6 kg and measures 364 x 203 x 98 mm. It has a cell level radiation exposure tolerance of up to 18 Mrad which does not utilize cell-balancing electronics and is qualified for the NASA Goddard Space Flight Center with the design being utilized for a variety of applications including civilian, military, and other commercial applications. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by GLOBAL MILSATCOM 2024 | | GLOBAL MILSATCOM 2024 | | Enabling you to Connect with, Learn from and Shape the MilSatCom Community
It’s time to join 1000 of your peers and unlock unparalleled insights from over 100 of the biggest experts in the field to ensure you stay ahead in the dynamic landscape of military satellite communications. Click here to learn more | | | |
|
|

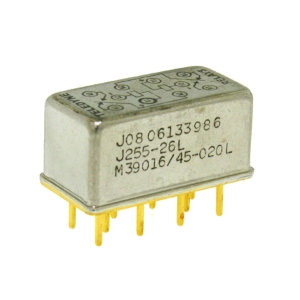

| Magnetic Latching Space Grade DPDT Relay | |
Space Qualified Solid State Relay
from Teledyne Relays
|
| The HR255/HR257 from Teledyne Relays is a Space Qualified Solid-State Relay with an operating frequency range of DC to 3 GHz. The relay meets the basic requirements of both the NASA Goddard Space Flight Center’s S-311-P-754 document and the European Space Agency’s (ESA) SCC 3601 & 3602 specifications. The relay weighs 13 g and is ideal for space flight applications requiring low-level switching to dry circuits up to 2 A. |
| |
Download Datasheet
Product Details | |
|
|
|
| 3.4-12.75 GHz Block Downconverter for Satcom Systems | |
Block Downconverter
from Narda-MITEQ
|
| The D-98-37991BHV-1K from Narda-MITEQ is a Block Downconverter with an input frequency range of 3.4-12.75 GHz and an output frequency of 70 MHz. It requires an AC voltage supply of 90–250 V. It supports RS485, RS422, RS232, and 10/100Base-T Ethernet interfaces for monitoring and control. It is designed for advanced satellite communication systems and frequency conversion for all video and data applications. |
| |
Download Datasheet
Product Details | |
|
|
|

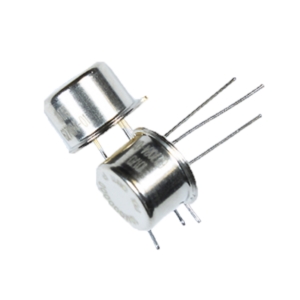

| 7 MHz to 20 MHz Military Grade QPL Quartz Crystal | |
Space Qualified Crystal
from Wi2Wi
|
| The CR101/U-Series from Wi2Wi is a Space Qualified Crystal with a frequency range of 7-20 MHz. This MIL-PRF-3098 qualified crystal has a frequency tolerance of +/- 50 ppm (operating temperature range). It has a load capacitance of 30 pF and a shunt capacitance of 7 pF. It comes in a hermetically sealed case that measures 10.67 x 6.73 mm. This crystal is ideal for various applications in military, avionics, and space. |
| |
Download Datasheet
Product Details | |
|
|
|

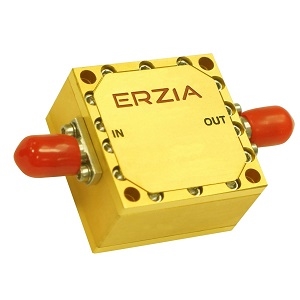

| 17-24 GHz High Power Amplifier for Space Applications | |
RF Amplifier
from ERZIA
|
| The ERZ-HPA-1700-2400-34 from ERZIA is an RF Amplifier that operates in the frequency range of 17-24 GHz. The amplifier has a maximum input VSWR of 1.8:1 and a maximum output VSWR of 1.8:1. It requires a DC supply voltage of 9-15 V. The amplifier features gold-plated compact aluminium housing and solder-filtered pins for DC connection. It is ideal for industrial/laboratory, satcom/telecom, space, aerospace, and military applications. |
| |
Download Datasheet
Product Details | |
|
|
|

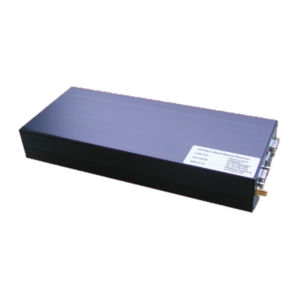

| L-Band Satellite Beacon Receiver | |
Satellite Beacon Receiver
from SatService
|
| The sat-nms LBRX from SatService is a Satellite Beacon Receiver that measures the RF input level and provides the information as an output signal for control systems. It requires a power supply of 22-28 V (beacon receiver). It features 14/18 V 0/22 kHz interface to switches and switch matrixes, full remote administration & support capability, and relay contact output for level alarm. It weighs 1 Kg and is enclosed in a compact, small DIN rail-compatible |
| |
Download Datasheet
Product Details | |
|
|
|
| Radiation Hardened Star Tracker for New Space Market | |
Star Tracker
from Jena-Optronik GmbH
|
| The ASTRO CL from Jena-Optronik GmbH is a Star Tracker that has an attitude accuracy of less than 6/48 arcsec (default) and 12/72 arcsec (Low Accuracy Mode). It requires a power supply of 4.0-5.5 V and has a nominal power consumption of 1 W. It has a mass of 305 g and measures 60 x 60 x 110 mm. It has been developed to meet the specific requirements of the New Space market and is designed to fit the needs of LEO constellation spacecraft. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by GLOBAL MILSATCOM 2024 | | |
|
|

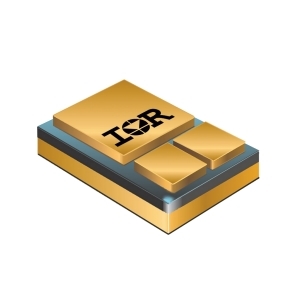

| 150 V High-Reliability Schottky Common Cathode Diode | |
Space Qualified Diode
from Infineon Technologies
|
| The 12CLQ150 from Infineon Technologies is a Space Qualified Diode with a maximum DC reverse voltage of 150 V and a maximum average forward current of 35 A. It features a guard ring for enhanced ruggedness and is packaged in the hermetic surface mount SMD-1 ceramic package. The diode is fully qualified according to MIL-PRF-19500 for space applications and is suitable for DC-DC converters, protection circuits, and motor drives. |
| |
Download Datasheet
Product Details | |
|
|
|

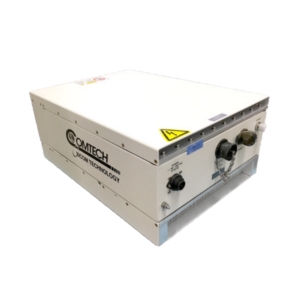

| 120 W Ka-band GaN Solid-State Amplifier | |
SATCOM Amplifier System
from Comtech Xicom Technology
|
| The Puma 120Ka from Comtech Xicom Technology is a SATCOM Amplifier System that has an RF output frequency range of 27.5-30 GHz and an IF input frequency range of 1250-3750 MHz. This GaN amplifier system requires an AC power supply of 90-264 V and has a power consumption of 800 W. It weighs 17 Kg and measures 19.8 x 35.6 x 48.3 cm. The amplifier system is designed to provide 60 W of linear power for satcom uplinks. |
| |
Download Datasheet
Product Details | |
|
|
|
| 6U CubeSat Platform for Earth Observation & IoT Applications | |
Satellite Bus & Platform
from C3S Electronics Development
|
| The 6U CubeSat from C3S Electronics Development is a Small Satellite Platform that is suited for LEO operations with a design lifetime of up to 5 years. It requires a maximum solar power of up to 65 W. It has a symbol uplink rate of 1.25-150 kbps and a downlink rate of 5-150 kbps. The CubeSat Platform measures 226.3 x 100 x 366 mm (6U size) and is ideal for earth observation, IoT, IOD, and space weather monitoring applications. |
| |
Download Datasheet
Product Details | |
|
