| Featured Space and Satellite Products this Week |
|
|
| Space-Qualified Rubidium Frequency Atomic Clock | |
Space Qualified Atomic Clock
from Safran Group
|
| This MiniRAFS from Safran Group is a Space-Qualified Atomic Clock for LEO, MEO, and GEO orbits with a design life of more than 20 years. It requires a DC supply of 15.5-16.5 V and has a power dissipation of 10-15 W. It measures 53 x 67.5 x 107.5 mm. It is ideal for applications such as space scientific missions, secure satellite communications, tracking and guidance control, and advanced low satellite orbit digital communications. |
| |
Download Datasheet
Product Details | |
|
|
|

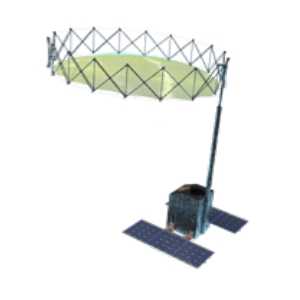

| High-Gain Reflector Optimized For Small Satellite Platforms | |
Space Reflector
from L3Harris Technologies
|
| The Smallsat Perimeter Truss Reflector from L3Harris Technologies is a Space Reflector has 50% lower mass than heritage reflector designs. It provides the high gain necessary for challenging link budgets, reducing the need for high-power amplification of the RF signal. It meets the requirements of modern satellite antennas and is ideally suited for broadcast satellites, synthetic aperture radar, radiometry, internet of things and mobile satellite service applications. |
| |
Download Datasheet
Product Details | |
|
|
|

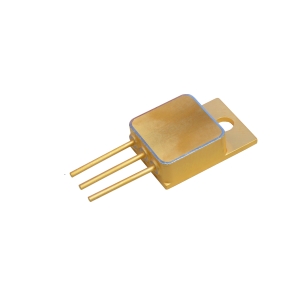

| 60 V Radiation Hardened N-Channel Enhancement Mode MOSFET | |
Space Qualified MOSFETs
from STMicroelectronics
|
| The STRH100N6 from STMicroelectronics is a Space Qualified MOSFETs that has a drain-source voltage of 60 V and a continuous drain current of 40 A. It has a pulsed drain current of 160 A. It has a gate source voltage of ±20 V and a gate source threshold voltage range of 1.5-5 V. This ESCC-certified MOSFET has hermetic packaging and suitable for in-satellite power conversion, motor control, and power switch circuits. |
| |
Download Datasheet
Product Details | |
|
|
|

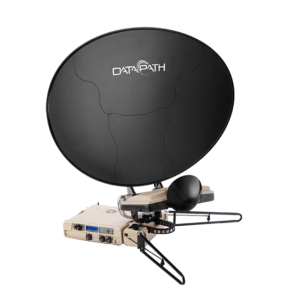

| C-Series Portable Satellite Antenna Terminals (PSATs) | |
Satellite Terminal
from DataPath
|
| The CCT120 from DataPath is a Satellite Terminal that has a transmit frequency range of 7.9-8.4 GHz (X-band), 13.75-14.50 GHz (Ku-band) and 30.0-31.0 GHz (Mil Ka-band). It has a receive frequency range of 7.25-7.75 GHz (X-band), 10.70-12.75 GHz (Ku-band) and 20.2-21.2 GHz (Mil Ka-band). This satellite terminal weighs 27.4-30 Kg. It is wideband Ka capable, ARSTRAT (WGS) compliant, and LEO and MEO (Multi-Orbit) capable. |
| |
Download Datasheet
Product Details | |
|
|
|
| 4.5-6.0 GHz Ceramic Balun for Radar Applications | |
Space Qualified RF Balun
from Mini Circuits
|
| The NCS4-63+ from Mini Circuits is a Space Qualified RF Balun with a wideband frequency range of 4500-6000 MHz. This ceramic balun has an amplitude unbalance of 0.5 dB. It has an impedance ratio of 4 and a maximum insertion loss of 1 dB. The balun has a maximum RF power rating of up to 3 W. It features LTCC construction and is aqueous washable. It is suitable for applications such as WLAN, WIMAX, 802.11, and radar. |
| |
Download Datasheet
Product Details | |
|
|
|
| 3.6-4.2 GHz Indoor/Outdoor Satcom Test Loop Translator | |
Test Loop Translator
from Jersey Microwave
|
| The CTLT-585645-360420-N22 from Jersey Microwave is a Test Loop Translator with an input frequency range of 5.850-6.450 GHz and an output frequency range of 3.6-4.2 GHz. It features an auto-switchover of external reference. It requires a supply voltage of 90-260 V AC. The test loop translator weighs 15 lbs and is designed for testing the satellite communication between the up and downlink in the same band or uplink to L-Band. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by GLOBAL MILSATCOM 2024 | | GLOBAL MILSATCOM 2024 | | Enabling you to Connect with, Learn from and Shape the MilSatCom Community
It’s time to join 1000 of your peers and unlock unparalleled insights from over 100 of the biggest experts in the field to ensure you stay ahead in the dynamic landscape of military satellite communications. Click here to learn more | | | |
|
|

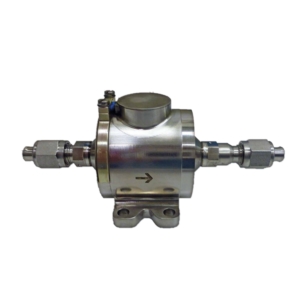

| Space-Qualified Solenoid-Operated Bi-Stable Latch Valve | |
Spacecraft Valve
from Orbital Propulsion Centre
|
| The Latch Valve from Orbital Propulsion Centre is a Spacecraft Valve with a maximum qualified operating pressure of 24.25 bar and a back-relief pressure of 8-14 bar. It is compatible with fluids such as Helium, Nitrogen, water, Hydrazine, MMH, NTO, IPA, and Xenon. The bi-stable valve has a response time of less than 30 ms. The valve is designed to provide a fully reliable safety barrier in the propellant flow between the tank and thrusters. |
| |
Download Datasheet
Product Details | |
|
|
|

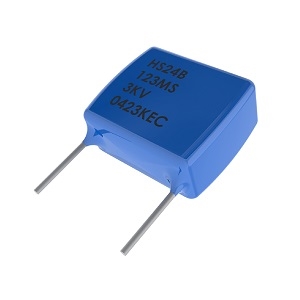

| 330 pF Space Grade Ceramic Capacitor | |
Space Qualified Capacitor
from KEMET
|
| The 05HS21N331KCF from KEMET is a Space Qualified Capacitor with a capacitance of 330 pF. It has a capacitance tolerance of +/- 10 % and a rated DC voltage of 500 V. The capacitor has a lead spacing of 5.59 mm and measures 0.320 x 0.280 x 0.250 Inches. It is ideal for aerospace engine compartments, switch mode power supplies, DC/DC converters, measuring equipment, inverters, and high-voltage coupling applications. |
| |
Download Datasheet
Product Details | |
|
|
|

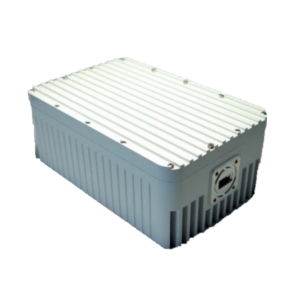

| 25 W Ku-Band Block Upconverter for SatCom Applications | |
Block Upconverter
from KMIC Technology
|
| The KMU137145B12 from KMIC Technology is a Block Upconverter that converts an input IF frequency of 950-1700 MHz to an output RF frequency of 13.75-14.5 GHz. The converter has a spurious of -60 dBc and phase noise of up to -103 dBc/Hz (1 MHz). The converter supports RS-232 and RS-485 interfaces for monitoring and control. It weighs 3.5 Kg and measures 233 x 140 x 88 mm. It is ideal for high power BUCs for VSAT and SatCom applications. |
| |
Download Datasheet
Product Details | |
|
|
|

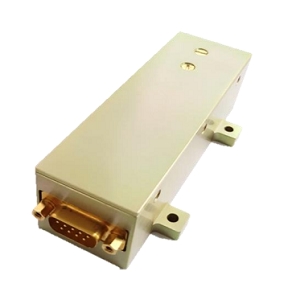

| Three–Axis Magnetometer for Satellites | |
Magnetometer
from SENSORPIA
|
| The MS-15 from SENSORPIA is a Magnetometer that senses attitude by measuring 3-axis components of the earth’s magnetic field. This 3-axis magnetometer has a measuring range of +/- 60 µT and a resolution of 0.01 nT at 1Hz. It requires an input voltage of 15 V and has a power consumption of less than 1.3 W. The magnetometer weighs 250 g. It is developed for scientific satellites and has space flight heritage. |
| |
Download Datasheet
Product Details | |
|
|
|
| 2 mm Rugged Backplane Connector System | |
Space Qualified RF Connector
from Smiths Interconnect
|
| The K2B110FMD from Smiths Interconnect is a Space Qualified RF Connector that has a male pin contact and a contact spacing of 0.079. The connector meets MIL-DTL-55302 and NASA GSFC S-311-P-822 quality conformance inspections. It has a contact life cycle of 4000 per mated connector pair. The connector is designed for the requirements of mission-critical applications within commercial aerospace, space, and defense market segments. |
| |
Download Datasheet
Product Details | |
|
|
|

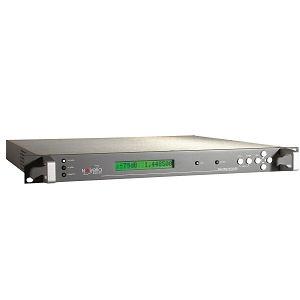

| 70 MHz Digital Tracking Receiver | |
Satellite Beacon Receiver
from Novella SatComs
|
| The B150 Series from Novella SatComs is a Satellite Beacon Receiver with an input frequency range of 70 MHz and an impedance of 50 Ohms. The beacon receiver supports RS232, RS422/RS485, SNMP and HTTP over TCP/IP Ethernet remote interfaces with D-type 9P F and RJ45 connectors and requires a power supply of 115 V/230 V. It is suitable for antenna tracking of NATO, Skynet, or DSCS military beacons. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by GLOBAL MILSATCOM 2024 | | |
|
|

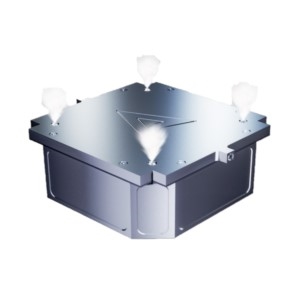

| Resistojet Module for CubeSat Orbit Control | |
Spacecraft Thruster
from Aurora Propulsion Technologies
|
| The ARM-O from Aurora Propulsion Technologies is a Spacecraft Thruster with a thrust range of 0.6-4 mN and a specific impulse of 100 sec. It supports CAN, I2C or RS-485 interfaces for command. It has a wet mass of 50-2000 g and a dry mass of 50-1500 g. It is ideal for orbit control of CubeSat propulsion system utilizing a water-based propellant and other applications such as orbital changes, collision avoidance and station keeping. |
| |
Download Datasheet
Product Details | |
|
|
|

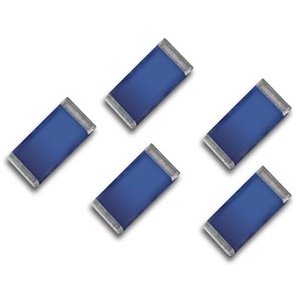

| 56-59 kOhms Precision Military and Space Qualified Chip Resistor | |
Space Qualified Resistor
from TT Electronics
|
| The RM0603 from TT Electronics is a Space Qualified Resistor with a resistance range of 56-59 kOhms and a resistance tolerance of +/- 0.1-10%. It has a rated voltage of 50 V and a rated power of 100 mW. The chip resistor is designed using TaN film technology and has a Sn/Pb solder over nickel barrier terminations. It measures 0.063 x 0.031 x 0.020 inches and is ideal for all high-reliability military and space applications. |
| |
Download Datasheet
Product Details | |
|
|
|
| 800 W C-Band Solid State Satcom Amplifier | |
SATCOM Amplifier System
from Communications & Power Industries
|
| The MPCD6800Q from Communications & Power Industries is a SATCOM Amplifier System with a frequency range of 5.850-6.425 GHz. It requires a power supply of 180-264 VAC and has a power consumption of 3.5-4.6 kW. It features a modular architecture and QuadMod SSPAs that consist of four identical and fully inter-changeable RF plug-in modules. It weighs 82 Kg (RF unit) and measures 483 x 311 x 746 mm. |
| |
Download Datasheet
Product Details | |
|
|
|

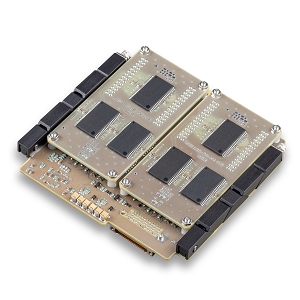

| Space-Qualified On Board Computer | |
Satellite On-Board Computer (OBC)
from C3S Electronics Development
|
| The On-Board Computer (OBC) from C3S Electronics Development is a Satellite On-Board Computer that uses a 32-bit ARM Cortex-M7 processor with MCU frequency of 300 MHz. This radiation tolerant OBC has a computing performance of up to 642 DMIPS and features built-in cold redundancy. It measures 92 x 89.5 x 13.6 mm. It was designed for the space missions and has acquired flight heritage with the launch of RadCube. |
| |
Download Datasheet
Product Details | |
|
