| Featured Space and Satellite Products this Week |
|
|

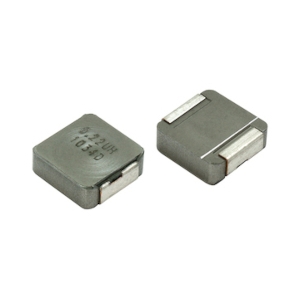

| 0.22 to 33 µH Space Grade Tin/Lead Inductor | |
Space Qualified Inductor
from Vishay
|
| The IHLP-3232CZ-1L from Vishay is a Space Qualified Inductor with an inductance range of 0.22-33 µH and an inductance tolerance of +/- 20 %. This tin/lead inductor has a direct currect resistance of 1.51-177 mOhm and a self resonant frequency of 5.6-151 MHz. The inductor features a shielded construction and Tin/lead Sn/Pb plated terminals. It is suitable for PDAs, notebooks, desktops, servers, high-current POL converters, high-current power supplies, battery powered devices, DC/DC converters in distributed systems, and DC/DC converters for FPGAs. |
| |
Download Datasheet
Product Details | |
|
|
|
| 225-400 MHz SATCOM-on-the-Move Antenna | |
SATCOM Antenna
from ARA
|
| The ARA-0548PM from ARA is a SATCOM Antenna with a frequency range of 225-400 MHz. This UHF SATCOM antenna has a gain of 3-8 dBic and an axial ratio of 3 dB at half-power points. It has an impedance of 50 ohms and a power handling capacity of up to 200 W. This right-hand circular polarized SATCOM antenna has a VSWR of 1.5:1 and a minimum isolation of 24 dB. It supports N-female and TNC-female connectors and weighs 3.33 lbs. The antenna is ideal for high-speed SATCOM-on-the-move operations and is suitable for airborne and ground receivers. |
| |
Download Datasheet
Product Details | |
|
|
|

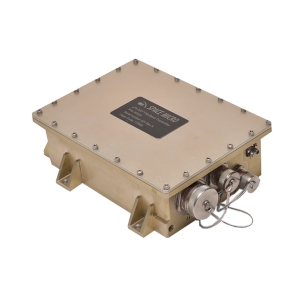

| 25.25-27.5 GHz Mission Data Transmitter | |
Space Transmitter
from Space Micro
|
| The µKaTx-300 from Space Micro is a Space Transmitter that has a frequency range of 25.25-27.5 GHz. This Ka-band transmitter is suited to operate in LEO, MEO, and GEO orbits and is flight-proven for NASA's commercial missions. It has a frequency accuracy of +/- 50 ppm and supports QPSK, OQPSK, and 8APSK modulation formats. This wideband amplifier supports RS-422, RS-485, and LVDS interfaces. It features radiation-tolerant design and ruggedized for launch and deployment. It is ideal for long-term space missions and programs requiring high data rates. |
| |
Download Datasheet
Product Details | |
|
|
|
| Ka-Band Test Loop Translator for Satellite Communications | |
Test Loop Translator
from GeoSync Microwave
|
| The TRR-30.5-20.7 from GeoSync Microwave is a Test Loop Translator with an input frequency range of 30-31 GHz and an output frequency range of 20.2-21.2 GHz. It has an LO frequency of 9.8 GHz and an impedance of 50 Ohms. It has an input/output return loss of 18 dB and a level control of 10 dB. It supports RS422 or RS485 serial interface and 10/100 Base-T Ethernet interface. The test loop translator weighs 4.5-6.4 Kg. It is designed for satellite communication applications where frequency translation is needed with a minimum amplitude and group delay distortion. |
| |
Download Datasheet
Product Details | |
|
|
|

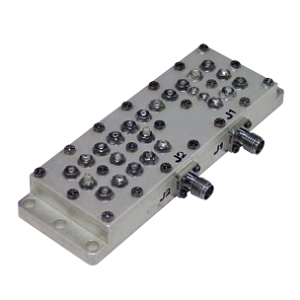

| 6836-7016 MHz Bandpass Filter for Satellite Applications | |
Space Qualified RF Filter
from Mercury Systems
|
| The C1814 from Mercury Systems is a Space Qualified RF Filter with a frequency range of 6838-7014 MHz and a maximum insertion loss of 1.7 dB. This RF filter has a passband ripple of 0.3 dB and a maximum group delay variation of 0.8 ns. It has a VSWR of 1.5:1 and a rejection of 65 dBc. The space-qualified filter features a cavity design and supports SMA female connectors as per MIL-C-39012 specifications. It weighs 0.15 lb and measures 0.75 x 1.25 x 4.0 inches. This compact RF filter is ideal for applications such as satellites, test equipment, and data links. |
| |
Download Datasheet
Product Details | |
|
|
|
| 50 W Radiation Hardened Isolated Power Converter | |
DC to DC Converter
from Microchip Technology
|
| The SA50-120-12S-A-H from Microchip Technology is a Radiation-Hardened DC-to-DC Converter that converts a DC input voltage of 120 V to a DC output voltage of 5 V. This radiation-hardened converter delivers an output power of up to 50 W and has an efficiency of up to 85% at full load conditions. The converter has a MIL-STD-461-compliant internal EMI filter and consists of differential and common mode components to attenuate conductive EMI noise effectively. It is based on flight-proven technology with a high MTBF and is ideal for space and military applications. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by GLOBAL MILSATCOM 2024 | | GLOBAL MILSATCOM 2024 | | Enabling you to Connect with, Learn from and Shape the MilSatCom Community
It’s time to join 1000 of your peers and unlock unparalleled insights from over 100 of the biggest experts in the field to ensure you stay ahead in the dynamic landscape of military satellite communications. Click here to learn more | | | |
|
|

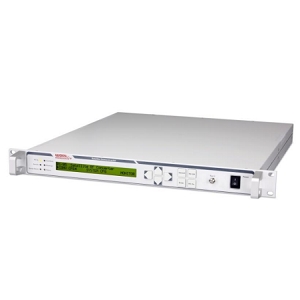

| 19.4-21.2 GHz Satellite Downconverter | |
Block Downconverter
from WORK Microwave
|
| The VHCD-Ka3 / VSCD-Ka3 from WORK Microwave is a Block Downconverter that has an input RF frequency range of 19.4-21.2 GHz and an intermediate frequency of 2440/2450 MHz. This Ka-band downconverter has a frequency resolution of 100 Hz and a phase noise of up to -108 dBc/Hz (1 MHz). It supports remote control through RS232, RS422/485 (2-wire or 4-wire) interfaces, Ethernet supporting a TCP/IP command interface, a Web browser interface, and SNMP. It features automatic reference recognition (5 and 10 MHz) and an adjustable gain equalizer. |
| |
Download Datasheet
Product Details | |
|
|
|

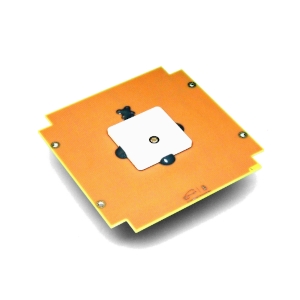

| Patch Antenna Module for CubeSats | |
Satellite Antenna
from SkyFox Labs
|
| The piPATCH-L1E1 from SkyFox Labs is a Satellite Antenna that supports GALILEO constellation. This patch antenna requires a power supply of 2.7-5.5 V and has a power consumption of 20 mA, 3.3 V. It comes with an integrated low noise amplifier as well as SAW filter that are matched together with 35 × 35 mm patch antenna on a large ground plane. It has a stable 50+ dBc-Hz SNR on ground for close-to-zenith satellites. The antenna has attained TRL9 qualification and is ideal for Nadir/Zenith oriented satellites such as ground-scanning telescope missions. |
| |
Download Datasheet
Product Details | |
|
|
|

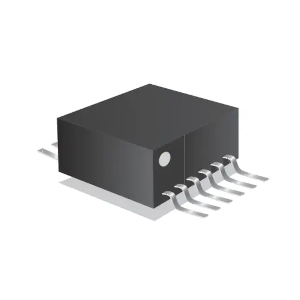

| 8.9 mH Space Grade Current Sense Transformer | |
Space Qualified Power Transformer
from Vanguard Electronics
|
| The SCS307 from Vanguard Electronics is a Space Qualified Power Transformer with an inductance of 8.9 mH. This space grade transformer has a turns ratio of 1:1:100:100 and requires an ET reference voltage of 40 V. It has a direct current resistance of 3.8 Ohms. It has an insulation resistance of 10 K MOhms and a dielectric withstanding voltage of 500 Vac. It features Tin-Lead terminations and welded internal connections. The transformer is built to meet MIL-STD-981 specifications and its compact, low profile, makes it ideal for automatic placement. |
| |
Download Datasheet
Product Details | |
|
|
|

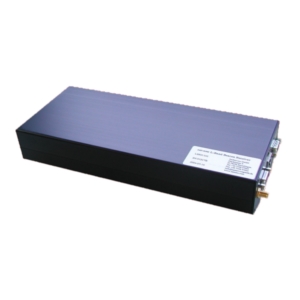

| L-Band Beacon Receiver for Antenna Tracking Systems | |
Satellite Beacon Receiver
from SatService
|
| The sat-nms LBRX-1MT from SatService is a Satellite Beacon Receiver that measures the RF input level and provides the information as an output signal for control systems. It has a full L-band tuning range of 950-2050 MHz. It supports RS-232 interface for remote control and Serial RS-422 TX as output interface that provides the level information via a 2 byte packet per measurement with a minimum protocol with parity control. This beacon receiver features 14/18 V 0/22 kHz interface to switches and switch matrixes, and relay contact output for level alarm. |
| |
Download Datasheet
Product Details | |
|
|
|

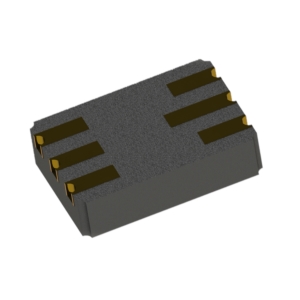

| 6 Pin LCC Radiation Tolerant Optocoupler | |
Space Qualified Optocoupler
from Micropac Industries
|
| The 66224-308 from Micropac Industries is a Space Qualified Optocoupler with a forward voltage range of 0.8-1.7 V and a static reverse current of 100 µA. It has a collector-to-emitter breakdown voltage of 40 V and an emitter-to-base breakdown voltage of 7 V. This phototransistor output optocoupler has an on-state collector current of 1-5 mA. This optocoupler is designed for applications such as the elimination of ground loops, level shifting, line receivers, switching power supplies, motor control and process control input/output isolation. |
| |
Download Datasheet
Product Details | |
|
|
|
| Triple-Junction Solar Cell for LEO Missions | |
Satellite Solar Cell
from Rocket Lab
|
| The ZTJ - Ohm from Rocket Lab is a Satellite Solar Cell with a BOL efficiency of 32 % at maximum power point. It has a current density of 16.8 mA/cm2 at max. power. This triple-Junction, n-on-p solar cell lattice is matched on germanium substrate and is compatible with corner-mounted silicon bypass diode for individual cell reverse bias protection. It has excellent mechanical strength for reduced attrition during assembly and laydown. The solar cell has extensive flight heritage and is optimized for LEO missions in environments dominated primarily by charged protons. |
| |
Download Datasheet
Product Details | |
|
|
| Sponsored by GLOBAL MILSATCOM 2024 | | |
|
|

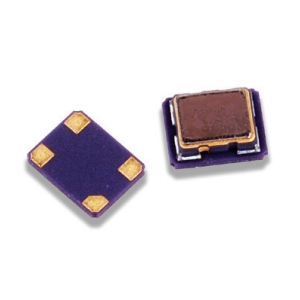

| 10-40 MHz Ultra-Miniature Precision TCXO for GPS Receivers | |
Space Qualified Oscillator
from Connor-Winfield Corporation
|
| The C11 from Connor-Winfield Corporation is a Space Qualified Oscillator with a frequency range of 10-40 MHz and a frequency stability of +/- 0.50 ppb. It crystal oscillator requires a supply voltage of 2.5 Vdc and a supply current of 2 mA. It has a low period jitter of 3-5 ps rms and an integrated phase jitter of 0.3-1.0 ps rms. It produces clipped sine wave with an output voltage of 1 V peak-to-peak. This RoHS-compliant oscillator comes in an ultra-miniature 2.5 x 3.2 mm hermetically sealed ceramic SMT package and is ideal for use in GPS receivers. |
| |
Download Datasheet
Product Details | |
|
|
|
| 0.95-1.75 GHz 1/3 Rack-Mount Amplifier System | |
SATCOM Amplifier System
from L3Harris Narda-MITEQ
|
| The TRA-095175 from Narda-MITEQ is a SATCOM Amplifier System with a frequency range of 0.95-1.75 GHz. This rack mount amplifier system has a minimum gain of 30 dB and a power output of 10 dBm at 1 dB compression. It has a maximum noise figure of 8 dB and an AM/PM conversion of 0.5 Degree/dB maximum to 0 dBm output. It has an input/output return loss of 20 dB and a input/output impedance of 50 Ohms. This CE-certified system features RF hot-swappable units and current fault-detection. It weighs 1.36 Kg and measures 144.8 x 37.6 x 457.2 mm. |
| |
Download Datasheet
Product Details | |
|
|
|

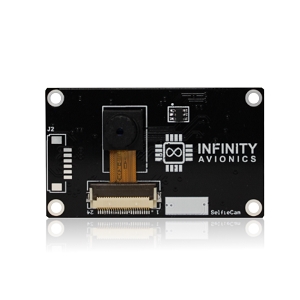

| TRL9 Low Resolution Space Asset Monitoring Camera | |
Satellite Camera
from Infinity Avionics
|
| The SelfieCam-Video from Infinity Avionics is a Satellite Camera that is designed to capture and save images in a non-volatile memory. It has a field of view of 40, 90, and 110 degrees and a pixel resolution of 1024 x 768, 800 x 600 and 640 x 480. It uses JPEG image encoding format and has an onboard storage capacity of up to 500 images. It captures images with a frame rate of 12 FPS and has a baud rate of 115200. It is designed to support missions with limited downlink bandwidth and is ideal for space deployment monitoring such as solar panels and antenna. |
| |
Download Datasheet
Product Details | |
|
|
|

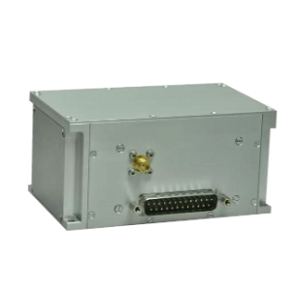

| Space-Qualified Rubidium Frequency Atomic Clock | |
Space Qualified Atomic Clock
from Safran Group
|
| This MiniRAFS from Safran Group is a Space-Qualified Atomic Clock for LEO, MEO, and GEO orbits with a design life of more than 20 years. It has a phase noise of -135 to -64 dBc/Hz and a return loss of greater than 20 dB. This miniaturized atomic clock has harmonics of less than 30 dBc and spurious signals of less than -80 dB. It requires a DC supply of 15.5-16.5 V. It is ideal for applications such as space scientific missions, secure satellite communications, tracking and guidance control, and advanced low satellite orbit digital communications. |
| |
Download Datasheet
Product Details | |
|
