Alga C-Band, 48 dBm Block Upconverter

SKU: ALTX–C-60W

Block Upconverter by Alga Microwave (10 more products)

Note : Your request will be directed to Alga Microwave.

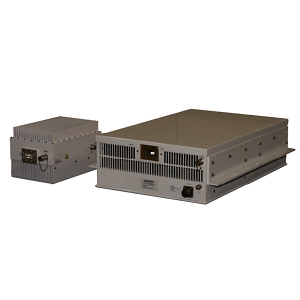

ALTX–C-60W Image

The ALTX–C-60W from Alga Microwave is a Block Upconverter with AC Voltage 110 to 240 VAC, DC Voltage 48 V, Gain 70 dB, Gain Flatness ±2 dB, Harmonics -50 dBc. Tags: Rack Mount. More details for ALTX–C-60W can be seen below.

Product Specifications

Product Details

  • Part Number
    ALTX–C-60W
  • Manufacturer
    Alga Microwave
  • Description
    Alga C-Band, 48 dBm Block Upconverter

General Parameters

  • AC Voltage
    110 to 240 VAC
  • Application
    Satellite Communications
  • Connector
    N Type, N Type - Female
  • DC Voltage
    48 V
  • Dimension
    9.5 x 6 x 6 Inches
  • Gain
    70 dB
  • Gain Control
    Yes
  • Gain Flatness
    ±2 dB
  • Harmonics
    -50 dBc
  • Impedance
    50 Ohms
  • Input Frequency
    950 MHz to 1.525 GHz
  • Input Frequency Band
    L Band
  • Input Power
    0 dBm
  • Interface
    RS-485
  • LO Frequency
    4.90 GHz
  • Noise Figure
    12 dB
  • Operating Temperature
    -40 to 55 Degree C
  • Output Frequency
    5.850 to 6.425 GHz
  • Output Frequency Band
    C Band
  • Output Power
    48 dBm(Psat), 47 dBm(P1)
  • P1 dB
    47 dBm
  • Package Type
    Rack Mount
  • Phase Noise
    -143 to -135 dBc/Hz
  • Redundancy
    Yes
  • Return Loss
    14 dB
  • Spurious
    -60 dBc
  • VSWR
    1.50:1
  • Waveguide
    CPR 137-G
  • Weight
    6.7 Kg
