Ku-Band, SATCOM Block Upconverter from 14 to 14.5 GHz

SKU: AM-9343-1436-WVEY-N

Block Upconverter by Amplus Communication
28 more products
Download Datasheet Request Information

Note : Your request will be directed to Amplus Communication.

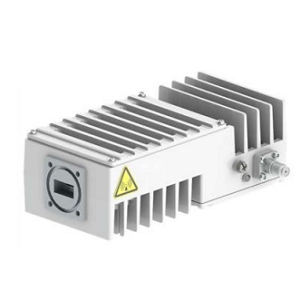

AM-9343-1436-WVEY-N Image

The AM-9343-1436-WVEY-N from Amplus Communication is a Block Upconverter with DC Voltage 13 to 28 V, Gain 56 to 62 dB, Gain Flatness ±0.75 to 2.5 dB, Input Frequency 950 MHz to 1.45 GHz, Input Power 13 dBm. Tags: Module with Connectors, Waveguide. More details for AM-9343-1436-WVEY-N can be seen below.

Product Specifications

Product Details

  • Part Number
    AM-9343-1436-WVEY-N
  • Manufacturer
    Amplus Communication
  • Description
    Ku-Band, SATCOM Block Upconverter from 14 to 14.5 GHz

General Parameters

  • Application
    SCPC, DAMA, TDMA, VSAT, Satellite Earth Stations, Telephony, Video Conferencing, Data Communications Systems
  • Connector
    N Type, N Type - Female
  • DC Voltage
    13 to 28 V
  • Dimension
    5.9 x 3.3 x 2.3 Inches(L x W x H)
  • Gain
    56 to 62 dB
  • Gain Control
    No
  • Gain Flatness
    ±0.75 to 2.5 dB
  • Input Frequency
    950 MHz to 1.45 GHz
  • Input Frequency Band
    L Band
  • Input Power
    13 dBm
  • LO Frequency
    13.05 GHz
  • Operating Temperature
    -40 to 55 Degree C
  • Output Frequency
    14 to 14.5 GHz
  • Output Frequency Band
    Ku band
  • Output Power
    36 dBm(P1)
  • P1 dB
    36 dBm
  • Package Type
    Module with Connectors, Waveguide
  • Phase Noise
    -105 to -65 dBc/Hz
  • Redundancy
    No
  • Spurious
    -70 to -55 dBc
  • Storage Temperature
    -40 to 75 Degree C
  • VSWR
    2.00:1
  • Waveguide
    WR-75
  • Weight
    1.2 Kg
