  5. SWF-G1S-QX-116

L to Ku-Band, Frequency Converter with Variable Gain

SKU: SWF-G1S-QX-116

Block Upconverter by ETL Systems
5 more products
Download Datasheet Request Information

Note : Your request will be directed to ETL Systems.

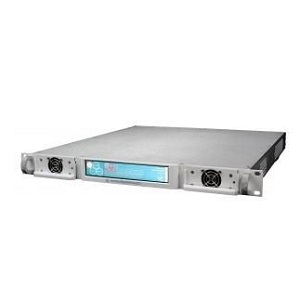

SWF-G1S-QX-116 Image

The SWF-G1S-QX-116 from ETL Systems is a Block Upconverter with AC Voltage 85 to 264 VAC, Gain -7.3 to 22.7 dB, Gain Flatness ±0.3 to 1.5 dB, Image Rejection 60 dB, Impedance 50 Ohms. Tags: Rack Mount. More details for SWF-G1S-QX-116 can be seen below.

Product Specifications

Product Details

  • Part Number
    SWF-G1S-QX-116
  • Manufacturer
    ETL Systems
  • Description
    L to Ku-Band, Frequency Converter with Variable Gain

General Parameters

  • AC Voltage
    85 to 264 VAC
  • Application
    Teleports & Earth Stations, Satellite Operations, Government & Defence applications, Telemetry, Tracking & Command, High Resilience applications
  • Connector
    SMA, BNC
  • Dimension
    1U high x 550mm deep x 19 Inches
  • Gain
    -7.3 to 22.7 dB
  • Gain Control
    No
  • Gain Flatness
    ±0.3 to 1.5 dB
  • Image Rejection
    60 dB
  • Impedance
    50 Ohms
  • Input Frequency
    950 MHz to 2.050 GHz
  • Input Frequency Band
    L Band
  • Input Power
    -75 to -35 dBm
  • Interface
    Remote: Ethernet via RJ45, 10BaseT/100 BaseTx. TCP/IP, SNMP V3 & HTTPS
  • LO Frequency
    8.15 GHz
  • Noise Figure
    9.8 to 13.5 dB
  • OIP3
    5.5 to 8.5 dBm
  • Operating Temperature
    0 to 45 Degree C
  • Output Frequency
    17.3 to 18.4 GHz
  • Output Frequency Band
    Ka Band
  • Output Power
    -5 to -2 dBm(P1)
  • P1 dB
    -5 to -2 dBm
  • Package Type
    Rack Mount
  • Phase Noise
    -90 to -60 dBc/Hz
  • Redundancy
    Yes
  • Return Loss
    -15 to -7 dB
  • Storage Temperature
    -20 to 75 Degree C
  • Weight
    10 Kg
  • Note
    Power Consumption : 150 W
