C-Band, 10W Block Upconverter

SKU: GMU067070B01

Block Upconverter by Genmix Technology
18 more products
Download Datasheet Request Information

Note : Your request will be directed to Genmix Technology.

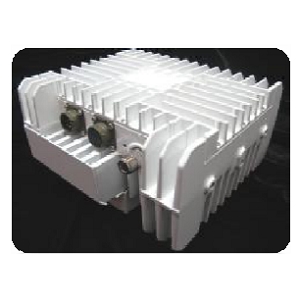

GMU067070B01 Image

The GMU067070B01 from Genmix Technology is a Block Upconverter with DC Voltage 18 to 60 V, Gain 65 dB(Linear Gain), Input Frequency 975 MHz to 1.275 GHz, LO Frequency 5.75 GHz, Operating Temperature -40 to 55 Degree C. Tags: Module with Connectors. More details for GMU067070B01 can be seen below.

Product Specifications

Product Details

  • Part Number
    GMU067070B01
  • Manufacturer
    Genmix Technology
  • Description
    C-Band, 10W Block Upconverter

General Parameters

  • Application
    C-band High power BUCs for VSAT, INSAT band, SatCom
  • Connector
    N Type, N Type - Female, F Type, F Type - Female
  • DC Voltage
    18 to 60 V
  • Dimension
    220 x 194.2x 103.5 mm
  • Gain
    65 dB(Linear Gain)
  • Gain Control
    No
  • Input Frequency
    975 MHz to 1.275 GHz
  • Input Frequency Band
    L Band
  • LO Frequency
    5.75 GHz
  • Operating Temperature
    -40 to 55 Degree C
  • Output Frequency
    6.725 to 7.025 GHz
  • Output Frequency Band
    C Band
  • Output Power
    40 dBm(p1)
  • P1 dB
    40 dBm
  • Package Type
    Module with Connectors
  • Phase Noise
    -95 to -65 dBc/Hz
  • Redundancy
    No
  • Spurious
    -60 to -50 dBc
  • VSWR
    2.00:1
  • Waveguide
    WR-137
  • Weight
    4.5 Kg
