Standard C-Band 10 W Block Upconverter from 5.850 to 6.425 GHz

SKU: NJT5762FA

Block Upconverter by Nisshinbo Micro Devices
127 more products
Download Datasheet Request Information

Note : Your request will be directed to Nisshinbo Micro Devices.

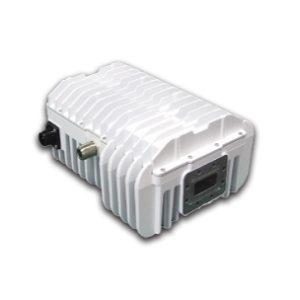

NJT5762FA Image

The NJT5762FA from Nisshinbo Micro Devices is a Block Upconverter with AC Voltage 90 to 264 VAC, DC Voltage 18 to 60 V, Gain 58 to 61 dB(Linear Gain), Impedance 75 Ohms, Input Frequency 950 MHz to 1.525 GHz. Tags: Waveguide. More details for NJT5762FA can be seen below.

Product Specifications

Product Details

  • Part Number
    NJT5762FA
  • Manufacturer
    Nisshinbo Micro Devices
  • Description
    Standard C-Band 10 W Block Upconverter from 5.850 to 6.425 GHz

General Parameters

  • AC Voltage
    90 to 264 VAC
  • Connector
    F Type, F Type - Female
  • DC Voltage
    18 to 60 V
  • Dimension
    219.5 x 175 x 99 mm(L x W x H)
  • Gain
    58 to 61 dB(Linear Gain)
  • Gain Control
    No
  • Impedance
    75 Ohms
  • Input Frequency
    950 MHz to 1.525 GHz
  • Input Frequency Band
    L Band
  • Input Power
    -5 to 5 dBm
  • LO Frequency
    4.90 GHz
  • Operating Temperature
    -40 to 55 Degree C
  • Output Frequency
    5.850 to 6.425 GHz
  • Output Frequency Band
    C Band
  • Output Power
    40 dBm(P1)
  • P1 dB
    40 dBm
  • Package Type
    Waveguide
  • Phase Noise
    -140 to -125 dBc/Hz
  • Redundancy
    No
  • Spurious
    -50 dBc
  • Storage Temperature
    -40 to 75 Degree C
  • VSWR
    2.00:1
  • Waveguide
    WR-137
  • Weight
    3.2 Kg
  • Note
    Power Consumption : 69 to 75 W
