Standard C-Band 2 W Block Upconverter from 5.850 to 6.725 GHz

SKU: NJT8102WN

Block Upconverter by Nisshinbo Micro Devices
127 more products
Download Datasheet Request Information

Note : Your request will be directed to Nisshinbo Micro Devices.

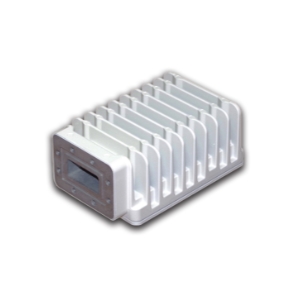

NJT8102WN Image

The NJT8102WN from Nisshinbo Micro Devices is a Block Upconverter with DC Voltage 12 to 30 V, Gain 52 to 58 dB(Linear Gain), Input Frequency 950 MHz to 1.825 GHz, LO Frequency 4.9 GHz, Operating Temperature -40 to 60 Degree C. Tags: Waveguide. More details for NJT8102WN can be seen below.

Product Specifications

Product Details

  • Part Number
    NJT8102WN
  • Manufacturer
    Nisshinbo Micro Devices
  • Description
    Standard C-Band 2 W Block Upconverter from 5.850 to 6.725 GHz

General Parameters

  • Connector
    N Type, N Type - Female
  • DC Voltage
    12 to 30 V
  • Dimension
    135.4 x 85 x 56 mm(L x W x H)
  • Gain
    52 to 58 dB(Linear Gain)
  • Gain Control
    No
  • Input Frequency
    950 MHz to 1.825 GHz
  • Input Frequency Band
    L Band
  • LO Frequency
    4.9 GHz
  • Operating Temperature
    -40 to 60 Degree C
  • Output Frequency
    5.850 to 6.725 GHz
  • Output Frequency Band
    C Band
  • Output Power
    33 dBm(P1)
  • P1 dB
    33 dBm
  • Package Type
    Waveguide
  • Phase Noise
    -100 to -60 dBc/Hz
  • Redundancy
    No
  • Storage Temperature
    -40 to 75 Degree C
  • VSWR
    2.00:1
  • Waveguide
    WR-137
  • Weight
    800 g
  • Note
    Power Consumption : 2 to 18 W
