Universal Ku-Band 4W Block Upconverter 13.75 to 14.5 GHz

SKU: NJT8304UN

Block Upconverter by Nisshinbo Micro Devices
127 more products
Download Datasheet Request Information

Note : Your request will be directed to Nisshinbo Micro Devices.

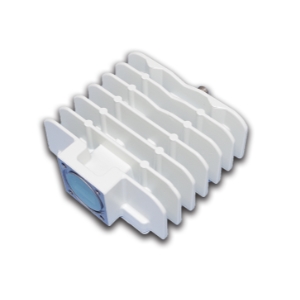

NJT8304UN Image

The NJT8304UN from Nisshinbo Micro Devices is a Block Upconverter with DC Voltage 12 to 30 V, Gain 56 to 62 dB(Linear Gain), Input Frequency 950 MHz to 1.7 GHz, LO Frequency 12.80 GHz, Operating Temperature -40 to 60 Degree C. Tags: Waveguide. More details for NJT8304UN can be seen below.

Product Specifications

Product Details

  • Part Number
    NJT8304UN
  • Manufacturer
    Nisshinbo Micro Devices
  • Description
    Universal Ku-Band 4W Block Upconverter 13.75 to 14.5 GHz

General Parameters

  • Connector
    N Type, N Type - Female
  • DC Voltage
    12 to 30 V
  • Dimension
    98 x 98 x 42.5 mm(L x W x H)
  • Gain
    56 to 62 dB(Linear Gain)
  • Gain Control
    No
  • Input Frequency
    950 MHz to 1.7 GHz
  • Input Frequency Band
    L Band
  • LO Frequency
    12.80 GHz
  • Operating Temperature
    -40 to 60 Degree C
  • Output Frequency
    13.75 to 14.5 GHz
  • Output Frequency Band
    Ku Band
  • Output Power
    36 dBm(P1)
  • P1 dB
    36 dBm
  • Package Type
    Waveguide
  • Phase Noise
    -100 to -60 dBc/Hz
  • Redundancy
    No
  • Storage Temperature
    -40 to 75 Degree C
  • VSWR
    2.00:1
  • Weight
    500 g
  • Note
    Power Consumption : 2 to 24 W
