Universal/Standard Ku-Band 8W Block Upconverter from 14 to 14.5 GHz

SKU: NJT8318NA

Note : Your request will be directed to Nisshinbo Micro Devices.

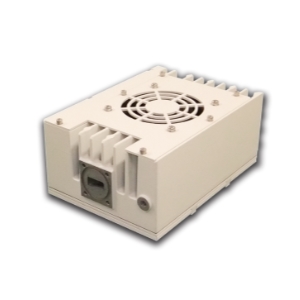

NJT8318NA Image

The NJT8318NA from Nisshinbo Micro Devices is a Block Upconverter with Gain 59 to 65 dB(Linear Gain), Impedance 50 Ohms, Input Frequency 950 MHz to 1.450 GHz, Input Power -5 to 5 dBm, LO Frequency 13.05 GHz. Tags: Waveguide. More details for NJT8318NA can be seen below.

Product Specifications

Product Details

  • Part Number
    NJT8318NA
  • Manufacturer
    Nisshinbo Micro Devices
  • Description
    Universal/Standard Ku-Band 8W Block Upconverter from 14 to 14.5 GHz

General Parameters

  • Connector
    N Type, N Type - Female
  • Dimension
    180 x 130 x 80 mm(L x W x H)
  • Gain
    59 to 65 dB(Linear Gain)
  • Gain Control
    No
  • Impedance
    50 Ohms
  • Input Frequency
    950 MHz to 1.450 GHz
  • Input Frequency Band
    L Band
  • Input Power
    -5 to 5 dBm
  • Interface
    RS-232C
  • LO Frequency
    13.05 GHz
  • Operating Temperature
    -40 to 75 Degree C
  • Output Frequency
    14 to 14.5 GHz
  • Output Frequency Band
    Ku Band
  • Output Power
    39 dBm(p1)
  • P1 dB
    39 dBm
  • Package Type
    Waveguide
  • Phase Noise
    -100 to -60 dBc/Hz
  • Redundancy
    No
  • Storage Temperature
    -40 to 75 Degree C
  • VSWR
    2.00:1
  • Waveguide
    WR-75
  • Weight
    2.4 kg
  • Note
    Power Consumption : 65 to 90 W
